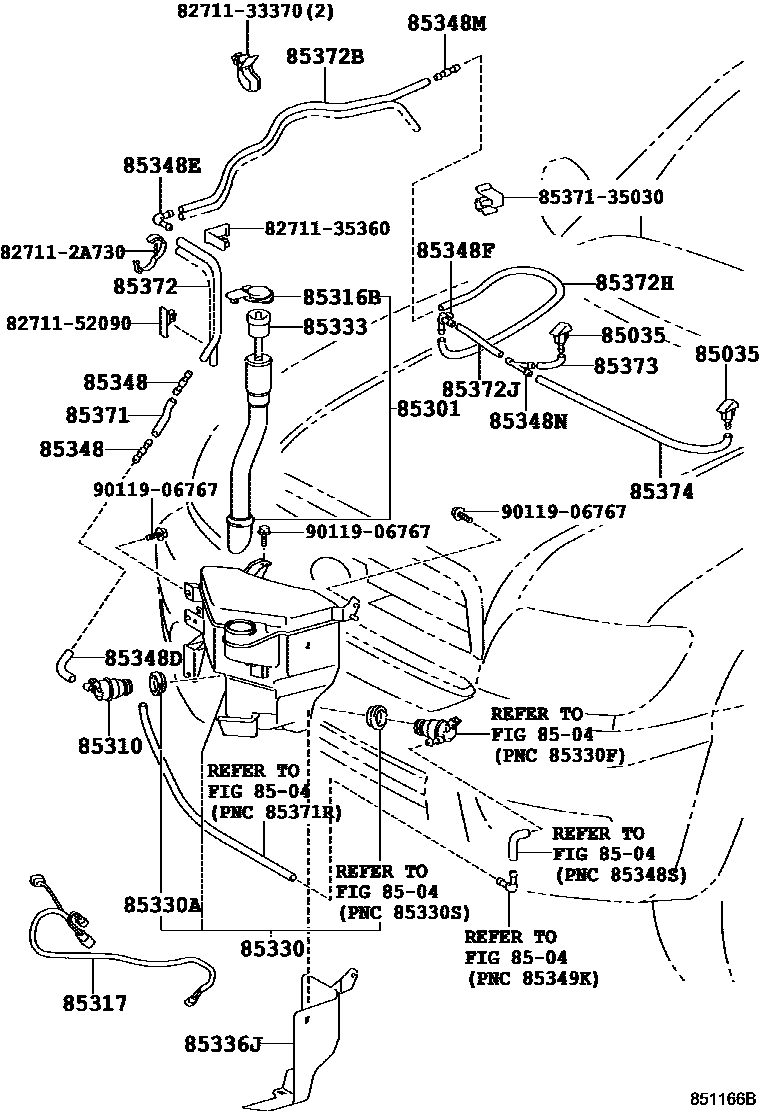

Toyota HILUX 挡风玻璃清洗器 — Figure 8503
Toyota HILUX EPC diagram 8503, 挡风玻璃清洗器, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85381-12060 · 85381-35100 |
| 85301 | Cleaner water inlet sub-assembly | 85301-60040 |
| 85310 | Windshield washer motor and pump assembly | 85330-60170 |
| 85316B | Cleaner water inlet cover | 85316-33120 |
| 85317 | Cleaner wiring assembly | 85317-60300 |
| 85330 | Windshield washer fluid tank assembly | 85315-60300 |
| 85330A | Windshield washer fluid tank bushing | 85336-60300 |
| 85333 | Windshield washer fluid tank filter | 85312-63010 |
| 85336J | Cleaning fluid tank protection device | 85336-60290 |
| 85348 | Windshield washer hose connector No. 1 | 85349-89122 |
| 85348D | No. 1 windshield washer elbow joint | 85355-14481 |
| 85348E | No. 2 windshield washer elbow joint | 85355-20200 |
| 85348F | No. 3 windshield washer elbow joint | 85375-33070 |
| 85348M | No. 3 windshield washer hose connector | 85349-89122 |
| 85348N | No. 4 windshield washer hose connector | 85348-12250 |
