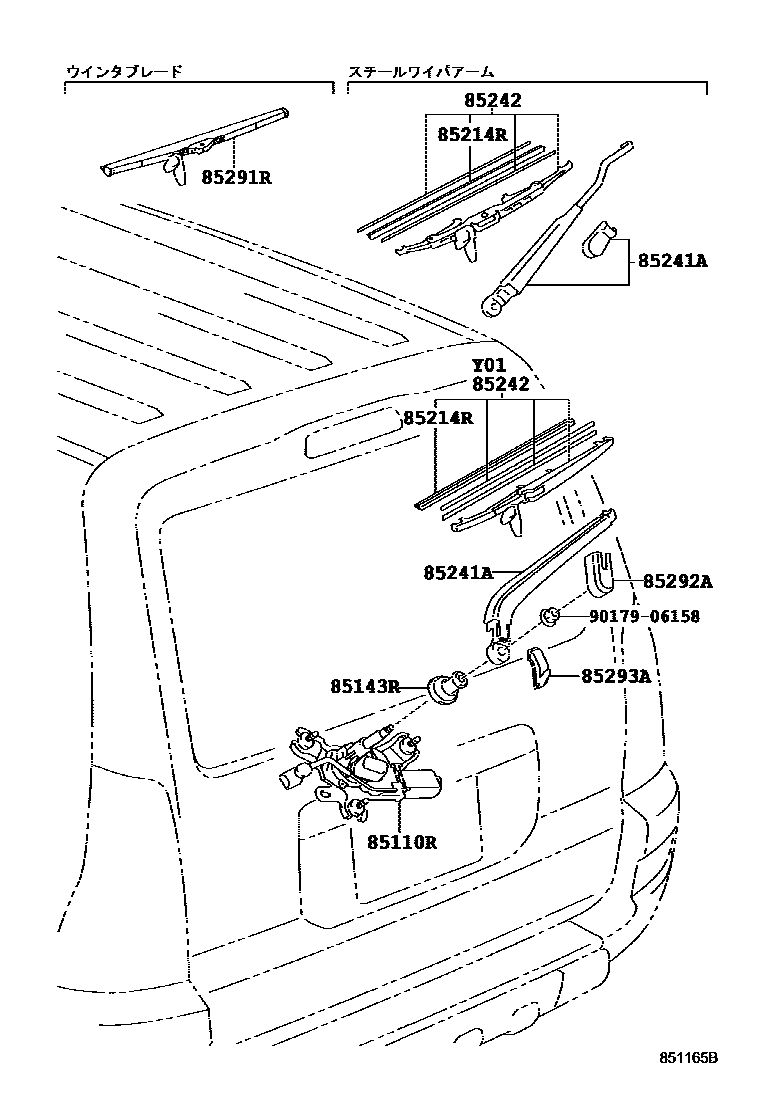

Toyota HILUX 后刮水器 — Figure 8502
Toyota HILUX EPC diagram 8502, 后刮水器, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110R | Rear wiper motor assembly | 85130-35080 |
| 85143R | Rear wiper motor seal | 85143-35070 |
| 85214R | Rear wiper rubber strip | 85214-22440 · 85223-65030 |
| 85241A | rear wiper arm | 85241-35030 · 85241-35031 · 85241-35040 |
| 85242 | Rear wiper blade | 85242-35020 · 85242-35021 · 85242-35030 |
| 85291R | Rear wiper blade for winter | 85291-35040 · 85291-35050 |
| 85292A | Rear wiper arm cap | 85292-35010 |
| 85293A | Right linear wiper step | 85293-35020 |
