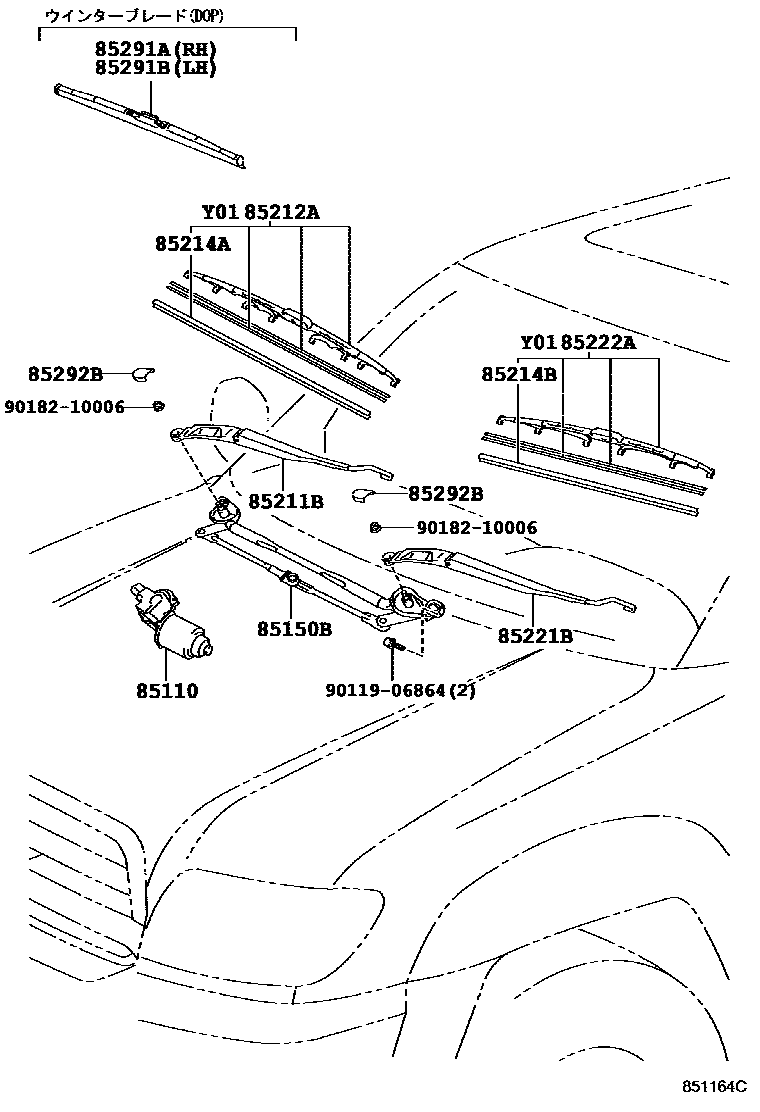

Toyota HILUX 挡风玻璃刮水器 — Figure 8501
Toyota HILUX EPC diagram 8501, 挡风玻璃刮水器, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110 | Windshield wiper motor assembly | 85110-13110 |
| 85150B | Wiper connecting rod assembly | 85150-35180 |
| 85211B | Right front wiper arm | 85211-35100 |
| 85212A | Right front wiper blade | 85212-35080 · 85212-60140 |
| 85214A | Right wiper rubber strip | 85214-48010 |
| 85214B | Left wiper rubber strip | 85214-24050 · 85214-24051 · 85214-53050 |
| 85221B | Left front wiper arm | 85221-35130 |
| 85222A | Left front wiper blade | 85222-35100 · 85222-35130 · 85222-35131 |
| 85291A | Right front wiper blade for winter use | 85291-35060 |
| 85291B | Left front wiper blade for winter use | 85291-33060 |
| 85292B | Front wiper arm cap | 85292-13010 |
