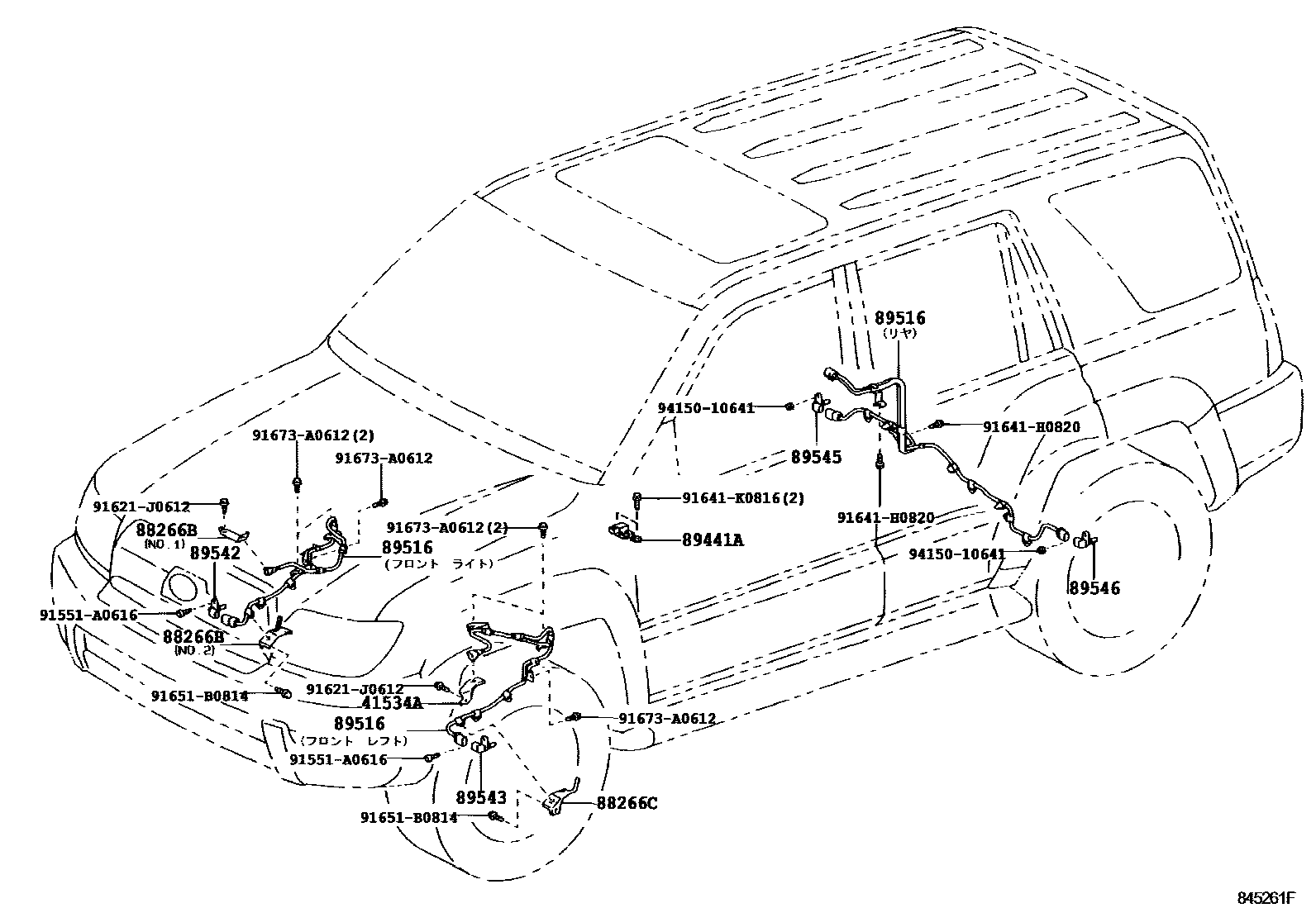

Toyota HILUX ABS 和 VSC — Figure 8414
Toyota HILUX EPC diagram 8414, ABS 和 VSC, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 41534A | Front differential breather bracket | 41534-60020 |
| 88266B | No. 1 anti-skid control sensor clip | 88266-60460 · 88266-60540 · 88266-60740 |
| 88266C | No. 2 anti-skid control sensor clip | 88266-60550 · 88266-60750 |
| 89441A | deceleration sensor | 89440-60130 |
| 89516 | Anti-skid control sensor wiring harness | 89516-60070 · 89516-60080 · 89516-60090 |
| 89542 | Right front wheel speed sensor | 89542-60050 |
| 89543 | Left front wheel speed sensor | 89543-60050 |
| 89545 | Right rear wheel speed sensor | 89542-60050 |
| 89546 | Left rear wheel speed sensor | 89543-60050 |
