Toyota HILUX 电子控制柴油机(ECD) — Figure 8405

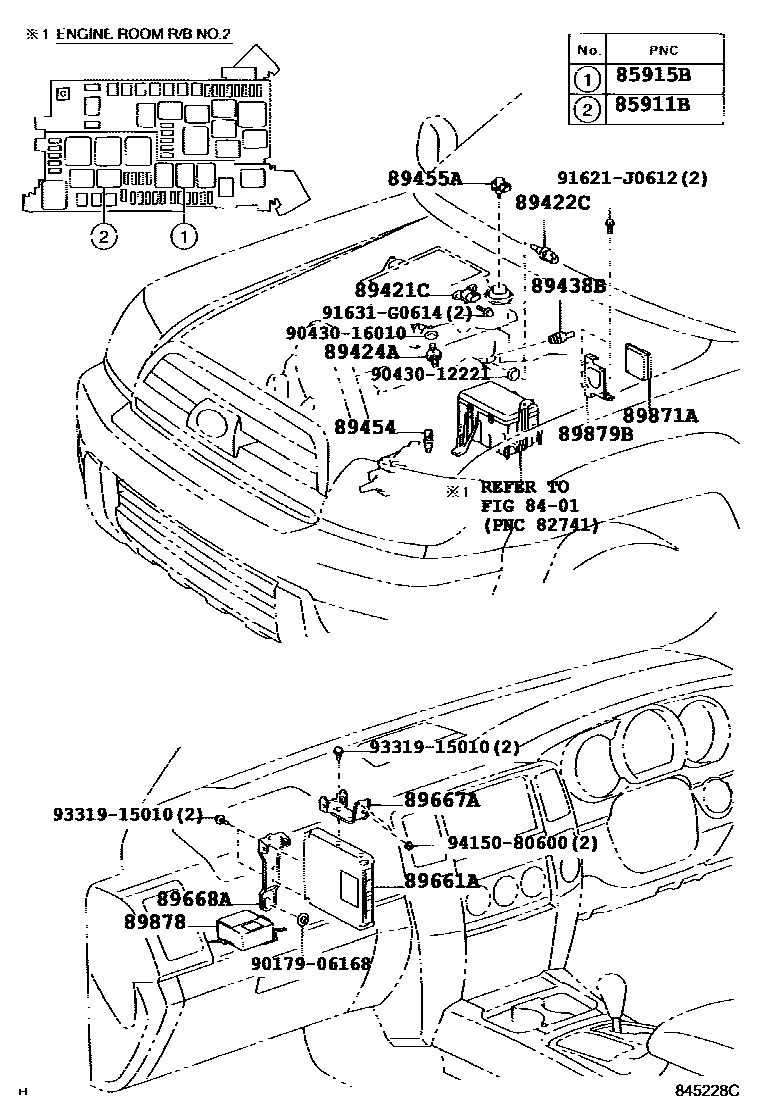

Toyota HILUX EPC diagram 8405, 电子控制柴油机(ECD), with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85911B | ECU relay (for diesel turbine) | 90987-02022 · 90987-02027 |
| 85915B | Main relay (for diesel turbine) | 90987-02022 · 90987-02027 |
| 89421C | Turbo pressure sensor (for diesel turbines) | 89421-20210 |
| 89422C | Diesel engine water temperature sensor | 89422-35010 |
| 89424A | Intake air temperature sensor (for diesel turbine) | 89424-60010 |
| 89438B | Power steering oil pressure switch | 89438-33010 |
| 89454 | fuel temperature sensor | 89454-60010 |
| 89455A | EGR valve position sensor | 89455-35020 |
| 89661A | Engine control ECU | 89666-35630 |
| 89667A | No. 1 engine control ECU bracket | 89667-60240 |
| 89668A | No. 2 engine control ECU bracket | 89668-60240 |
| 89871A | Injector driver | 89871-20050 |
| 89878 | Turbine Motor Drive | 89878-60010 · 89878-60011 |
| 89879B | Injector driver bracket | 89879-60060 |
