Toyota HILUX 电子燃油喷射系统 — Figure 8404

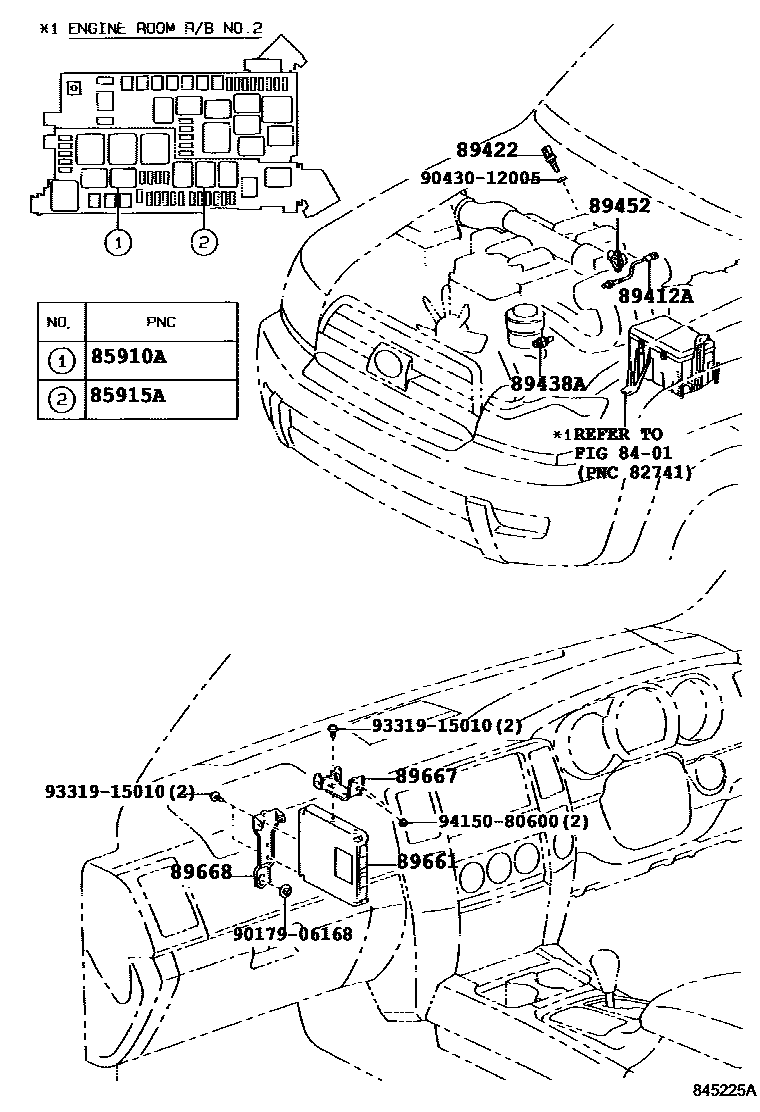

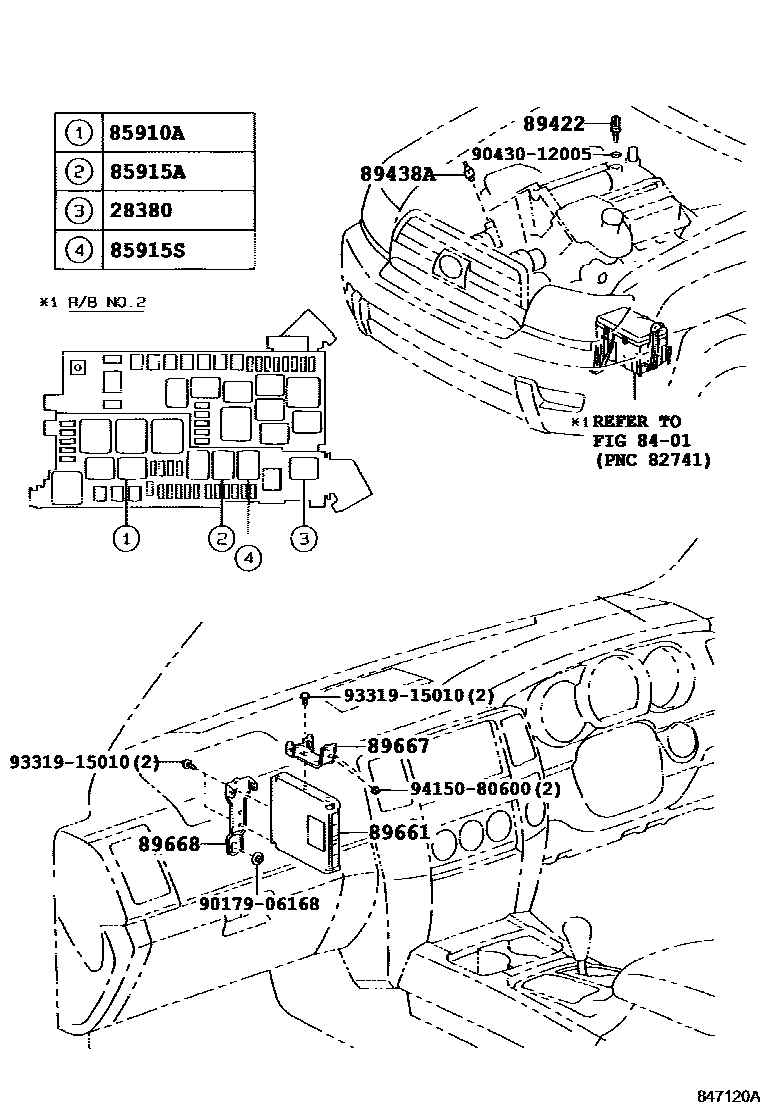

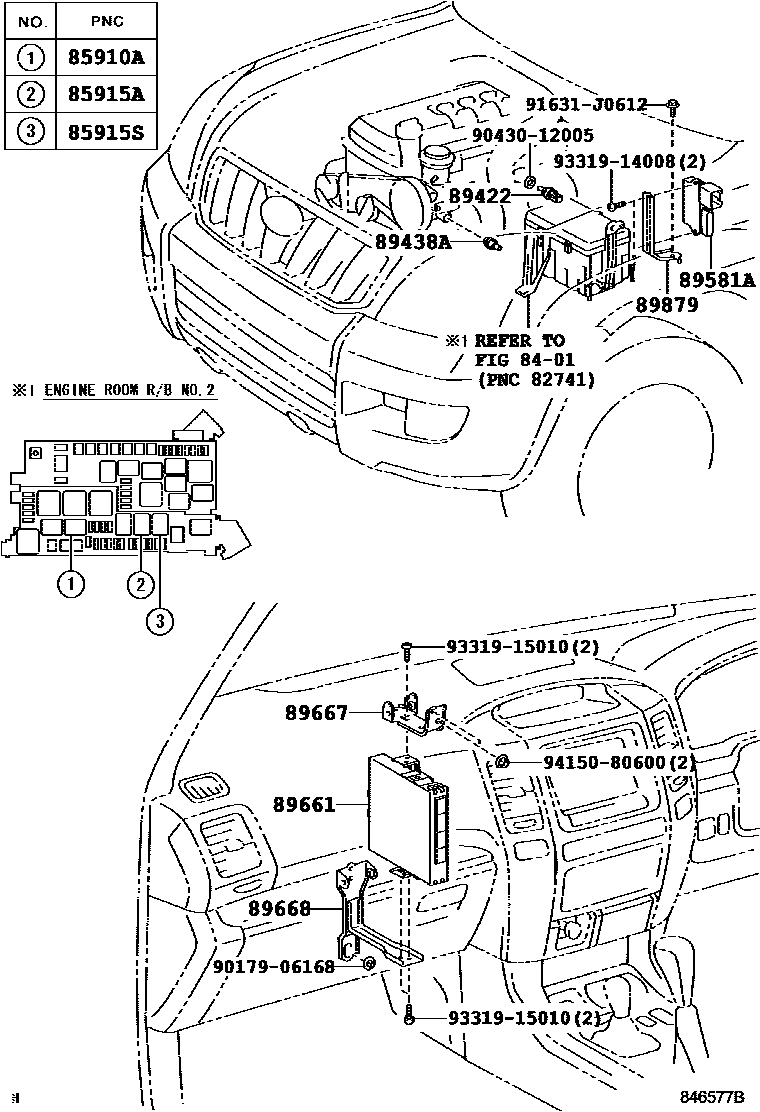

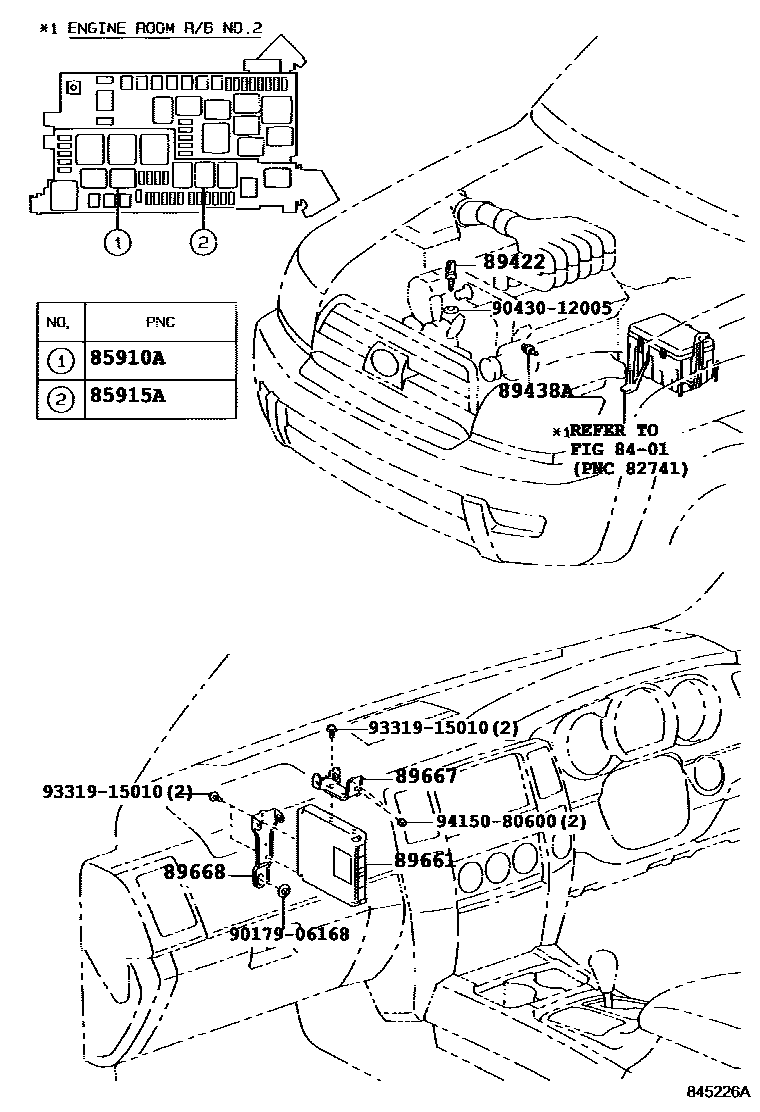

Toyota HILUX EPC diagram 8404, 电子燃油喷射系统, with 4 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28380 | Fuel pump relay assembly | 90987-04004 |
| 85910A | Circuit breaking relay assembly (for EFI) | 90987-02022 · 90987-02027 |
| 85915A | main relay | 90987-02022 · 90987-02027 |
| 85915S | Heater relay (for air-fuel ratio sensor) | 90987-02027 |
| 89412A | E.G.R exhaust gas temperature sensor | 89412-34010 |
| 89422 | Water temperature sensor (for E.F.I.) | 89422-33030 · 89422-35010 |
| 89438A | Power steering oil pressure switch | 89438-33010 |
| 89452 | Throttle position sensor (for E.F.I.) | 89452-35020 |
| 89581A | Air injection control driver | 89581-34040 · 89581-34041 · 89581-71010 |
| 89661 | Engine control ECU | 89661-35B10 · 89661-35B20 · 89661-35B70 · 89661-35C60 · 89666-35640 · 89666-35650 · 89666-35660 · 89666-35670 |
| 89667 | Engine control ECU bracket | 89667-60240 |
| 89668 | No. 2 engine control ECU bracket | 89668-60240 · 89668-60250 |
| 89879 | Injector driver bracket | 89589-60020 |
