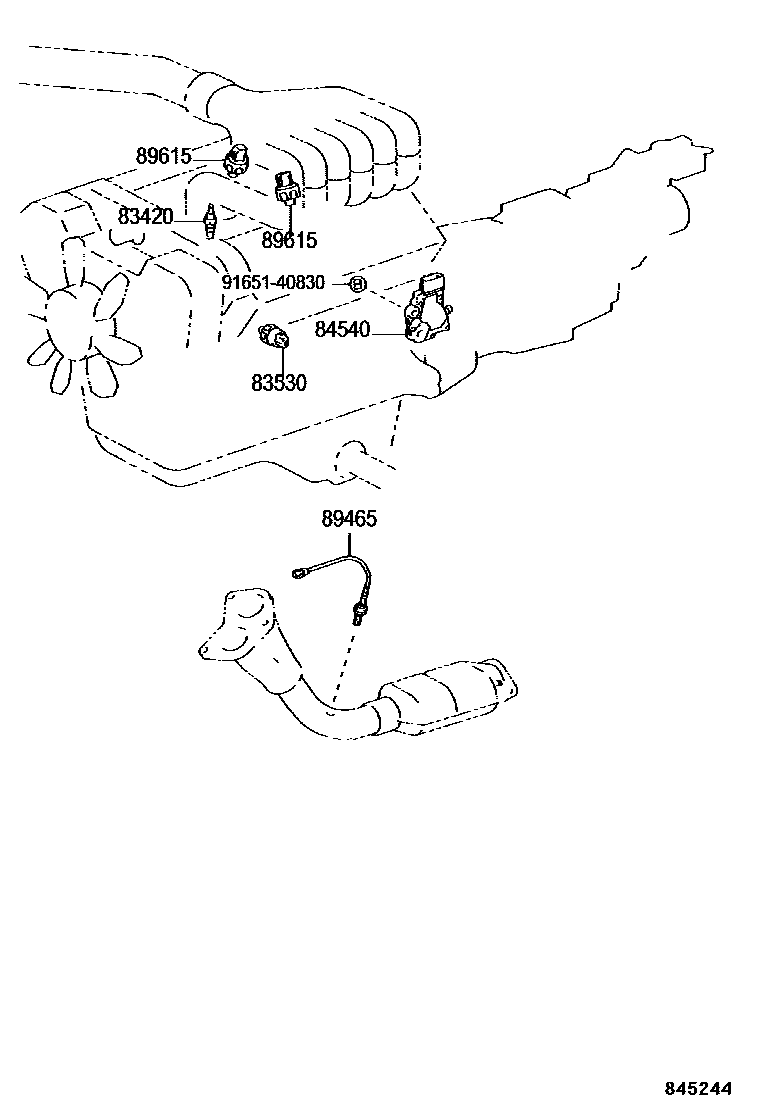

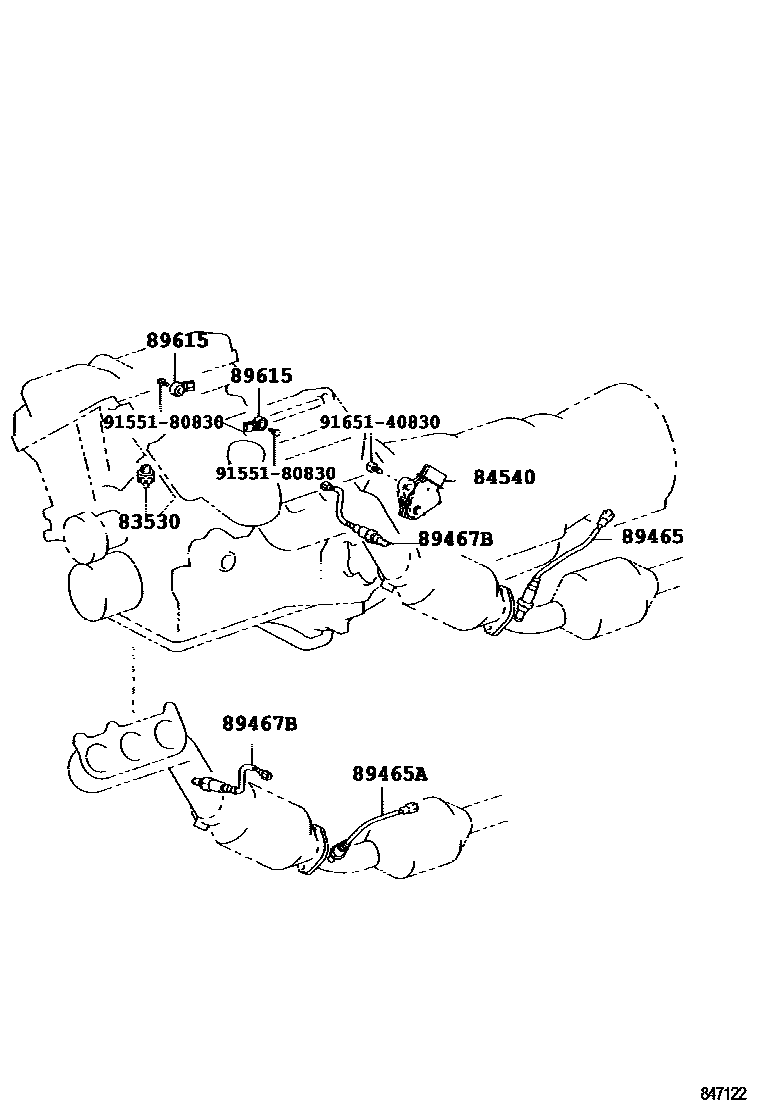

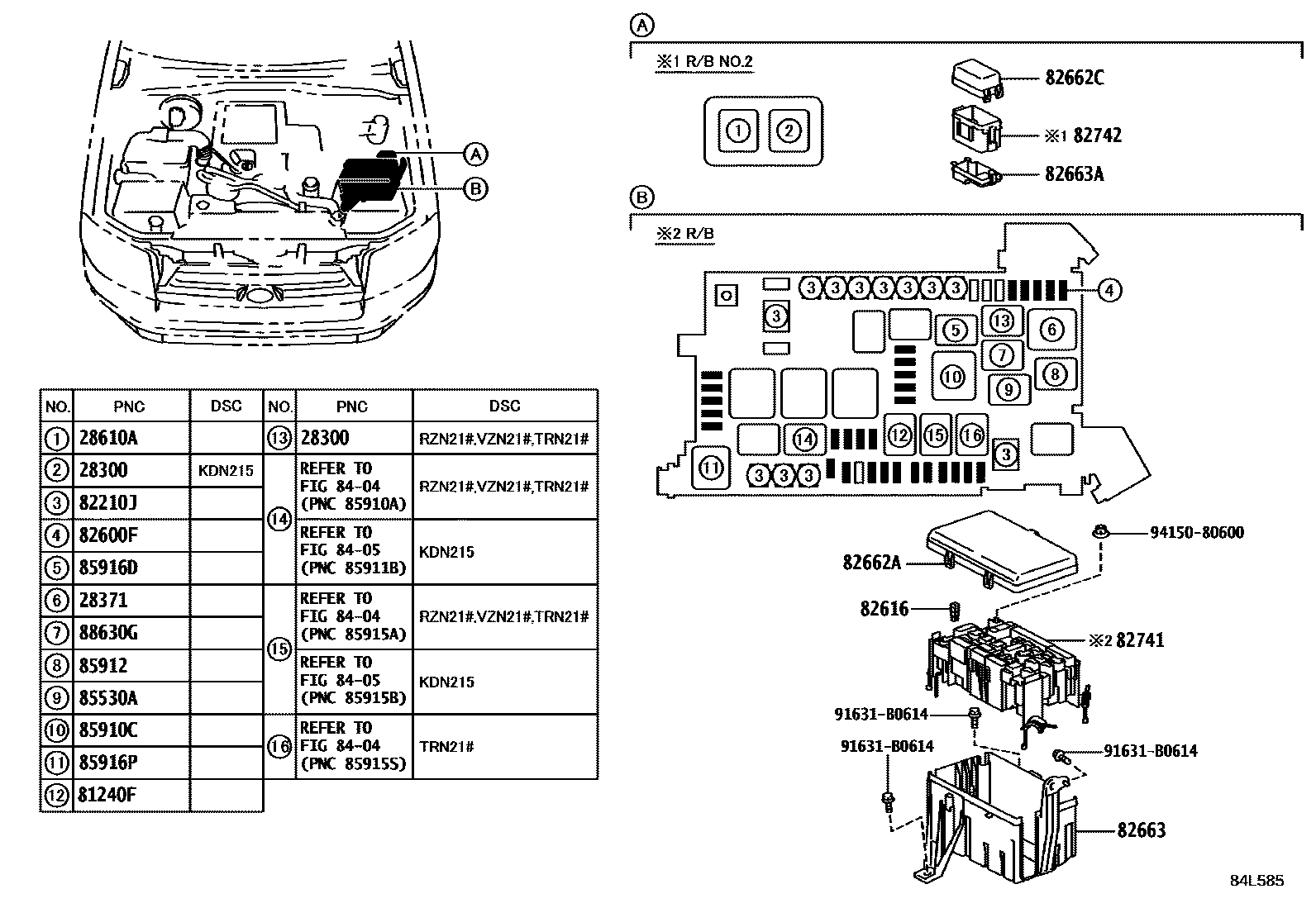

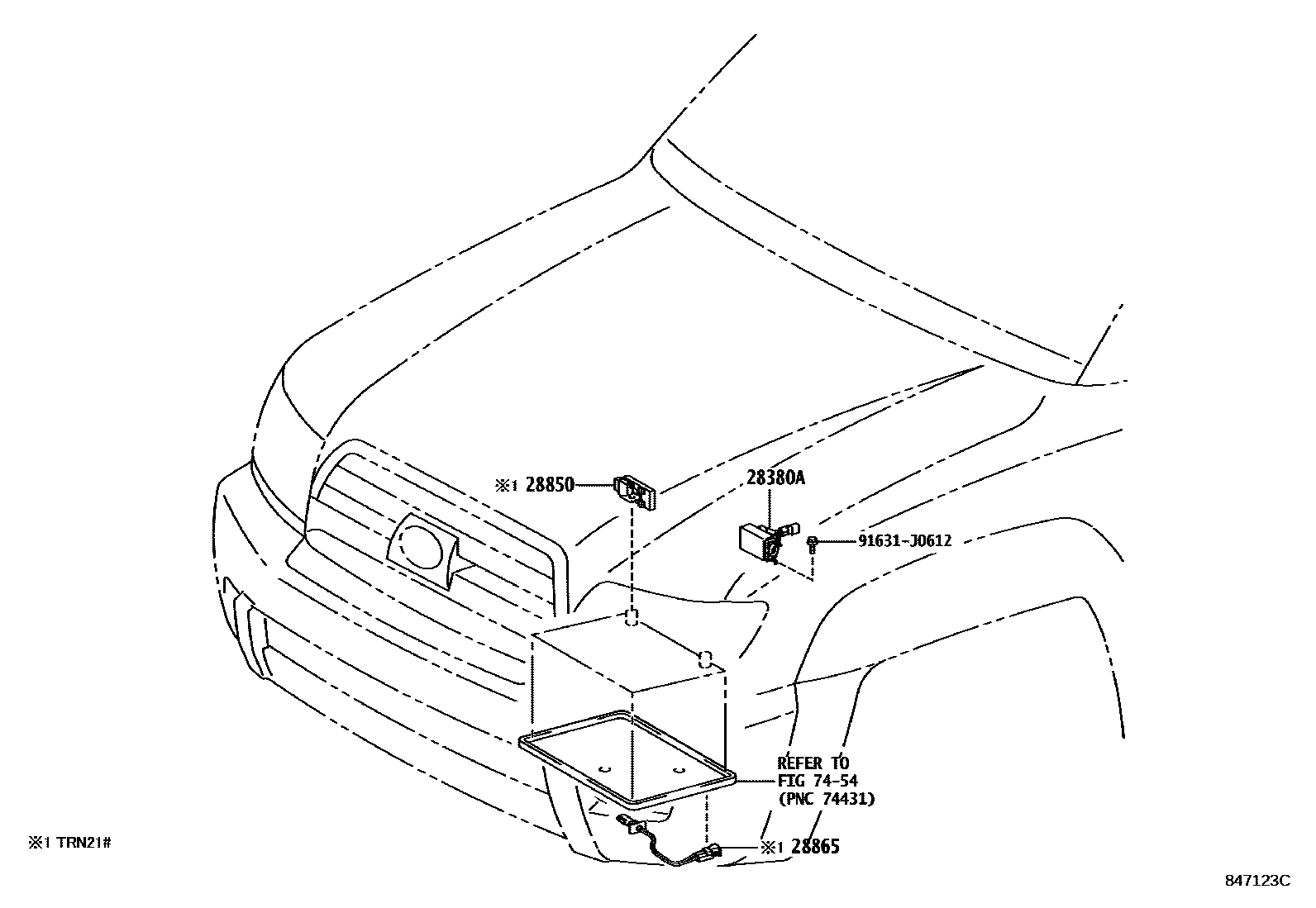

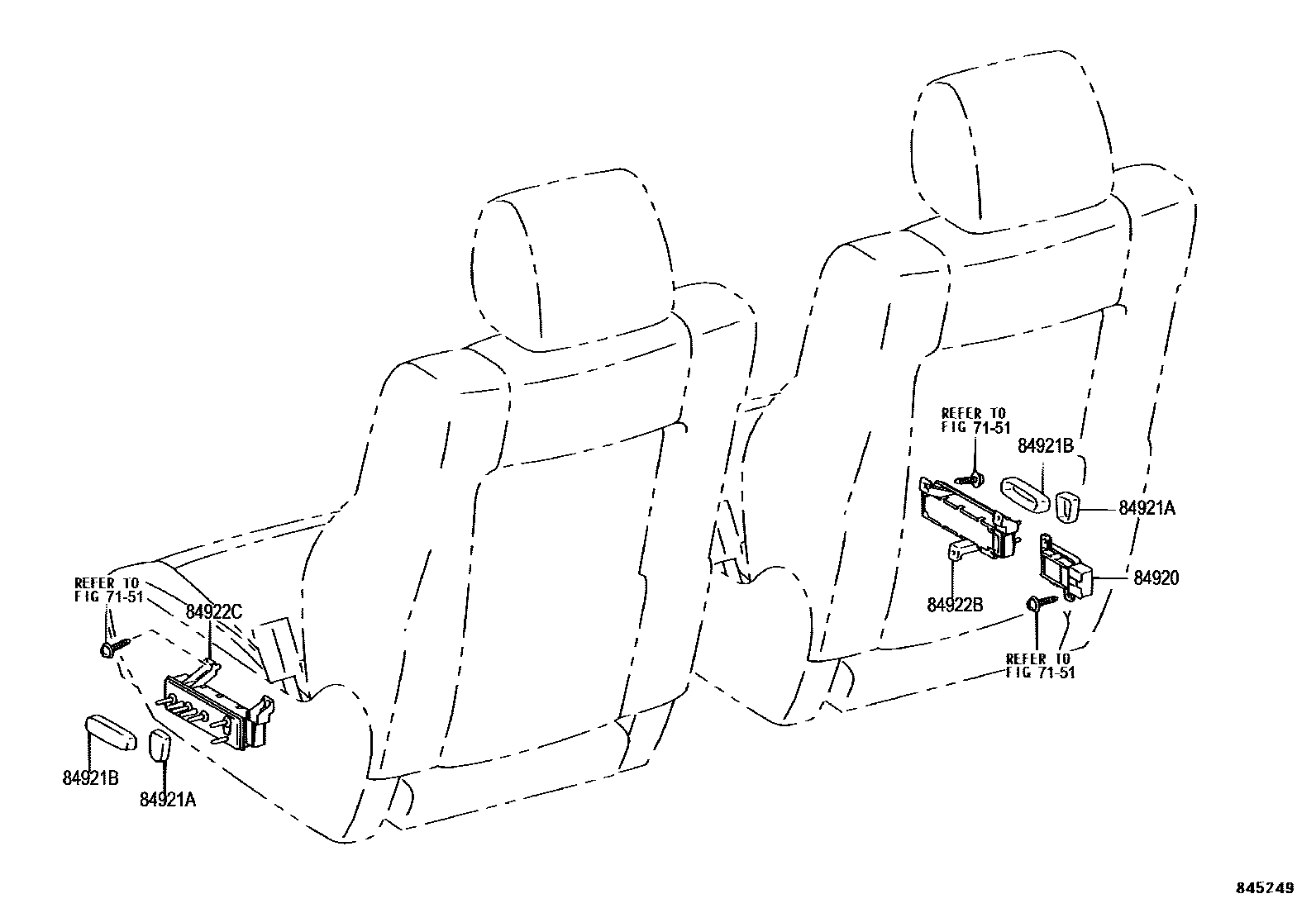

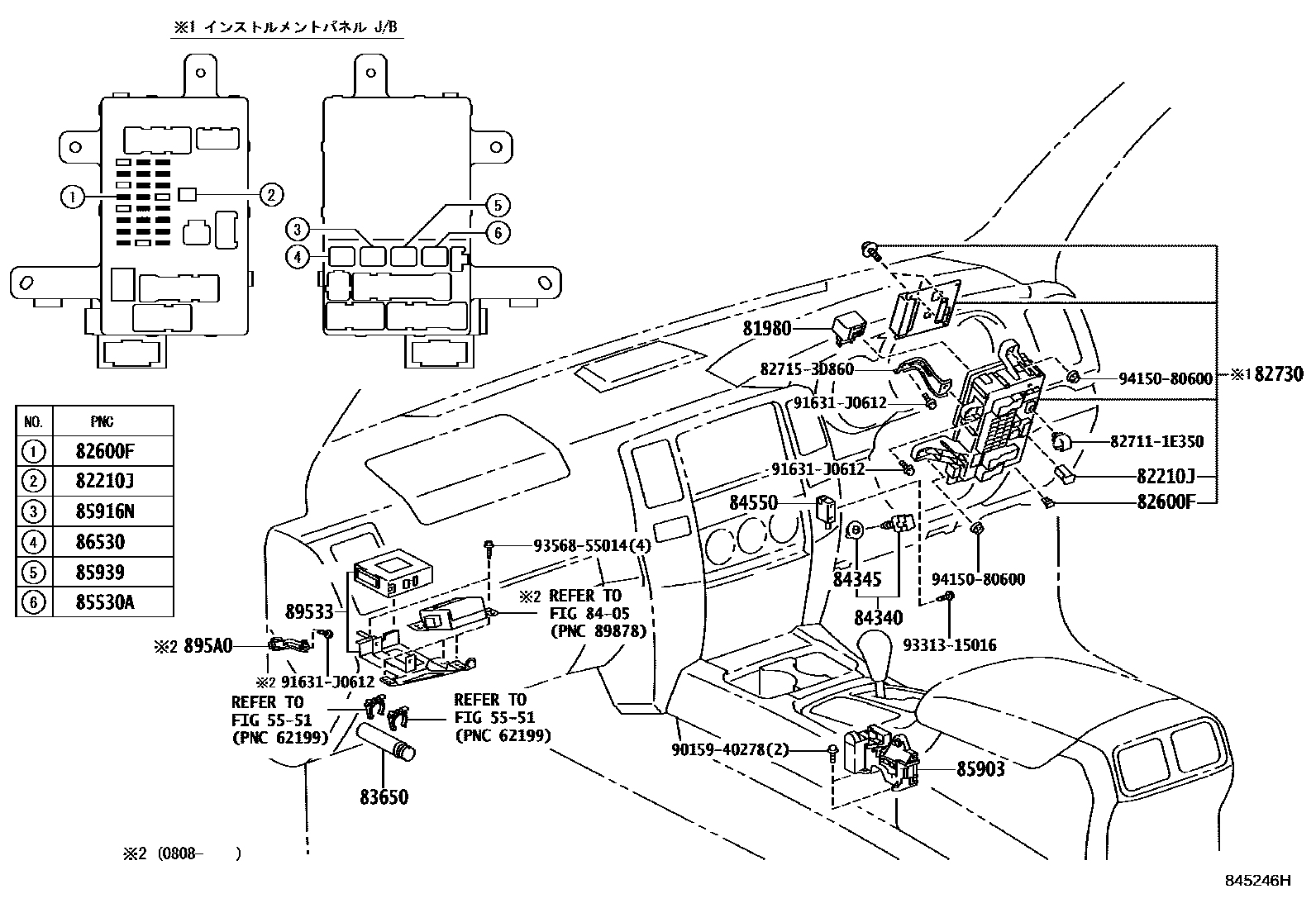

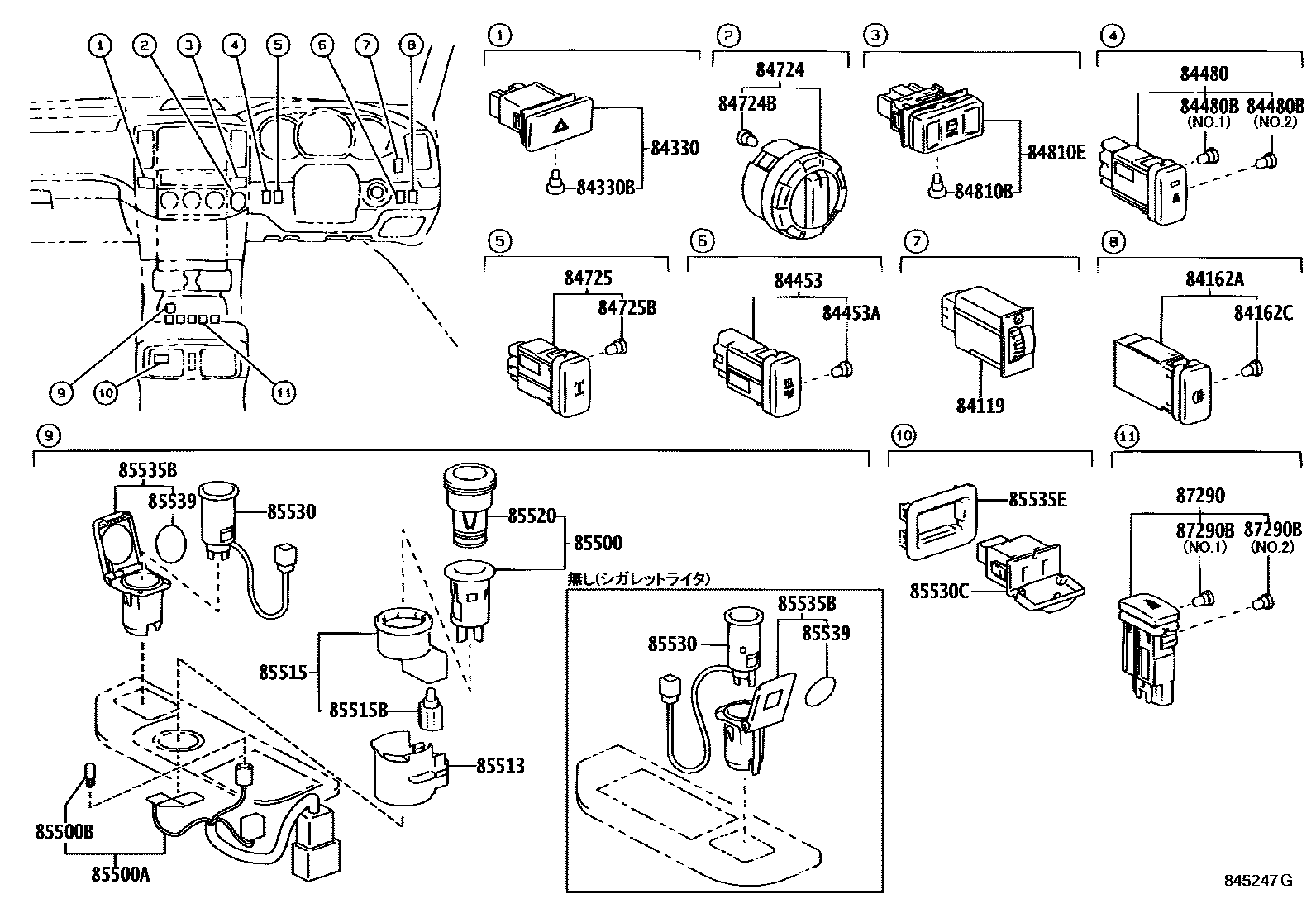

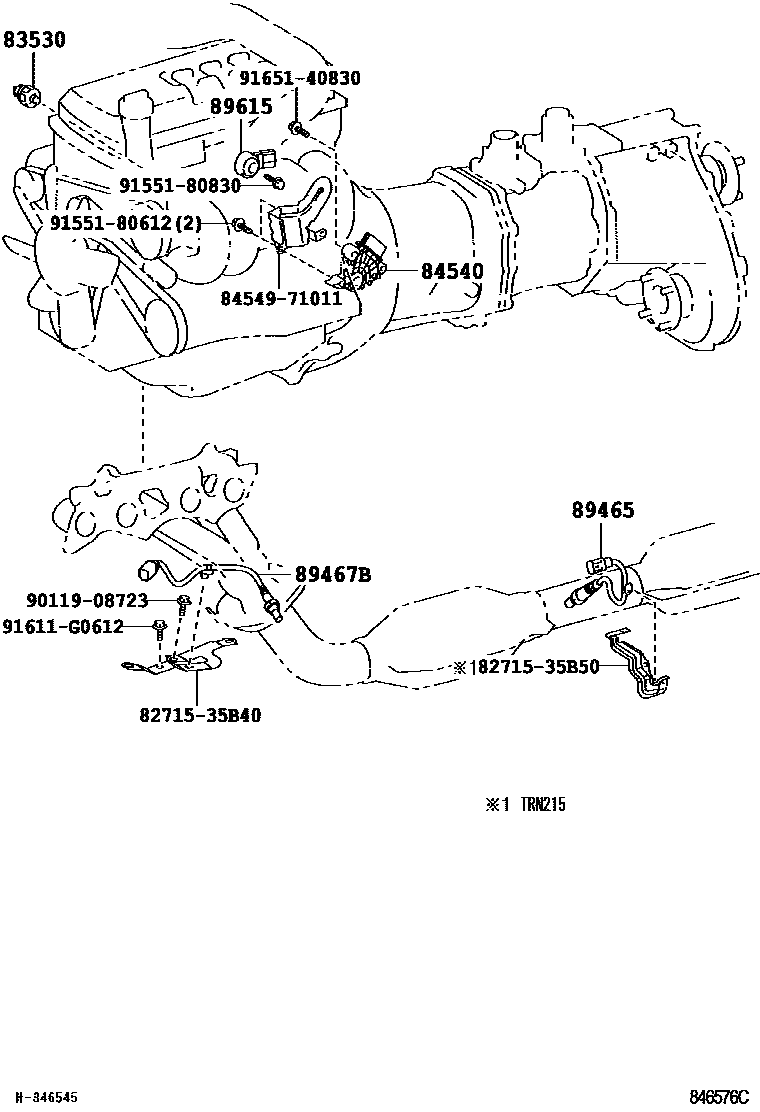

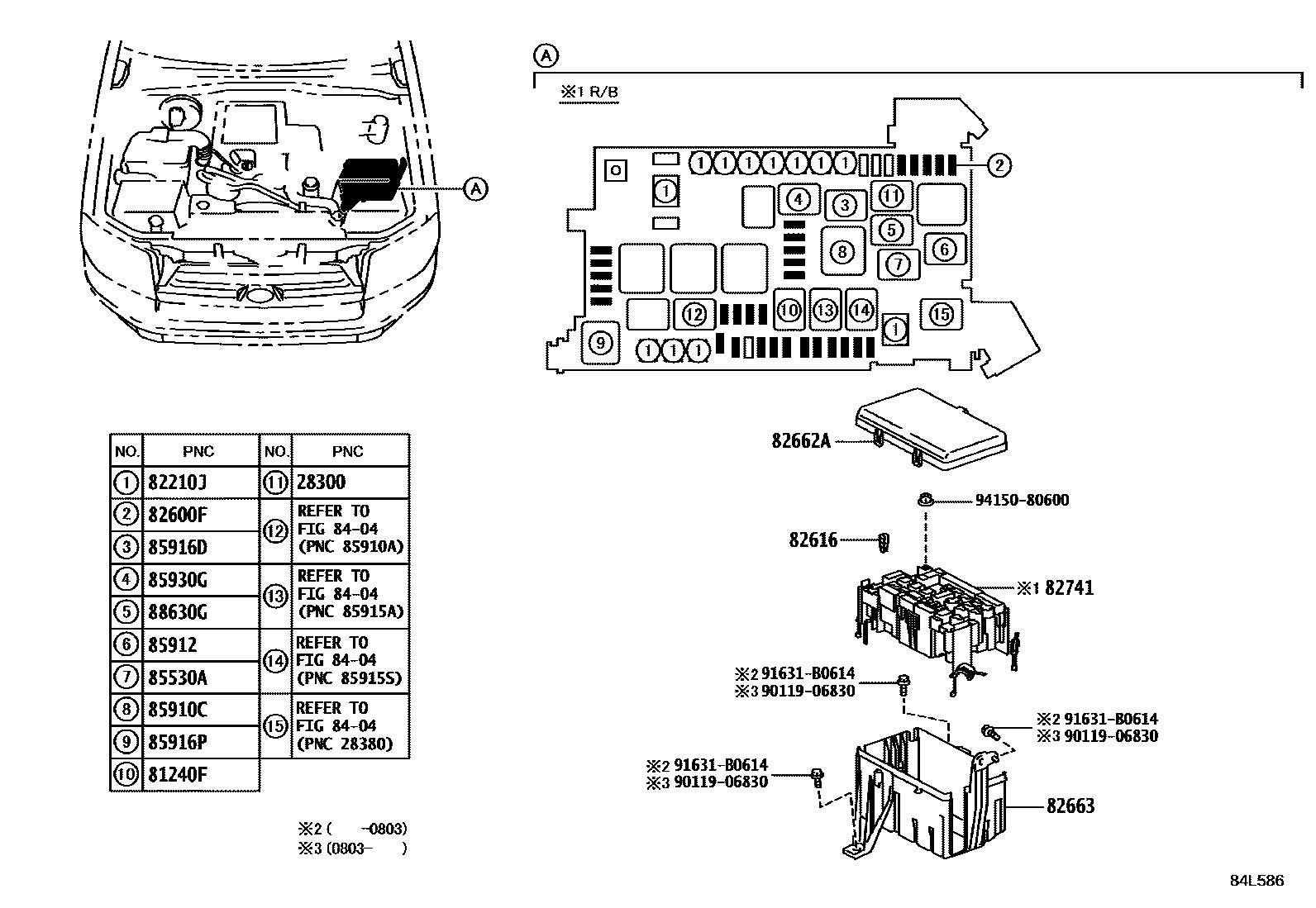

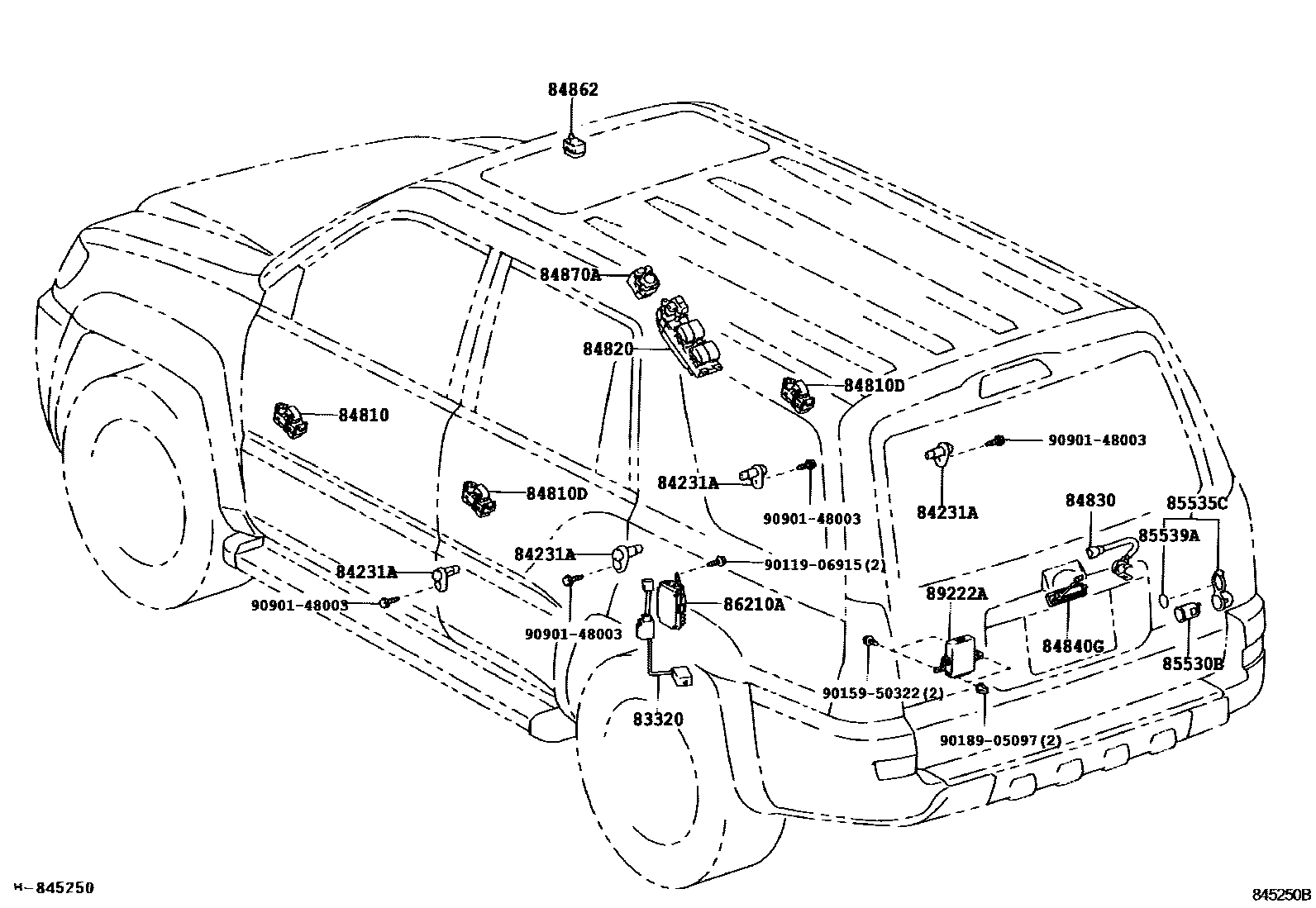

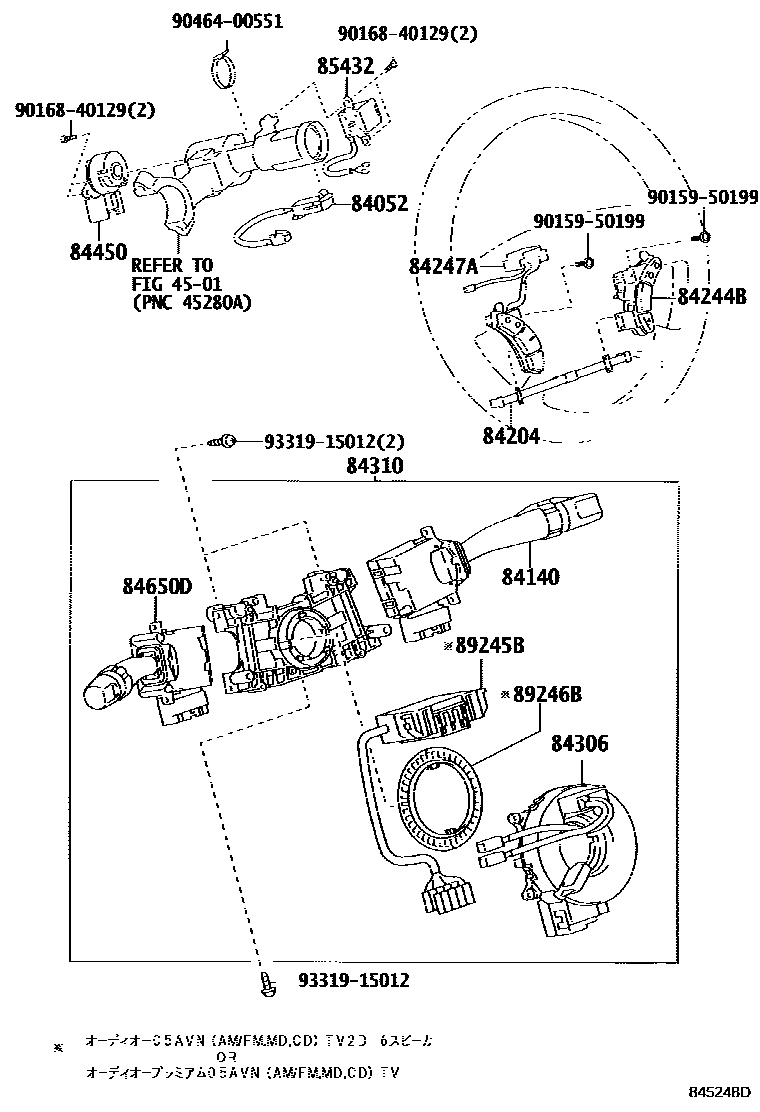

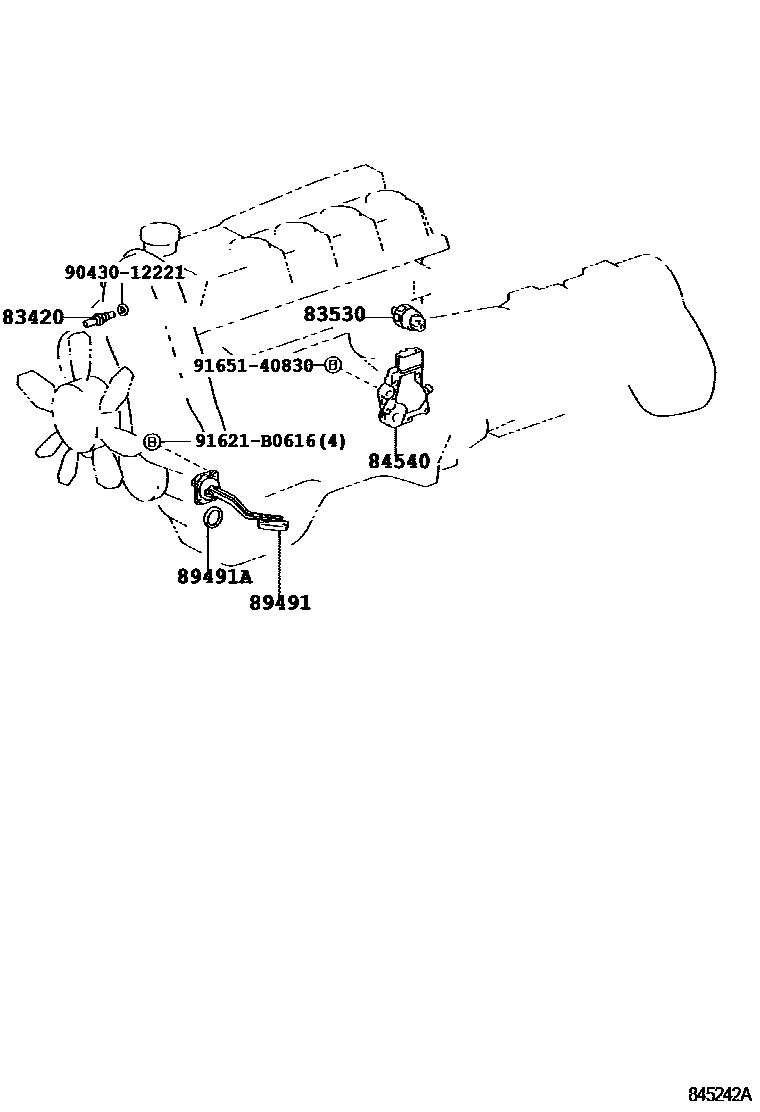

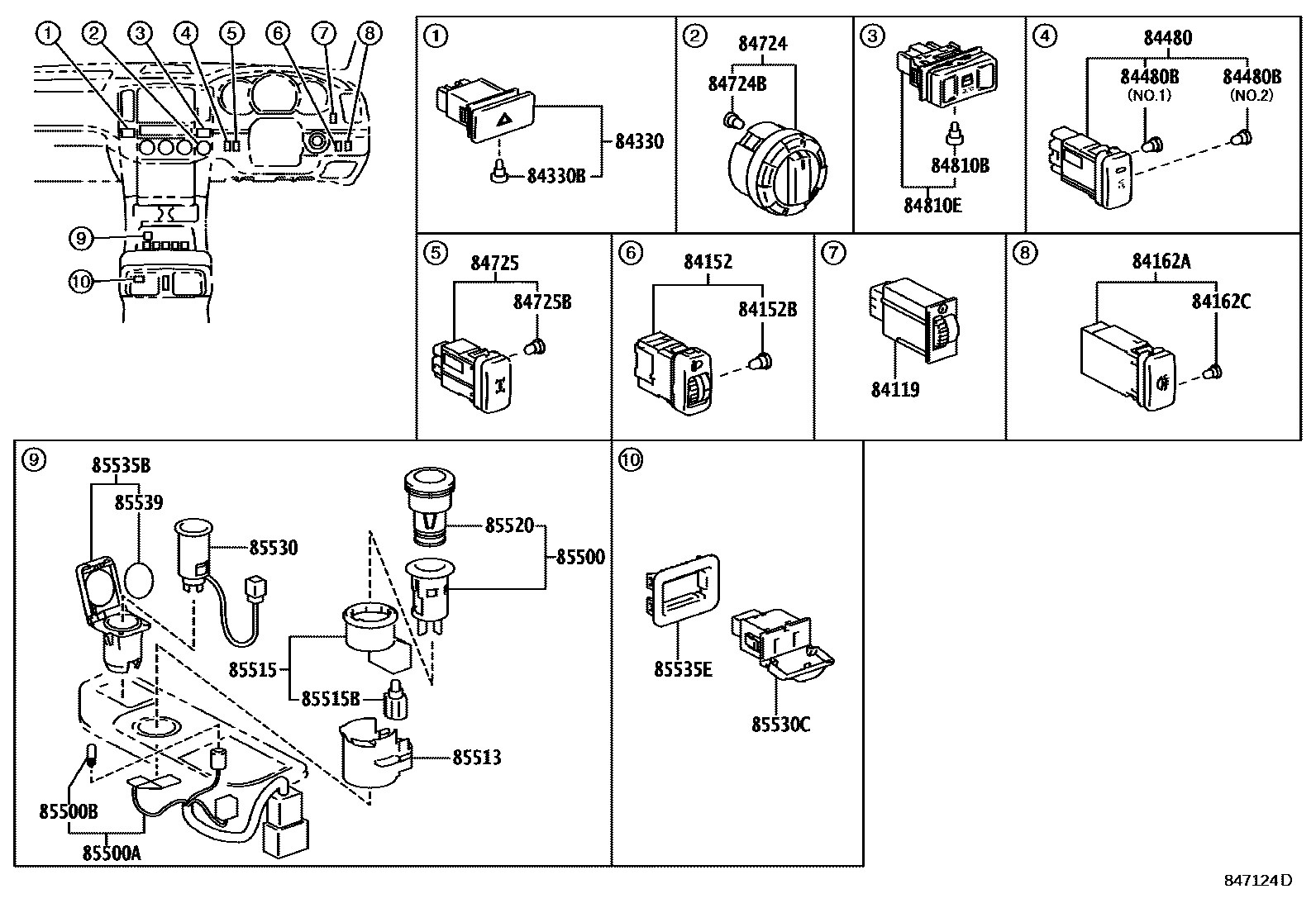

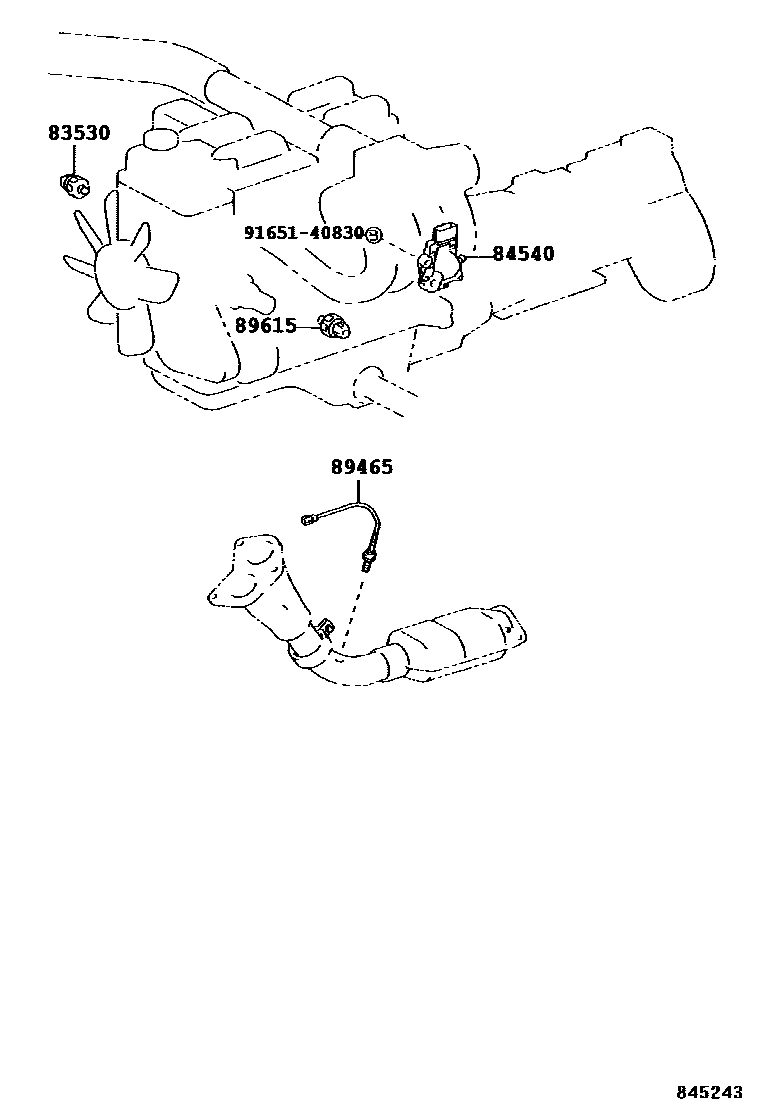

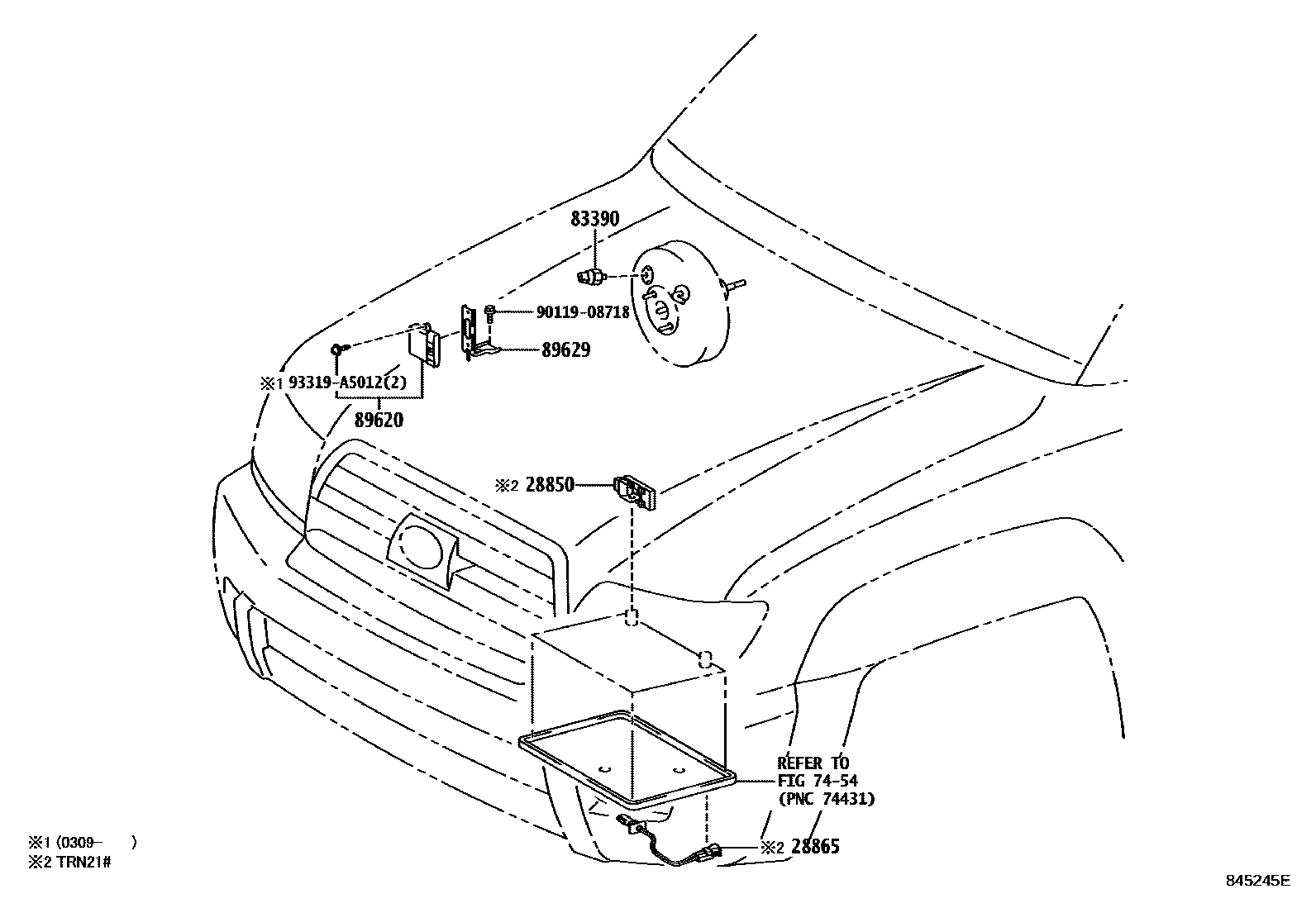

Toyota HILUX 开关和继电器和ECU — Figure 8401
Toyota HILUX EPC diagram 8401, 开关和继电器和ECU, with 15 images and 100 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-28010 · 90987-02025 |
| 28371 | No. 1 ignition relay | 90987-02025 |
| 28380A | fuel pump resistor | 23080-50130 |
| 28610A | Sub glow plug relay assembly | 28610-54360 |
| 28850 | Battery current sensor assembly | 28850-28010 |
| 28865 | battery thermometer sensor | 28865-28010 |
| 81240F | Dome light relay | 90987-02022 · 90987-02027 |
| 81980 | Turn signal flasher relay assembly | 81980-50030 |
| 82210J | fuse | 90982-08203 · 90982-08228 · 90982-08246 · 90982-08274 · 90982-08280 · 90982-08281 · 90982-08282 · 90982-08283 |
| 82600F | Spare fuse | 90982-08281 · 90982-09008 · 90982-09009 · 90982-09010 · 90982-09011 · 90982-09013 |
| 82616 | fuse puller | 82616-20010 |
| 82662A | No. 1 relay box upper cover | 82662-35A20 · 82662-3D170 · 82662-3D190 |
| 82662C | No. 3 relay box upper cover | 82662-3D140 |
| 82663 | Relay box lower cover | 82663-35090 |
| 82663A | No. 2 relay box lower cover | 82663-35100 |
| 82730 | Instrument panel junction box assembly | 82730-35360 · 82730-35390 |
| 82741 | Engine room relay box | 82741-35110 |
| 82742 | Engine room No. 2 relay box | 82742-35030 |
| 83320 | Fuel gauge sensor assembly | 83320-60440 |
| 83390 | Vacuum warning switch assembly | 83390-30100 |
| 83420 | Water temperature sensor assembly | 83420-16020 · 83420-16040 · 83420-26010 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-28020 · 83530-60010 |
| 83650 | fuse | 90986-01005 |
| 84052 | Unlock warning switch assembly | 84052-22050 |
| 84119 | Light control rheostat | 84119-35040 |
| 84140 | Headlight dimmer switch assembly | 84140-26150 · 84140-26160 · 84140-26170 · 84140-35130 |
| 84152 | Headlight beam height adjustment switch | 84152-35030 |
| 84152B | Bulb (for headlight beam height adjustment switch) | 90010-08111 |
| 84162A | Rear fog light switch | 84165-35010 |
| 84162C | Bulb (for rear fog light switch) | 90010-01083 |
| 84204 | Steering wheel decorative cover switch cable sub-assembly | 84204-58010 |
| 84231A | door control light switch | 84231-60070 |
| 84306 | Spiral cable sub-assembly | 84306-33090 · 84306-60080 |
| 84310 | Turn signal switch assembly | 84310-6B110 · 84310-6B120 · 84310-6B150 · 84310-6B190 · 84310-6C170 |
| 84330 | Hazard warning signal switch assembly | 84332-35070 |
| 84330B | Hazard warning signal switch light bulb | 84999-10860 |
| 84340 | brake light switch assembly | 84340-19025 · 84340-69025 · 84340-69075 |
| 84345 | Brake light switch base adjuster | 84345-51010 |
| 84450 | Ignition or starter switch assembly | 84450-12200 |
| 84453 | Idle speed boost switch | 84453-35050 |
| 84453A | Idle speed boost switch bulb | 90010-01083 |
| 84480 | Main switch assembly | 84480-35050 |
| 84480B | Main switch assembly light bulb | 84999-10310 · 90010-01083 |
| 84540 | Neutral start switch assembly | 84540-35050 · 84540-51010 · 84540-71010 |
| 84550 | Parking brake switch assembly | 84550-30080 |
| 84650D | Toyota part | 84652-35491 |
| 84724 | four wheel drive control switch | 84724-35020 |
| 84724B | Four wheel drive control switch light bulb | 90010-01084 |
| 84725 | Center differential lock switch | 84725-35040 · 84725-35050 |
| 84725B | Differential lock switch light bulb | 90010-01083 |
| 84810 | Electric window lift switch assembly | 84030-35010 · 84030-35020 |
| 84810B | Bulb (for power window lift switch) | 90010-01088 |
| 84810D | Rear electric window lift switch assembly | 84030-35010 · 84030-35020 |
| 84810E | Rear door electric window lift switch assembly | 84810-35050 |
| 84820 | Electric window lift main switch assembly | 84040-35030 · 84040-35040 |
| 84830 | Back door control switch assembly | 84830-35050 |
| 84840G | Back door opener switch assembly | 84840-35010 |
| 84870A | Exterior rearview mirror switch assembly | 84872-52040 |
| 84922B | Front right electric seat switch | 84922-58010 |
| 84922C | Front left electric seat switch | 84922-60110 |
| 85432 | Key interlock solenoid valve | 85432-14040 |
| 85500 | Cigarette lighter assembly | 85500-50020 |
| 85500A | Cigarette lighter wiring harness | 82390-35010 |
| 85500B | Cigarette lighter bulb | 90981-11041 |
| 85513 | Cigarette lighter cover | 85513-12020 |
| 85515 | Cigarette lighter frame bracket | 85515-22040 |
| 85515B | Cigarette lighter frame holder light bulb | 90010-01030 |
| 85520 | Cigarette lighter button and cigarette lighter core assembly | 85520-30200 |
| 85530 | No. 1 power socket assembly | 85530-35040 |
| 85530A | power outlet relay | 90987-02022 · 90987-02027 |
| 85530B | No. 1 rear power socket assembly | 85530-33020 |
| 85530C | Central power socket assembly | 85530-35010 |
| 85539 | Power socket attention labels | 85539-60010 |
| 85539A | Note label on rear power outlet | 85539-60010 |
| 85903 | Shift lock control ECU sub-assembly | 85903-60010 |
| 85910C | Relay assembly (for heater blower motor) | 90987-04010 |
| 85912 | defogger relay | 90987-04004 |
| 85916D | fog light relay | 90987-02022 · 90987-02027 |
| 85916N | Tail light relay | 90987-02022 · 90987-02027 |
| 85916P | headlight relay | 90987-02025 |
| 85930G | ACC relay | 90987-04004 |
| 85939 | Power window relay | 90987-02022 · 90987-02027 |
| 86210A | Voltage inverter assembly | 86210-35030 |
| 86530 | Speaker relay assembly | 90987-02022 · 90987-02027 |
| 87290 | Heater switch assembly | 87290-35040 |
| 87290B | Light bulb (for heater switch) | 84999-10310 · 90010-01083 |
| 88630G | Cooler relay assembly | 90987-02028 |
| 89222A | Multi-channel network door ECU | 89222-35010 |
| 89245B | steering sensor | 89245-33010 |
| 89246B | Steering sensor disc | 89246-22020 |
| 89465 | oxygen sensor | 89465-35660 · 89465-35670 · 89465-35690 · 89465-60200 · 89465-60210 · 89465-60320 |
| 89465A | Oxygen sensor No. 2 | 89465-35680 · 89465-60330 |
| 89467B | air fuel ratio sensor | 89467-35100 · 89467-35110 · 89467-71020 |
| 89491 | Engine oil level sensor | 89491-60080 |
| 89491A | Engine oil level sensor gasket | 89493-60010 |
| 89533 | Four-wheel drive control ECU | 89530-35280 · 89530-35281 · 89530-35282 · 89530-35283 |
| 895A0 | Brake light control relay assembly | 895A0-35010 · 895A0-35011 |
| 89615 | knock control sensor | 89615-12040 · 89615-12050 · 89615-20090 · 89615-26010 |
| 89620 | Ignition assembly | 89621-35020 |
| 89629 | Ignition bracket assembly | 89629-60020 |
