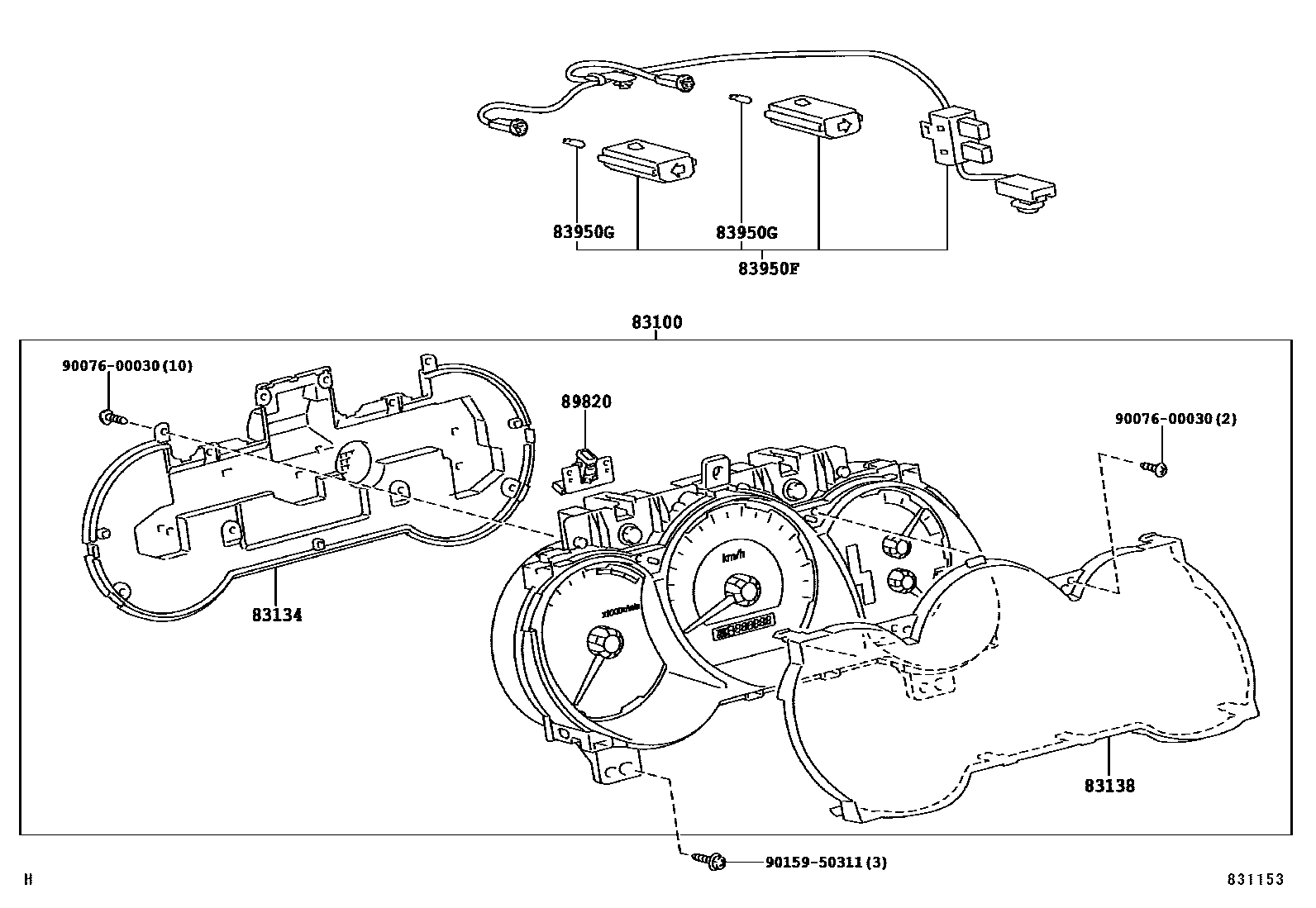

Toyota HILUX 仪表 — Figure 8301
Toyota HILUX EPC diagram 8301, 仪表, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 83100 | Combined instrument assembly | 83800-35B70 · 83800-35B80 · 83800-35B90 · 83800-35C00 · 83800-35D90 · 83800-35D91 · 83800-35E00 · 83800-35E01 · 83800-35E10 · 83800-35E11 · 83800-35E20 · 83800-35E21 · 83800-3G390 · 83800-3G391 · 83800-3G400 · 83800-3G401 · 83800-3G410 · 83800-3G411 · 83800-3G420 · 83800-3G421 · 83800-3G430 · 83800-3G431 · 83800-3G440 · 83800-3G441 |
| 83134 | Combination instrument cover No. 1 | 83821-3G390 |
| 83138 | speedometer glass | 83852-3G390 · 83852-3G400 |
| 83950F | Warning light assembly | 83950-35040 |
| 83950G | warning light bulb | 84999-50050 |
| 89820 | Inclination sensor assembly | 89820-35020 |
