Toyota HILUX 蓄电池和蓄电池电缆 — Figure 8201

Toyota HILUX EPC diagram 8201, 蓄电池和蓄电池电缆, with 3 images and 4 PNC and OE references.

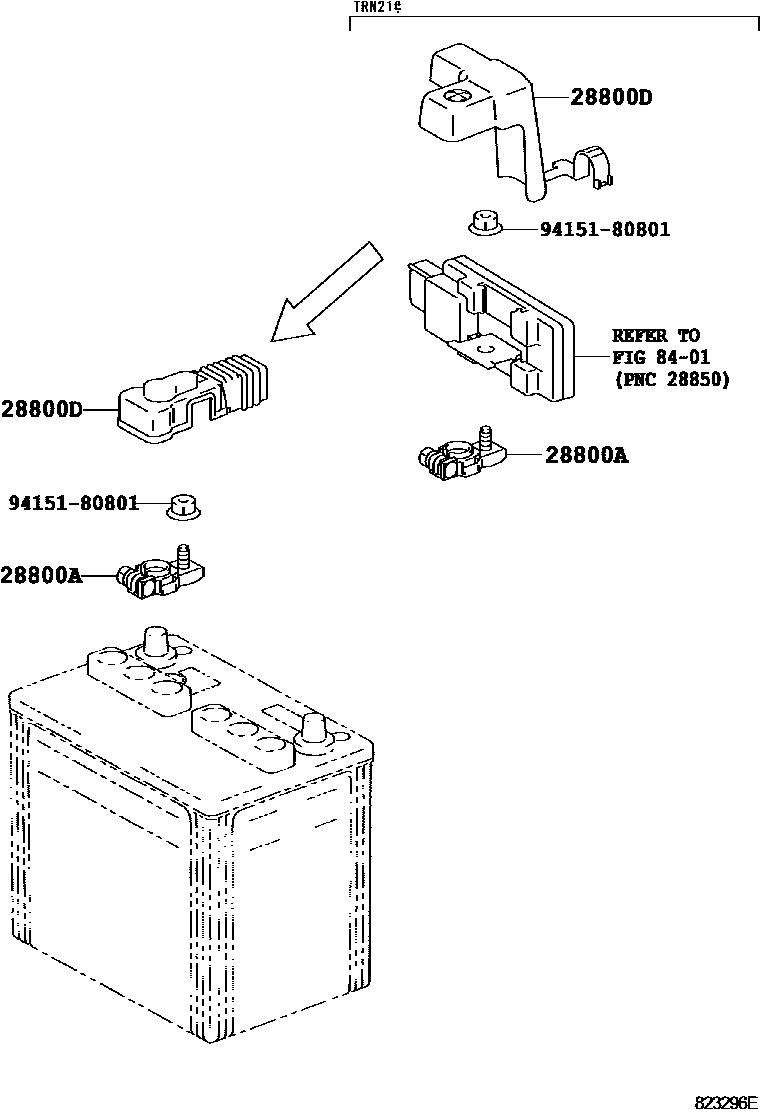

Toyota HILUX 蓄电池和蓄电池电缆 EPC diagram — 823296E
蓄电池和蓄电池电缆 — 823296E (200211 – 999999)

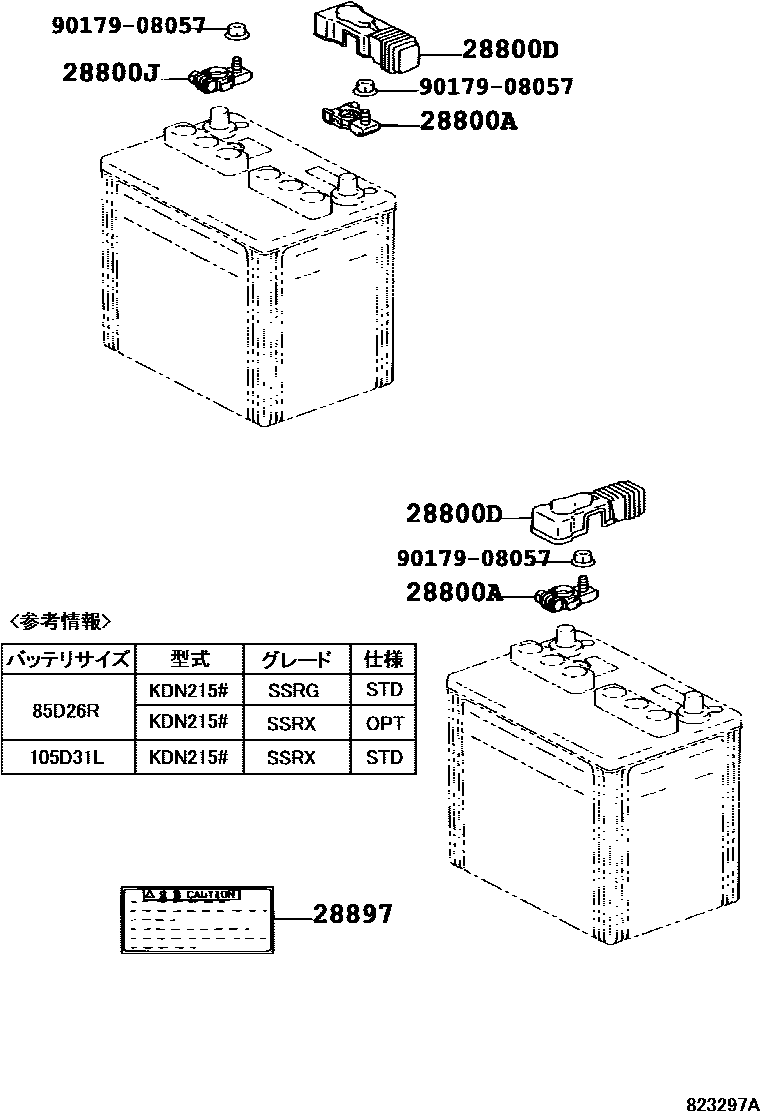

Toyota HILUX 蓄电池和蓄电池电缆 EPC diagram — 823297A
蓄电池和蓄电池电缆 — 823297A (200211 – 200508)

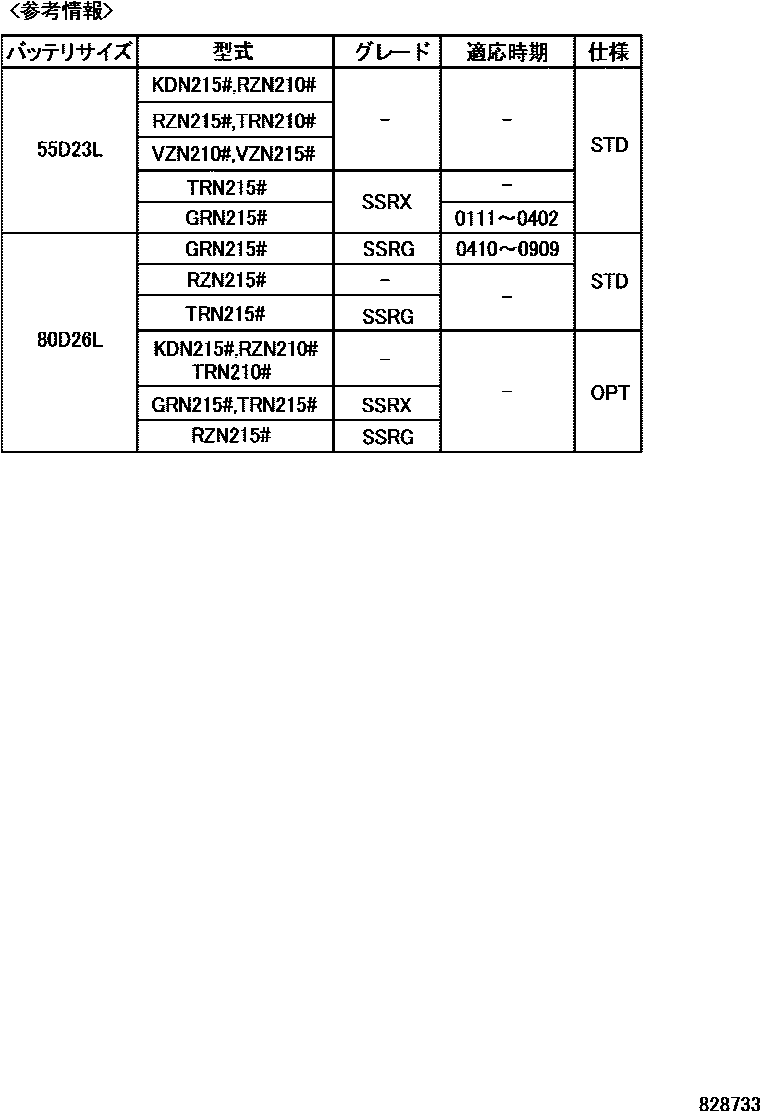

Toyota HILUX 蓄电池和蓄电池电缆 EPC diagram — 828733
蓄电池和蓄电池电缆 — 828733 (200211 – 999999)

PNC and OE references

PNCPart nameOE numbers
28800Abattery positive terminal90982-05054
28800DConnector cover (for battery terminals)82821-35020 · 82821-68010
28800Jbattery negative terminal90982-06022
28897Battery warning nameplate28897-54030
