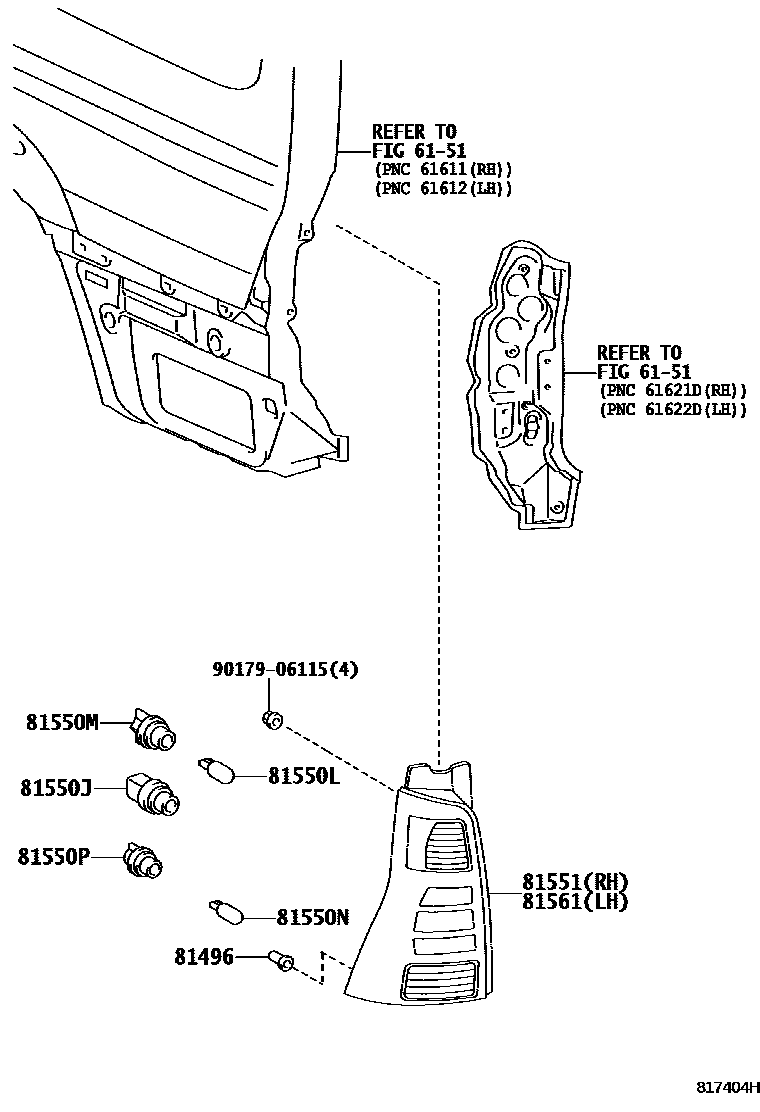

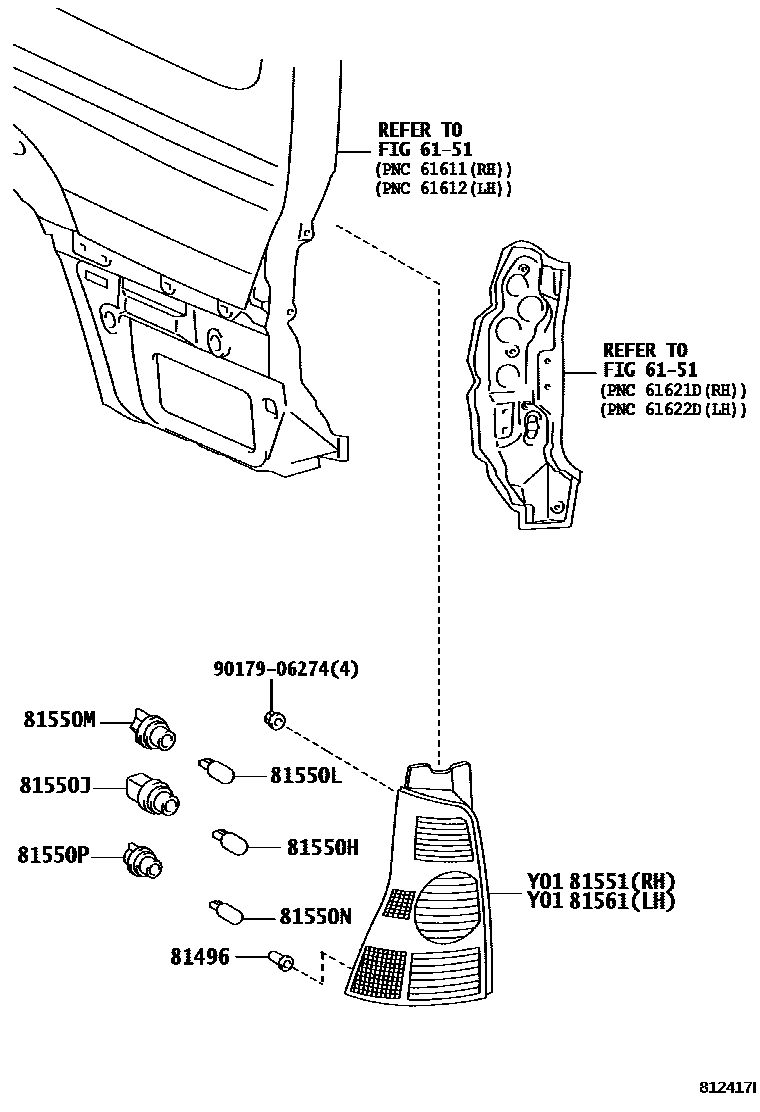

Toyota HILUX 后组合灯 — Figure 8111
Toyota HILUX EPC diagram 8111, 后组合灯, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81496 | Rear combination light guide block | 81496-12020 |
| 81550H | Tail and brake light bulbs | 90981-13044 |
| 81550J | Tail and brake light holders | 90075-60018 |
| 81550L | Rear turn signal light bulb | 90981-15011 · 90981-15021 |
| 81550M | Rear turn signal lamp holder | 90075-60057 |
| 81550N | reversing light bulb | 90981-11059 |
| 81550P | Reversing light lamp holder | 90075-60035 |
| 81551 | Right rear combination lamp shade | 81551-35300 · 81551-35330 |
| 81561 | Left rear combination lamp shade | 81561-35260 · 81561-35290 |
