Toyota HILUX Headlamp — Figure 8101

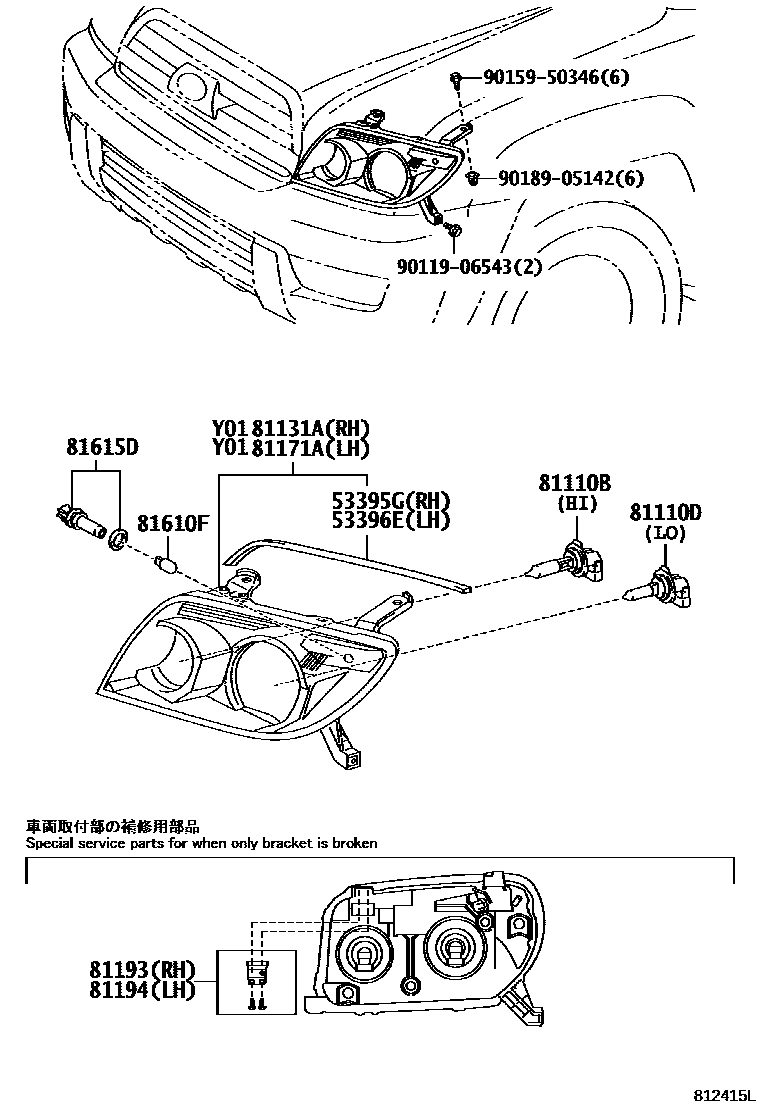

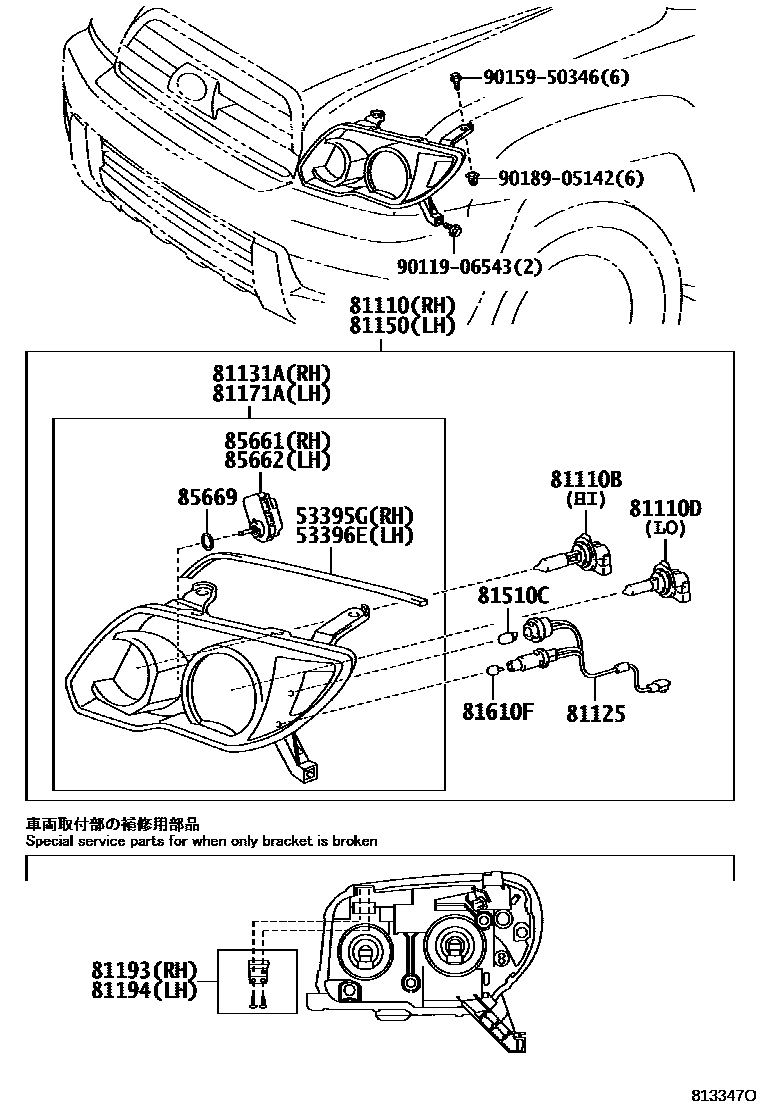

Toyota HILUX EPC diagram 8101, Headlamp, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53395G | Engine cover to front end plate seal | 53395-35010 · 53395-35020 |
| 53396E | No. 2 seal from engine cover to front end plate | 53396-35010 · 53396-35030 |
| 81110 | Right headlight assembly | 81110-35450 · 81110-35451 · 81110-35480 · 81110-35481 |
| 81110B | Bulb (for headlight No. 1) | 90080-81041 · 90981-13046 |
| 81110D | Bulb (for headlight No. 2) | 90981-13047 · 90981-13075 |
| 81125 | headlight wire | 81125-35450 |
| 81131A | Right headlight assembly assembly | 81130-35190 · 81130-35430 · 81130-35450 · 81130-35451 · 81130-35480 · 81130-35481 |
| 81150 | Left headlight assembly | 81150-35430 · 81150-35431 · 81150-35460 · 81150-35461 |
| 81171A | Left headlight assembly assembly | 81170-35170 · 81170-35410 · 81170-35430 · 81170-35431 · 81170-35460 · 81170-35461 |
| 81193 | Right headlight upper protective ring | 81193-35010 |
| 81194 | Left headlight upper protective ring | 81194-35010 |
| 81510C | Bulb (for front turn signal lamp) | 90981-15021 |
| 81610F | Light bulb (for width indicator light) | 99132-12050 |
| 81615D | Width light lamp holder | 90075-60004 |
| 85661 | Right headlight beam height adjustment motor | 85661-12010 |
| 85662 | Left headlight beam height adjustment motor | 85661-12010 |
| 85669 | Headlight beam height adjustment motor base seal | 90075-99120 |
