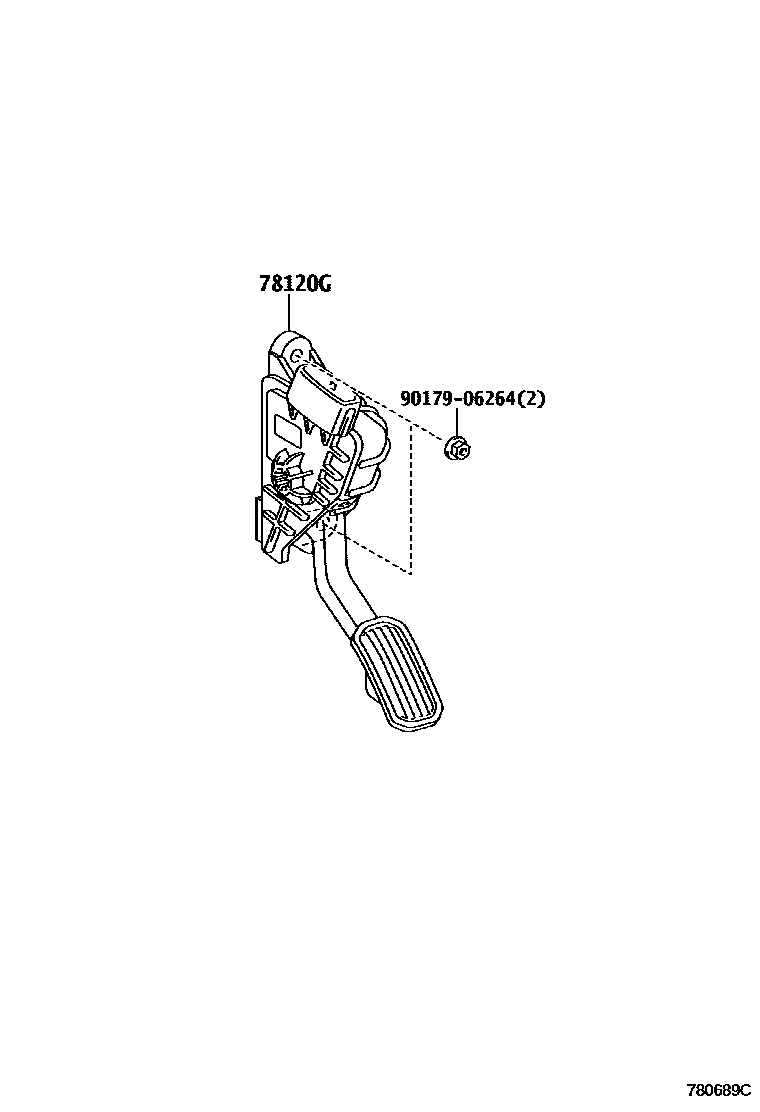

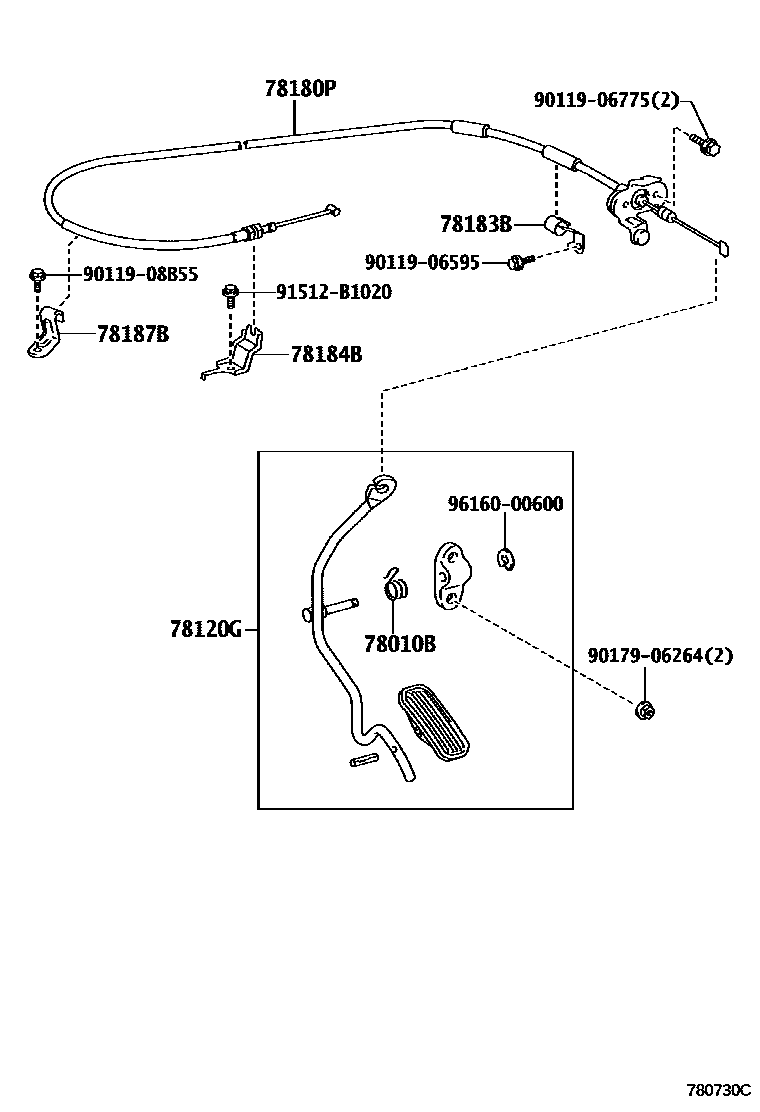

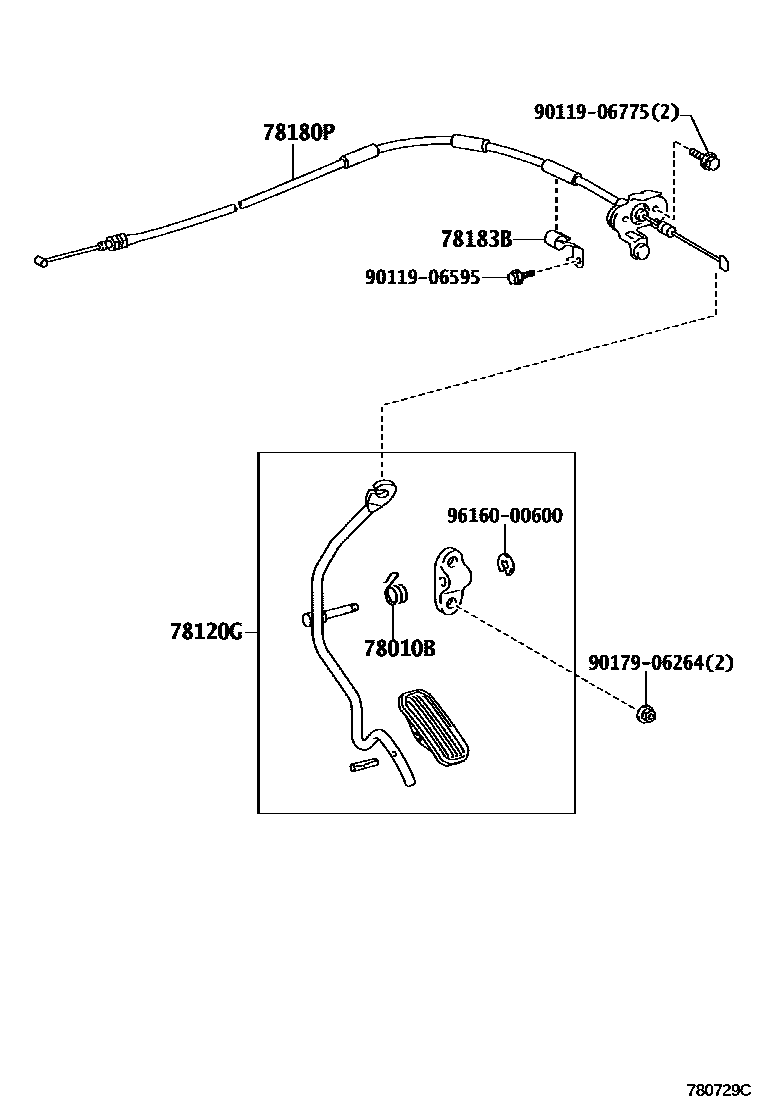

Toyota HILUX accelerator pedal connecting rod — Figure 7851
Toyota HILUX EPC diagram 7851, accelerator pedal connecting rod, with 3 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78010B | Torsion spring (for accelerator pedal linkage) | 90959-03364 · 90959-03365 |
| 78120G | Accelerator pedal lever assembly | 78120-35460 · 78120-35480 · 78120-35490 · 78120-35491 |
| 78180P | Accelerator pedal control cable assembly | 78180-35550 · 78180-35560 |
| 78183B | Accelerator pedal control cable clip | 78183-35060 |
| 78184B | Throttle pedal control cable bracket | 78184-35140 |
| 78187B | Accelerator pedal cable return spring bracket | 78187-35010 |
