Toyota HILUX 燃油箱和燃油管 — Figure 7751

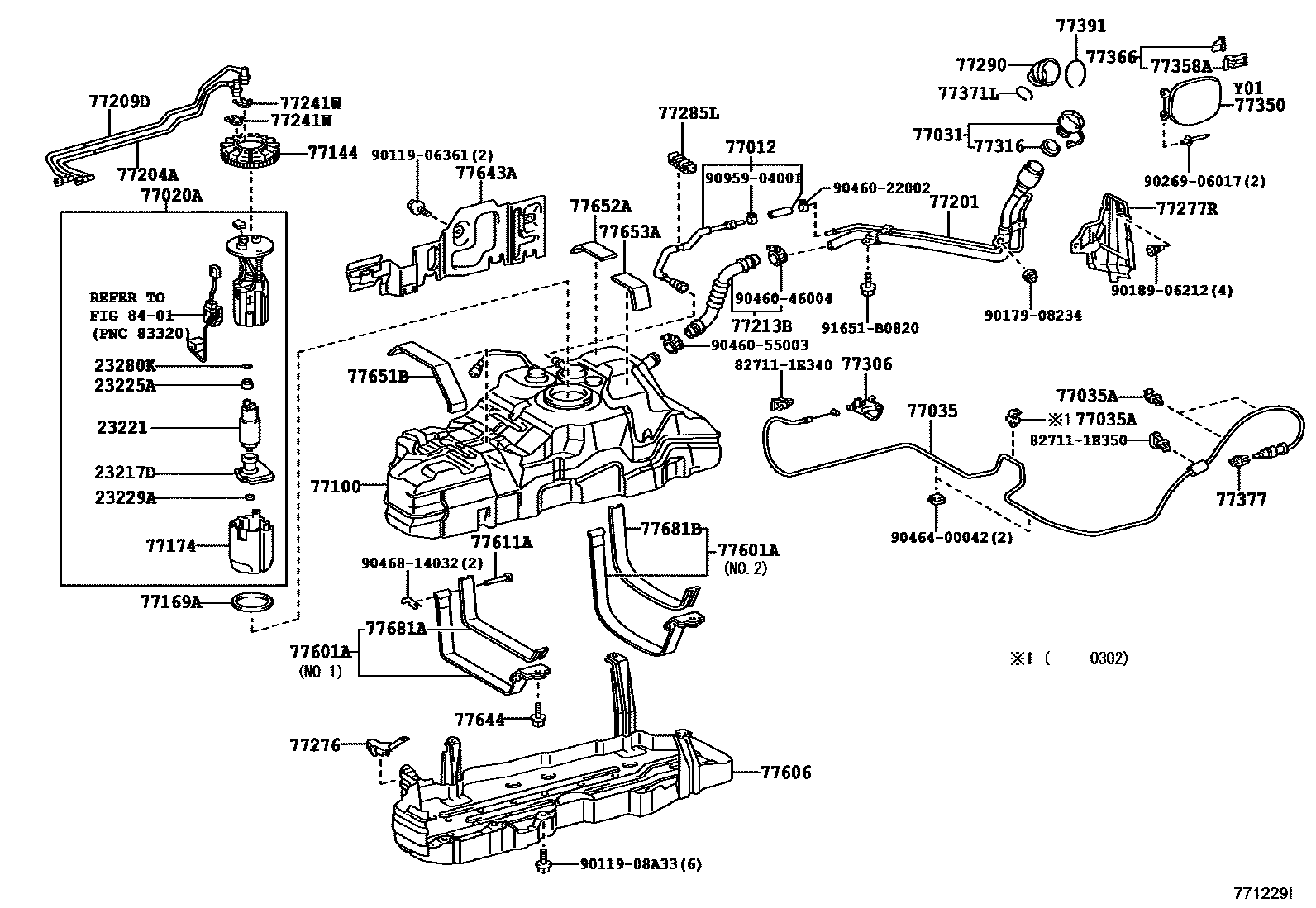

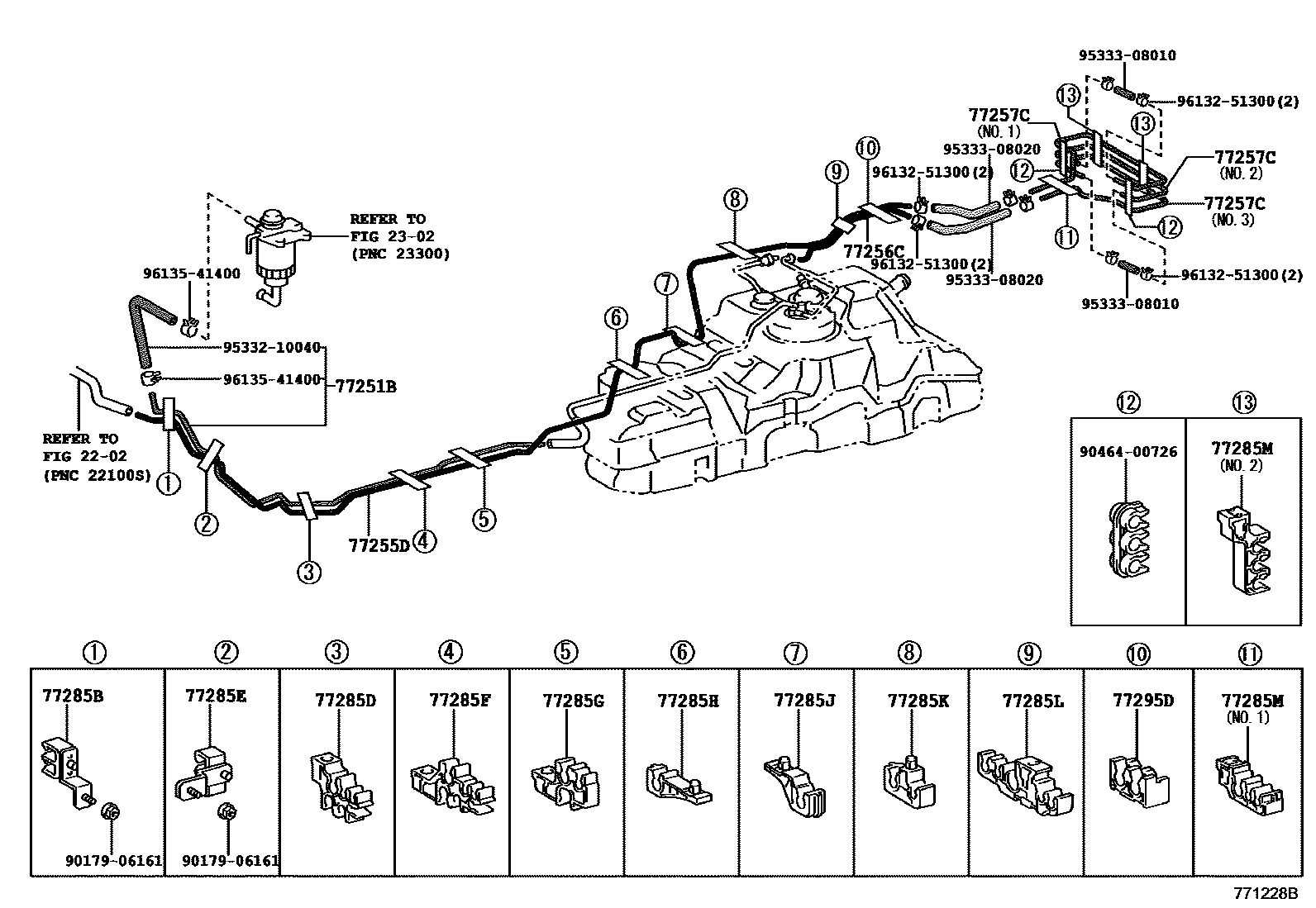

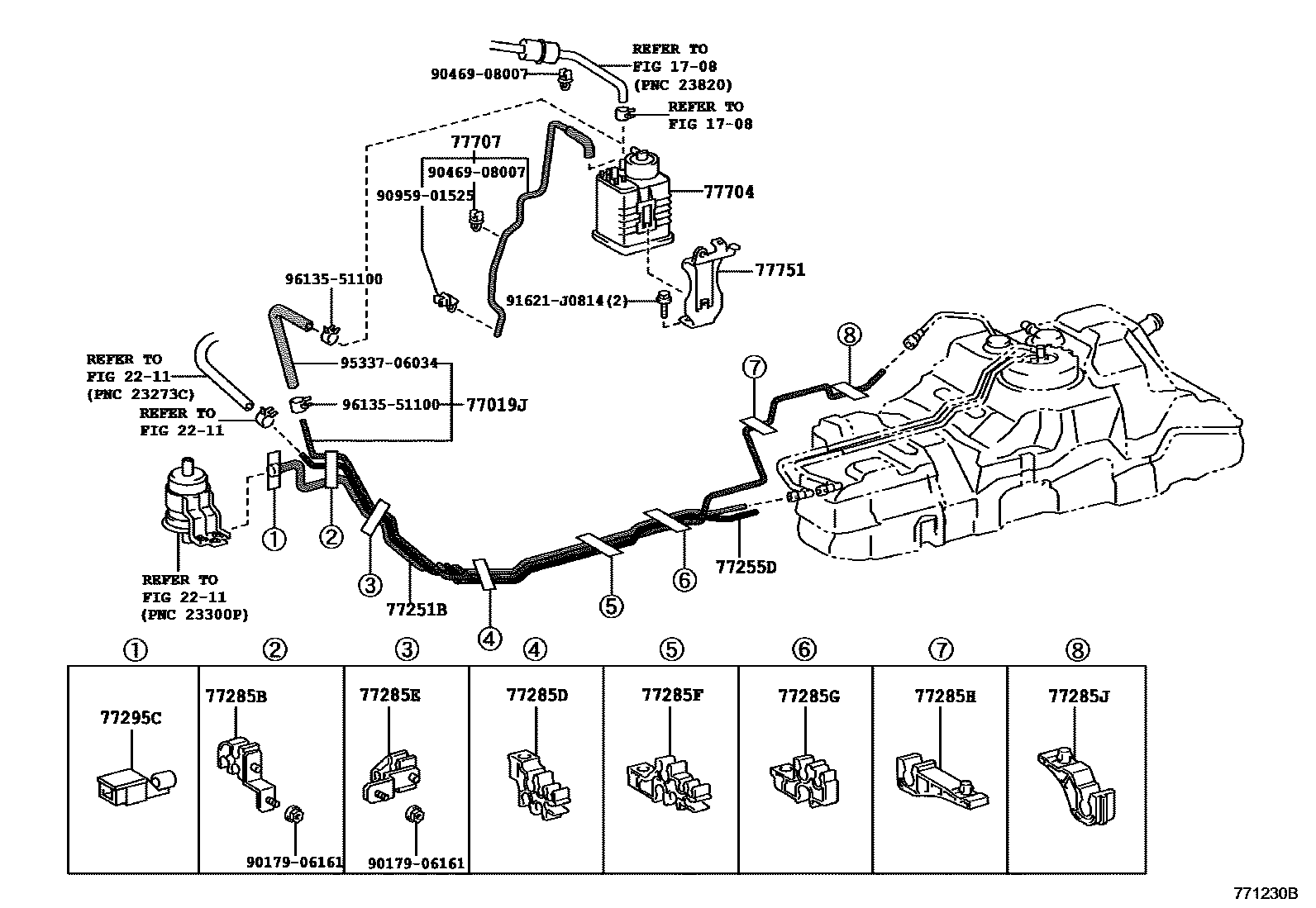

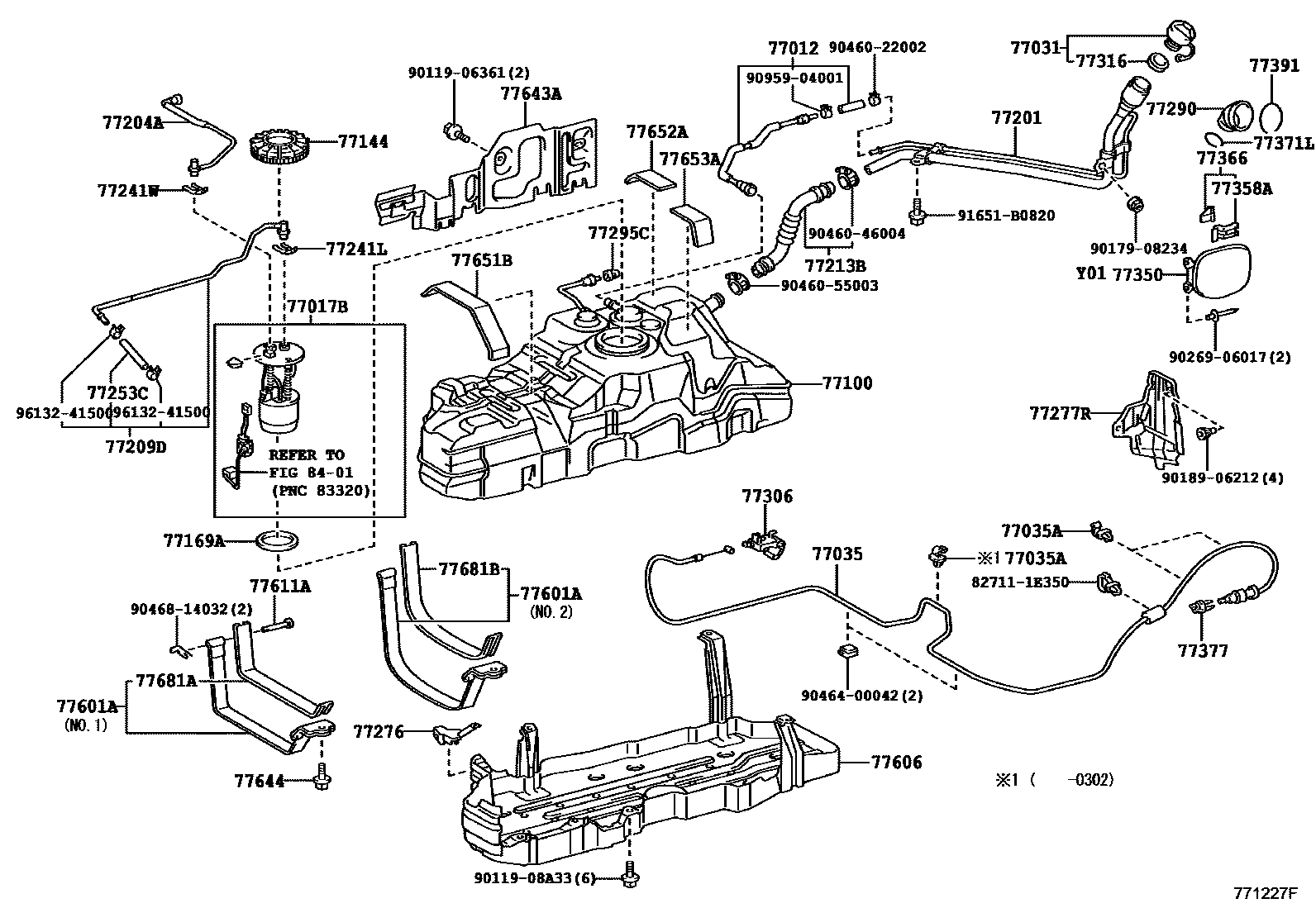

Toyota HILUX EPC diagram 7751, 燃油箱和燃油管, with 4 images and 62 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23217D | fuel pump filter | 23217-50100 |
| 23221 | fuel pump | 23221-50100 · 23221-50210 · 23221-62060 · 23221-75020 |
| 23225A | fuel pump septum | 23225-50010 |
| 23229A | Clip (for fuel pump filter) | 23229-16010 |
| 23280K | O-ring (for fuel pressure regulator) | 90301-08019 |
| 77012 | Fuel tank breather pipe sub-assembly | 77012-35050 · 77012-35060 |
| 77017B | Fuel tank vent pipe sub-assembly | 77010-35030 |
| 77019J | Fuel tank to carbon canister hose sub-assembly | 77019-35730 |
| 77020A | Fuel suction pipe assembly with fuel pump and oil level gauge | 77020-35071 · 77020-35072 · 77020-35073 · 77020-35080 · 77020-35081 · 77020-35090 · 77020-35091 · 77020-35092 |
| 77031 | Fuel tank cap assembly | 77300-33062 · 77300-35020 · 77300-35040 · 77300-35050 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-35130 |
| 77035A | Clip (for fuel filler cap lock control cable) | 90469-06005 |
| 77100 | fuel tank assembly | 77001-3D520 · 77001-3D521 · 77001-3D540 · 77001-3D541 |
| 77144 | Fuel pump instrument fixture | 77144-35010 |
| 77169A | Fuel suction pipe fixed gasket | 77169-35010 |
| 77174 | No. 1 oil suction pipe bracket | 77174-35021 · 77174-35022 · 77174-35030 · 77174-35031 · 77174-35032 |
| 77201 | Fuel tank inlet pipe sub-assembly | 77201-35780 · 77201-35790 |
| 77204A | fuel tank return pipe | 77204-35040 · 77204-35060 |
| 77209D | Fuel tank main pipe sub-assembly | 77209-35420 · 77209-35430 |
| 77213B | Fuel tank to filler pipe hose | 77213-35380 · 77213-35390 |
| 77241L | fuel tank suction pipe | 77241-35450 |
| 77241W | Pipe joint clip | 77241-60320 |
| 77251B | main fuel pipe | 77205-35300 · 77205-35310 |
| 77253C | No. 2 fuel hose (for No. 3 main fuel line) | 95332-10018 |
| 77255D | fuel return pipe | 77255-3D070 · 77255-3D100 |
| 77256C | No. 2 fuel return pipe | 77256-35110 |
| 77257C | No. 3 fuel return pipe | 77257-35020 · 77257-35030 · 77257-35040 |
| 77276 | Fuel hose protector | 77276-35040 |
| 77277R | Fuel tank filler pipe protection device | 77277-60080 |
| 77285B | No. 1 fuel pipe clamp with retaining ring | 77285-35630 · 77285-35631 · 77285-35650 |
| 77285D | No. 1 fuel pipe clamp | 77285-35670 |
| 77285E | No. 1 fuel pipe clamp with retaining ring | 77285-35640 · 77285-35641 · 77285-35660 |
| 77285F | No. 1 fuel pipe clamp | 77285-35680 |
| 77285G | No. 1 fuel pipe clamp | 77285-35690 |
| 77285H | No. 1 fuel pipe clamp | 77285-35700 |
| 77285J | No. 1 fuel pipe clamp | 77285-35710 |
| 77285K | No. 1 fuel pipe clamp | 77285-35610 |
| 77285L | No. 1 fuel pipe clamp | 77285-35620 |
| 77285M | No. 1 fuel pipe clamp | 77285-35720 · 77285-60490 |
| 77290 | Fuel tank filler pipe cover assembly | 77291-35130 |
| 77295C | Fuel pipe retaining ring | 77295-27010 · 77295-35320 |
| 77295D | Fuel pipe retaining ring | 77295-25010 |
| 77316 | fuel tank cap gasket | 77316-33042 |
| 77350 | Fuel filler cap assembly | 77350-35050 |
| 77358A | Fuel filler cap stopper | 77358-30060 |
| 77366 | Fuel filler cap hinge spring | 77360-30080 · 77360-35040 |
| 77371L | Fuel tank filler pipe cover ring | 77371-35010 |
| 77377 | Fuel filler cap lock retainer | 77377-35010 |
| 77391 | fuel inlet ring | 77391-35020 |
| 77601A | No. 1 fuel tank strap sub-assembly | 77601-35090 · 77602-35030 |
| 77606 | No. 1 fuel tank protective shell sub-assembly | 77606-35060 |
| 77611A | Pin (for fuel tank strap) | 77653-35040 |
| 77643A | No. 3 fuel tank protective shell | 77643-35020 · 77643-35040 |
| 77644 | fuel tank bolt | 77644-35030 |
| 77651B | fuel tank liner | 77651-35070 |
| 77652A | No. 2 fuel tank liner | 77652-35060 |
| 77653A | No. 3 fuel tank liner | 77653-35050 |
| 77681A | Fuel tank strap seat | 77681-35030 · 77681-35031 |
| 77681B | Fuel tank strap seat | 77681-35040 · 77681-35041 |
| 77704 | Carbon canister sub-assembly | 77704-63010 |
| 77707 | Carbon canister outlet hose sub-assembly | 77707-60010 · 77707-60011 |
| 77751 | Carbon canister base bracket | 77751-60290 |
