Toyota HILUX 防护条 — Figure 7552

Toyota HILUX EPC diagram 7552, 防护条, with 3 images and 48 PNC and OE references.

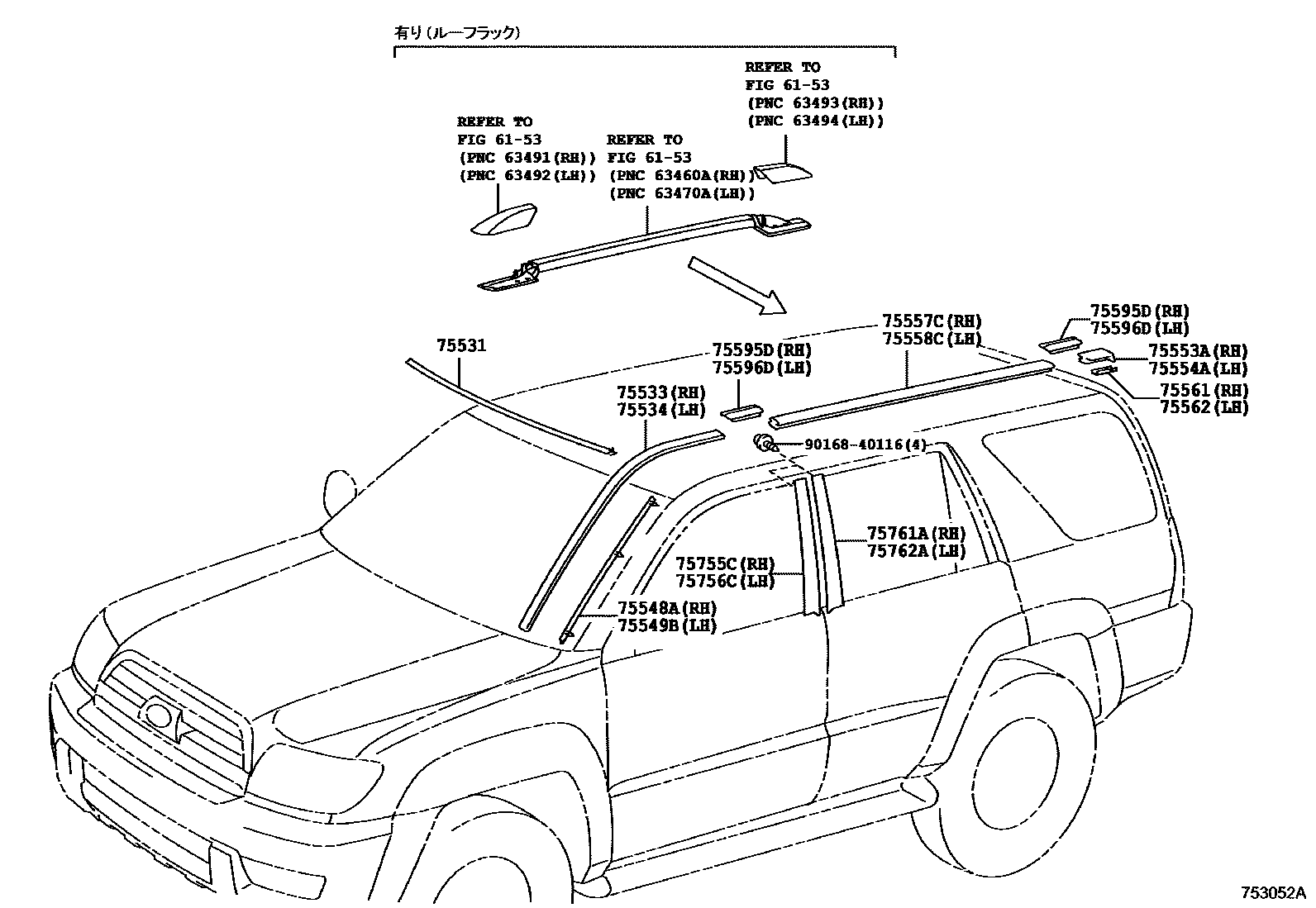

Toyota HILUX 防护条 EPC diagram — 753052A
防护条 — 753052A (200211 – 999999)

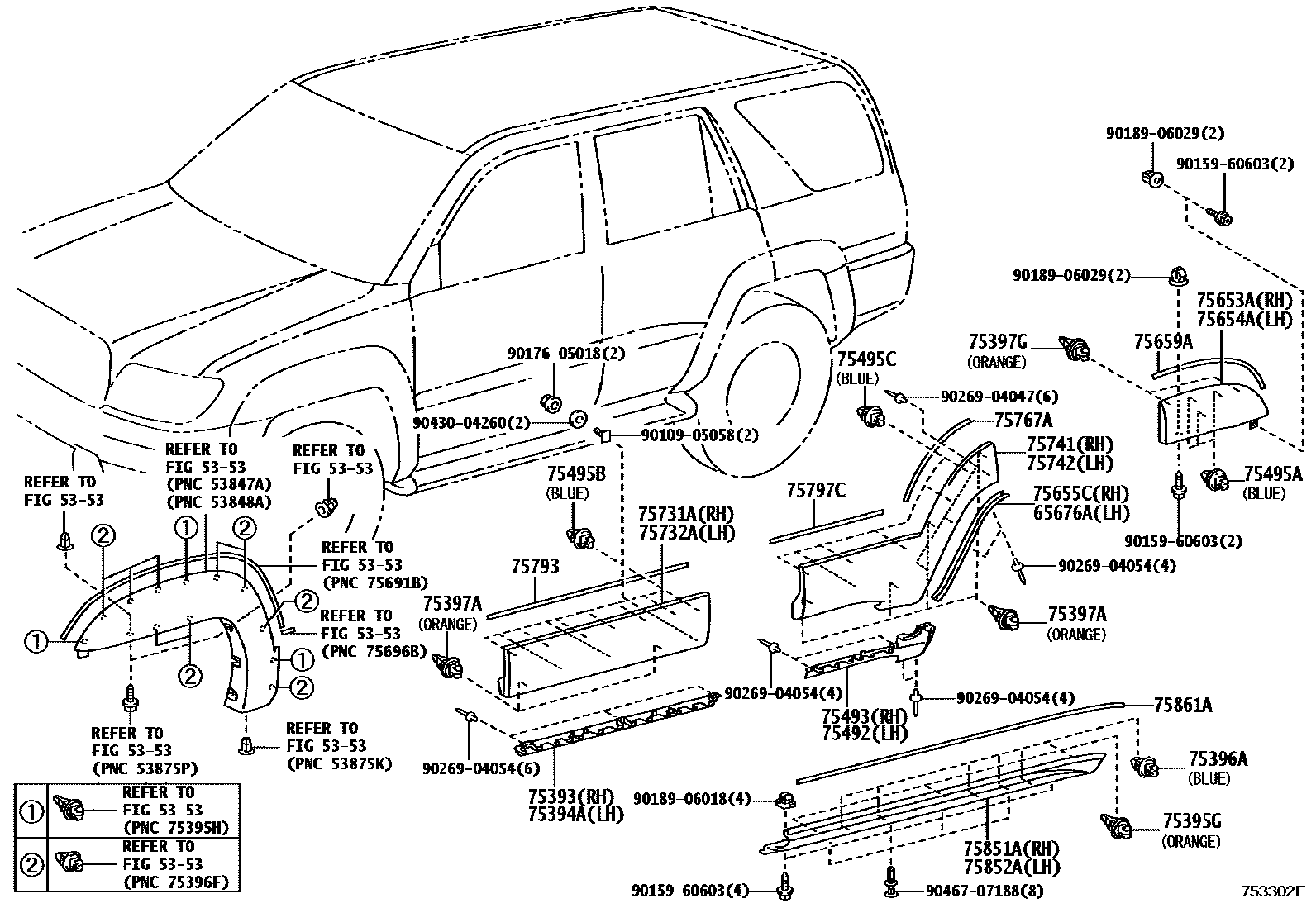

Toyota HILUX 防护条 EPC diagram — 753302E
防护条 — 753302E (200508 – 999999)

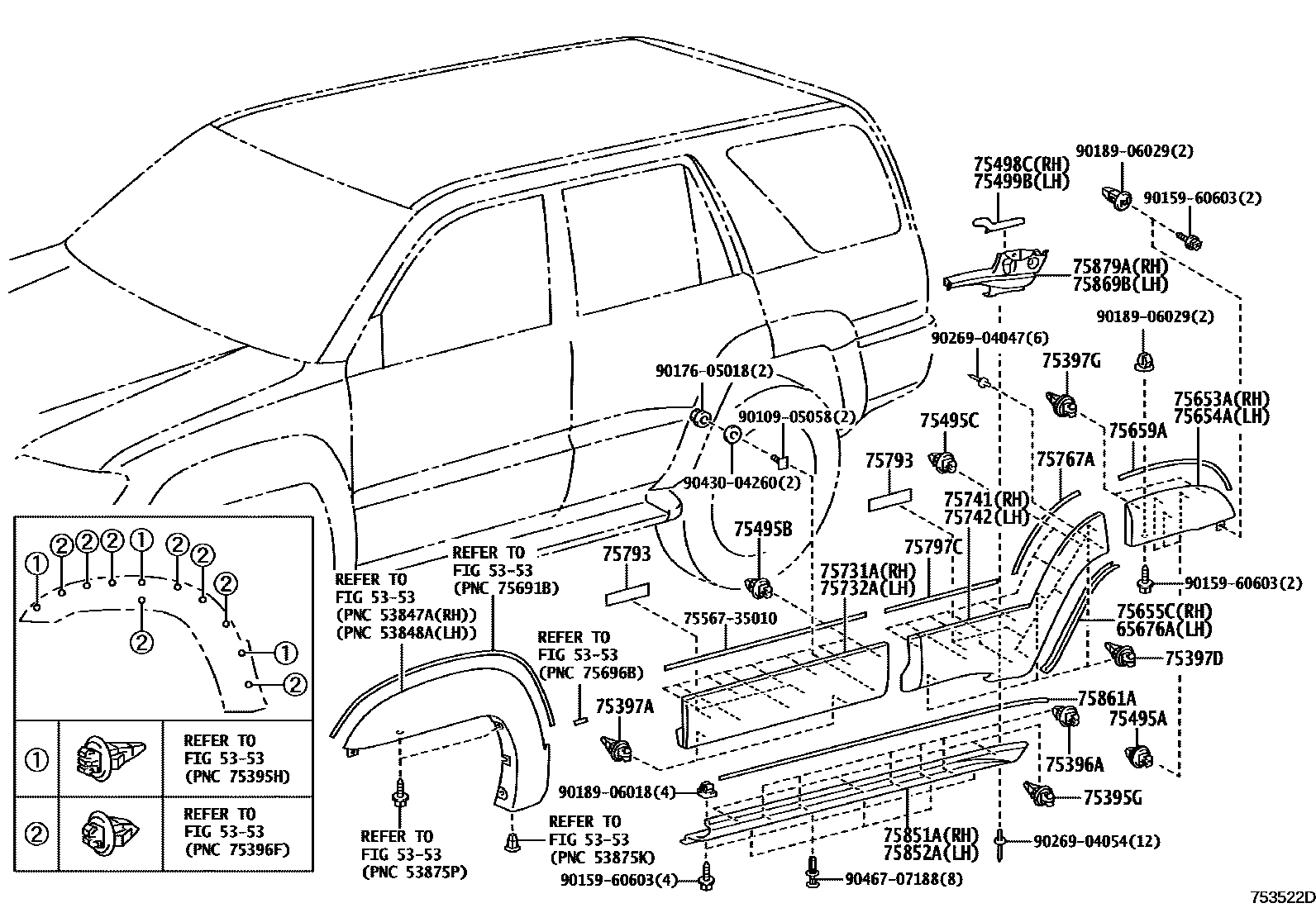

Toyota HILUX 防护条 EPC diagram — 753522D
防护条 — 753522D (200211 – 200508)

PNC and OE references

PNCPart nameOE numbers
65676ALeft front wheel house seal65676-35010 · 65676-35020
75393No. 2 outer protective strip fixings75393-35070
75394ANo. 3 outer protective strip fixings75394-35010
75395GNo. 1 outer protective strip clip75395-35070
75396ANo. 2 outer protective strip clip75396-35020
75397ANo. 3 outer protective strip clip75397-35010
75397DNo. 3 outer protective strip clip75397-35010
75397GNo. 3 outer protective strip clip75397-35010
75492No. 5 outer protective strip fixings75492-35010
75493No. 4 outer protective strip fixings75493-35020
75495ANo. 4 outer protective strip clip75495-35010
75495BNo. 4 outer protective strip clip75495-35010
75495CNo. 4 outer protective strip clip75495-35010
75498CNo. 2 outer protective strip seal75498-35010
75499BNo. 3 outer protective strip seal75499-35010
75531Windshield outer protective strip75531-35110 · 75531-35180
75533Windshield right outer protective strip75533-35040 · 75533-35041 · 75533-35050
75534Windshield left outer protective strip75534-35010 · 75534-35011 · 75534-35030
75548ANo. 1 windshield outer protective strip fasteners75548-35010
75549BNo. 2 windshield outer protective strip fasteners75549-35010
75553ADecorative strip on the right side of the roof, rear gutter side75553-35010
75554ADecorative strip on the left side of the roof, rear gutter side75554-35010
75557CDecorative strip on the middle section of the drainage channel on the right side of the No. 2 roof75557-35010
75558CDecorative strip on the side of the drainage channel in the middle section of the left roof of No. 2 car75557-35010
75561No. 1 roof drain channel side decorative strip clip75561-42030 · 75561-60010
75562No. 2 roof drain channel side decorative strip clip75561-42030 · 75561-60010
75595DProtective strip cover for the front drain channel on the right side of the roof75596-35030 · 75596-42010
75596DProtective strip cover for the front drain channel on the left side of the roof75596-35030 · 75596-42010
75653ARight rear side panel outer protective strip75653-35090
75654ALeft rear side panel outer protective strip75654-35090
75655CRight front wheel house seal75655-35010 · 75655-35020
75659ANo. 1 side panel protective strip lining75659-35060 · 75659-35100
75731ARight front door outer protective strip75731-35120
75732ALeft front door outer protective strip75732-35120
75741Right rear door outer protective strip75741-35120
75742Left rear door outer protective strip75742-35120
75755CRight front door window frame rear protective strip75755-35010
75756CLeft front door window frame rear protective strip75756-35010
75761ARight rear door window frame front protective strip75761-35010
75762ALeft rear door window frame front protective strip75762-35010
75767ANo. 1 rear door protective strip lining75659-35060 · 75767-35080
75793Front door outer upper protective strip lining75793-35020
75797CRear door outer upper protective strip lining75797-35020
75851ARight front door sill panel protective strip75851-35070 · 75851-35080
75852ALeft front door sill panel protective strip75852-35070 · 75852-35080
75861ANo. 1 door sill panel protective strip protective cover75861-35050 · 75861-35060
75869BLeft side panel opening fixing75869-35030
75879ARight side panel opening fixing75879-35030
