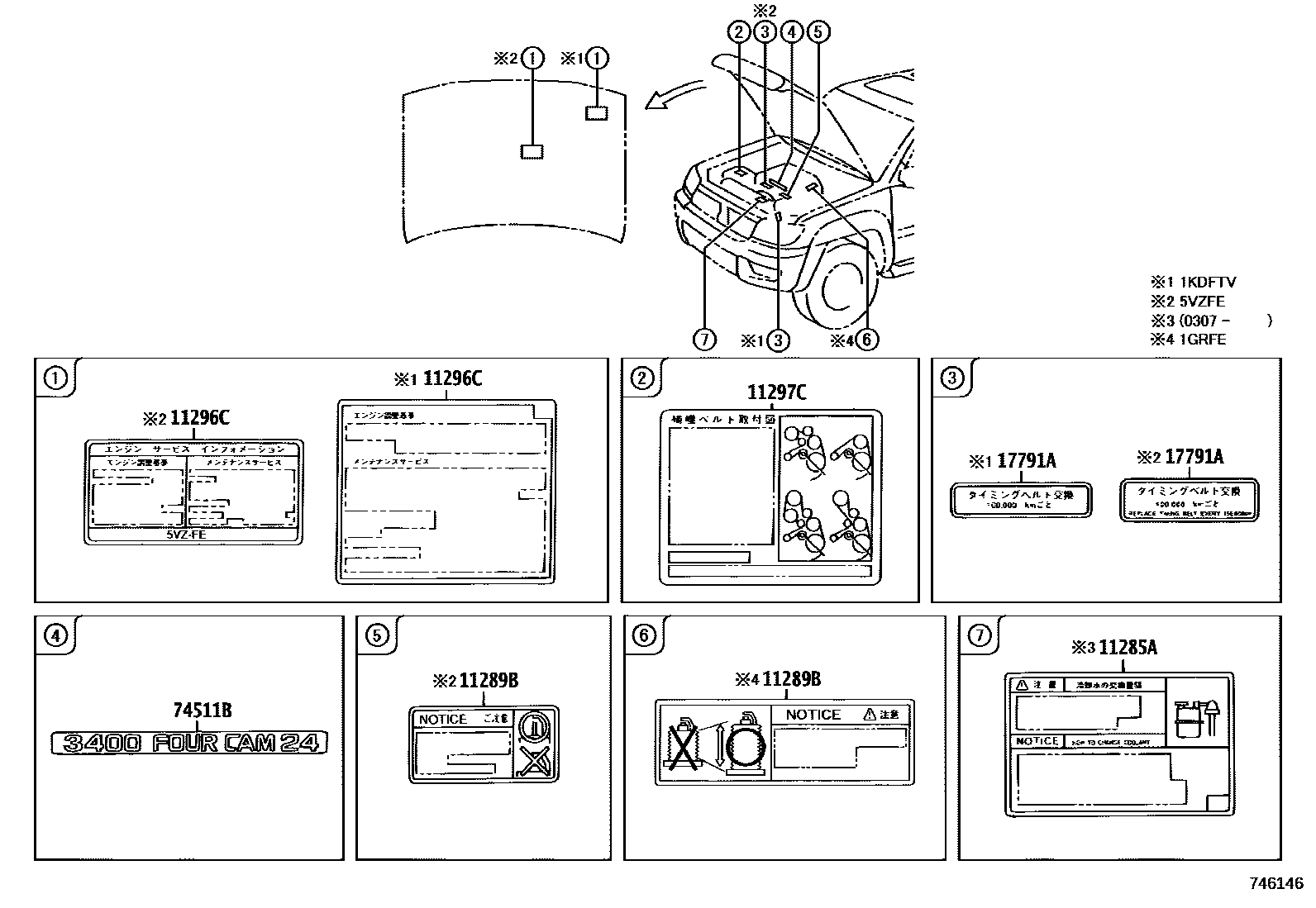

Toyota HILUX warning nameplate — Figure 7455
Toyota HILUX EPC diagram 7455, warning nameplate, with 3 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11285A | Coolant System Caution Labels | 11285-30010 |
| 11289B | spark plug caution label | 11289-31010 · 11289-62020 |
| 11296C | Engine maintenance information label | 11296-30020 · 11296-31030 · 11296-31031 · 11296-62071 · 11296-75062 · 11296-75140 |
| 11297C | Toyota part | 11297-30010 |
| 17791A | Toyota part | 17791-55010 · 17791-74040 |
| 36369 | Transfer case information label | 36369-35560 |
| 46275B | No. 2 parking brake release information label | 46275-47010 |
| 63297E | Sliding sunroof warning label | 63297-48020 |
| 74511B | Nameplate | 11288-62010 |
| 74511F | Nameplate (laser identification label) | 74511-2B300 |
| 74528F | Right door closer warning label | 74528-35010 |
| 74529 | Child safety or child restraint lock warning nameplate | 69339-12010 |
| 74540 | Fuse box warning nameplate | 82683-35170 · 82683-35190 |
| 74541L | bottle rack information label | 74541-48010 |
| 74544D | Tire carrier warning nameplate | 74544-36050 |
| 74559A | Fuel warning plate | 74559-89101 |
| 74561A | fuel consumption information label | 74561-52010 · 74561-60040 |
| 74562B | Emission information label | 74562-12610 · 74562-30690 · 74562-40040 |
| 74579A | Unleaded Fuel Information Label | 74579-24010 |
| 74751 | tire pressure information label | 42661-35590 · 42661-35630 |
| 87529B | Cabin filter information label | 87529-50020 |
| 88723H | Cooler maintenance warning label | 88733-51010 |
| 89176A | Air bag deployment information label | 89176-51010 |
