Toyota HILUX 座椅和座椅滑轨 — Figure 7151

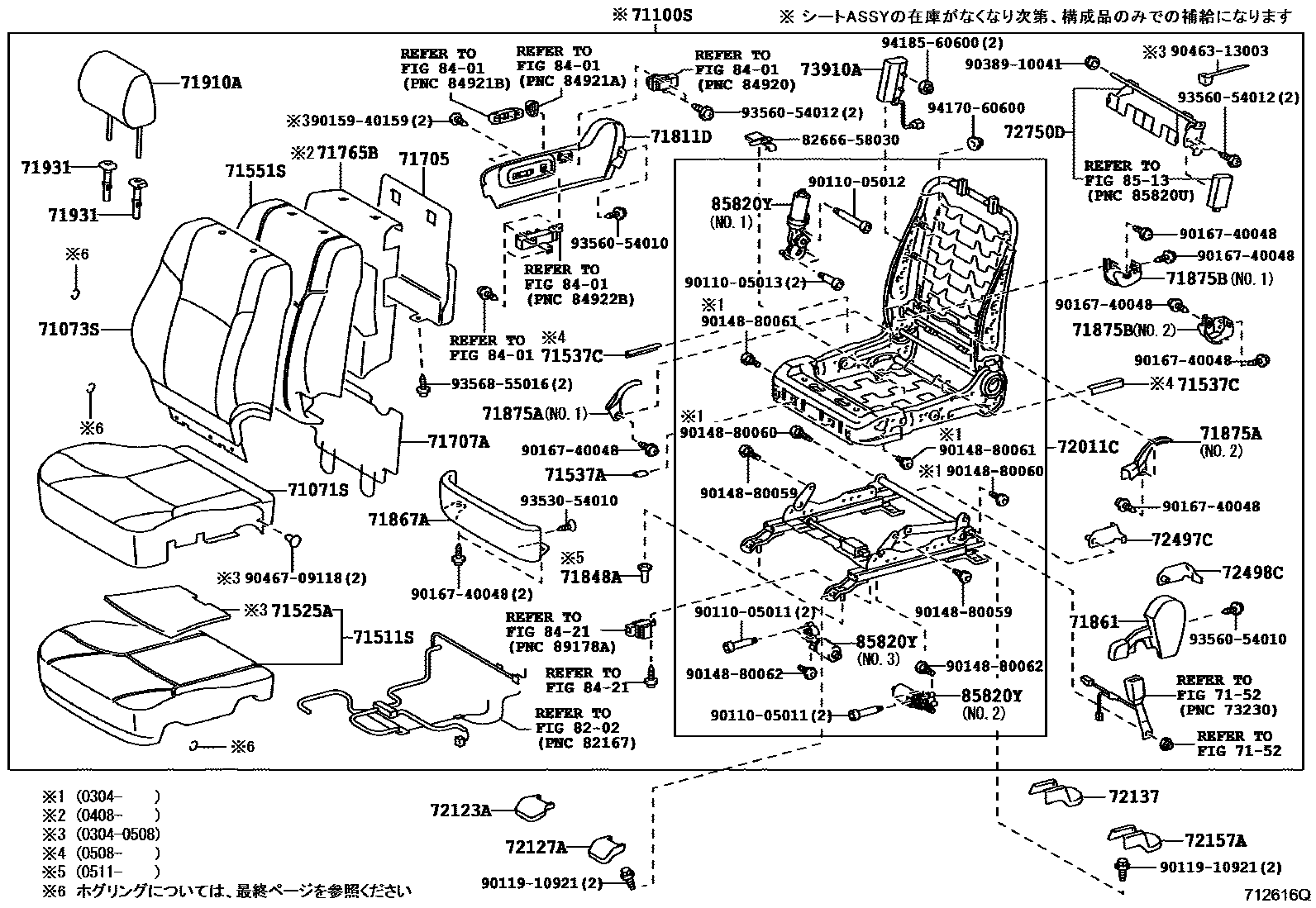

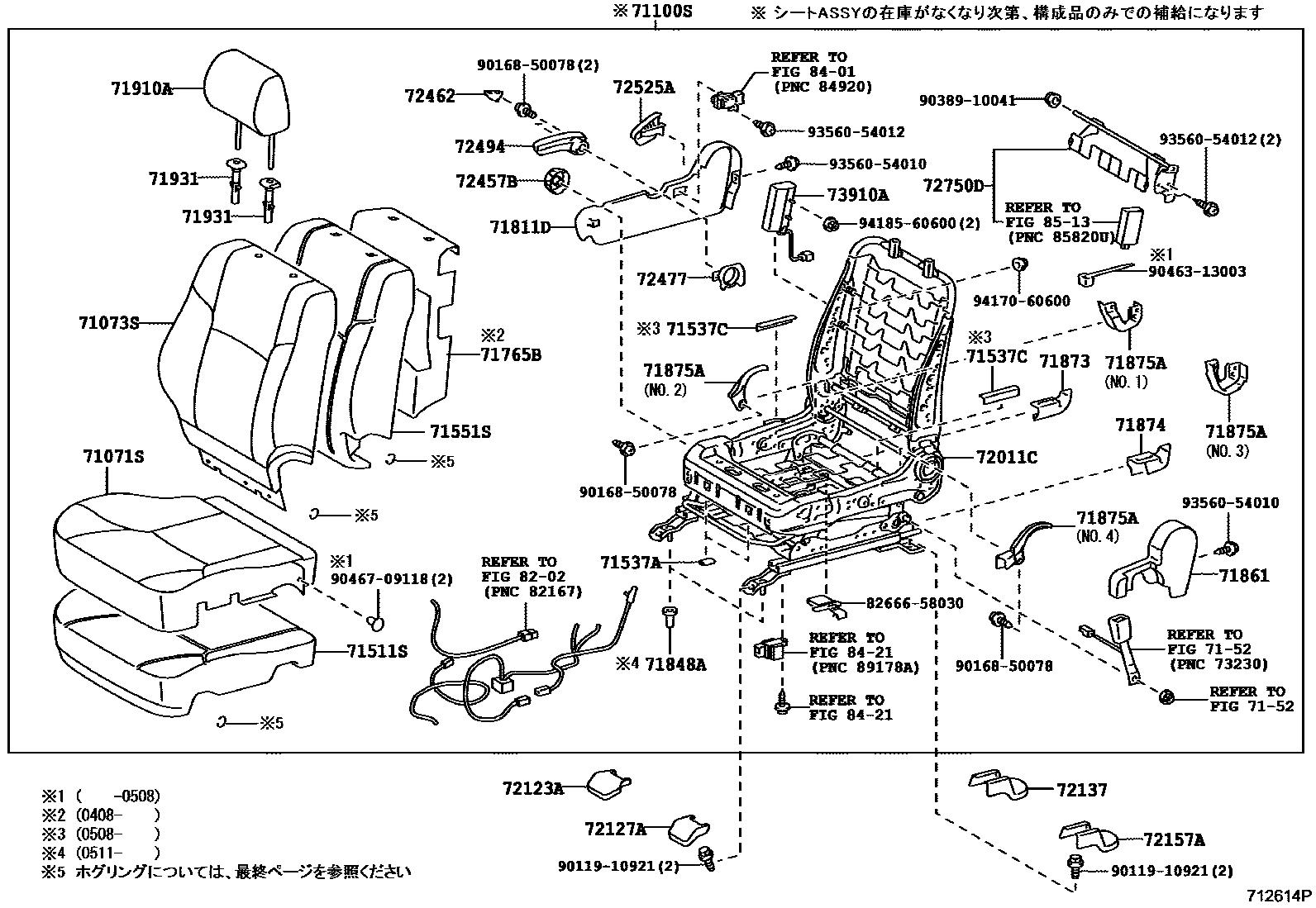

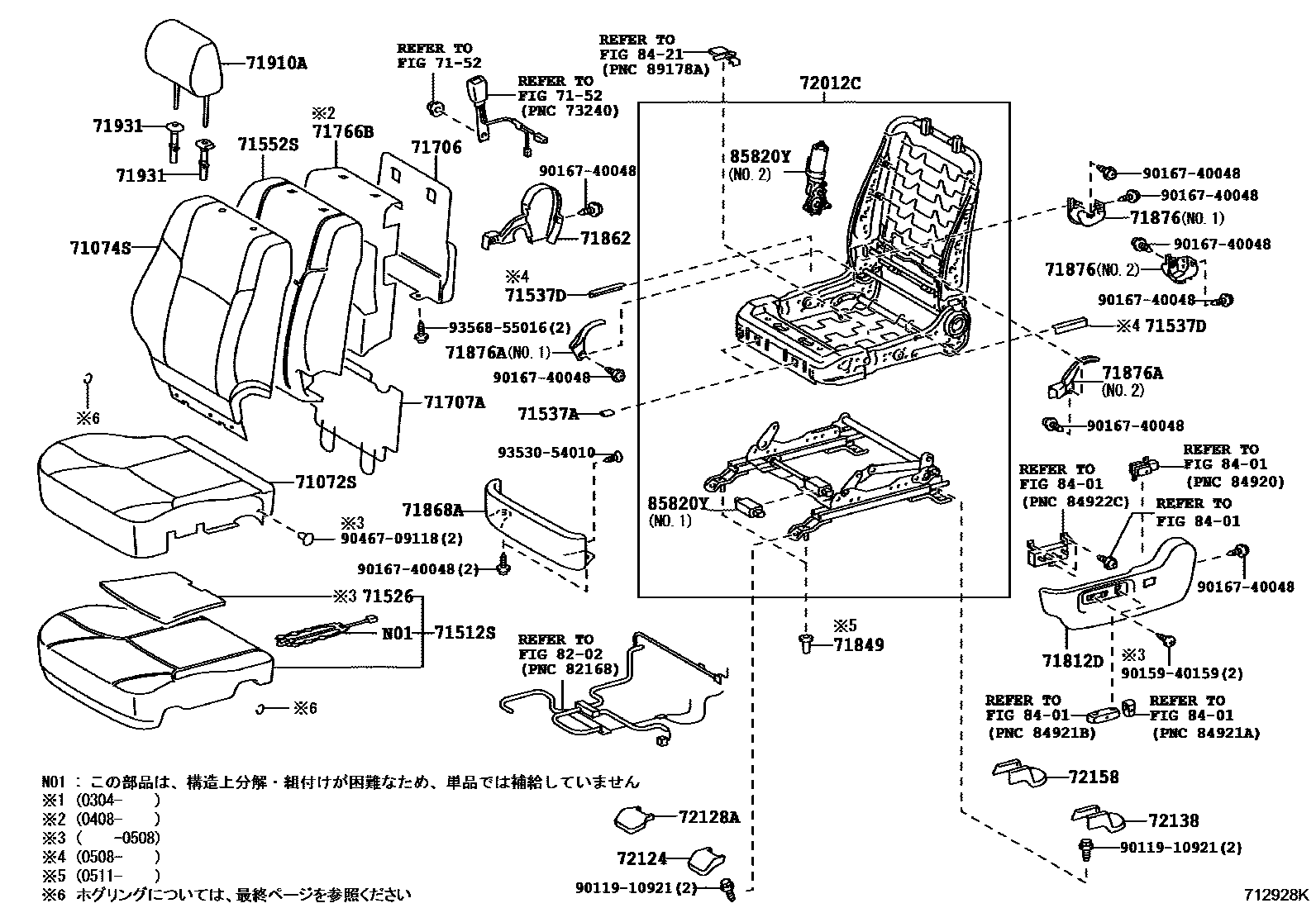

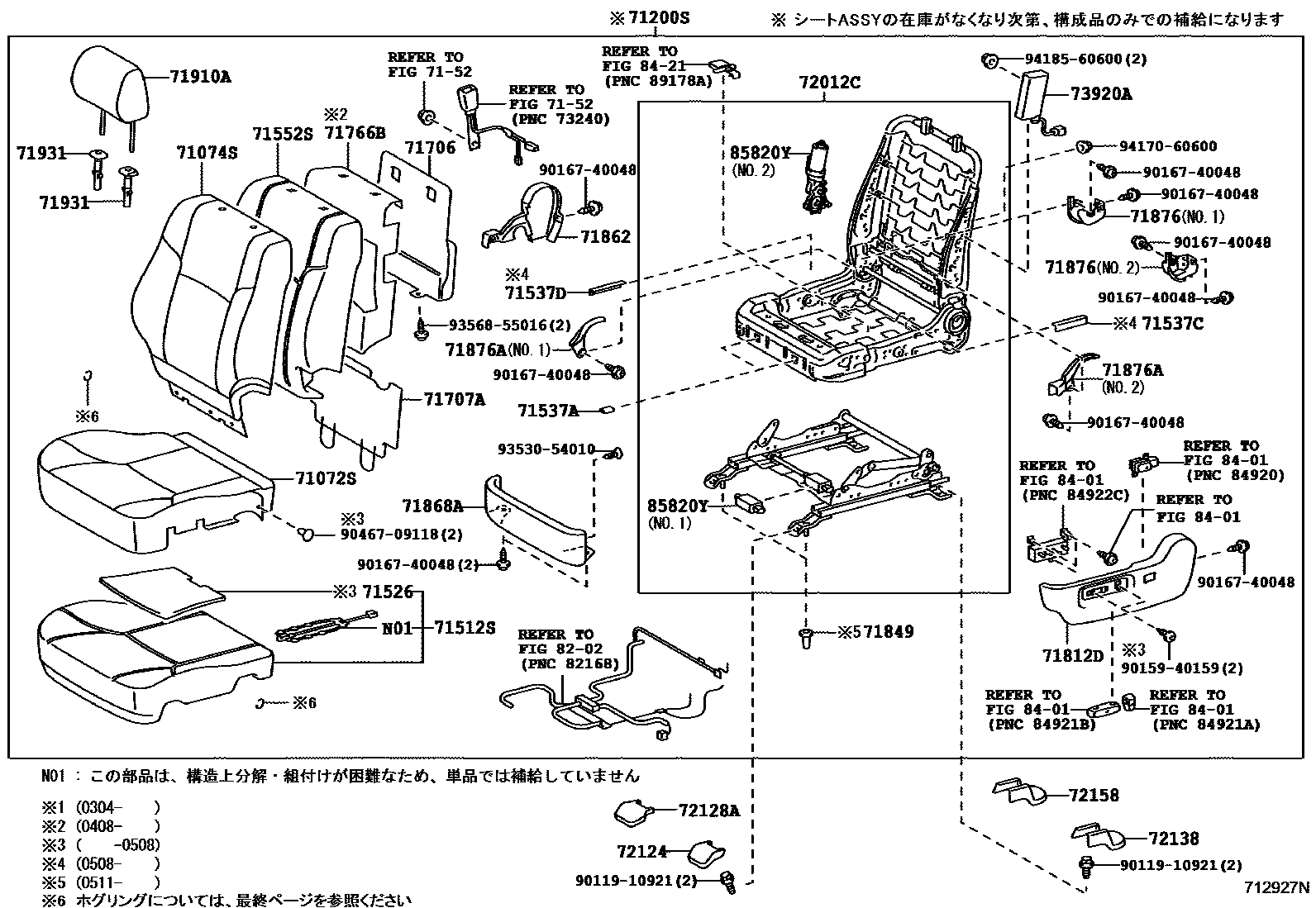

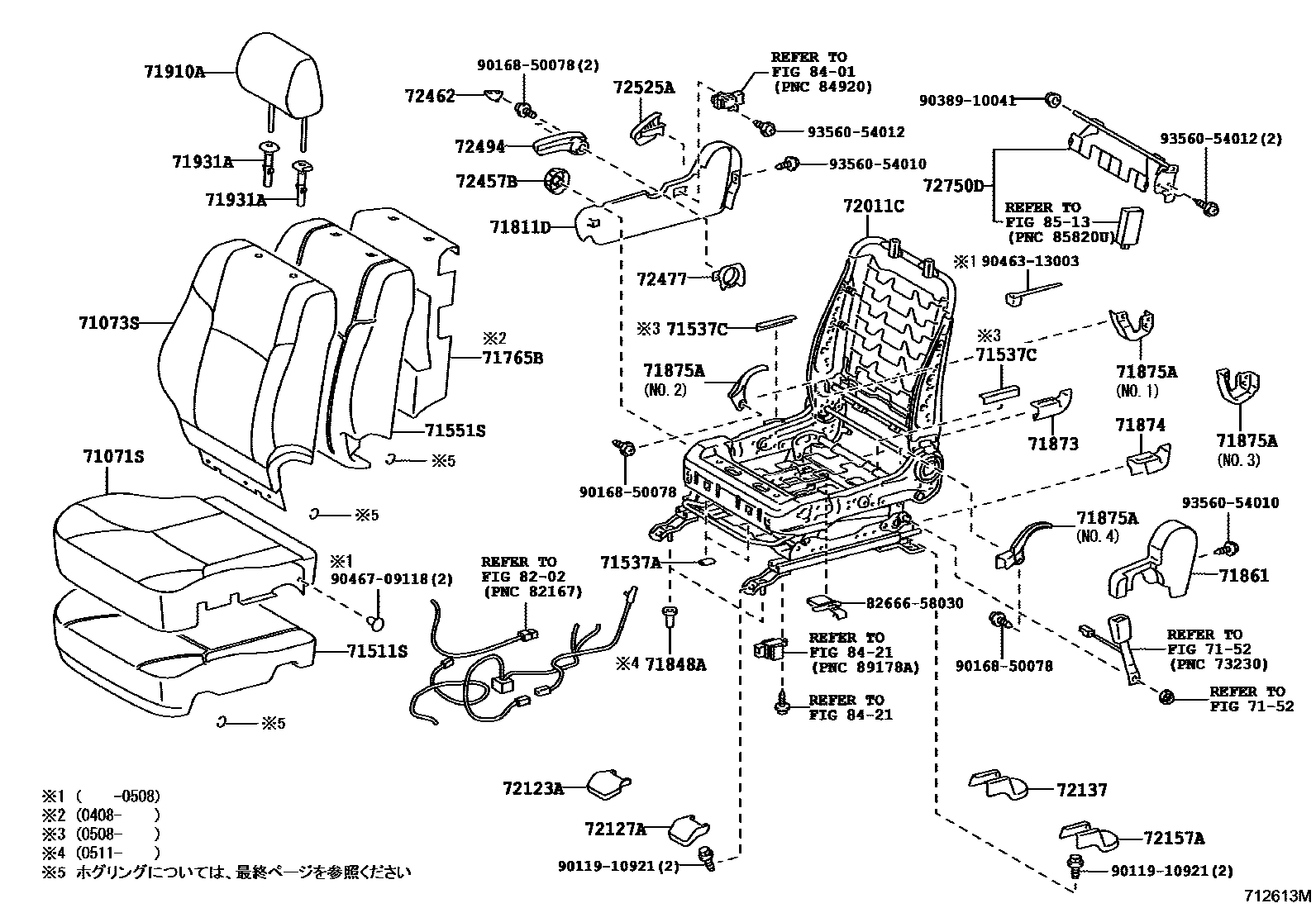

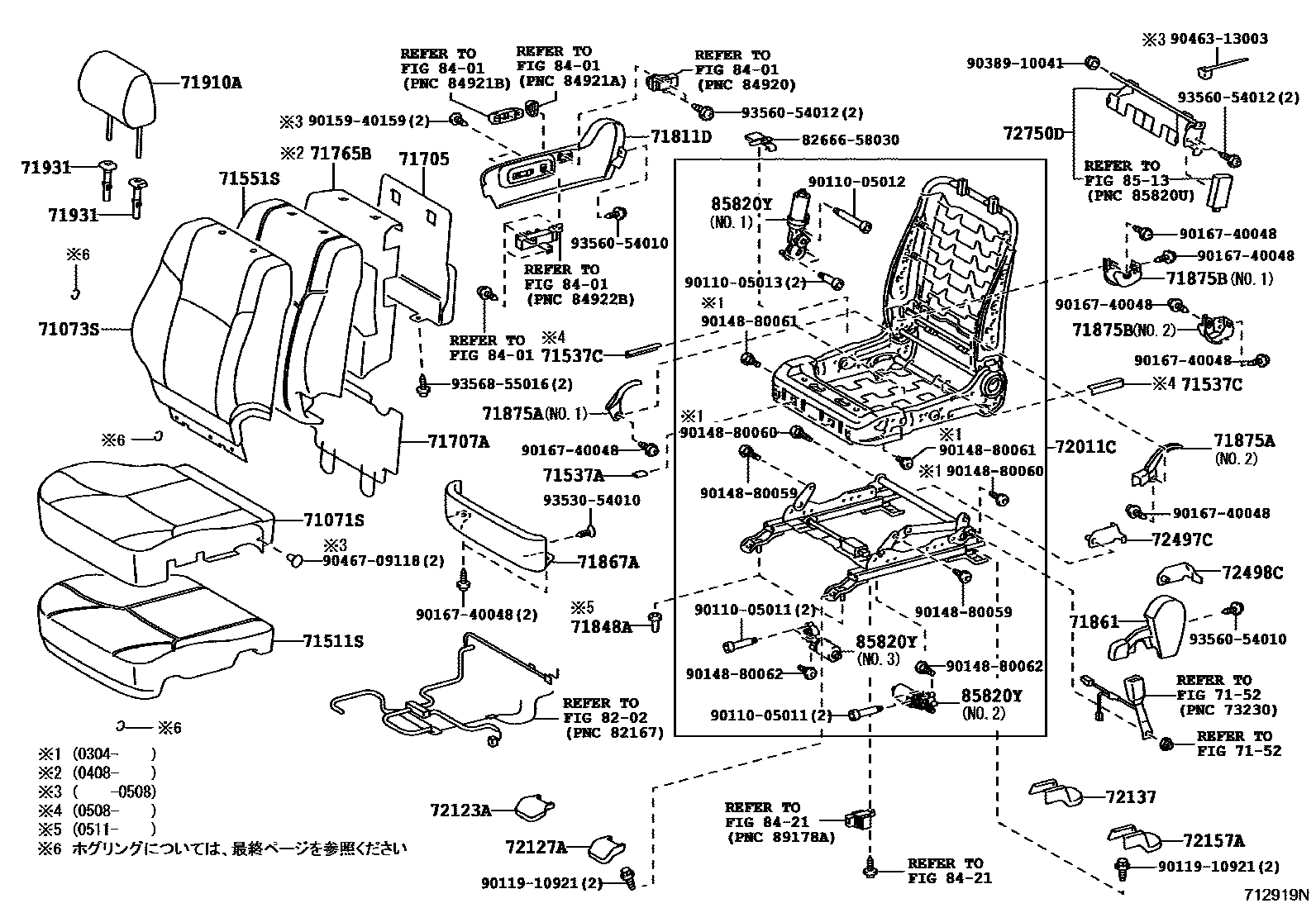

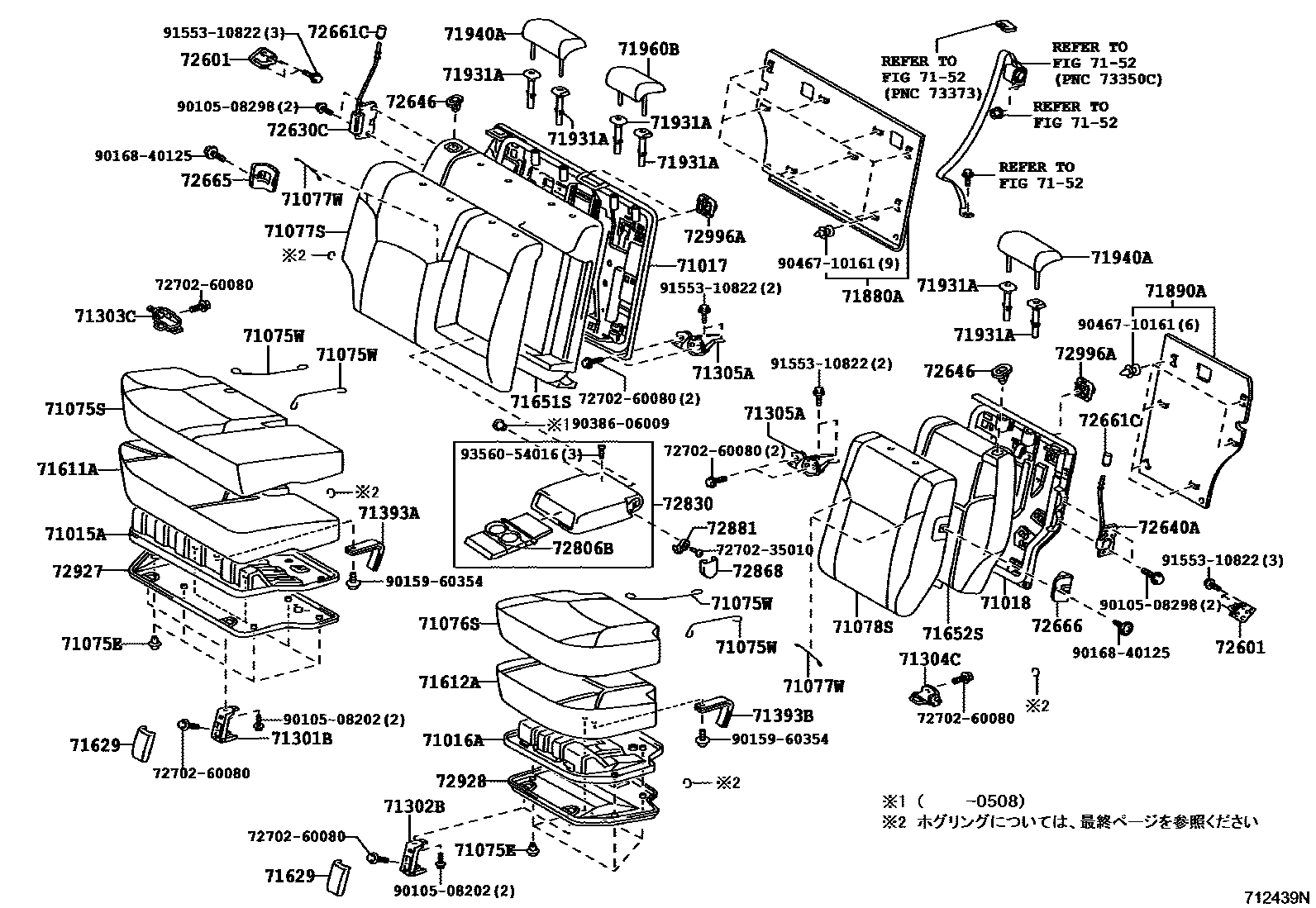

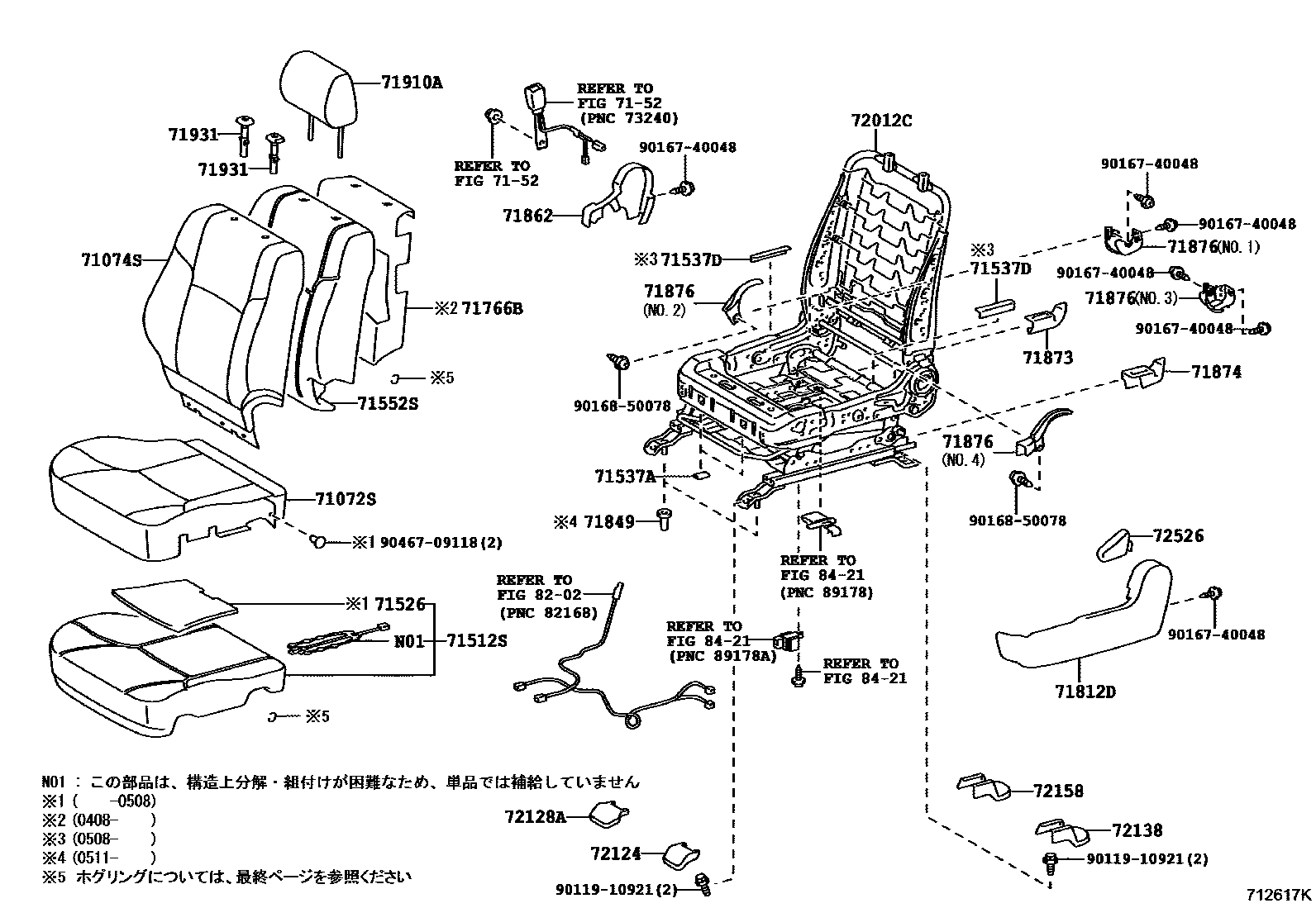

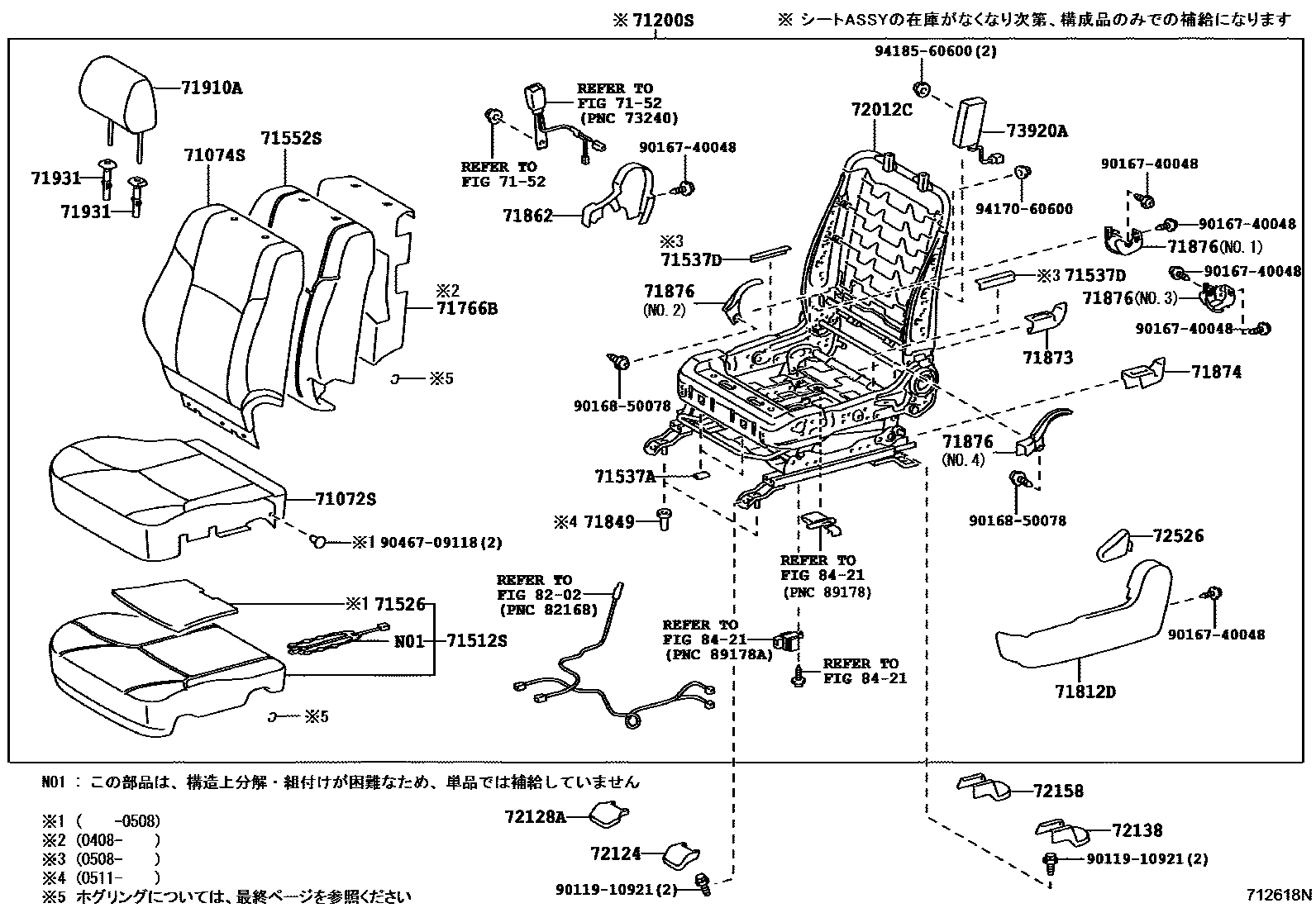

Toyota HILUX EPC diagram 7151, 座椅和座椅滑轨, with 10 images and 46 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71015A | Rear right seat cushion frame sub-assembly | 71015-35080 |
| 71016A | Rear left seat cushion frame sub-assembly | 71016-35050 |
| 71017 | Right rear seat back frame sub-assembly | 71017-35170 |
| 71018 | Rear left seat back frame sub-assembly | 71018-35110 |
| 71075W | Rear seat cushion protective wire | 71227-35010 |
| 71077W | Rear seat backrest protective wire | 71293-35030 |
| 71301B | No. 1 seat hinge sub-assembly on the right side of the rear row | 71301-35040 · 71301-35050 |
| 71302B | Hinge sub-assembly of No. 1 seat on the left side of the rear row | 71301-35040 · 71301-35050 |
| 71303C | Rear right seat backrest hinge sub-assembly | 71303-35020 |
| 71304C | Rear left seat back hinge sub-assembly | 71304-35020 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-35060 |
| 71511S | Front right seat cushion cushion (for split seats) | 71501-35080 · 71511-35100 |
| 71512S | Front left seat cushion cushion (for split seats) | 71501-35090 · 71501-35100 |
| 71525A | Front center seat cushion, right side cushion | 71525-35010 |
| 71526 | Front center seat cushion left side cushion | 71525-35010 |
| 71537A | Front seat cushion protective cover | 71537-26010 |
| 71537C | Front right seat cushion edge protective cover | 71537-60050 |
| 71537D | Front left seat cushion edge protective cover | 71537-60050 |
| 71551S | Front right seat back cushion (for split seats) | 71551-35100 · 71551-35101 · 71551-35110 · 71551-35111 |
| 71552S | Front left seat back cushion (for split seats) | 71551-35100 · 71551-35101 · 71552-35030 |
| 71611A | Rear right seat cushion | 71611-35070 |
| 71612A | Rear left seat cushion | 71612-35030 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-35060 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-35040 |
| 71765B | Front right seat backrest protective cover | 71765-60060 |
| 71766B | Front left seat back protection cover | 71765-60060 |
| 71848A | Right seat adjuster cover | 71848-33010 |
| 71849 | left seat adjuster cover | 71848-33010 |
| 71873 | Front right seat cushion lower guard panel | 71873-58020 |
| 71874 | Front left seat cushion lower guard | 71874-58010 |
| 71875A | Right backrest tilt adjuster inner cover | 71875-58060 · 71876-58060 |
| 71875B | Right backrest tilt adjuster inner cover | 71875-58050 · 71876-58050 |
| 71876 | Left backrest tilt adjuster inner cover | 71875-58060 · 71875-60140 · 71876-58060 · 71876-60140 |
| 72011C | Front right seat adjuster sub-assembly | 71110-35010 · 71110-35020 · 71110-35070 · 71110-35071 · 71110-35080 · 71110-35081 · 71110-35200 · 71110-35260 |
| 72012C | Front left seat adjuster sub-assembly | 71120-35050 · 71120-35060 · 71120-35160 · 71120-35170 |
| 72477 | Height adjuster spacer | 72477-58010 |
| 72497C | Height adjuster bracket outer cover | 72497-58010 |
| 72498C | Height adjuster bracket inner cover | 72498-58010 |
| 72601 | Rear seat lock sub-assembly | 72601-35020 · 72601-35021 |
| 72630C | Rear right seat back lock assembly | 72630-35040 · 72630-35041 |
| 72640A | Rear left seat back lock assembly | 72640-35040 · 72640-35041 |
| 72750D | Right lumbar support adjuster assembly | 72750-48020 · 72750-60050 |
| 72881 | Rear right seat center armrest bracket | 72881-35010 |
| 73910A | Front right seat airbag assembly | 73910-58010 |
| 73920A | Front left seat airbag assembly | 73920-58010 |
| 85820Y | Electric seat motor assembly | 85801-58010 · 85801-58020 · 85801-58030 · 85801-58040 · 85801-60010 · 85801-60020 |
