Toyota HILUX 锁芯组件 — Figure 6765

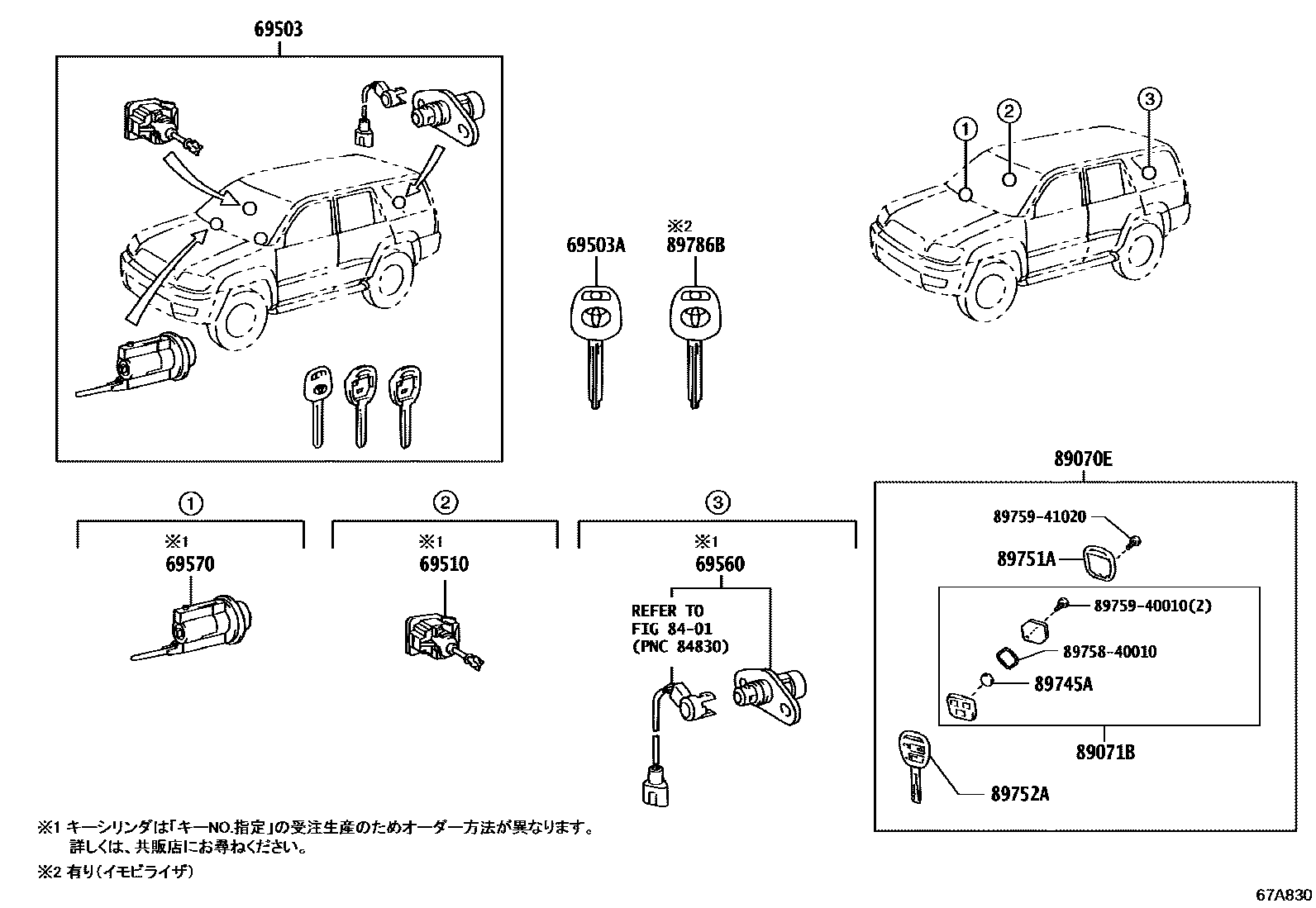

Toyota HILUX EPC diagram 6765, 锁芯组件, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69503 | Door lock cylinder components | 69005-3D040 · 69005-3D060 · 69005-3D061 |
| 69503A | external tooth key | 00000-00000 · 90999-00251 |
| 69510 | Right front door lock cylinder assembly | 69510-58010 |
| 69560 | Rear door lock cylinder assembly | 69560-35110 |
| 69570 | Ignition switch lock cylinder assembly | 69570-60060 |
| 89070E | Remote key assembly | 89070-35040 · 89070-35050 · 89070-35051 |
| 89071B | Remote key sub-assembly module assembly | 89071-35030 · 89071-35031 |
| 89745A | Transmitter battery | 89745-40010 |
| 89751A | Transmitter housing cover | 89751-50010 · 89751-50011 |
| 89752A | transmitter housing | 89752-60060 |
| 89786B | transceiver key secondary transmitter | 89786-60170 |
