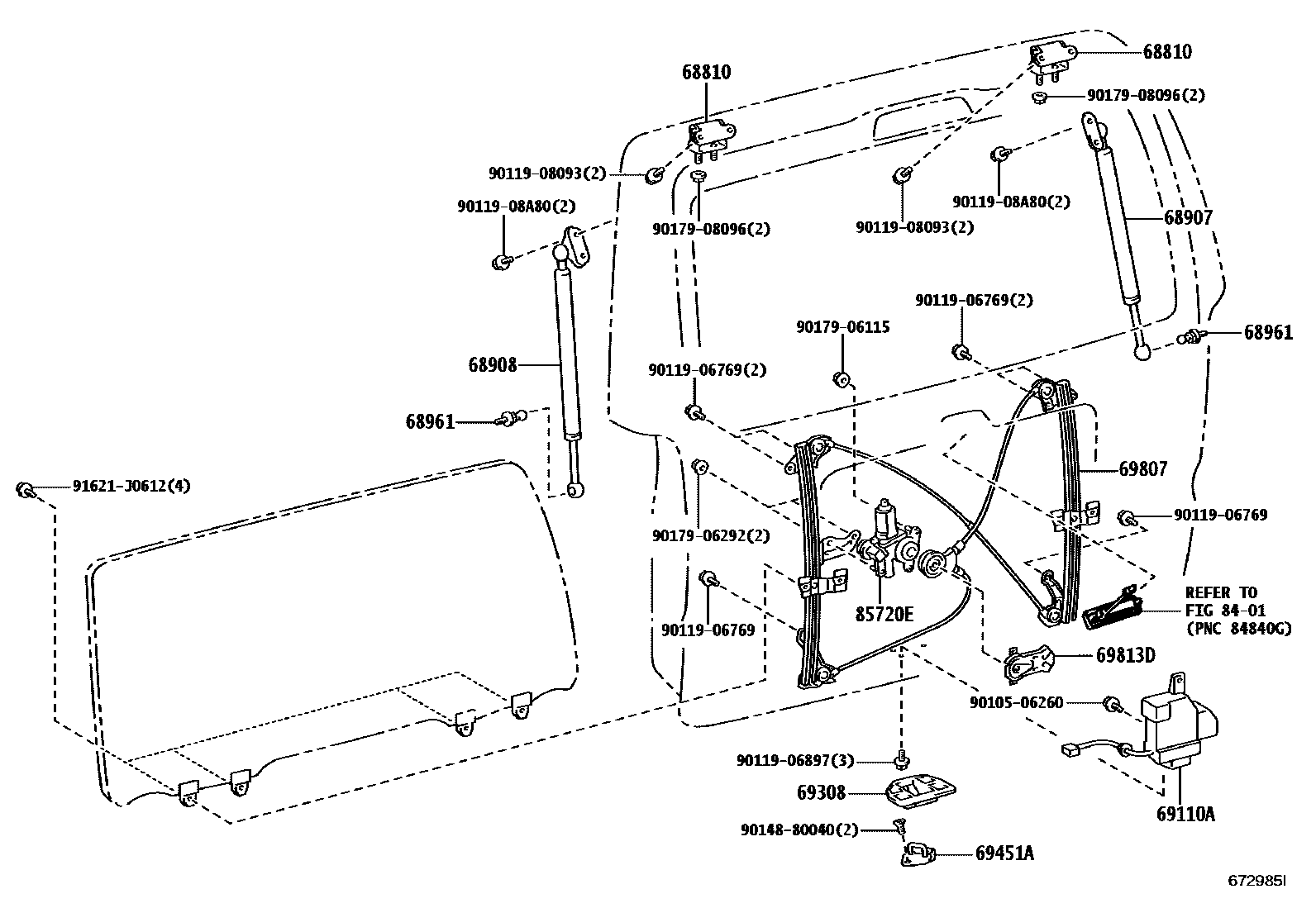

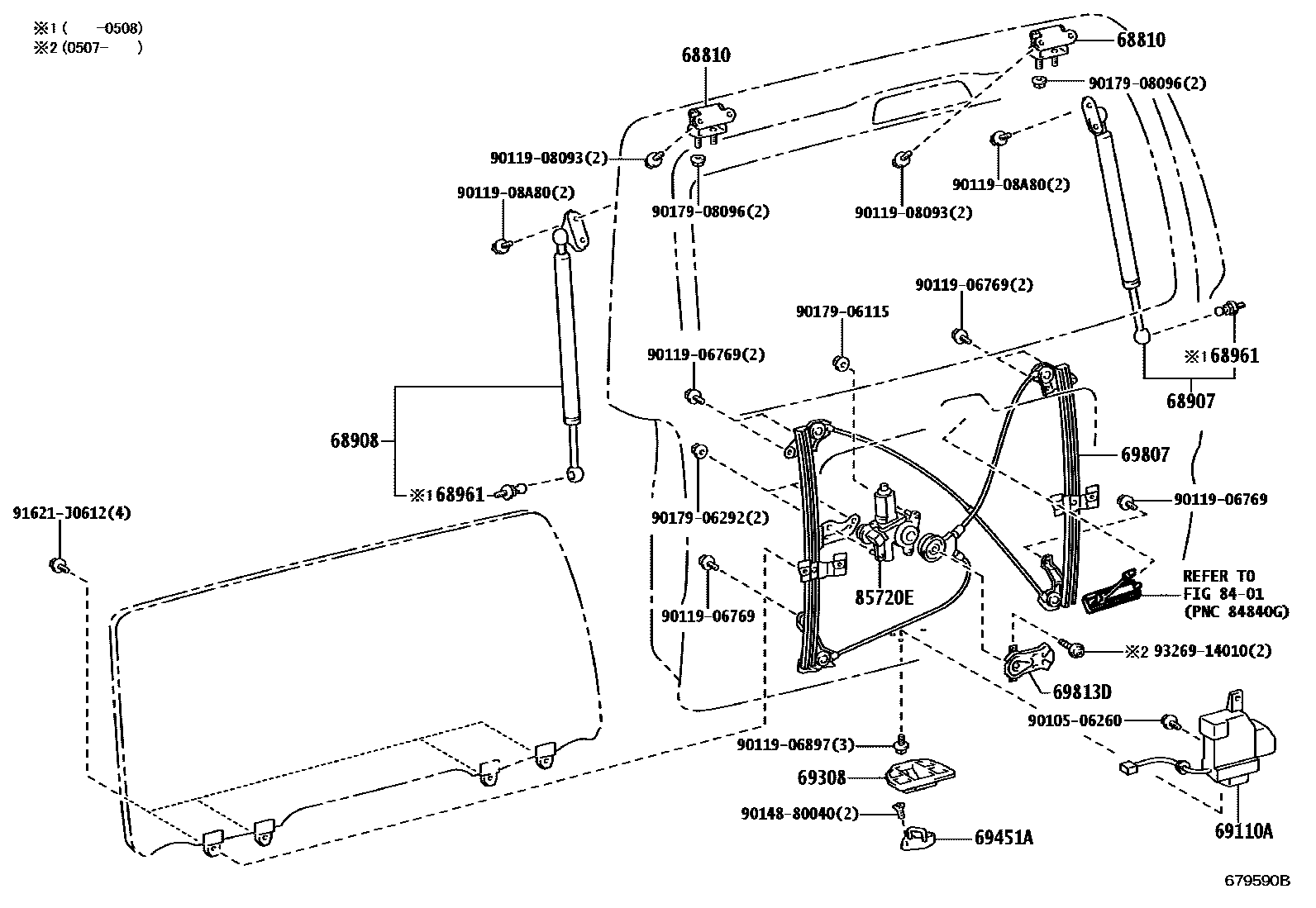

Toyota HILUX 背门锁和合页 — Figure 6762
Toyota HILUX EPC diagram 6762, 背门锁和合页, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68810 | Back door upper hinge assembly | 68810-21050 |
| 68907 | Back door right damping strut sub-assembly | 68907-35050 · 68907-35060 · 68907-39015 · 68907-39025 |
| 68908 | Rear door left damping strut sub-assembly | 68908-35050 · 68908-35060 · 68908-39015 · 68908-39025 |
| 68961 | Rear door support rod bolts | 68961-35050 |
| 69110A | Rear door lock assembly with motor | 69110-35060 · 69110-35062 |
| 69308 | Rear door lock guard sub-assembly | 69308-35010 |
| 69451A | door lock plate | 69410-35030 |
| 69807 | Rear door electric window lift sub-assembly | 69807-35020 |
| 69813D | Rear door right side window regulator base plate | 69813-33010 |
| 85720E | Left electric window lift motor assembly | 85720-35150 |
