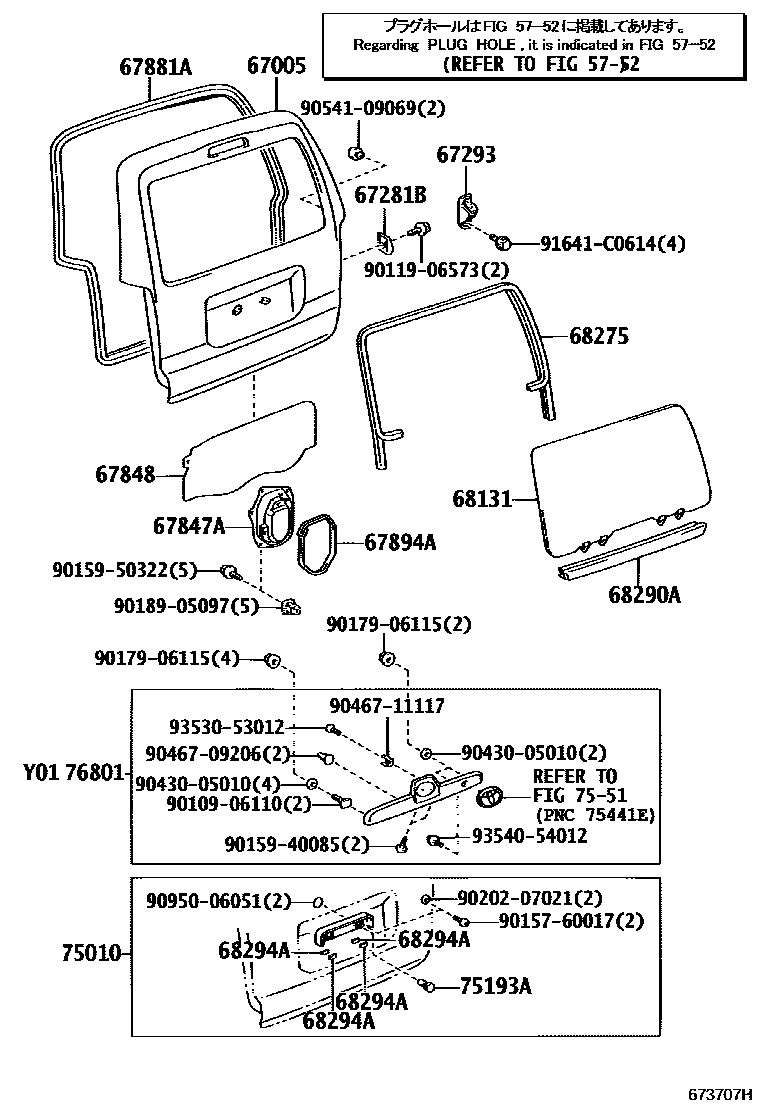

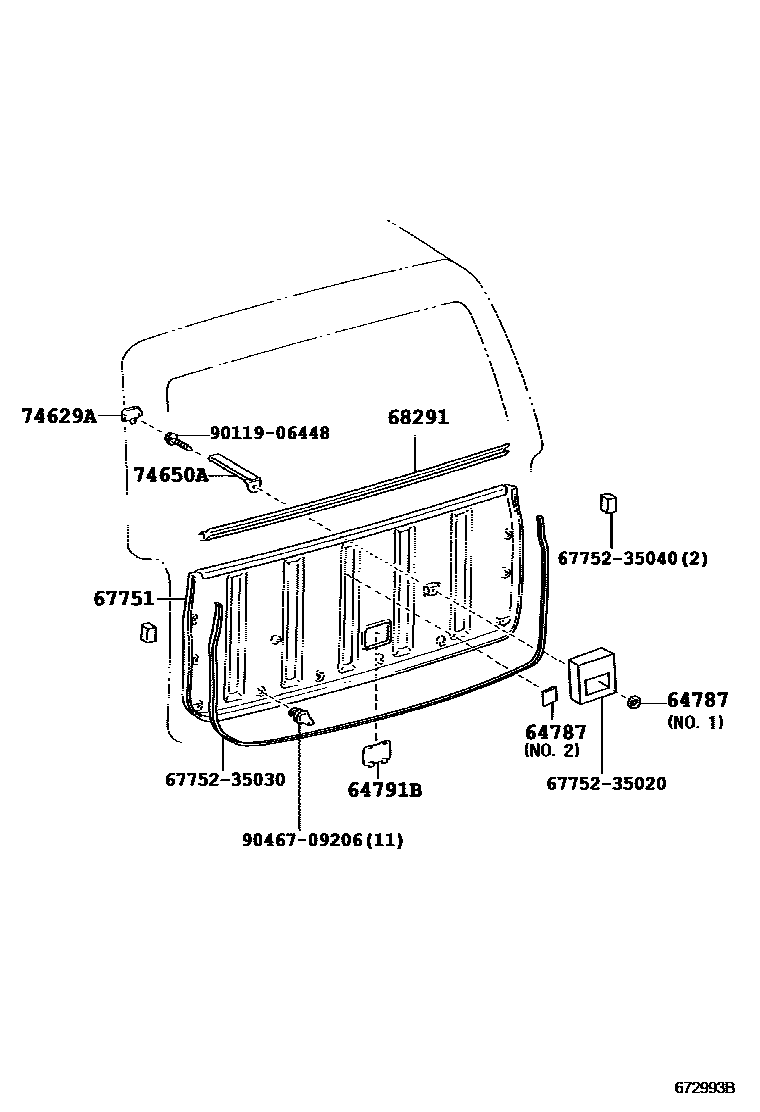

Toyota HILUX 背门板和背门玻璃 — Figure 6761
Toyota HILUX EPC diagram 6761, 背门板和背门玻璃, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64787 | Rear door decorative mat | 64787-35020 · 64788-35010 |
| 67005 | Rear door panel sub-assembly | 67005-35220 · 67005-35240 · 67005-35260 · 67005-35270 · 67005-35290 · 67005-35300 |
| 67281B | Back door lower block | 67281-35020 |
| 67293 | Back door lower block cushion | 67293-35020 · 67294-35010 |
| 67847A | Rear door access hole cover | 67847-35020 |
| 67848 | Rear door left access hole cover | 67848-35020 |
| 67881A | Back door seal | 67881-35030 |
| 67894A | Back door panel No. 1 protective piece | 67893-35020 |
| 68131 | back door glass | 68150-35270 |
| 68275 | Rear door glass lift chute | 68275-35020 |
| 68290A | Back door glass outer sealing strip assembly | 68290-35030 · 68290-35031 |
| 68291 | Rear door glass seal strip | 68291-35020 · 68291-35021 |
| 68294A | Rear door glass adhesive seal | 68294-44030 |
| 75010 | rear license plate frame | 75010-35010 |
| 75193A | Rear license plate fixing piece | 75193-44010 |
| 76801 | Rear door exterior decorative strip sub-assembly | 76801-35390 · 76801-35420 · 76801-35460 · 76801-35461 · 76801-35470 · 76801-35471 |
