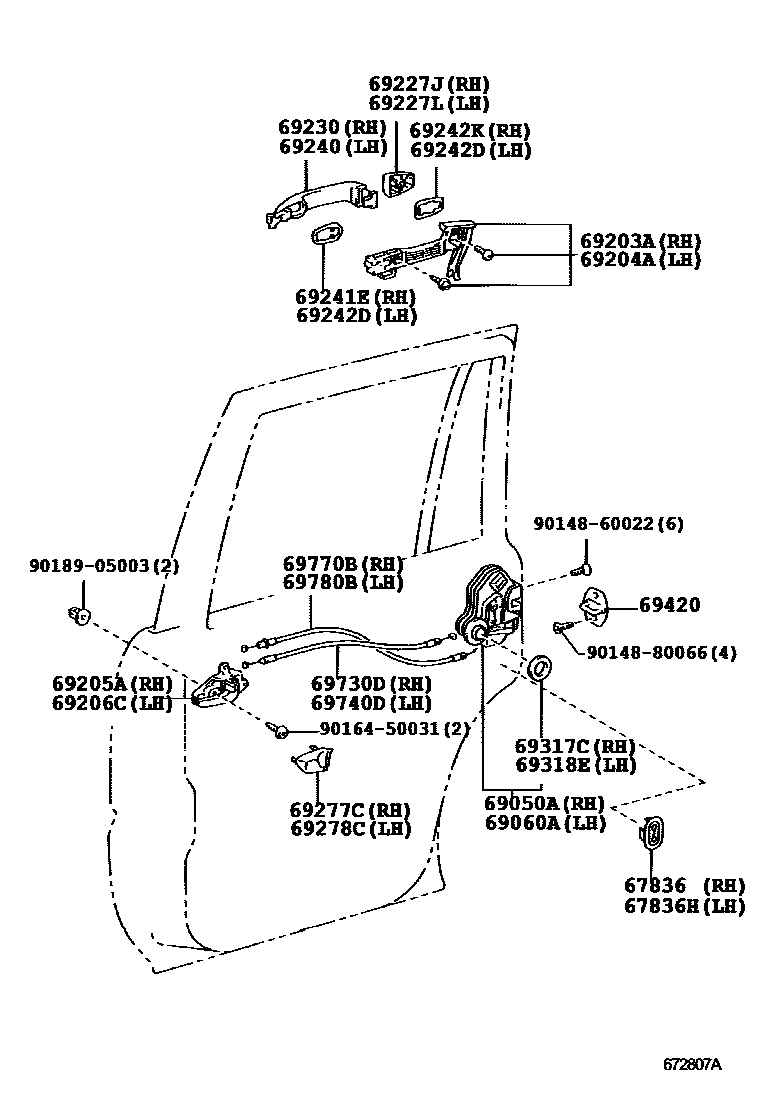

Toyota HILUX 后门锁和后门把手 — Figure 6756
Toyota HILUX EPC diagram 6756, 后门锁和后门把手, with 1 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67836 | Right rear door lock child restraint cover | 67836-12040 |
| 67836H | Left rear door lock child restraint cover | 67836-12040 |
| 69050A | Right rear door lock assembly with motor | 69050-60090 · 69050-60091 |
| 69060A | Left rear door lock assembly with motor | 69060-60090 · 69060-60091 |
| 69203A | Right rear door outer handle frame sub-assembly | 69203-60010 |
| 69204A | Left rear door outer handle frame sub-assembly | 69204-60010 |
| 69227J | Right rear door outer handle cover | 69227-30070 |
| 69227L | Left rear door outer handle cover | 69227-30070 |
| 69230 | Right rear door outer handle assembly | 69210-58010 |
| 69240 | Left rear door outer handle assembly | 69210-58010 |
| 69241E | Right rear door outer handle pad | 69241-28060 |
| 69242D | Left rear door outer handle pad | 69241-28060 · 69242-33020 · 69242-33030 · 69242-60030 |
| 69242K | Right rear door outer handle pad | 69242-33020 · 69242-33030 · 69242-60030 |
| 69317C | Door lock harness right seal | 69318-51010 |
| 69318E | Door lock harness left seal | 69318-51010 |
| 69420 | Rear door lock plate assembly | 69410-33010 |
| 69730D | Right rear door lock remote control cable assembly | 69730-35020 |
| 69740D | Left rear door lock remote control cable assembly | 69730-35020 |
| 69770B | Right rear door inner lock cable assembly | 69770-35010 |
| 69780B | Left rear door inner lock cable assembly | 69770-35010 |
