Toyota HILUX 后门板和后门玻璃 — Figure 6755

Toyota HILUX EPC diagram 6755, 后门板和后门玻璃, with 2 images and 29 PNC and OE references.

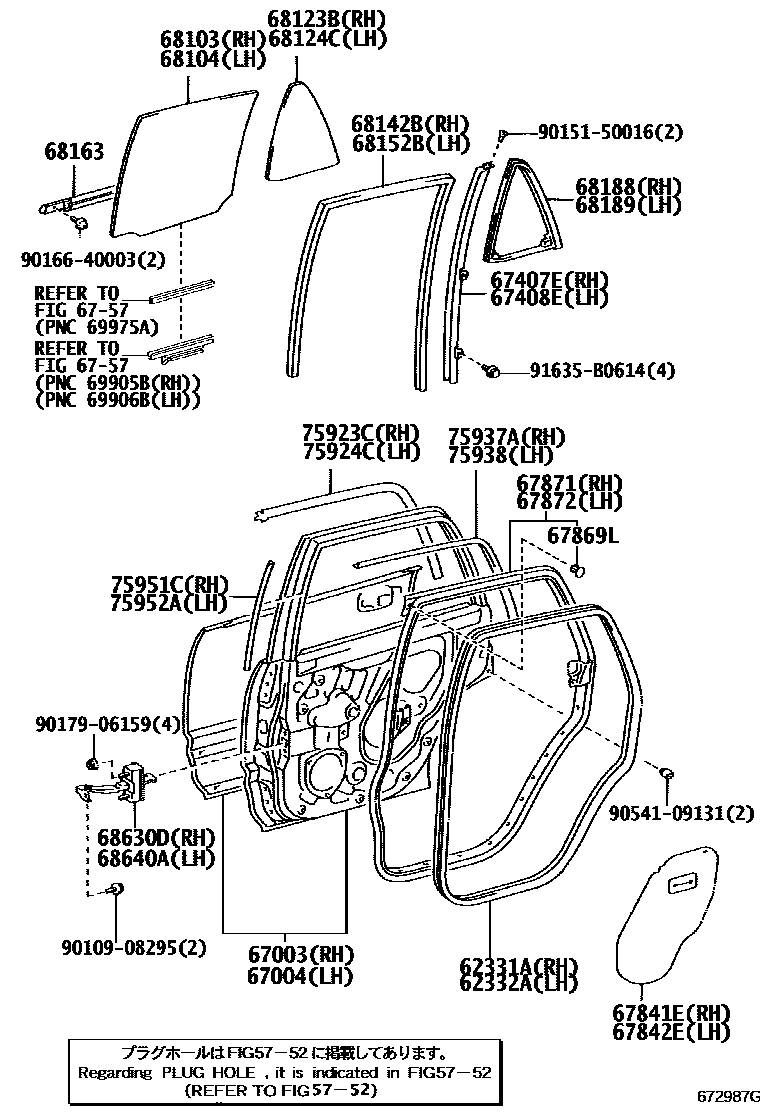

Toyota HILUX 后门板和后门玻璃 EPC diagram — 672987G
后门板和后门玻璃 — 672987G (200211 – 999999)

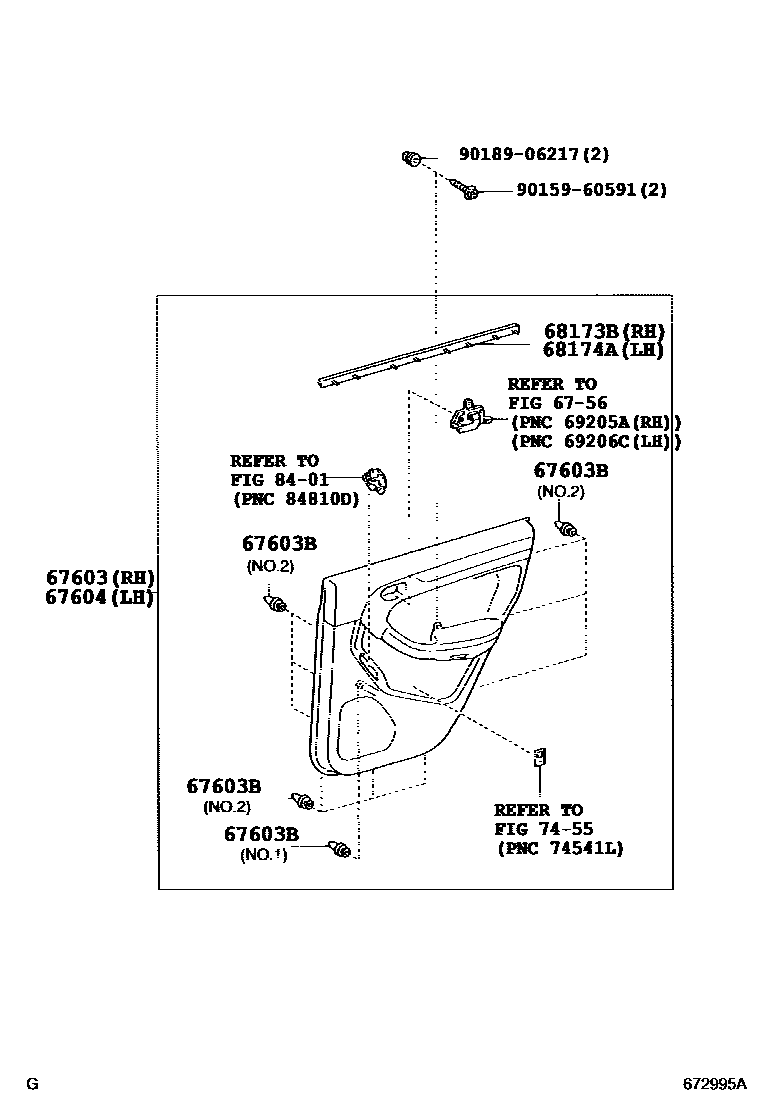

Toyota HILUX 后门板和后门玻璃 EPC diagram — 672995A
后门板和后门玻璃 — 672995A (200211 – 999999)

PNC and OE references

PNCPart nameOE numbers
67003Right rear door panel sub-assembly67003-35160 · 67003-35161
67004Left rear door panel sub-assembly67004-35160 · 67004-35161
67407ERight rear door window divider sub-assembly67407-35040
67408ELeft rear door window divider sub-assembly67408-35040
67603BCatch (for rear door trim panel)90467-09203 · 90467-09206
67841ERight rear door access hole cover67841-35090
67842ELeft rear door access hole cover67842-35050
67869LRear door seal strip clip67869-35010
67871Right rear door sealing strip67871-35060 · 67871-35080
67872Left rear door sealing strip67872-35060 · 67872-35080
68103Right rear door glass sub-assembly68113-35100
68104Left rear door glass sub-assembly68114-35100
68123BRight rear door corner window glass68123-35070
68124CLeft rear door corner window glass68124-35070
68142BRight rear door window lift chute68142-35040
68152BLeft rear door window lift chute68152-35040
68163Rear door glass outer seal strip68163-35030 · 68164-35030
68173BRight rear door glass inner sealing strip68173-35040
68174ALeft rear door glass inner sealing strip68174-35030
68188Right rear door corner window seal68188-35020
68189Left rear door corner window seal68189-35020
68630DRight rear door opening limiter assembly68630-35040
68640ALeft rear door opening limiter assembly68640-35020
75923CNo. 2 right side light-shielding film75923-35010
75924CNo. 2 left shading film75924-35010
75937AInner upper right light-blocking film75987-35320 · 75987-35321
75938Inner upper left light-blocking film75988-35340 · 75988-35341
75951CInner right front light-shielding film75977-35140 · 75977-35141
75952AInner left front light-shielding film75978-35140 · 75978-35141
