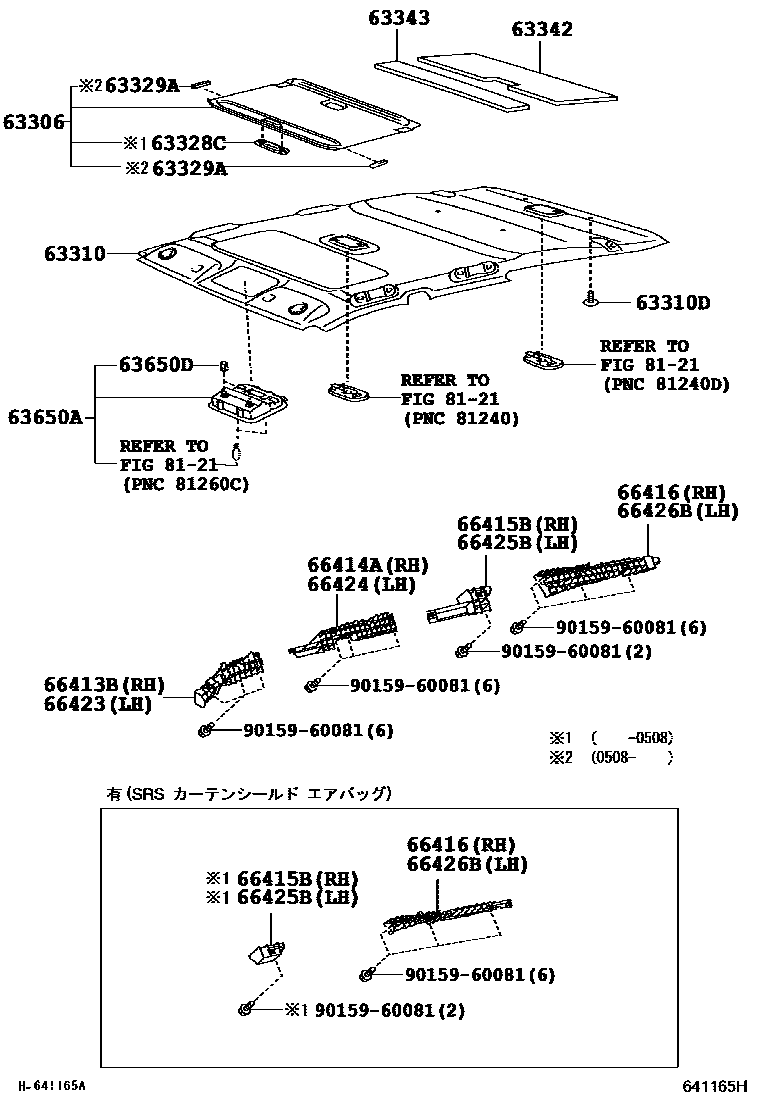

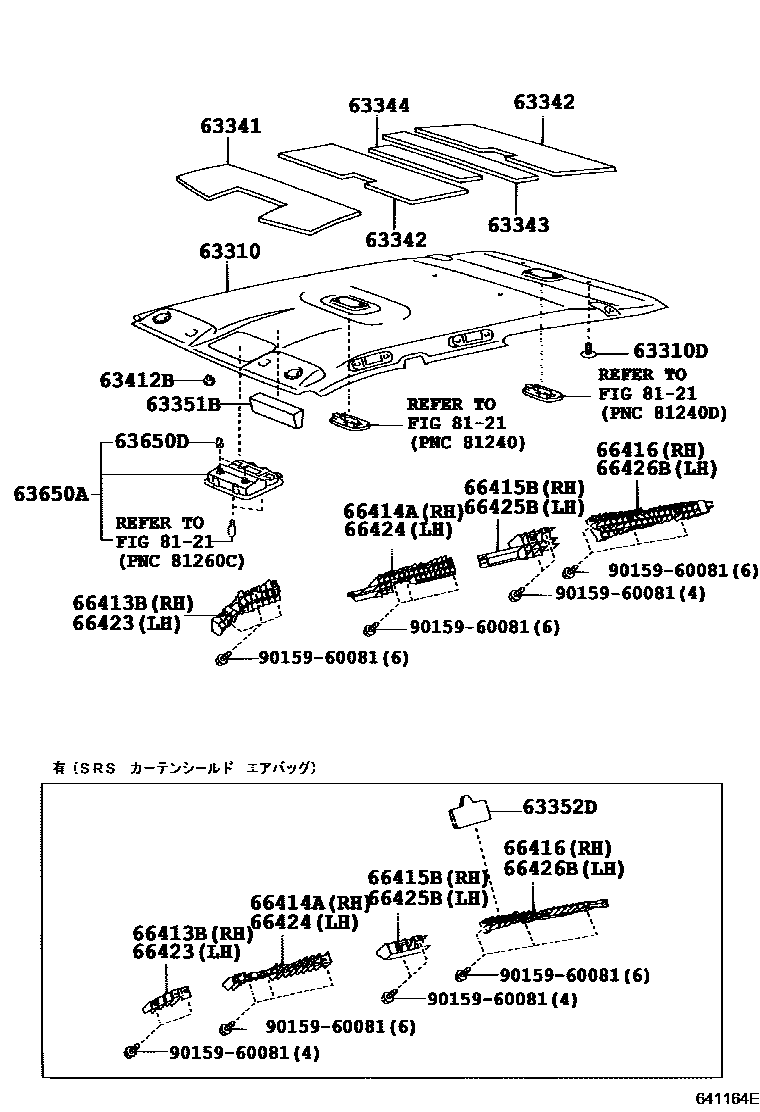

Toyota HILUX 车顶内衬和消声垫 — Figure 6452
Toyota HILUX EPC diagram 6452, 车顶内衬和消声垫, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63329A | Sunshade lock stop | 63329-35010 |
| 63341 | No. 1 roof silencer mat | 63341-35130 |
| 63342 | No. 2 roof muffler pad | 63342-35010 |
| 63343 | No. 3 roof muffler pad | 63342-35040 |
| 63344 | No. 4 roof silencer mat | 63342-35050 |
| 63351B | roof lining pads | 63351-35030 |
| 63352D | No. 2 roof lining lining block | 63352-35010 |
| 63412B | roof console fixings | 63412-35010 |
| 63650D | Clip (for roof console) | 90468-05125 |
| 66413B | Right front longitudinal member spacer | 66413-35010 · 66413-35020 |
| 66414A | Right rear longitudinal member spacer | 66414-35010 · 66414-35020 |
| 66415B | No. 2 right rear longitudinal beam spacer | 66415-35010 · 66415-35020 · 66415-35050 · 66415-35060 |
| 66416 | No. 3 right rear longitudinal beam spacer | 66416-35010 · 66416-35020 · 66416-35030 · 66416-35040 · 66416-35050 |
| 66423 | Left front longitudinal member spacer | 66423-35010 · 66423-35020 |
| 66424 | Left rear longitudinal member spacer | 66424-35010 · 66424-35020 |
| 66425B | No. 2 left rear longitudinal beam spacer | 66425-35010 · 66425-35020 · 66425-35050 · 66425-35060 |
| 66426B | No. 3 left rear longitudinal beam spacer | 66426-35010 · 66426-35020 · 66426-35030 · 66426-35040 · 66426-35050 |
