Toyota HILUX 车内装饰板 — Figure 6451

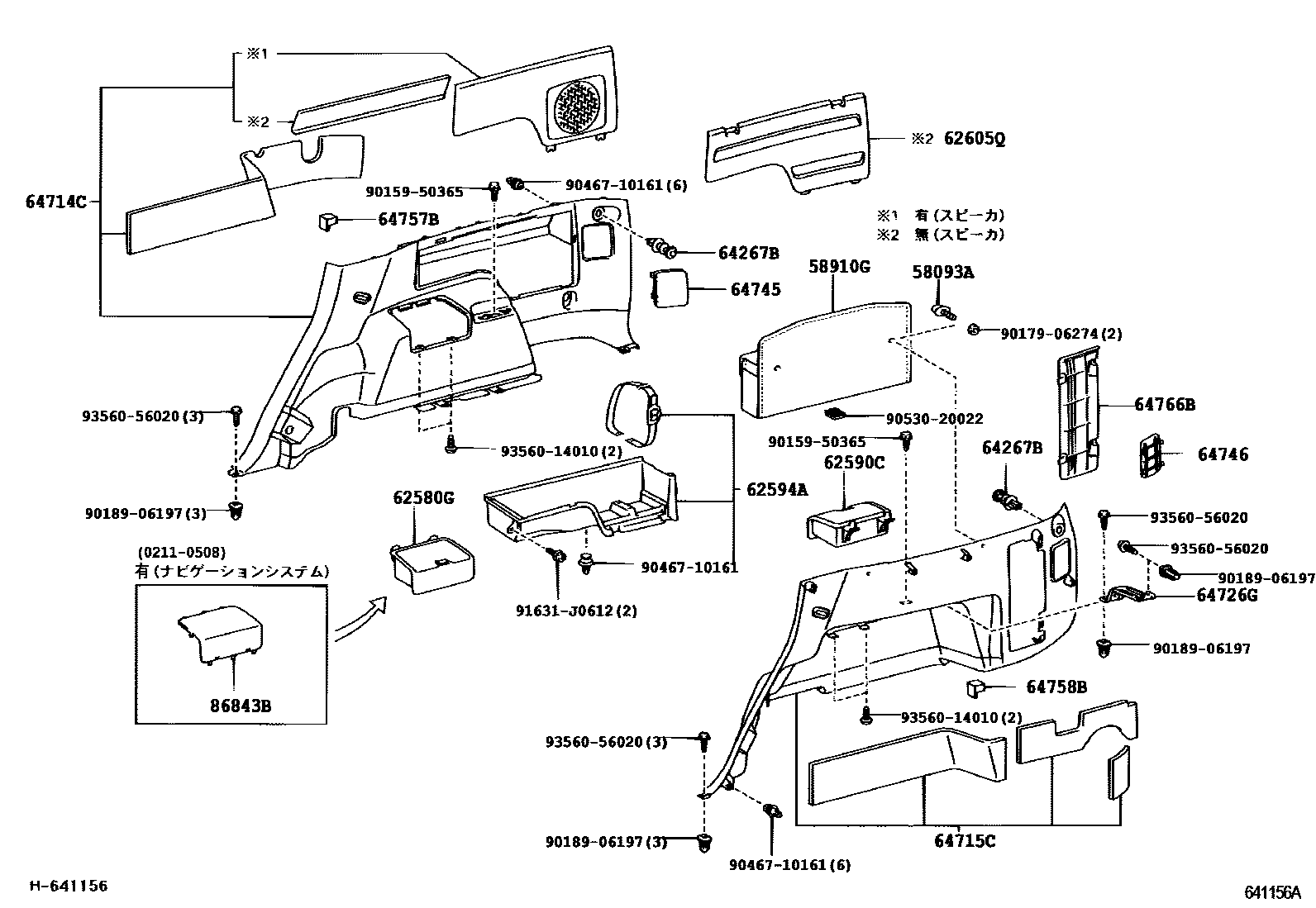

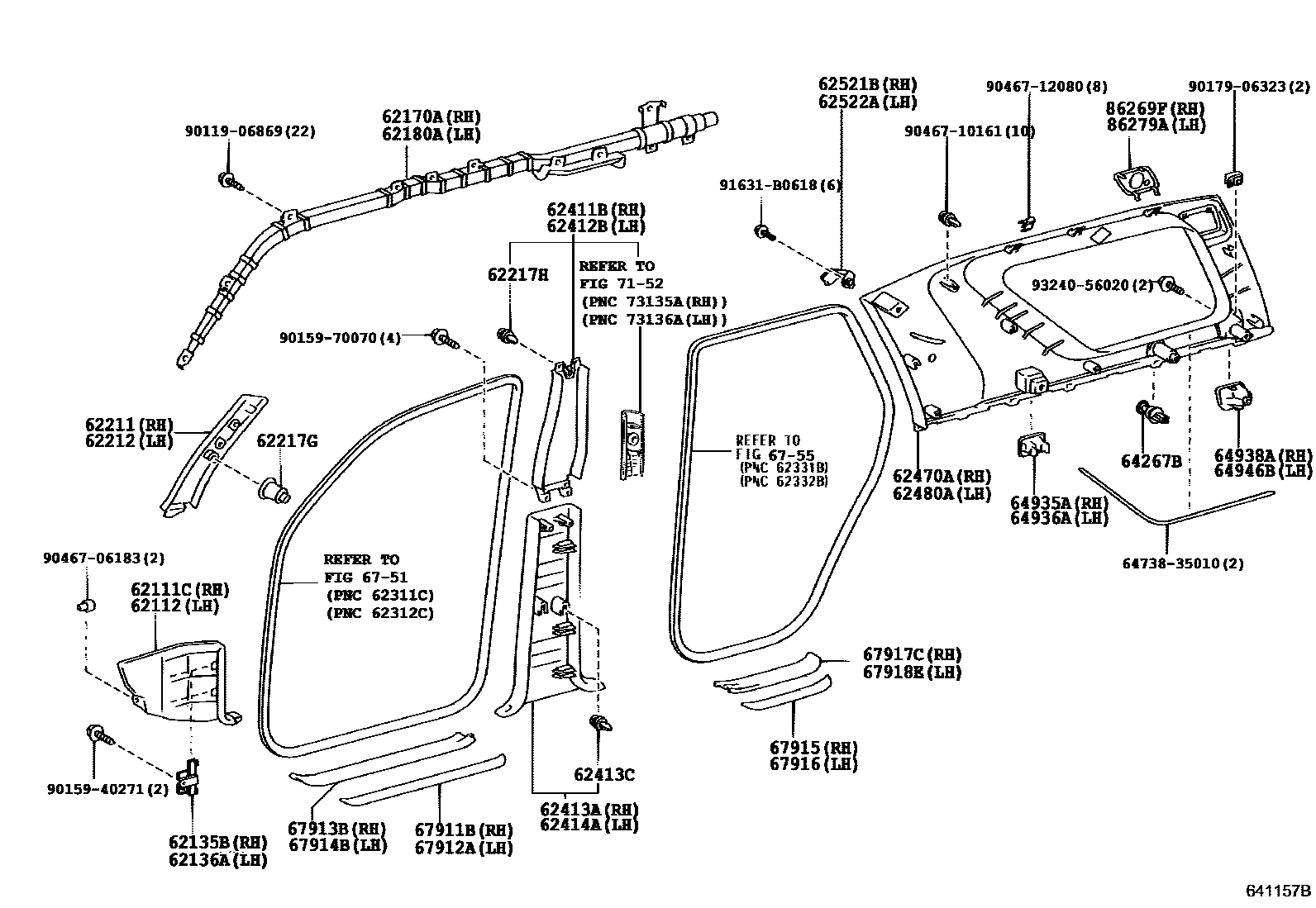

Toyota HILUX EPC diagram 6451, 车内装饰板, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58093A | Box lock sub-assembly | 58093-35010 |
| 58910G | Armrest box assembly | 58910-35080 |
| 62135B | Right front wall side felt pad fixing piece | 62135-60010 |
| 62136A | Left front wall side felt pad fixing piece | 62136-60010 |
| 62170A | Right curtain air bag assembly | 62170-35011 · 62170-35020 |
| 62180A | Left curtain air bag assembly | 62180-35011 · 62180-35020 |
| 62217G | Front pillar decorative plate clip | 62217-35010 |
| 62217H | Center pillar decorative plate clip | 90467-11111 |
| 62413C | Clip (for the decorative panel under the center pillar) | 90467-10161 |
| 62594A | No. 1 Side Decorative Panel Groove | 62690-35010 |
| 64726G | Rear floor trim cover fixings | 64726-35010 |
| 64757B | Rear floor panel right trim panel protector | 64757-35010 |
| 64758B | Rear floor left trim panel protector | 64758-35010 |
