Toyota HILUX 天窗板和背板 — Figure 6153

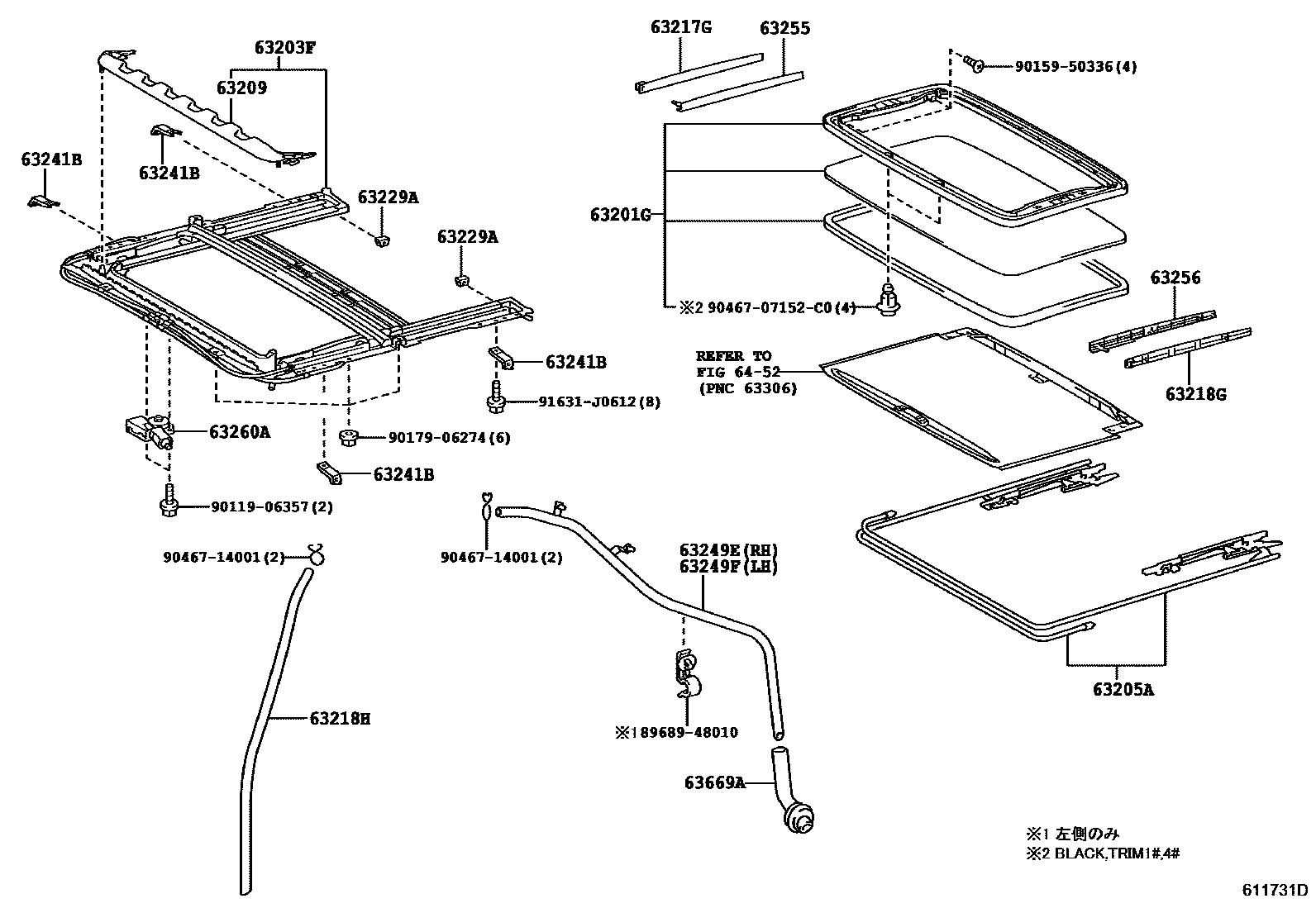

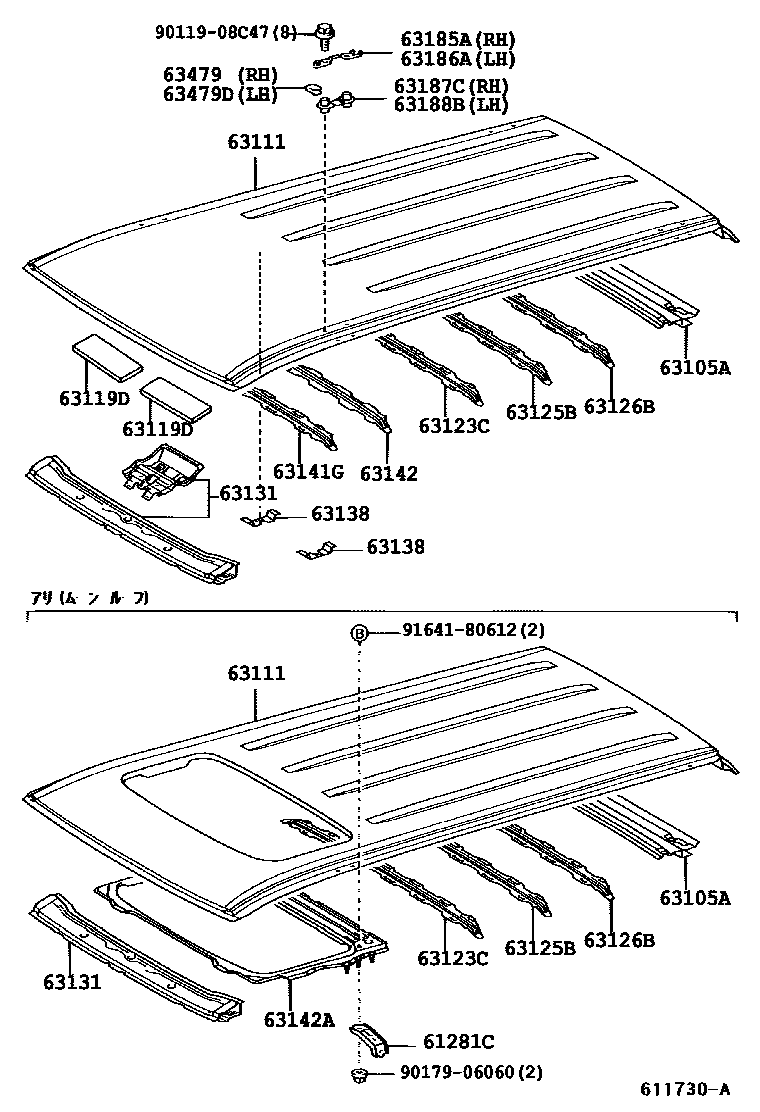

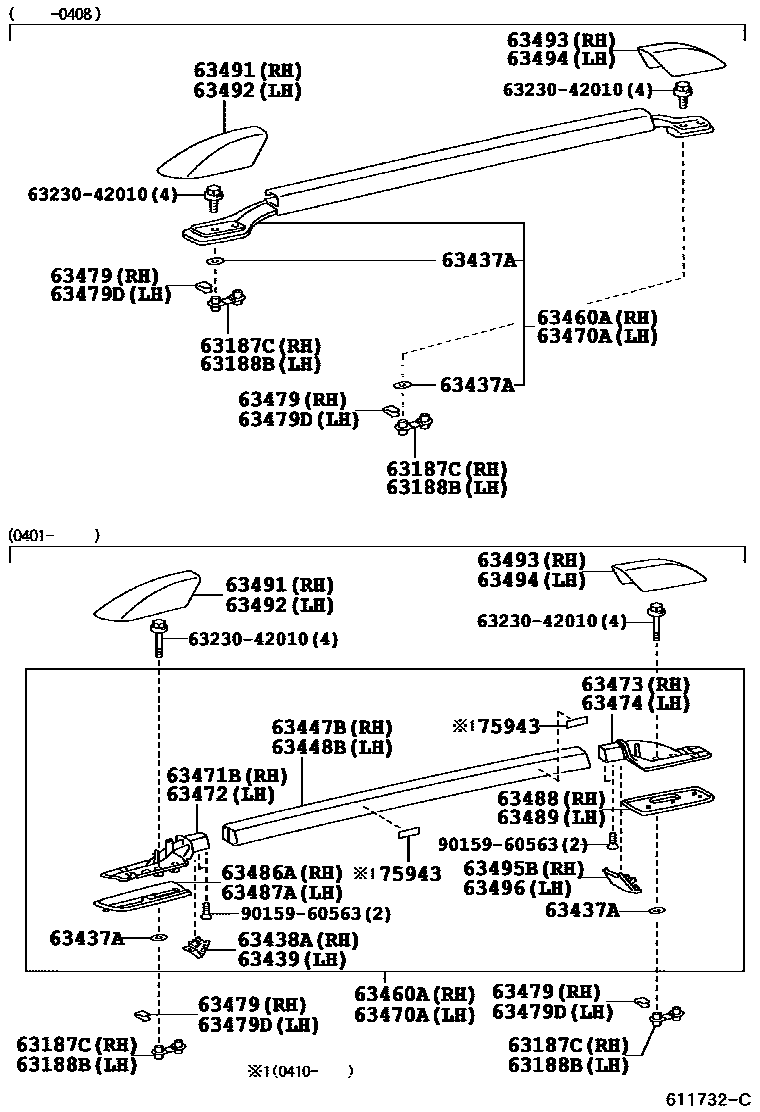

Toyota HILUX EPC diagram 6153, 天窗板和背板, with 3 images and 55 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 61281C | Sliding sunroof frame No. 1 side mounting bracket | 61281-60030 |
| 63105A | Back door opening frame sub-assembly | 63019-35010 · 63019-35011 · 63019-35012 |
| 63111 | roof panel | 63111-35250 · 63111-35270 |
| 63119D | No. 1 roof panel lining | 63119-35010 |
| 63123C | Roof panel reinforcement | 63123-35010 |
| 63125B | Front roof panel reinforcement | 63125-35020 |
| 63126B | No. 2 rear roof panel reinforcement | 63126-35050 |
| 63131 | Windshield outer roof panel | 63102-35020 · 63102-35021 · 63102-35040 |
| 63138 | No. 2 ceiling light bracket | 63138-12011 |
| 63141G | No. 1 roof panel reinforcement | 63141-35040 |
| 63142 | No. 2 roof panel reinforcement | 63143-35020 · 63143-35021 · 63143-35022 |
| 63142A | No. 2 roof panel reinforcement | 63142-60901 |
| 63185A | Right front roof rack bracket | 63185-42020 |
| 63186A | Left front roof rack bracket | 63185-42020 |
| 63187C | Right rear roof rack No. 1 bracket | 63187-35020 |
| 63188B | Left rear roof rack No. 1 bracket | 63187-35020 |
| 63201G | Sliding sunroof glass sub-assembly | 63201-35081 · 63201-35083 · 63201-35084 |
| 63203F | Sliding sunroof frame sub-assembly | 63203-35040 · 63203-35041 · 63203-35050 |
| 63205A | Sliding sunroof transmission cable sub-assembly | 63205-35030 |
| 63209 | Roof deflector sub-assembly | 63209-35040 |
| 63217G | Right sliding sunroof trim | 63217-35020 · 63217-35021 |
| 63218G | Sliding sunroof trim, left | 63218-35030 · 63218-35031 |
| 63218H | Sliding skylight drain hose | 63249-35140 |
| 63229A | Sliding sunroof blind stop | 63229-35010 |
| 63241B | Sliding sunroof frame bracket No. 1 | 63241-35010 |
| 63249E | Sliding skylight drain hose | 63247-35020 · 63247-35030 |
| 63249F | Sliding skylight drain hose | 63248-35010 · 63248-35020 |
| 63255 | Right sliding sunroof guide cover | 63255-35020 · 63255-35021 |
| 63256 | Left sliding sunroof guide cover | 63256-35010 · 63256-35011 |
| 63260A | Sliding sunroof driving gear sub-assembly | 63260-35060 · 63260-35080 |
| 63437A | Roof rack No. 2 seal | 63437-60020 |
| 63438A | No. 1 roof rack end cap | 63438-35020 · 63438-35030 |
| 63439 | No. 2 roof rack end cap | 63439-35020 · 63439-35030 |
| 63447B | Roof rack support on right side | 63447-35011 · 63447-35021 |
| 63448B | Roof left storage rack stay | 63448-35011 · 63448-35021 |
| 63460A | Roof right luggage rack assembly | 63460-35020 · 63460-35021 · 63460-35031 |
| 63470A | Roof left luggage rack assembly | 63470-35010 · 63470-35011 · 63470-35012 · 63470-35021 · 63470-35022 |
| 63471B | Right front roof rack support | 63471-35010 |
| 63472 | Left front roof rack support | 63472-35010 |
| 63473 | Right rear roof rack support | 63473-35010 |
| 63474 | Left rear roof rack support leg | 63474-35010 |
| 63479 | Roof rack fixings | 63479-42010 |
| 63479D | Roof left inner luggage rack fixing | 63479-42010 |
| 63486A | Right front roof rack support foot cushion | 63486-35010 |
| 63487A | Left front roof rack support foot cushion | 63487-35010 |
| 63488 | Right rear roof rack foot cushion pad | 63488-35010 |
| 63489 | Left rear roof rack support foot cushion pad | 63489-35010 |
| 63491 | Right front roof rack leg cover | 63491-35010 · 63491-35011 · 63491-35020 · 63491-35021 |
| 63492 | Left front roof rack leg cover | 63492-35010 · 63492-35011 · 63492-35020 · 63492-35021 |
| 63493 | Right rear roof rack foot cover | 63493-35010 · 63493-35011 · 63493-35020 · 63493-35021 |
| 63494 | Left rear roof rack leg cover | 63494-35010 · 63494-35011 · 63494-35020 · 63494-35021 |
| 63495B | Right center roof rack foot cover | 63495-35010 · 63495-35020 |
| 63496 | Left center roof rack foot cover | 63496-35010 · 63496-35020 |
| 63669A | Sliding skylight drain seal | 63669-35010 |
| 75943 | roof molding | 75943-35010 · 75943-35020 |
