Toyota HILUX 侧窗 — Figure 6152

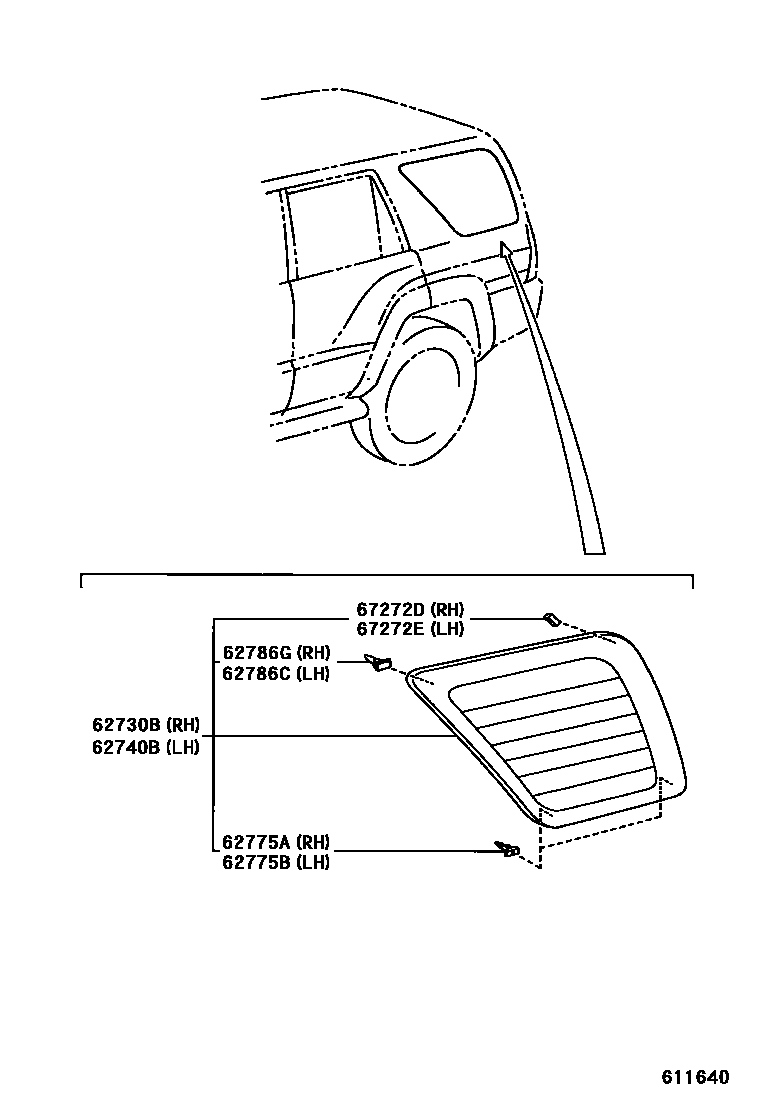

Toyota HILUX EPC diagram 6152, 侧窗, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62730B | Right rear corner window assembly | 62730-35110 · 62730-35130 |
| 62740B | Left rear corner window assembly | 62740-35100 · 62740-35120 |
| 62775A | Corner window clip | 62775-35020 |
| 62775B | Left corner window clip | 62775-35020 |
| 62786C | Left corner window glass spacer | 62786-35010 |
| 62786G | Right corner window glass spacer | 62786-35010 |
| 67272D | Back door stop cushion | 67272-20010 |
| 67272E | Back door left block buffer pad | 67272-20010 |
