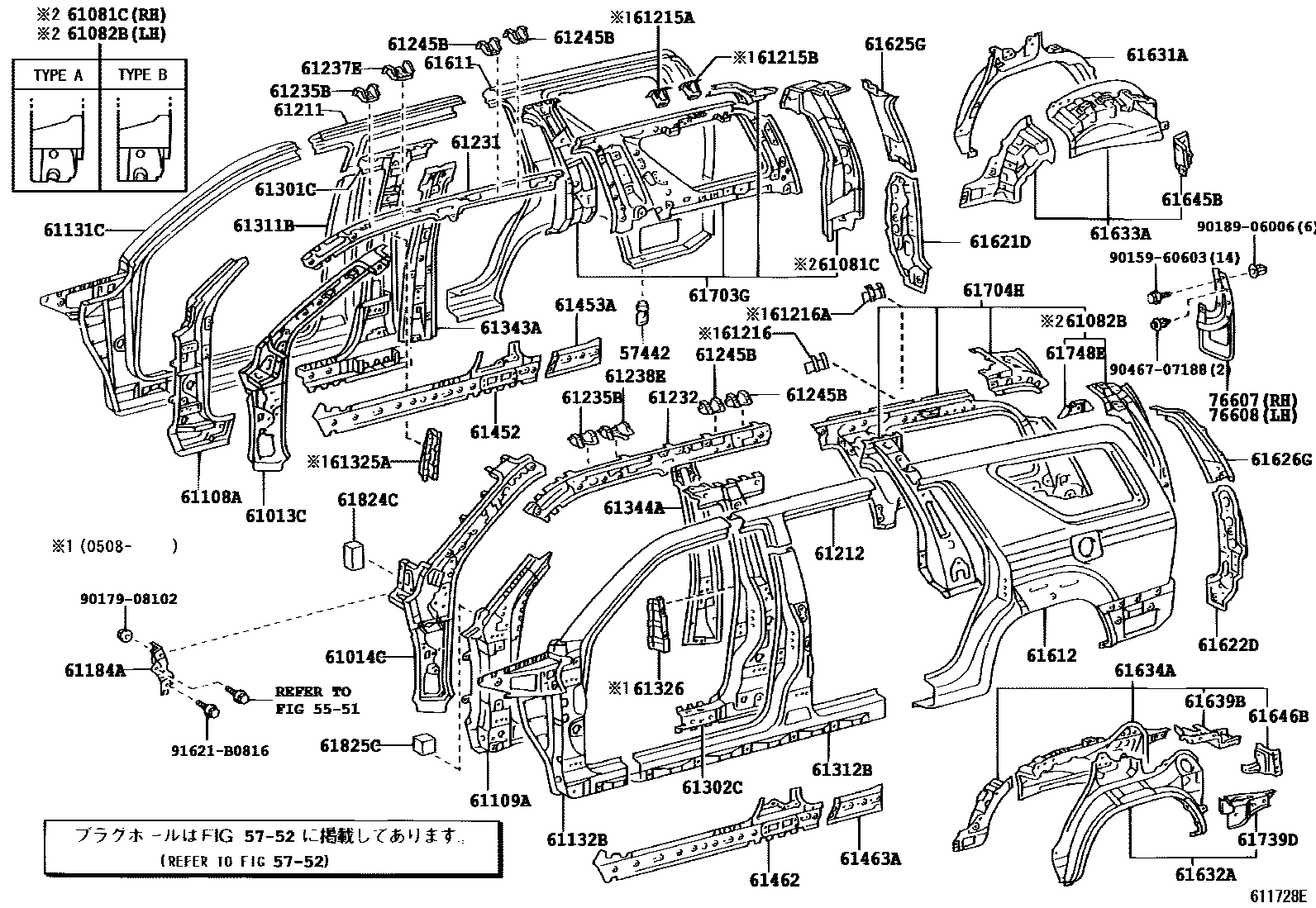

Toyota HILUX 侧梁 — Figure 6151
Toyota HILUX EPC diagram 6151, 侧梁, with 1 images and 55 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 57442 | Footboard panel hole plug | 57442-95J00 |
| 61013C | Right inner panel sub-assembly | 61013-35010 |
| 61014C | Left inner panel sub-assembly | 61014-35010 |
| 61081C | Roof right inner reinforcement | 61081-35010 · 61081-35011 · 61081-35040 |
| 61082B | Roof left inner reinforcement | 61082-35010 · 61082-35011 · 61082-35040 |
| 61108A | Right body front pillar lower reinforcement sub-assembly | 61108-35050 |
| 61109A | Left side body front pillar lower reinforcement sub-assembly | 61109-35050 |
| 61131C | Right body outer front pillar | 61131-35050 |
| 61132B | Left body outer front pillar | 61132-35050 |
| 61184A | Dashboard No. 2 left side bracket | 61184-35030 |
| 61211 | Roof right outer longitudinal beam | 61211-35050 |
| 61212 | Roof left outer longitudinal beam | 61212-35050 |
| 61215A | No. 3 longitudinal beam on the outer right side of the roof | 61215-35010 |
| 61215B | No. 3 longitudinal beam on the outer right side of the roof | 61217-35010 |
| 61216 | Center door left slide rail | 61216-35010 |
| 61216A | Left rear roof rail | 61218-35010 |
| 61231 | Inner longitudinal beam on the right side of the roof | 61231-35170 |
| 61232 | Roof left inner longitudinal beam | 61232-35120 |
| 61235B | Auxiliary handle bracket | 61235-35010 |
| 61237E | No. 1 auxiliary handle bracket | 61237-35010 |
| 61238E | No. 2 auxiliary handle bracket | 61238-35010 |
| 61245B | Right No. 3 auxiliary handle bracket | 61245-35010 |
| 61301C | Right body outer center pillar sub-assembly | 61301-35030 · 61301-35040 |
| 61302C | Left body outer center pillar sub-assembly | 61302-35050 · 61302-35060 |
| 61311B | Right body outer center pillar | 61311-35010 |
| 61312B | Left body outer center pillar | 61312-35010 |
| 61325A | Right body center pillar center reinforcement | 61325-35030 |
| 61326 | Left body center pillar center reinforcement | 61326-35020 |
| 61343A | Right body inner center pillar | 61343-35040 · 61343-35041 |
| 61344A | Left body inner center pillar | 61344-35040 · 61344-35041 |
| 61452 | Right front door inner sill panel | 61452-60020 |
| 61453A | Right rear door inner sill panel | 61453-60010 |
| 61462 | Left front door inner sill panel | 61462-60020 |
| 61463A | Left rear door inner sill panel | 61463-60010 |
| 61611 | Right side hoarding | 61611-35190 |
| 61612 | left side panel | 61612-35130 |
| 61621D | Back door right opening slot | 61621-35020 |
| 61622D | Rear door left opening slot | 61622-35020 |
| 61625G | Right rear side panel extension | 61625-35020 |
| 61626G | Left rear side panel extension | 61626-35020 |
| 61631A | Right wheel cover outer panel | 61631-35901 |
| 61632A | Left side wheel cover outer panel | 61632-35900 |
| 61633A | Right wheel housing lining panel | 61633-35900 · 61633-35901 |
| 61634A | Left side wheel housing lining panel | 61634-35900 · 61634-35901 |
| 61639B | Jack bracket bracket base | 61639-35010 |
| 61645B | Right rear side wheel housing corner panel | 61645-60050 |
| 61646B | Left rear side wheel housing corner panel | 61646-35010 |
| 61703G | Right side enclosure inner panel sub-assembly | 61703-35900 · 61703-35901 · 61703-35903 · 61703-35904 |
| 61704H | Left side enclosure inner panel sub-assembly | 61704-35900 · 61704-35901 · 61704-35903 · 61704-35904 |
| 61739D | Jack bracket bracket reinforcement | 61739-35010 |
| 61748E | Roof left inner panel to wheel arch bracket | 61748-35010 |
| 61824C | No. 1 silencer panel gasket | 61824-35020 |
| 61825C | No. 2 silencer panel gasket | 61825-35010 |
| 76607 | Right rear side fender sub-assembly | 76607-35090 · 76625-35200 |
| 76608 | Left rear side fender sub-assembly | 76626-35190 · 76626-35200 |
