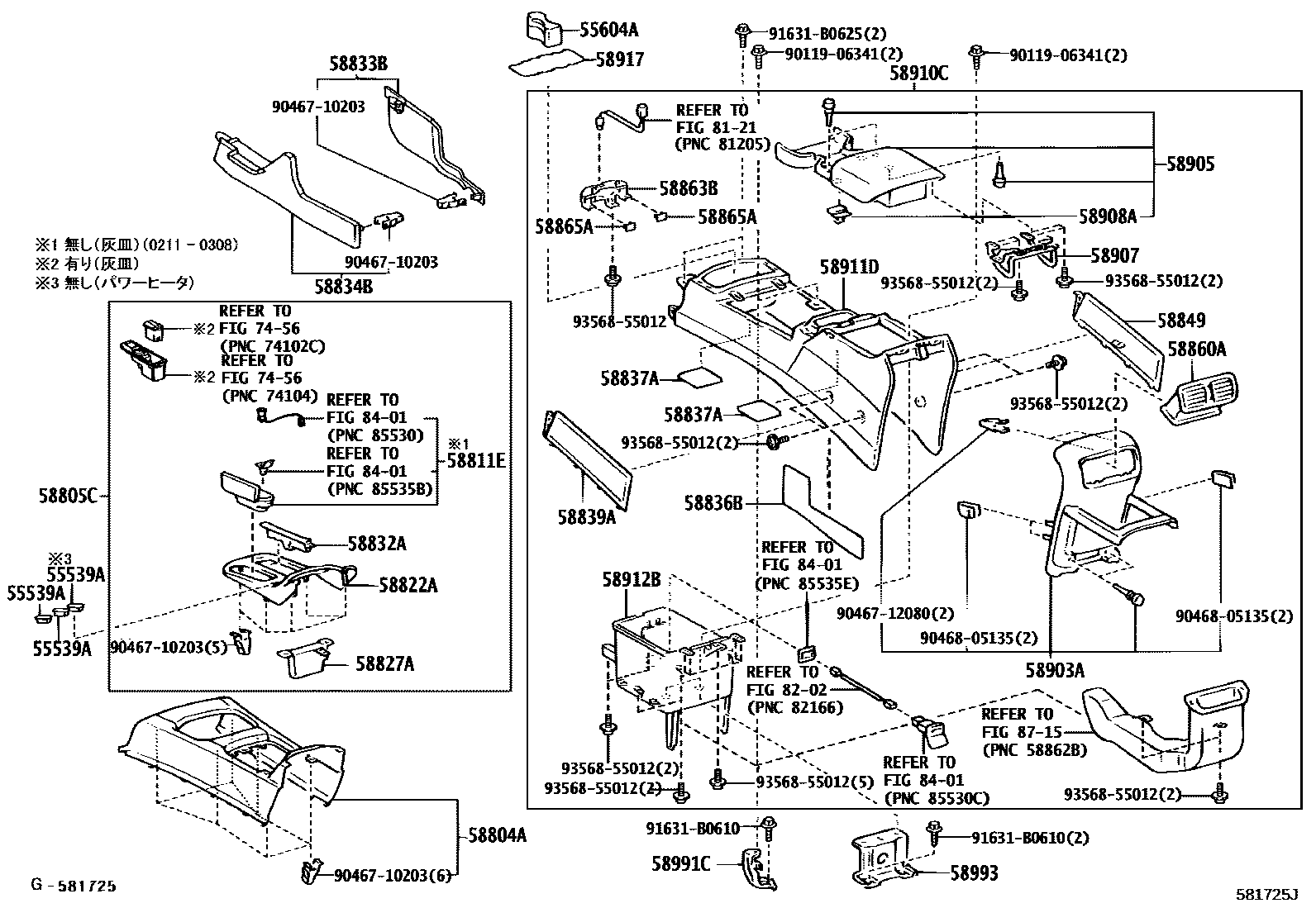

Toyota HILUX 中央扶手箱和支架 — Figure 5855
Toyota HILUX EPC diagram 5855, 中央扶手箱和支架, with 1 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55604A | Dashboard cup holder sub-assembly | 55604-35050 · 55604-35060 · 55604-35070 |
| 58804A | Armrest box upper panel sub-assembly | 58804-35360 · 58804-35370 · 58804-35390 · 58804-35410 |
| 58805C | Rear armrest box upper panel sub-assembly | 58805-35070 |
| 58811E | Upper armrest box | 58810-35020 |
| 58822A | Rear armrest box upper panel | 58822-35030 |
| 58827A | Armrest box groove decorative parts | 58827-35010 |
| 58832A | Rear armrest box upper panel decorative parts | 58832-35010 |
| 58836B | Armrest Box No. 1 Silencer Pad | 58836-35010 |
| 58837A | Armrest Box No. 2 Silencer Pad | 58837-35010 |
| 58839A | Armrest box hole cover | 58839-35010 · 58839-35020 |
| 58849 | Armrest box No. 2 hole cover | 58849-35010 · 58849-35030 |
| 58860A | Armrest box air regulator assembly | 58860-35010 · 58860-35020 · 58860-35030 · 58860-35040 |
| 58863B | Armrest box No. 3 bracket | 58863-35010 |
| 58865A | Front No. 1 armrest box lampshade | 58865-35010 |
| 58907 | Armrest box lid hinge sub-assembly | 58907-35020 |
| 58908A | Armrest box lid lock assembly | 58908-32050 |
| 58912B | Rear lower armrest box | 58912-35030 · 58912-35040 |
| 58917 | Armrest box bottom pad No. 2 | 58917-35040 |
| 58991C | Armrest box front mounting bracket | 58991-35050 |
| 58993 | Armrest box rear mounting bracket | 58993-35060 |
