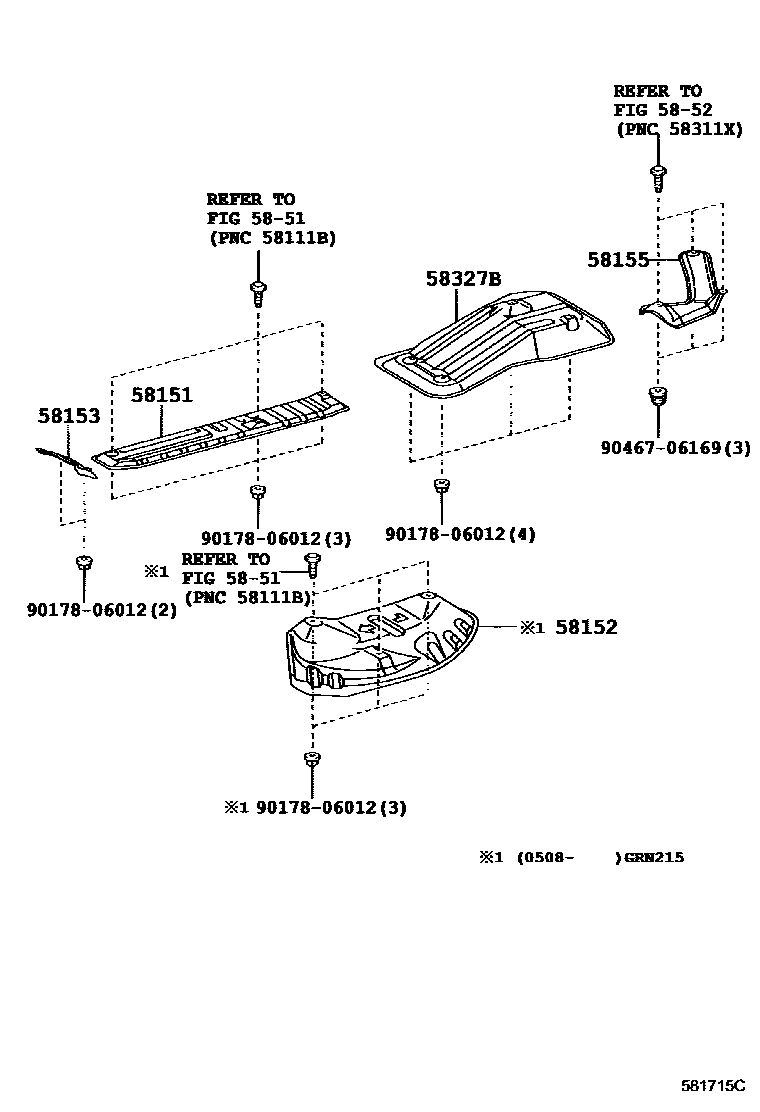

Toyota HILUX 地板隔热垫 — Figure 5853
Toyota HILUX EPC diagram 5853, 地板隔热垫, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58151 | Front floor insulation mat No. 1 | 58151-35120 |
| 58152 | Central floor insulation pad sub-assembly No. 2 | 58152-35010 |
| 58153 | Front floor insulation mat No. 2 | 58153-35130 |
| 58155 | Front floor insulation mat No. 3 | 58155-35020 |
| 58327B | Main muffler heat insulation pad | 58327-35050 |
