Toyota HILUX 前围板和挡风玻璃 — Figure 5553

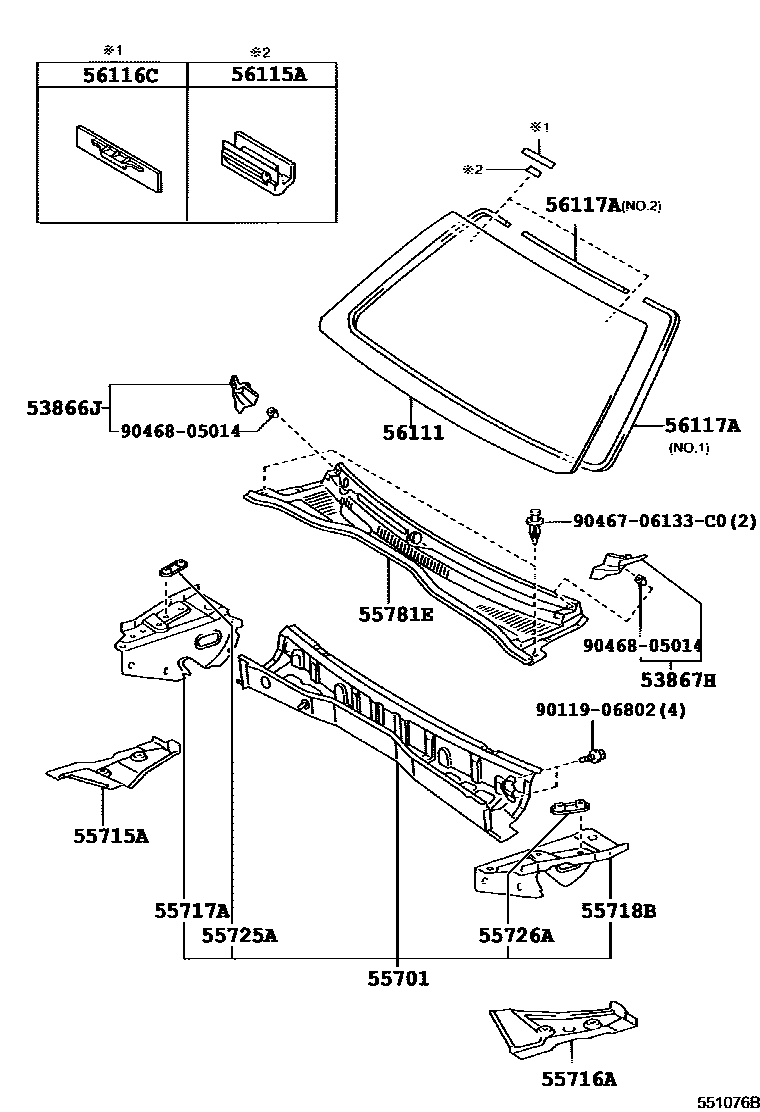

Toyota HILUX EPC diagram 5553, 前围板和挡风玻璃, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53866J | Right front fender to cowl side seal | 53866-35020 |
| 53867H | Left front fender to cowl side seal | 53867-35010 |
| 55701 | Front apron sub-assembly | 55700-35700 |
| 55715A | From cowl upper cover to fender right stay | 55715-35020 |
| 55716A | From cowl upper cover to fender left stay | 55716-35020 |
| 55717A | Upper right inner panel of cowl | 55717-35030 |
| 55718B | Upper left inner panel of front wall | 55718-35030 |
| 55725A | Engine cover right hinge installation reinforcement | 55725-22010 |
| 55726A | Engine cover left hinge installation reinforcement | 55725-22010 |
| 55781E | Ventilation grille sub-assembly on front apron | 55708-35080 · 55708-35081 |
| 56111 | windshield | 56101-35040 · 56101-35100 |
| 56115A | Windshield block No. 1 | 56115-30100 |
| 56116C | Windshield block 2 | 56116-22050 |
| 56117A | Window glass adhesive seals | 56117-35090 · 56117-35100 |
