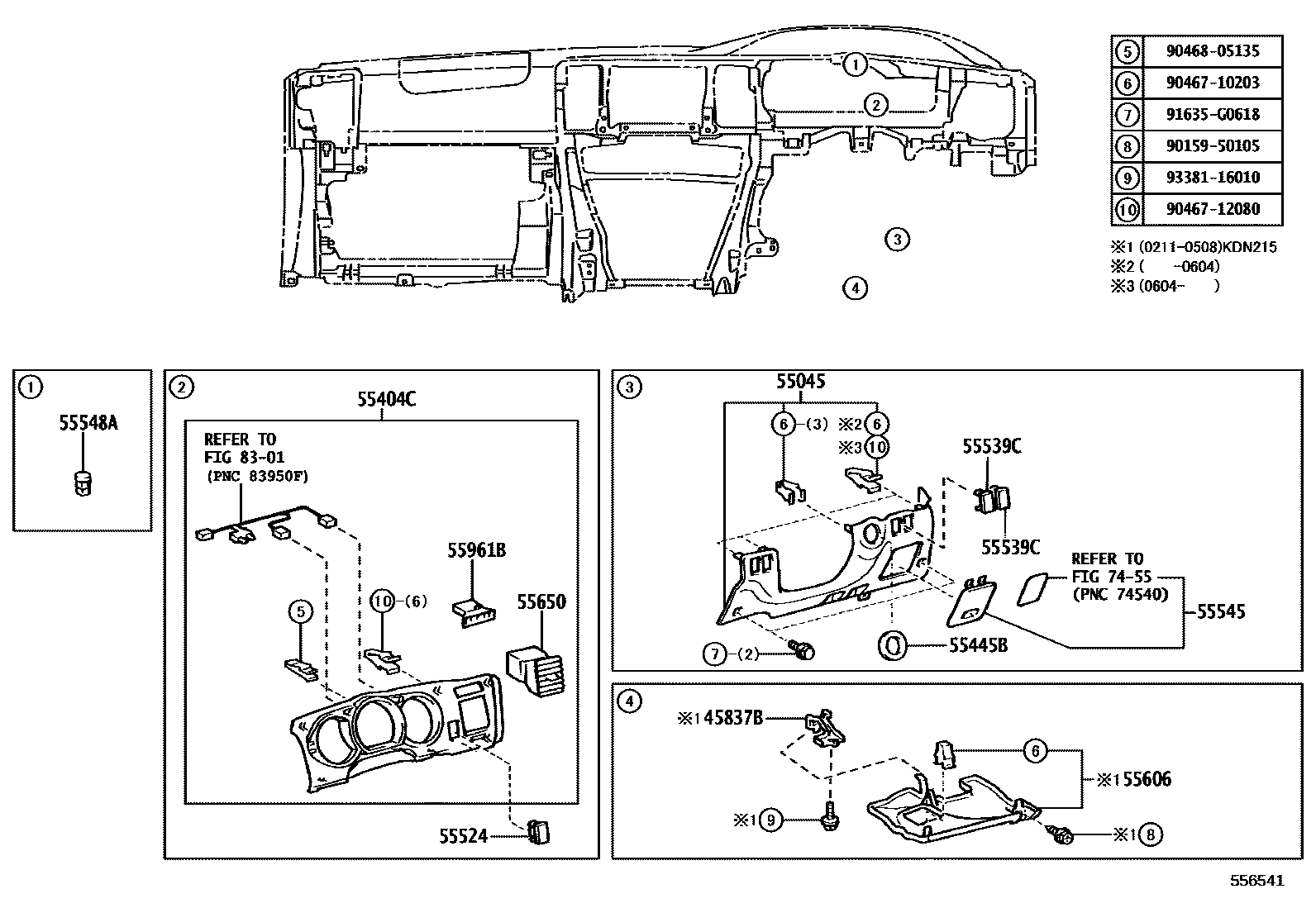

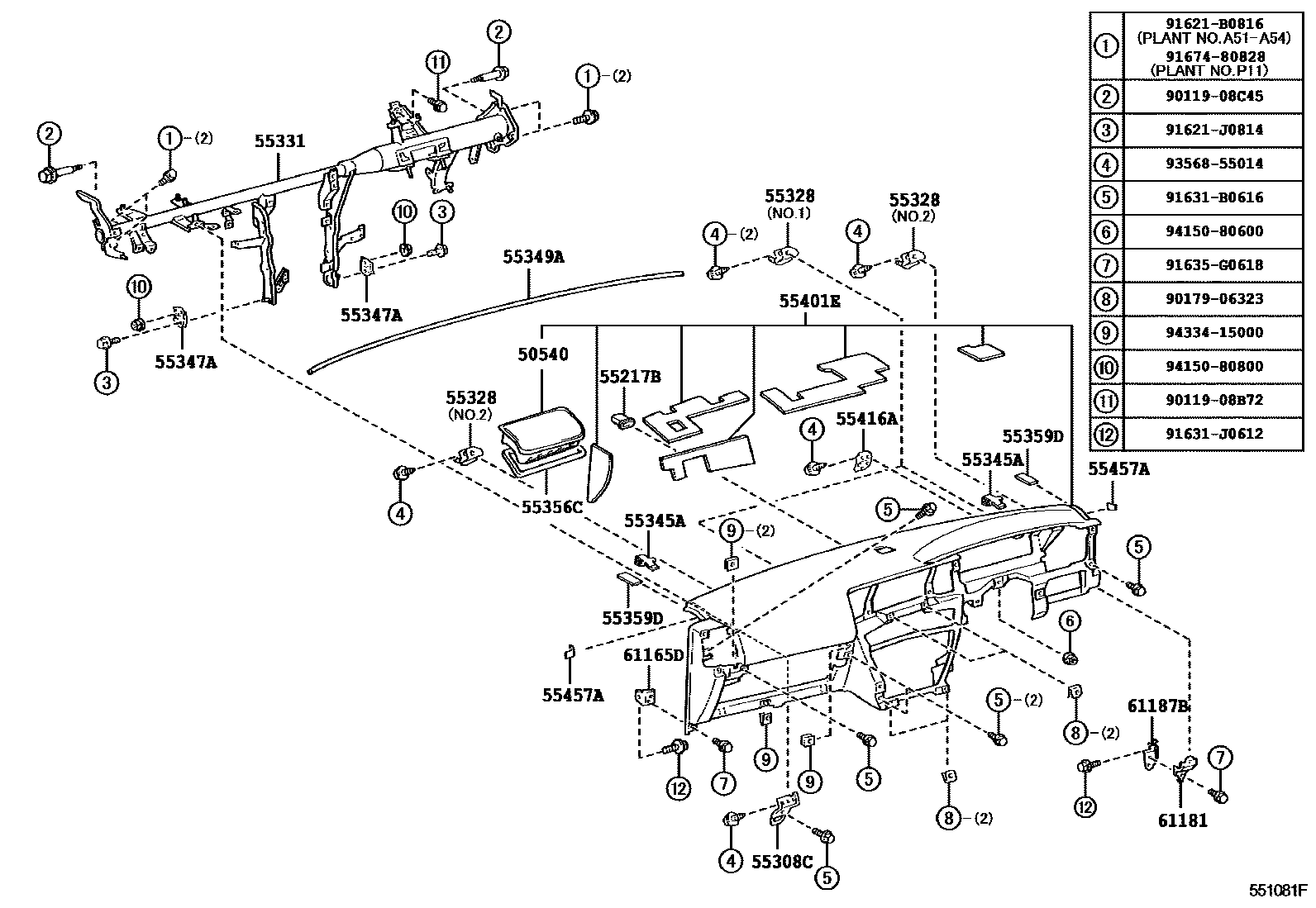

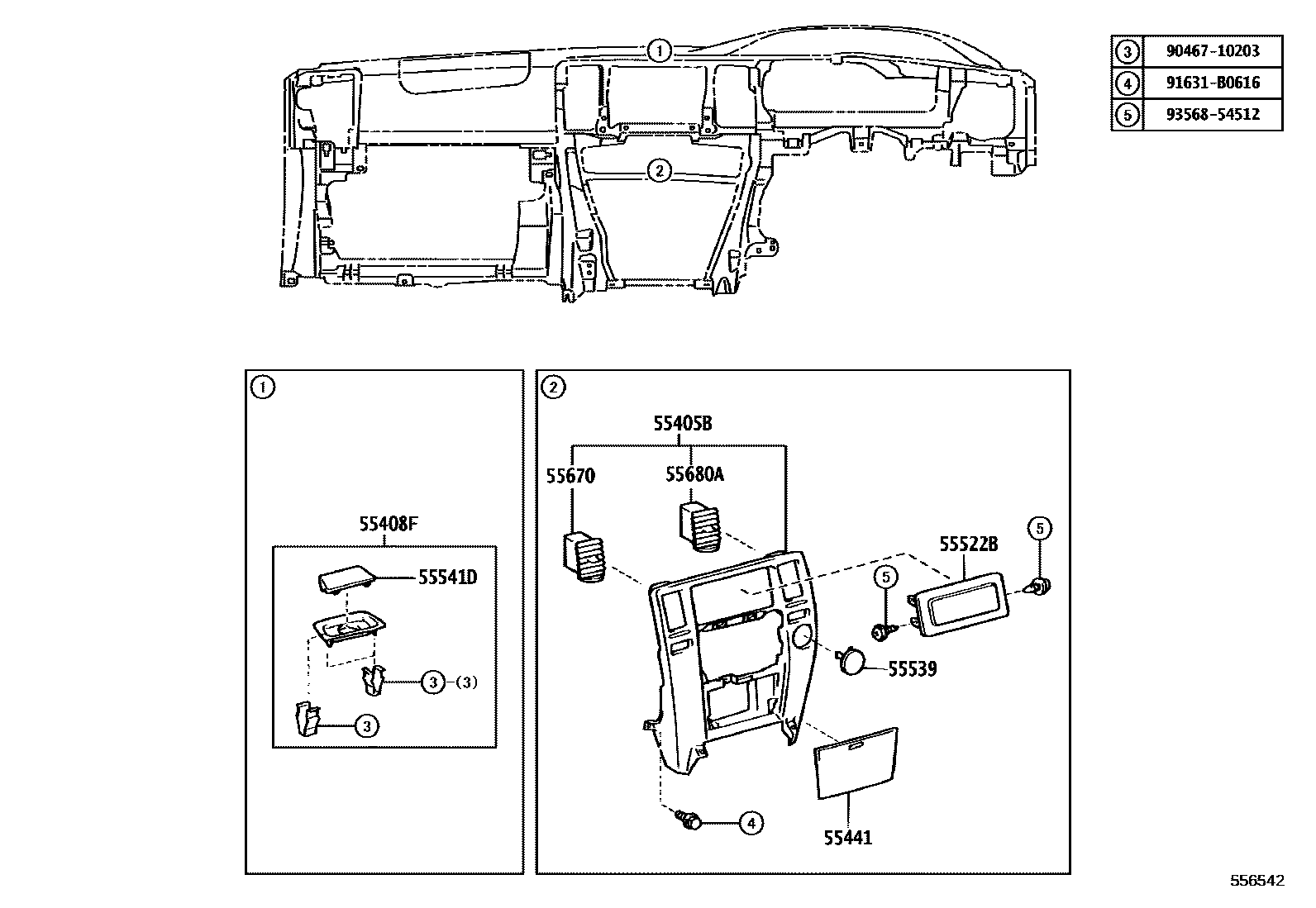

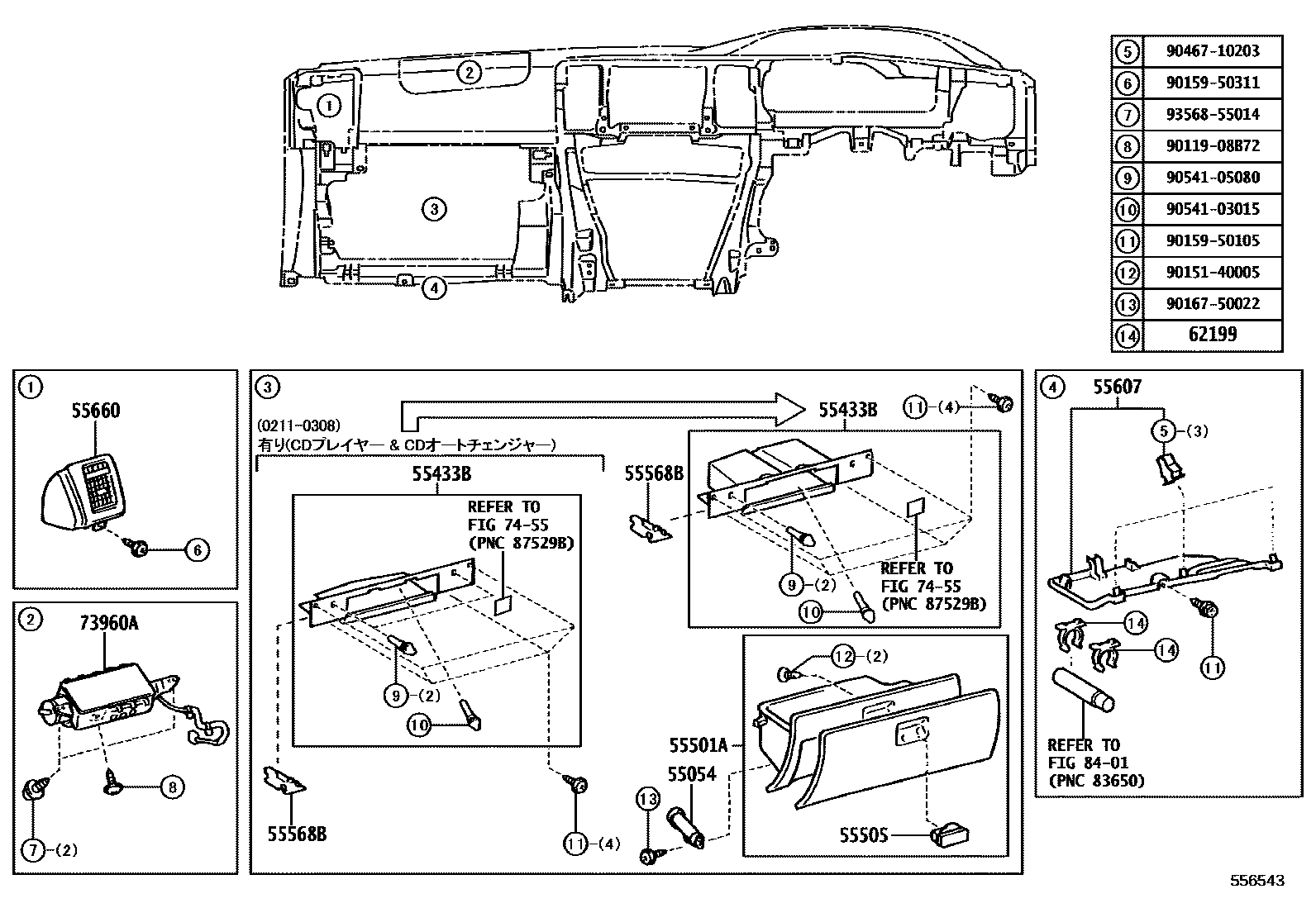

Toyota HILUX 仪表板和手套箱 — Figure 5551
Toyota HILUX EPC diagram 5551, 仪表板和手套箱, with 4 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45837B | No. 1 steering column down tube bracket | 45837-35040 |
| 50540 | Passenger airbag door gasket assembly | 50540-35060 |
| 55054 | Glove box cover stopper sub-assembly | 55054-35020 |
| 55217B | Front apron muffler fixings | 55217-35020 |
| 55308C | Center instrument panel bracket sub-assembly | 55308-35040 |
| 55328 | Instrument panel pin 1 | 55328-35030 · 55328-35050 |
| 55331 | Dashboard reinforcement | 55330-35150 |
| 55345A | Dashboard Clip No. 1 | 55345-35020 |
| 55347A | Instrument panel No. 1 bracket mounting bracket | 55347-35050 |
| 55349A | Dashboard cushion | 55349-35050 |
| 55356C | Dashboard No. 2 Cushion Pad | 55356-35030 |
| 55359D | Dashboard No. 5 Cushion Pad | 55359-35020 |
| 55405B | Center instrument cluster decorative panel sub-assembly | 55405-35410 · 55405-35460 |
| 55416A | Instrument cover No. 1 fixing piece | 55416-35010 |
| 55433B | No. 2 lower decorative panel of instrument panel | 55046-35030 · 55046-35050 |
| 55441 | Dashboard storage box | 55440-35030 · 55440-35090 · 55440-35100 |
| 55457A | Dashboard safety pad spacer | 55457-35010 |
| 55522B | Radio tuner opening cover | 55522-52020 |
| 55539 | Spare switch hole cover | 55539-35020 |
| 55568B | Glove box cover decorative panel | 55568-35030 |
| 55606 | Instrument panel No. 1 bottom cover sub-assembly | 55606-35040 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-35060 |
| 55670 | Instrument panel No. 3 air regulator assembly | 55670-35090 |
| 55680A | No. 4 air regulator assembly on instrument panel | 55680-35070 |
| 61165D | Dashboard to cowl side bracket | 61165-35030 |
| 61181 | Dashboard side bracket | 61181-35040 |
| 61187B | Instrument panel No. 4 side bracket | 61187-35020 |
| 62199 | fuse holder | 90468-25003 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-35050 |
