Toyota HILUX 前翼子板挡泥板和前围板 — Figure 5355

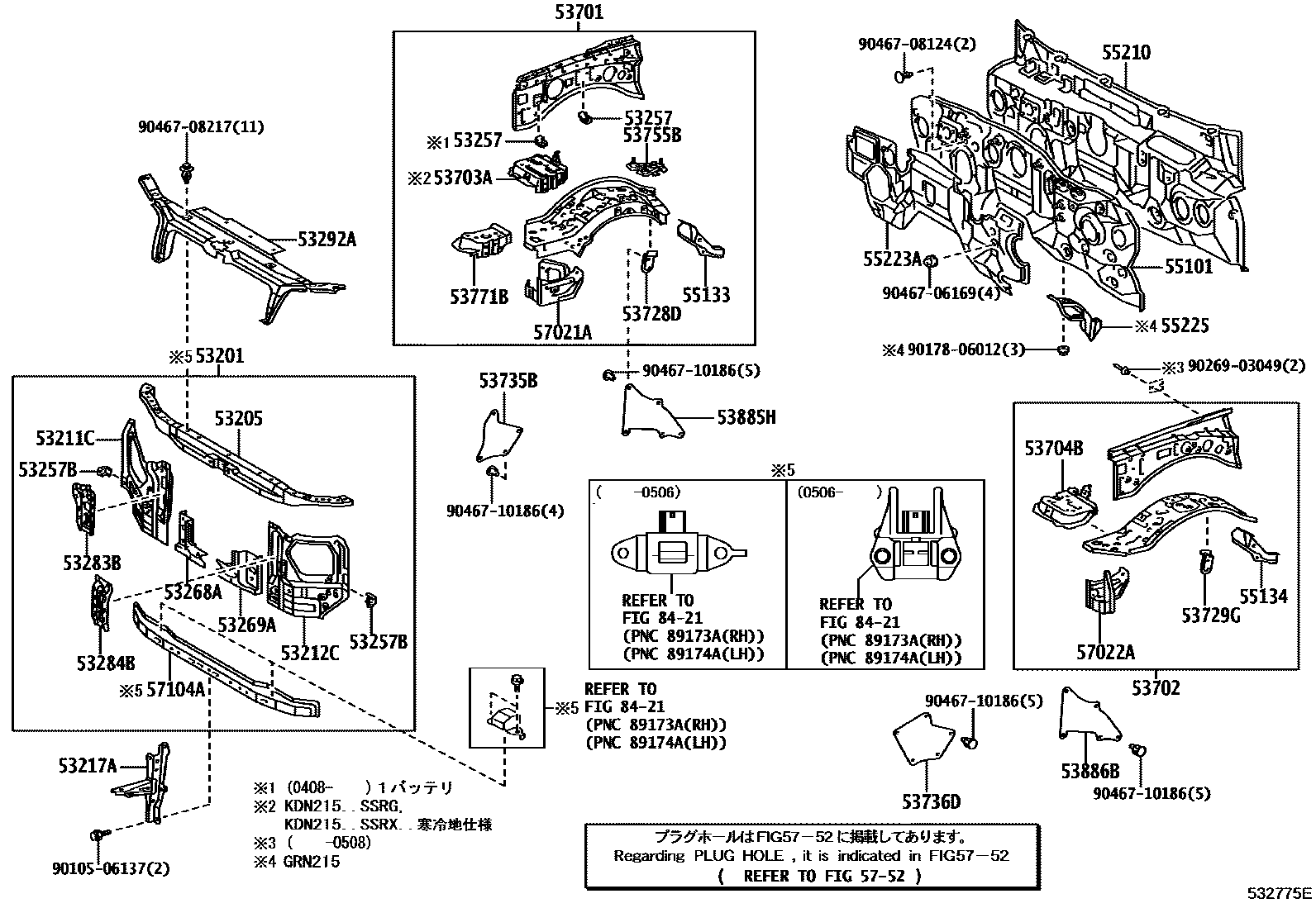

Toyota HILUX EPC diagram 5355, 前翼子板挡泥板和前围板, with 1 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53201 | Radiator bracket sub-assembly | 53201-35210 · 53201-35211 · 53201-35212 |
| 53205 | Radiator upper bracket sub-assembly | 53205-35020 |
| 53211C | Radiator right side support | 53211-35160 · 53211-35161 |
| 53212C | Radiator left support | 53212-35100 · 53212-35101 |
| 53217A | engine cover lock bracket | 53209-35010 · 53209-35020 |
| 53257 | Mounting bracket on the right side of the front end plate | 53257-35030 |
| 53257B | Radiator bracket to front fender bracket | 53257-35050 |
| 53268A | Install reinforcement on the right side of the radiator | 53268-35040 |
| 53269A | Install reinforcement on the left side of the radiator | 53269-35040 |
| 53283B | Install reinforcement on the right side of No. 2 front body | 53283-35030 |
| 53284B | Install reinforcement on the left side of No. 2 front body | 53284-35020 |
| 53292A | Radiator upper bracket seal | 53292-35010 |
| 53701 | Right front fender fender sub-assembly | 53701-3D490 · 53701-3D491 · 53701-3D492 · 53701-3D500 · 53701-3D510 · 53701-3D511 · 53701-3D520 · 53701-3D521 · 53701-3D522 · 53701-3D523 |
| 53702 | Left front fender fender sub-assembly | 53702-3D550 · 53702-3D551 · 53702-3D552 · 53702-3D553 · 53702-3D560 |
| 53703A | Battery right side bracket sub-assembly | 53703-35040 |
| 53704B | Battery left side bracket sub-assembly | 53704-35080 · 53704-35081 · 53704-35082 |
| 53728D | Right fender fender bracket | 53728-35060 |
| 53729G | Left fender fender bracket | 53728-35060 |
| 53735B | Front fender fender seal | 53735-35150 |
| 53736D | fender fender seal | 53736-35150 |
| 53755B | No. 1 brake actuator installation reinforcement | 53755-35060 · 53755-35061 |
| 53771B | Right battery bay bracket | 53771-35080 |
| 53885H | Toyota part | 53885-35020 · 53886-35020 |
| 53886B | Toyota part | 53886-35020 |
| 55101 | Front apron sub-assembly | 55101-35A10 · 55101-35A11 · 55101-35A20 · 55101-3M480 · 55101-3M490 · 55101-3M500 · 55101-3M510 · 55101-3M520 · 55101-3M521 · 55101-3M530 |
| 55133 | Right front fender fender lower fixing plate | 55133-35020 · 55133-35021 · 55133-60060 |
| 55134 | Left front fender fender lower fixing plate | 55134-35020 · 55134-60070 |
| 55210 | Front wall insulation pad assembly | 55210-35360 · 55210-35361 |
| 55223A | Front wall outer heat insulation pad | 55223-35080 · 55223-35081 · 55223-35082 · 55223-35083 |
| 55225 | Front wall insulation pad | 55225-35170 |
| 57021A | Right body No. 1 mounting bracket sub-assembly | 57021-35060 |
| 57022A | Left body No. 1 mounting bracket sub-assembly | 57022-35050 |
| 57104A | Front cross member sub-assembly | 57104-35050 · 57104-35060 · 57104-35061 |
