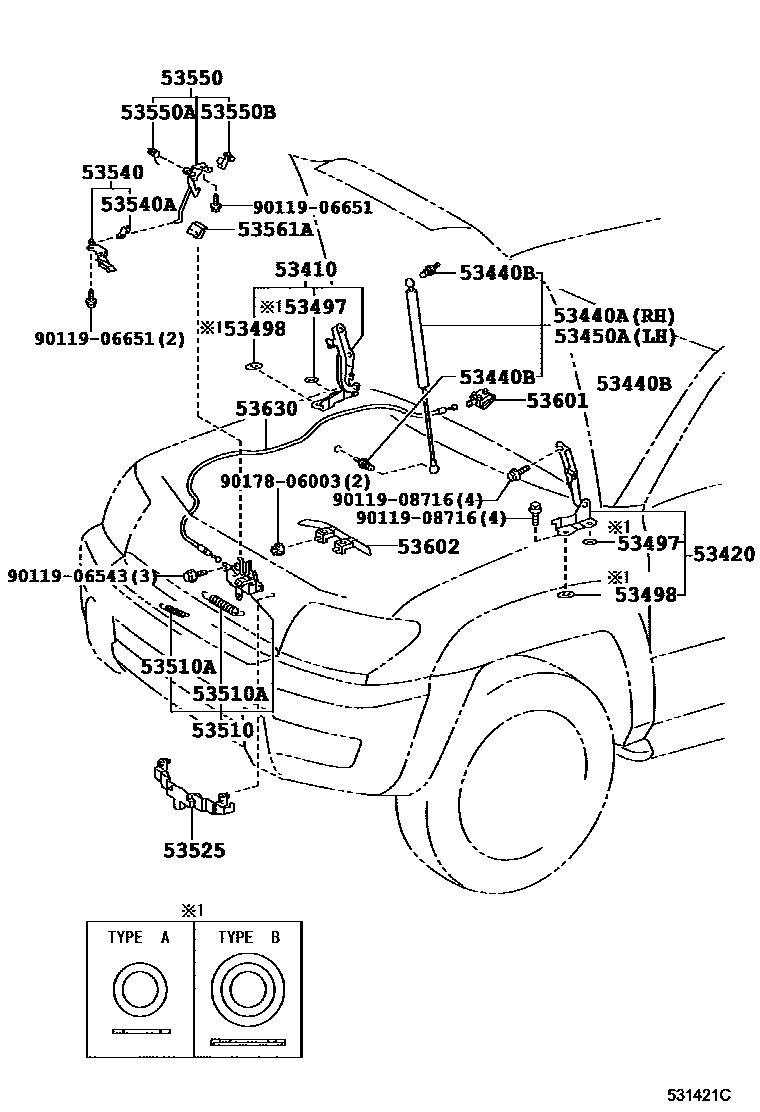

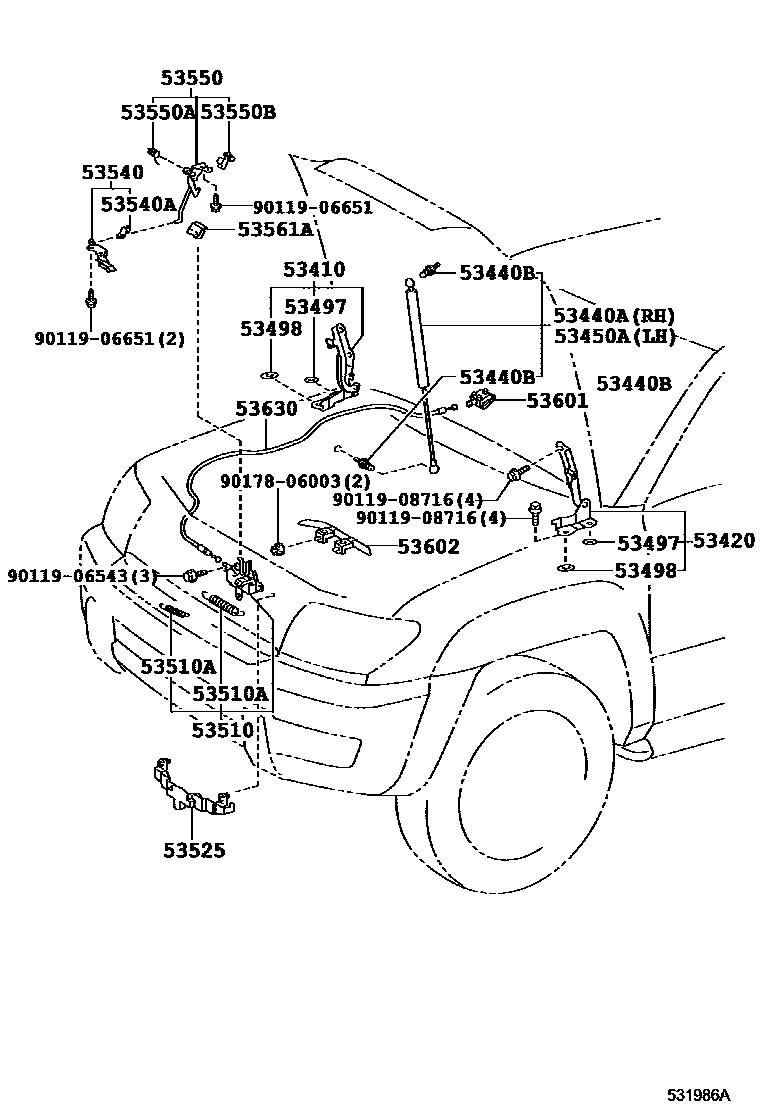

Toyota HILUX 发动机盖锁和铰链 — Figure 5354
Toyota HILUX EPC diagram 5354, 发动机盖锁和铰链, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53410 | Engine cover right hinge assembly | 53410-35060 · 53410-48020 |
| 53420 | Engine cover left hinge assembly | 53420-35060 · 53420-48020 |
| 53440A | Engine cover right support rod assembly | 53440-39245 · 53440-69055 · 53440-69065 |
| 53440B | No. 1 engine cover support rod bolt | 68961-30020 |
| 53450A | Engine cover left support rod assembly | 53450-39225 · 53450-69055 · 53450-69065 |
| 53497 | No. 1 engine cover hinge gasket | 53497-12070 · 53497-35010 · 53497-42010 · 53497-50020 |
| 53498 | No. 2 engine cover hinge gasket | 53497-12070 · 53497-35010 · 53497-42010 · 53497-50020 |
| 53510 | Engine cover lock assembly | 53510-60140 |
| 53510A | Tension spring (for hood lock) | 90506-09050 · 90506-20065 |
| 53525 | Engine hood lock opening lever guard | 53525-33040 |
| 53540 | Auxiliary buckle release lever assembly | 53540-60010 |
| 53540A | Auxiliary buckle release lever control link buckle | 69759-20110 |
| 53550 | Engine cover auxiliary buckle assembly | 53550-35010 · 53550-35020 |
| 53550A | Torsion spring (for hood latch) | 90508-18102 |
| 53550B | Engine cover auxiliary buckle control link buckle | 69759-20110 |
| 53561A | Engine cover auxiliary buckle guide device | 53561-30010 |
| 53602 | Engine hood lock control cable guard sub-assembly | 53602-60010 |
| 53630 | Engine hood lock control cable assembly | 53630-35080 |
