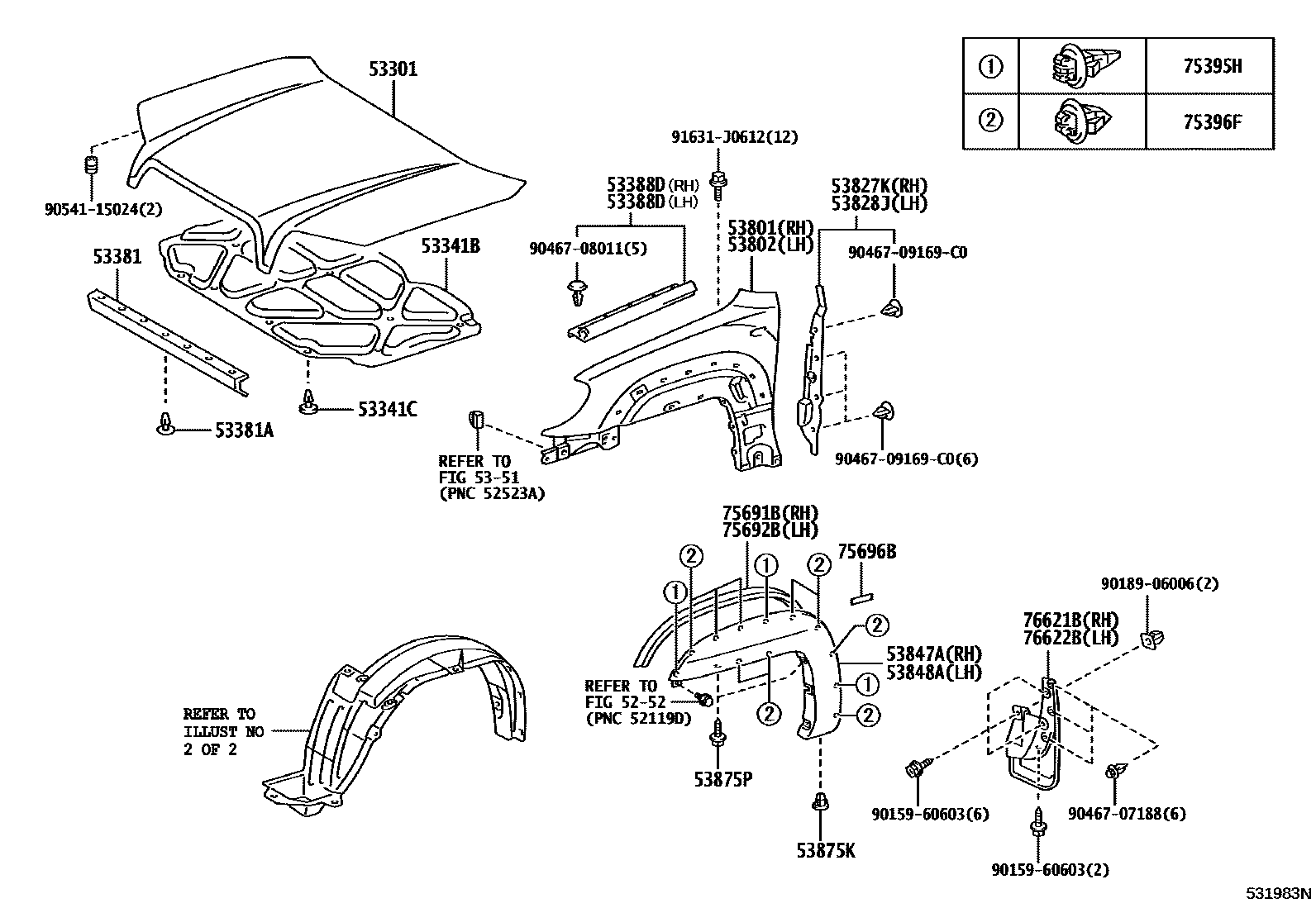

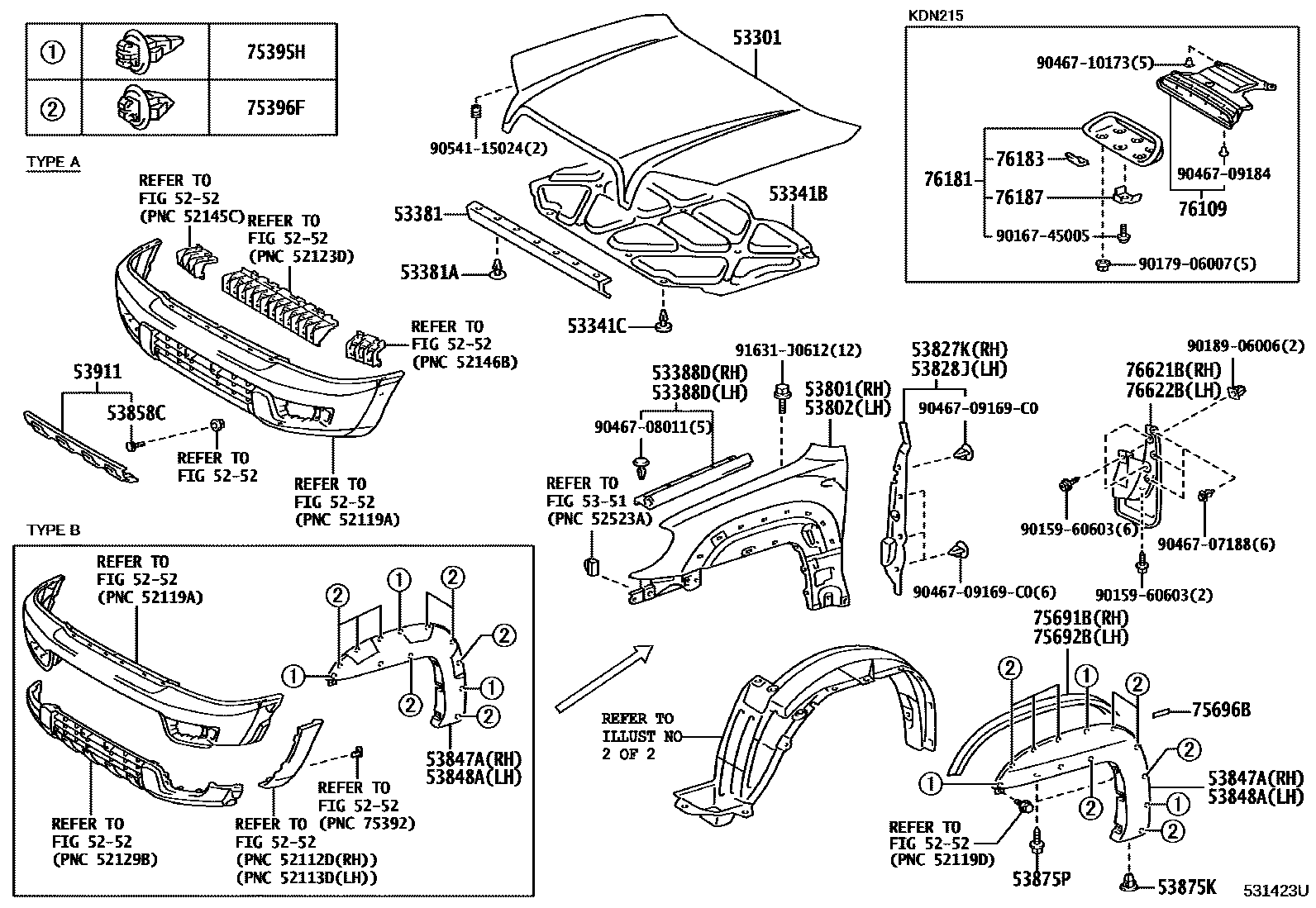

Toyota HILUX 发动机盖和前翼子板 — Figure 5353
Toyota HILUX EPC diagram 5353, 发动机盖和前翼子板, with 3 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53301 | Engine cover sub-assembly | 53301-35120 · 53301-35121 · 53301-35130 · 53301-35131 |
| 53341B | engine cover gasket | 53341-35130 · 53341-35140 · 53341-35150 |
| 53341C | Clip (for engine cover gasket) | 90467-09050 |
| 53381 | Engine cover to radiator bracket seal | 53381-35060 |
| 53381A | Clip (for engine cover to radiator bracket seal) | 90467-08011 |
| 53388D | Engine cover to right front fender seal | 53388-35010 |
| 53801 | Right front fender sub-assembly | 53801-35520 · 53801-35570 |
| 53802 | Left front fender sub-assembly | 53802-35600 · 53802-35660 |
| 53827K | Right front fender side panel protector | 53827-35030 · 53827-35031 |
| 53828J | Left front fender side panel protector | 53828-35050 · 53828-35051 |
| 53847A | Right front fender or wheel arch guard strip extension | 53847-35110 |
| 53848A | Left front fender or wheel arch guard strip extension | 53848-35110 |
| 53858C | Fender outer plate bolts | 90109-06304 |

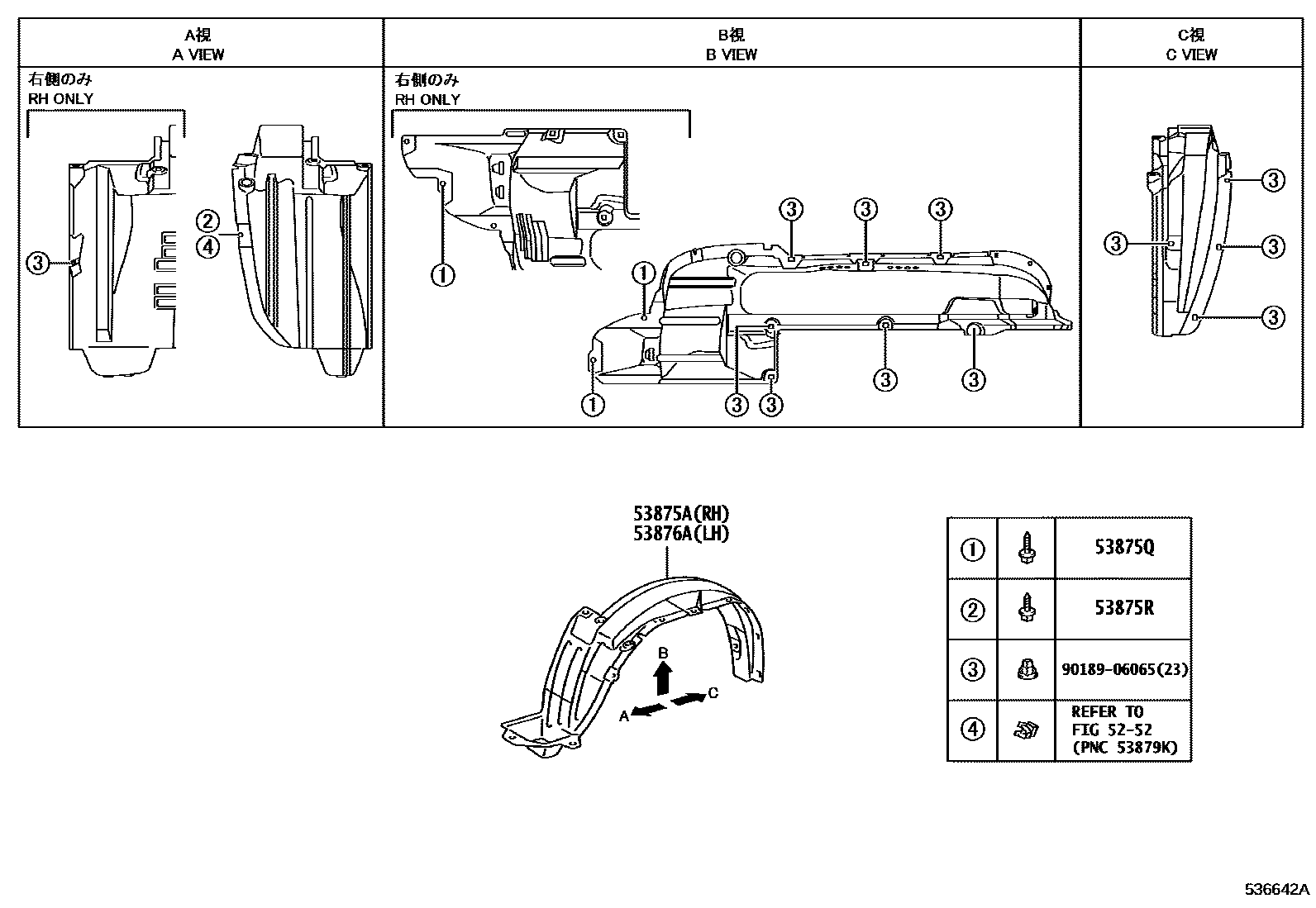

| 53875A | Right front fender lining | 53875-35090 · 53875-35091 · 53875-35100 |
| 53875K | Toyota part | 90189-06028 |
| 53875P | Toyota part | 90159-60476 · 90159-60603 |
| 53875Q | Toyota part | 90159-60215 · 90159-60444 · 90159-60590 |
| 53875R | Toyota part | 90159-60603 |
| 53876A | Left front fender lining | 53876-35080 · 53876-35081 · 53876-35090 |
| 75395H | No. 1 outer protective strip clip | 75395-35070 |
| 75396F | No. 2 outer protective strip clip | 75396-35020 |
| 75691B | Right front fender outer protective strip liner | 75691-35020 · 75691-35030 |
| 75692B | Left front fender outer protective strip liner | 75691-35020 · 75691-35030 |
| 75696B | Body right outer protective strip liner | 75696-35050 · 75696-35080 |
| 76109 | Engine cover air intake duct sub-assembly | 76109-35040 |
| 76183 | Engine cover bump protector No. 1 | 76183-12030 |
| 76187 | No. 1 engine cover air intake duct fixing part | 76187-35010 |
| 76621B | Right front body fender | 76621-35060 · 76621-35100 |
| 76622B | Left front body fender | 76622-35060 · 76622-35100 |
