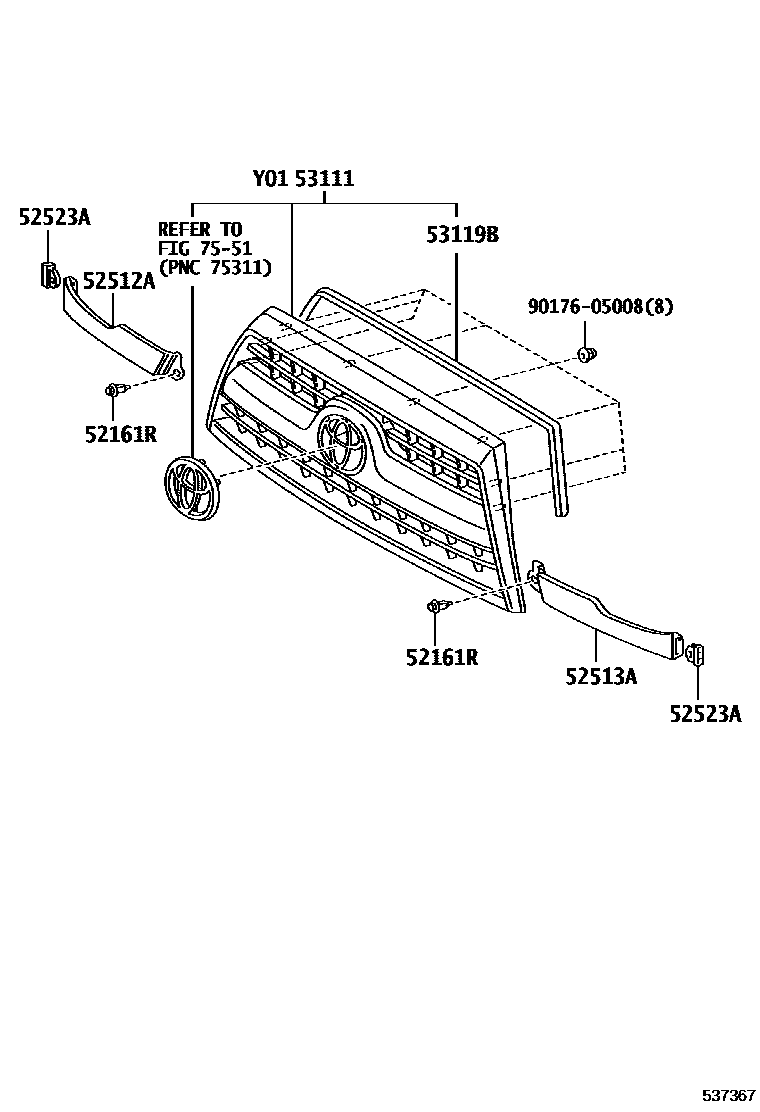

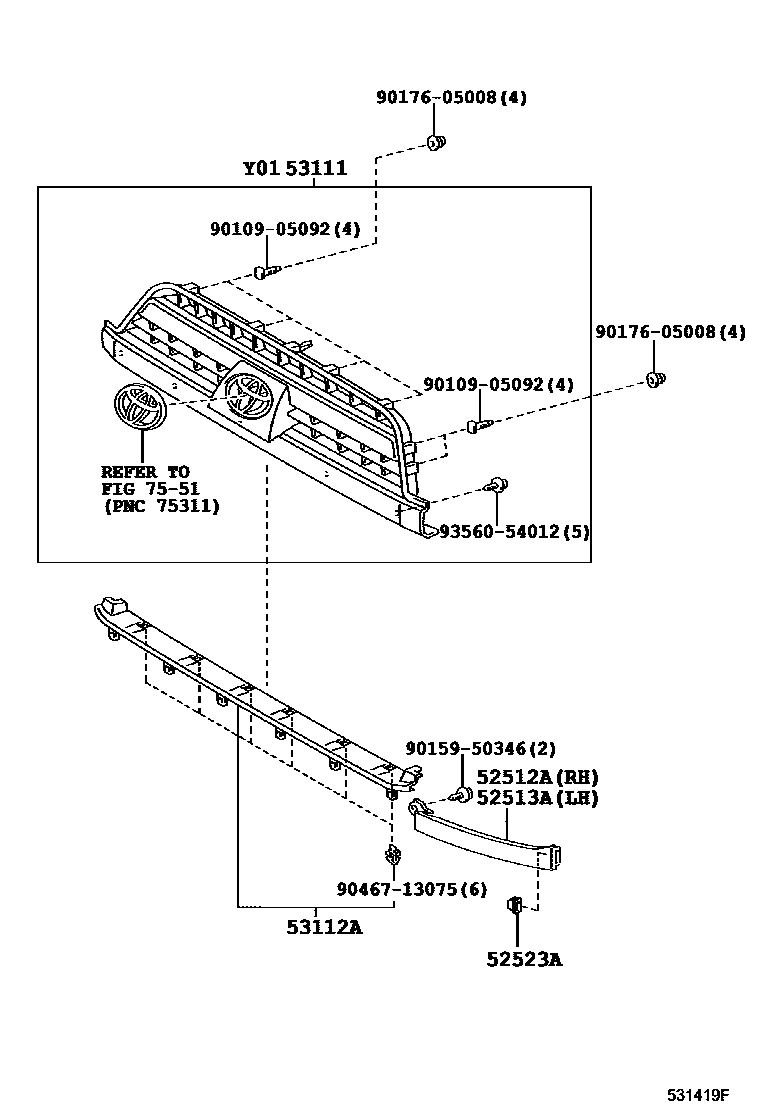

Toyota HILUX radiator grille — Figure 5351
Toyota HILUX EPC diagram 5351, radiator grille, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52161R | front bumper insert | 52161-16010 |
| 52512A | Front bumper right curved filler | 52512-35080 |
| 52513A | Front bumper left curved filler | 52513-35080 |
| 52523A | Front bumper arc filler No. 3 fixing piece | 53935-35020 · 53935-35030 |
| 53111 | radiator grille | 53100-35870 · 53100-35890 |
| 53112A | Lower radiator grille | 53102-35010 |
