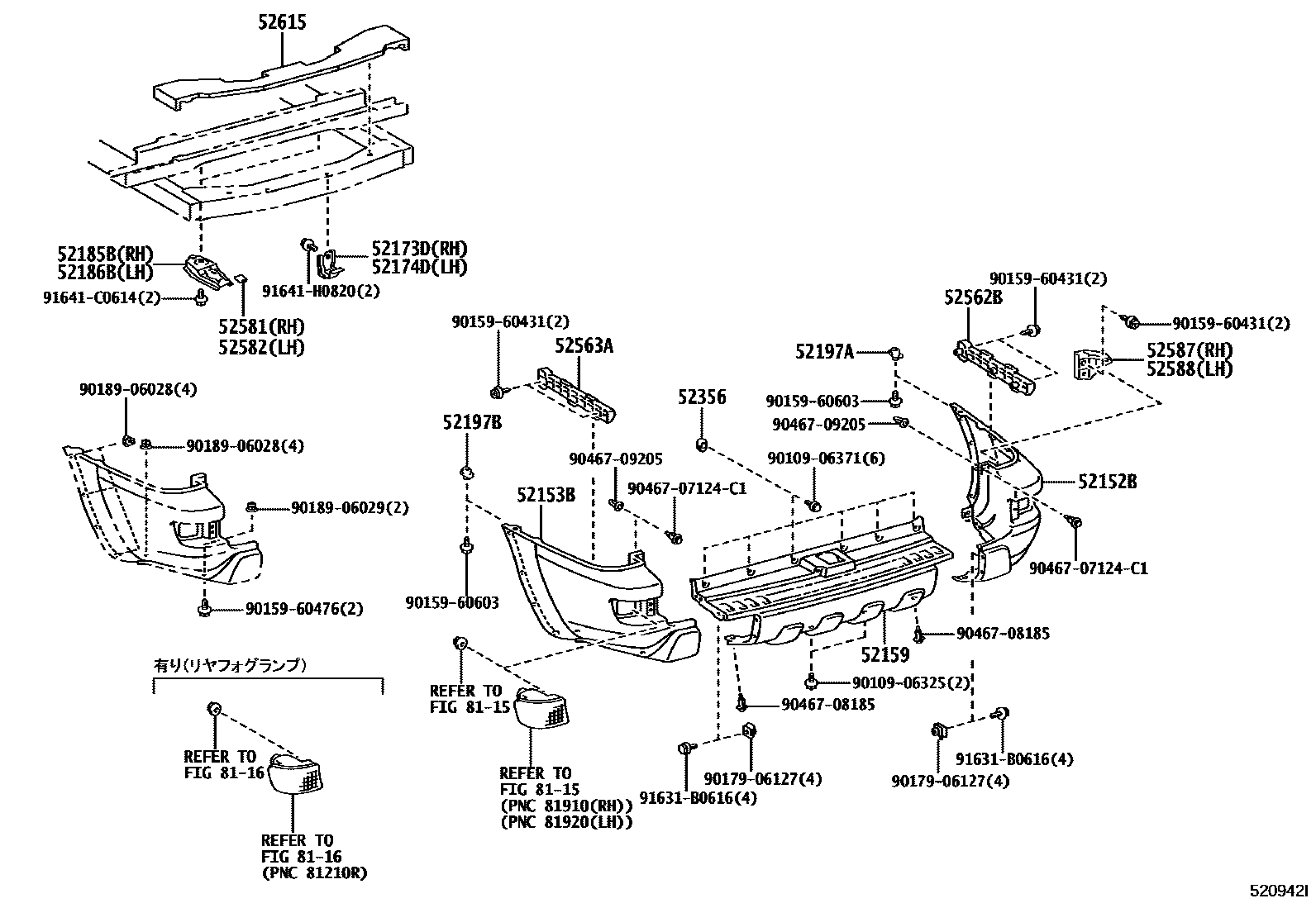

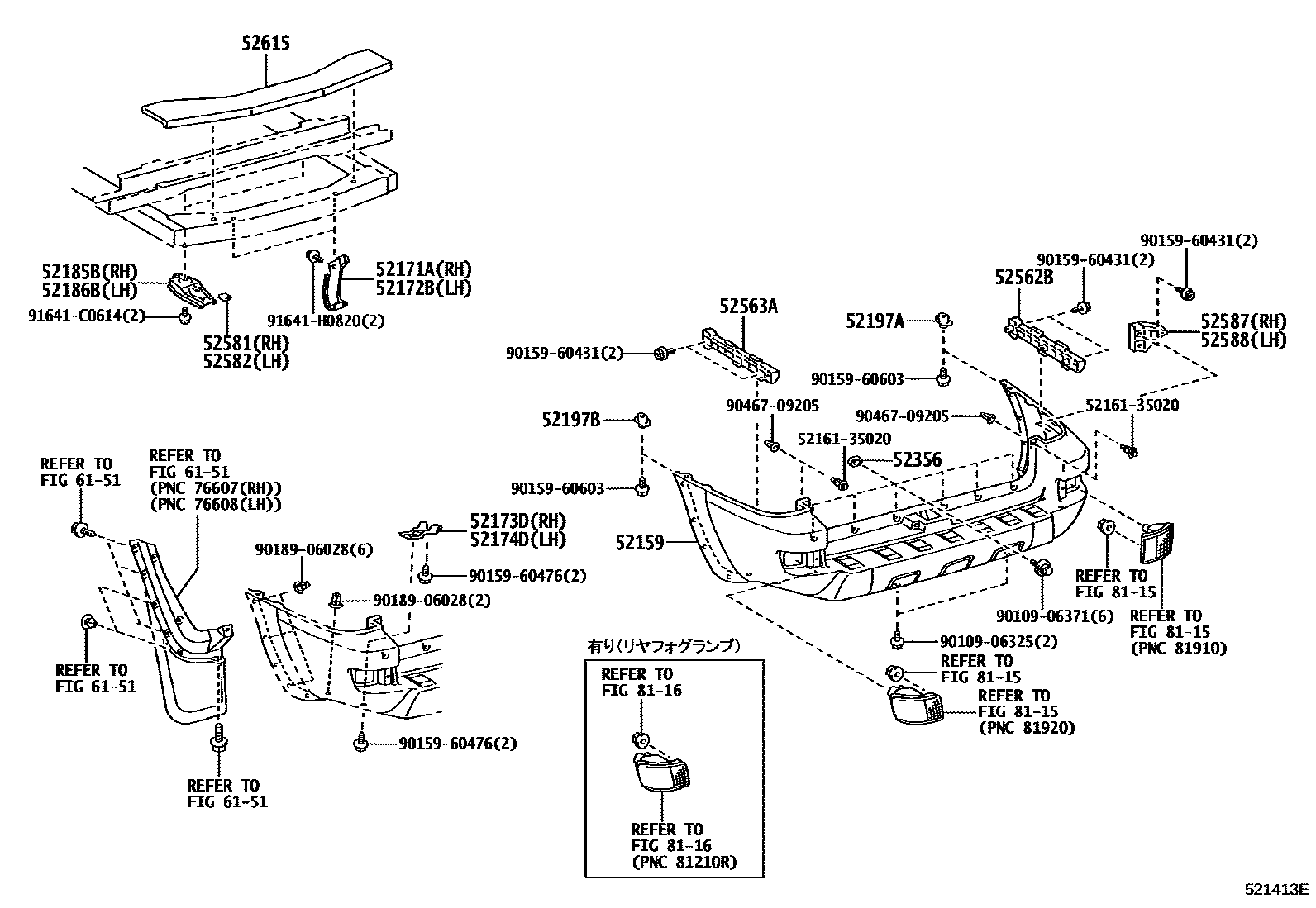

Toyota HILUX 后保险杠及附件 — Figure 5253
Toyota HILUX EPC diagram 5253, 后保险杠及附件, with 2 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52152B | Rear bumper right extension | 52152-35120 |
| 52153B | Rear bumper left extension | 52153-35120 |
| 52159 | rear bumper cover | 52159-35080 |
| 52171A | Rear bumper reinforcement No. 1 | 52171-35050 |
| 52172B | Rear bumper reinforcement No. 2 | 52172-35030 |
| 52173D | Rear bumper right side reinforcement | 52173-35050 · 52173-35060 |
| 52174D | Rear bumper left reinforcement | 52174-35050 · 52174-35060 |
| 52185B | Installation support on the right side of the rear bumper | 52185-60090 |
| 52186B | Rear bumper left side mounting support | 52185-60090 |
| 52197A | Rear bumper right seal support | 52197-35020 |
| 52197B | Rear bumper left seal support | 52197-35020 |
| 52356 | Rear bumper running board cushion | 52356-60050 |
| 52562B | Rear bumper upper right fixing bracket | 52562-35010 · 52562-35020 |
| 52563A | Rear bumper upper left fixing bracket | 52563-35010 · 52563-35020 |
| 52581 | Rear bumper right side protector | 52581-35020 |
| 52582 | Rear bumper left protector | 52581-35020 |
| 52587 | Rear bumper right end fixing bracket | 52587-35010 · 52587-35020 |
| 52588 | Rear bumper left end fixing bracket | 52588-35010 · 52588-35020 |
| 52615 | Rear bumper energy absorber | 52615-35010 · 52615-35020 |
