Toyota HILUX 前保险杠及附件 — Figure 5252

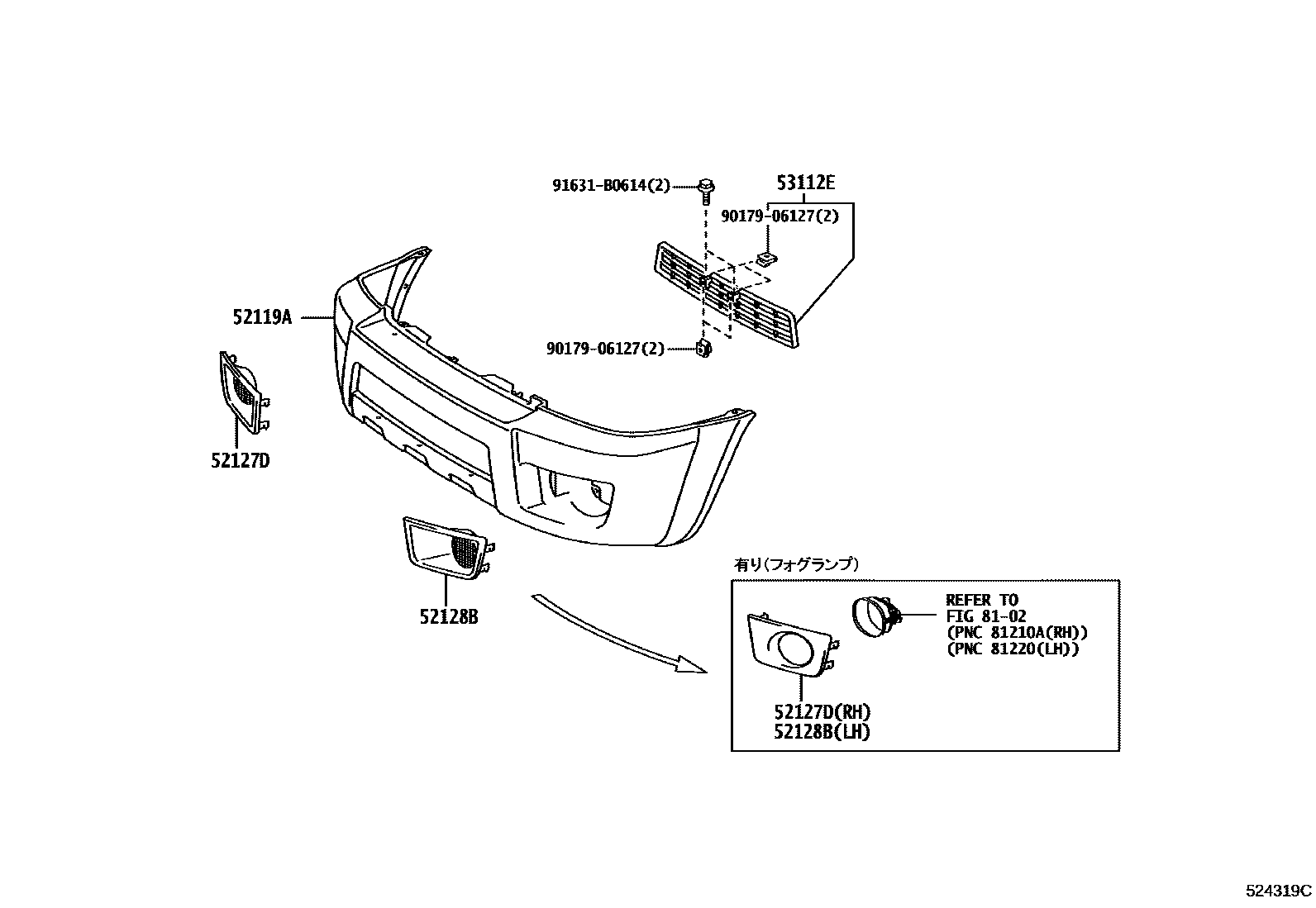

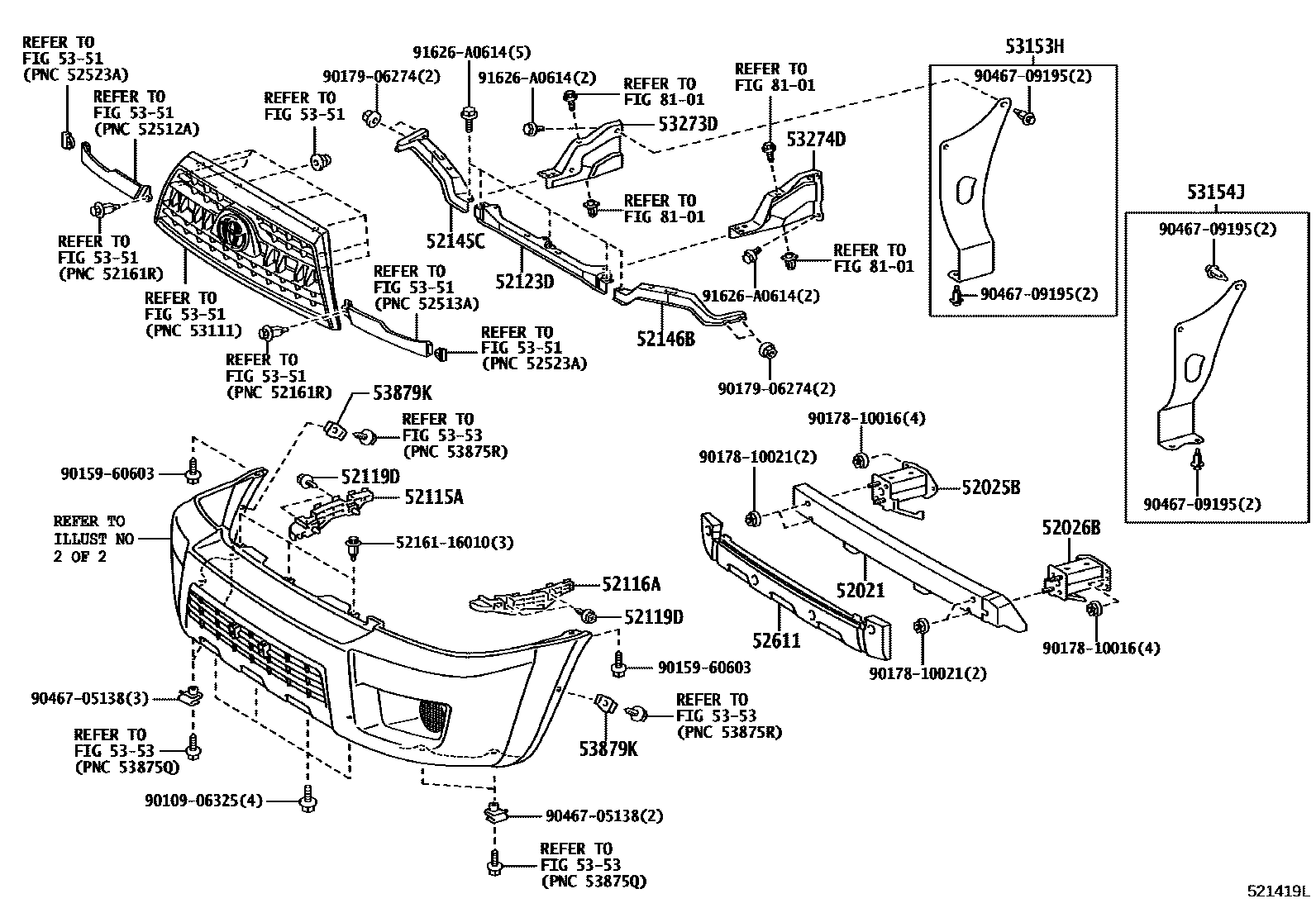

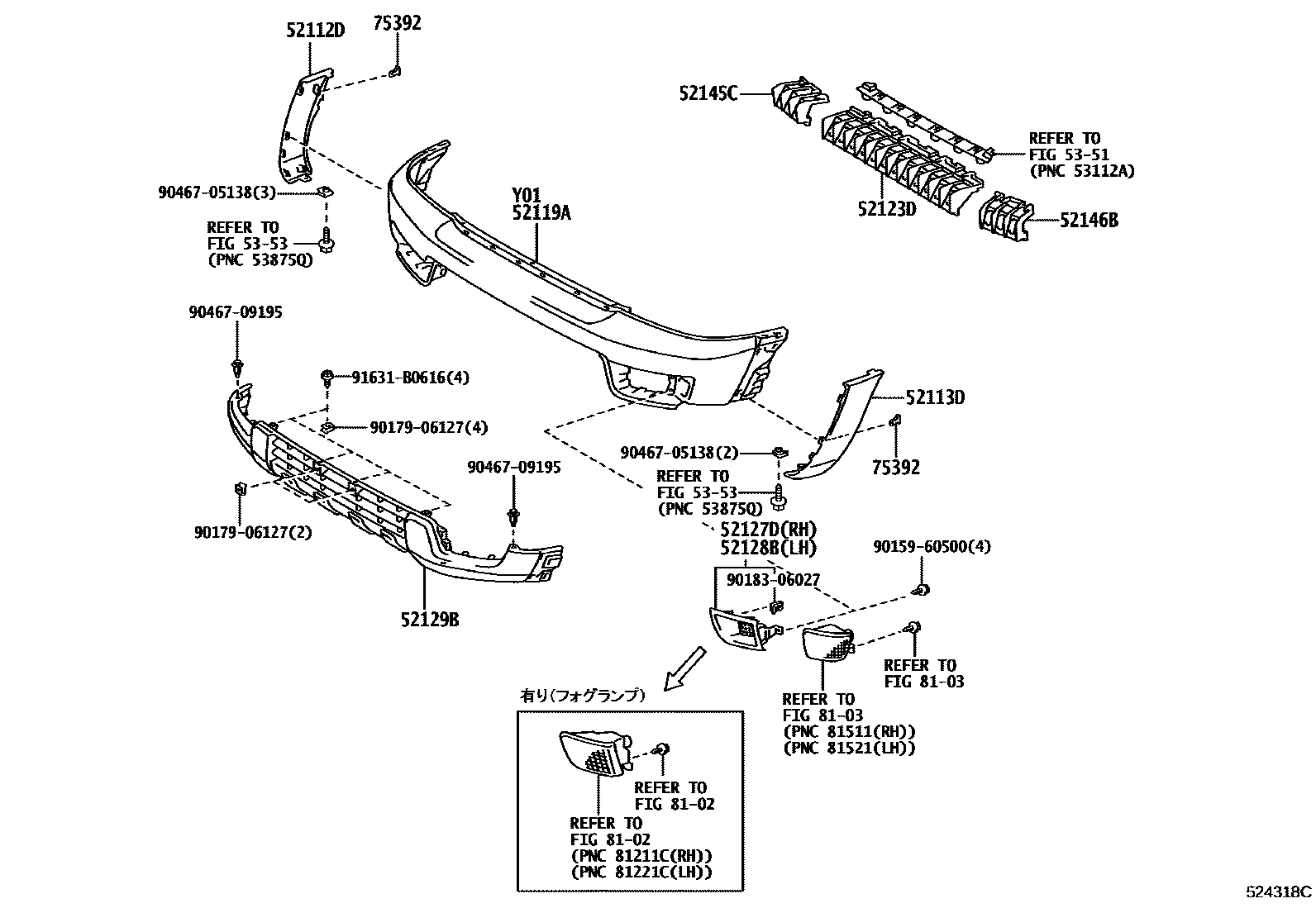

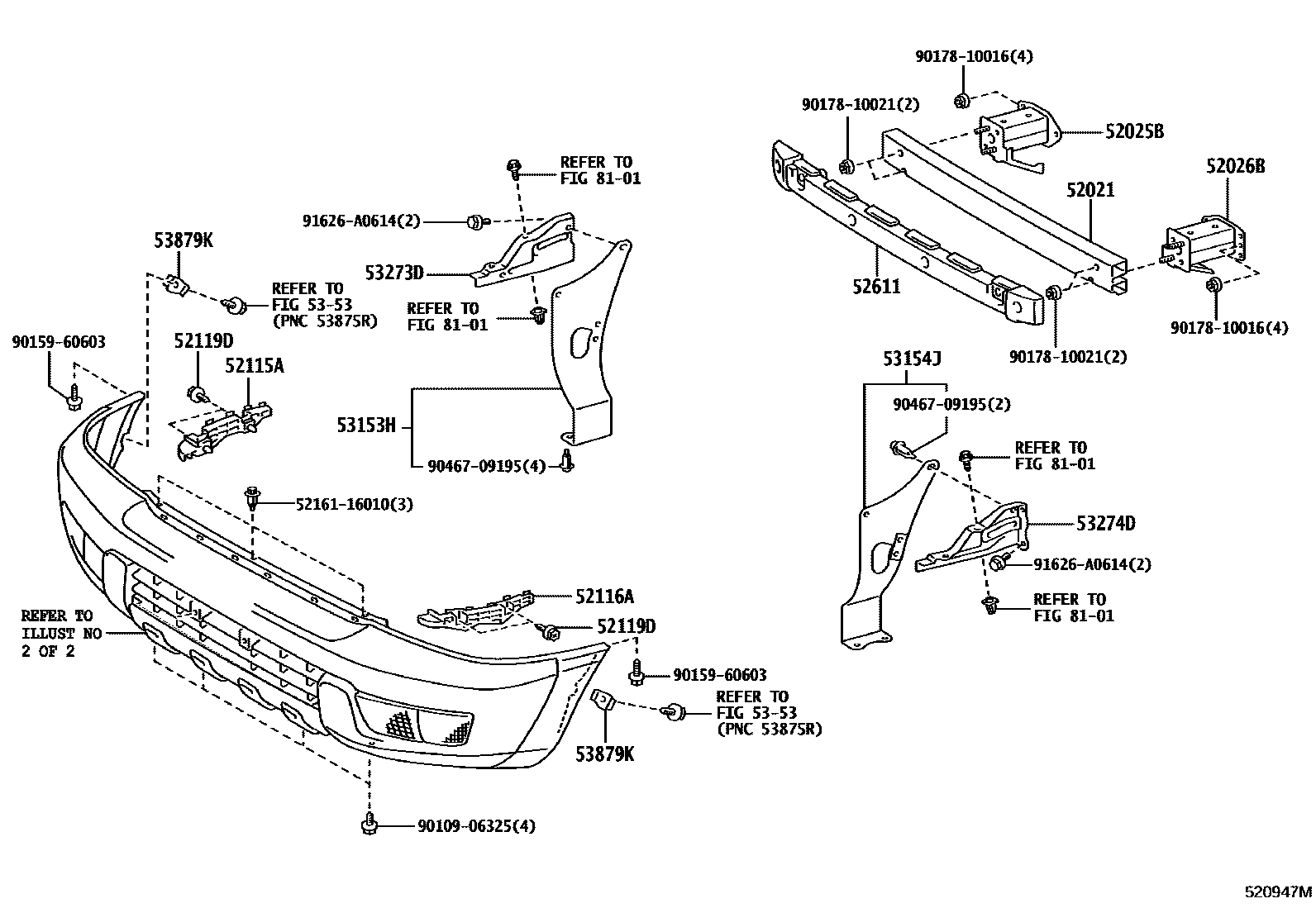

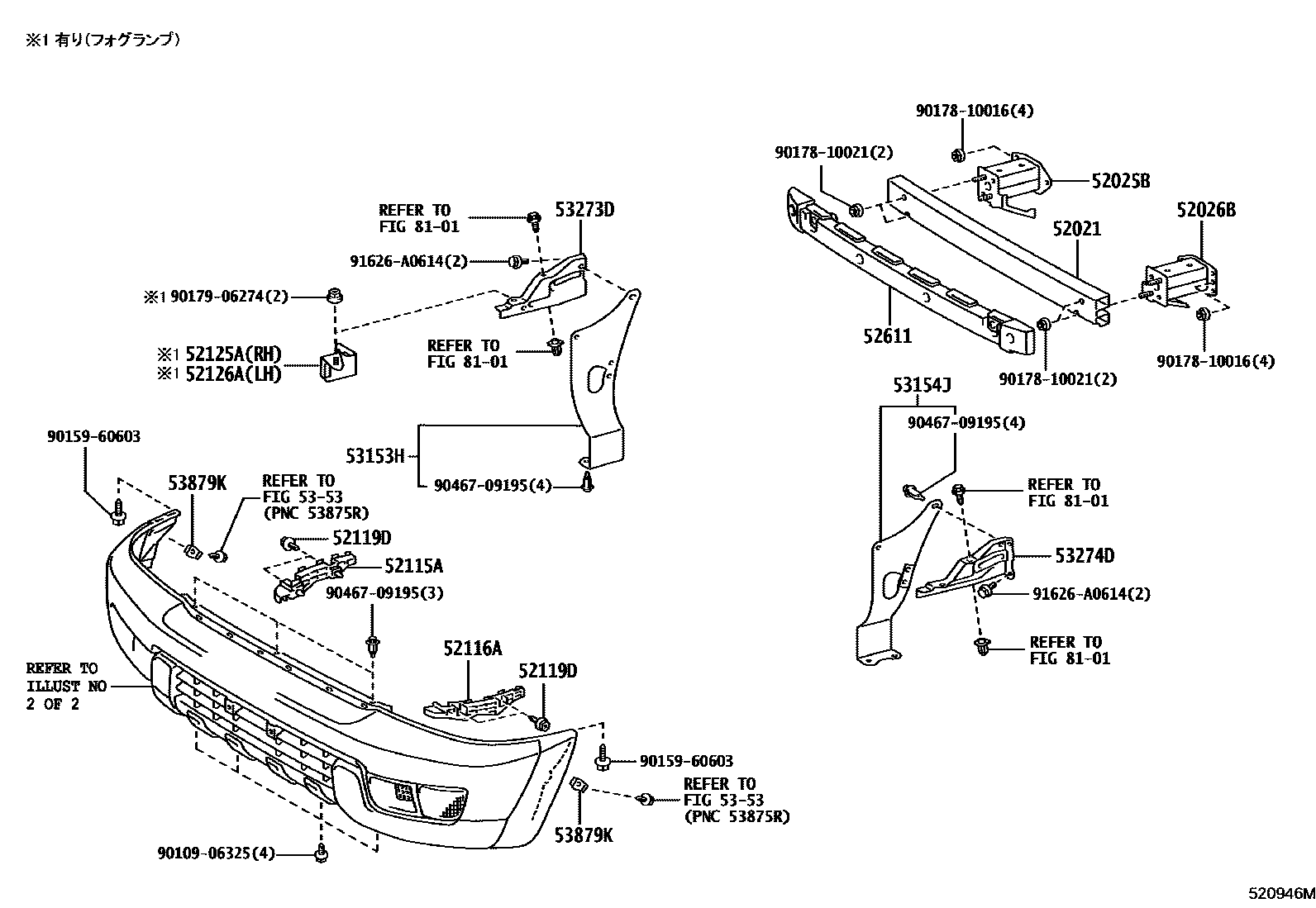

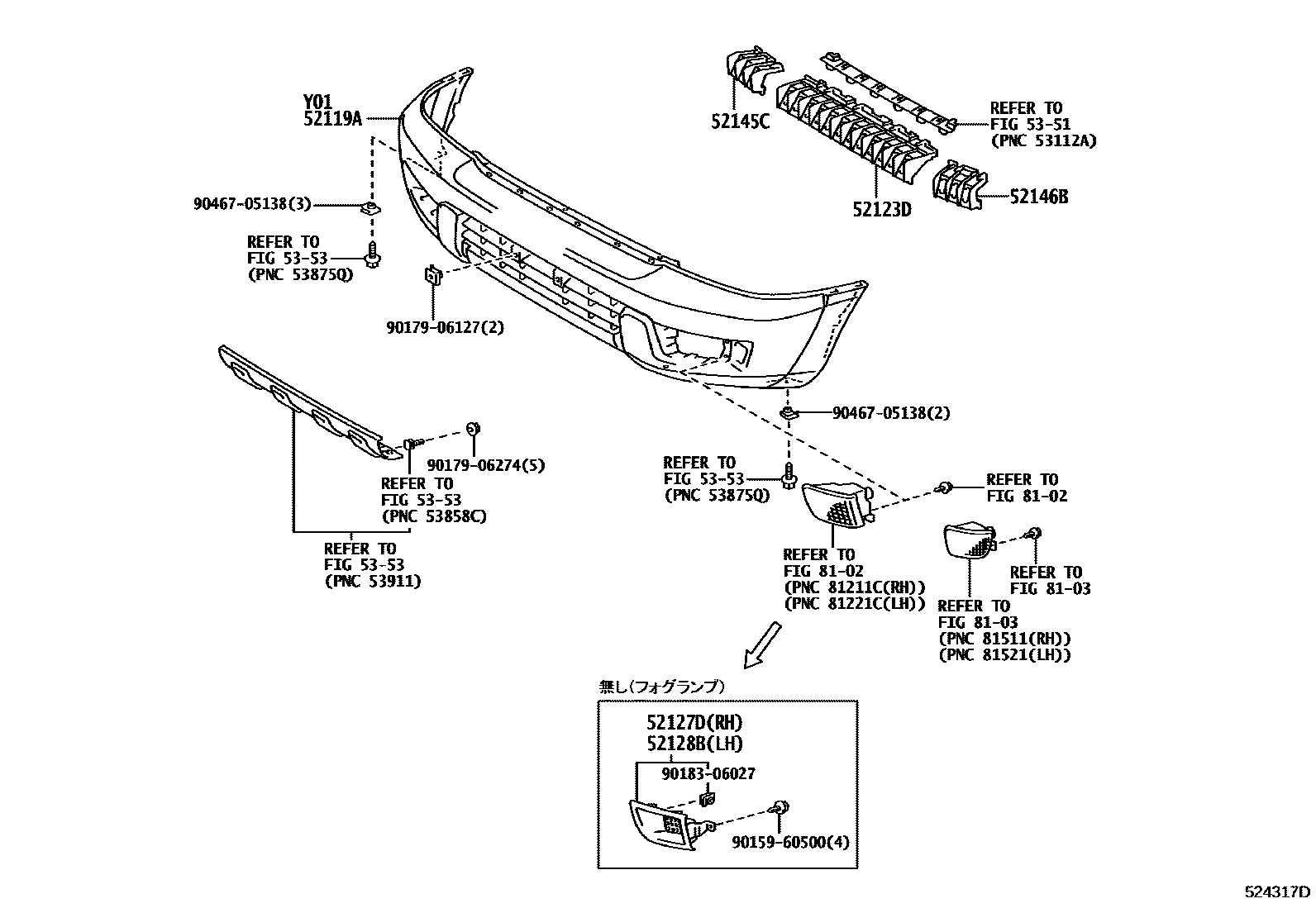

Toyota HILUX EPC diagram 5252, 前保险杠及附件, with 6 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52021 | Front bumper reinforcement sub-assembly | 52021-35040 · 52021-35060 |
| 52025B | Front bumper No. 2 right extension section sub-assembly | 52025-35050 |
| 52026B | Front bumper No. 2 left extension section sub-assembly | 52026-35050 |
| 52112D | Front bumper right extension | 52112-35140 |
| 52113D | Front bumper left extension | 52113-35130 |
| 52115A | Front bumper right side bracket | 52115-35100 · 52115-35110 |
| 52116A | Front bumper left bracket | 52116-35090 · 52116-35100 |
| 52119A | front bumper cover | 52119-35050 |
| 52119D | Toyota part | 90159-60431 |
| 52123D | Front bumper reinforcement plate | 52123-35150 · 52123-35160 |
| 52125A | Right fog light mounting bracket | 52125-35030 |
| 52126A | Left fog light mounting bracket | 52126-35020 |
| 52127D | Front bumper right hole cover | 52127-35030 · 52127-35040 · 52127-35050 |
| 52128B | Front bumper left hole cover | 52128-35020 · 52128-35030 · 52128-35040 |
| 52129B | Front bumper lower cover | 52129-35020 |
| 52145C | Front bumper right side mounting bracket | 52145-35050 · 52145-35060 |
| 52146B | Front bumper left mounting bracket | 52146-35050 · 52146-35060 |
| 52611 | front bumper energy absorber | 52611-35010 · 52611-35020 |
| 53112E | No. 1 radiator lower grille | 53102-35020 · 53102-35030 |
| 53153H | Radiator grille right deflector | 53153-35010 · 53153-35011 |
| 53154J | Radiator grille left deflector | 53154-35030 · 53154-35031 |
| 53273D | Front bumper arm right mounting bracket | 53273-35070 · 53273-35080 |
| 53274D | Front bumper arm left mounting bracket | 53274-35050 · 53274-35060 |
| 53879K | Front fender lining fixing parts | 53879-58010 |
| 75392 | External protective strip fixings | 75392-35200 |
