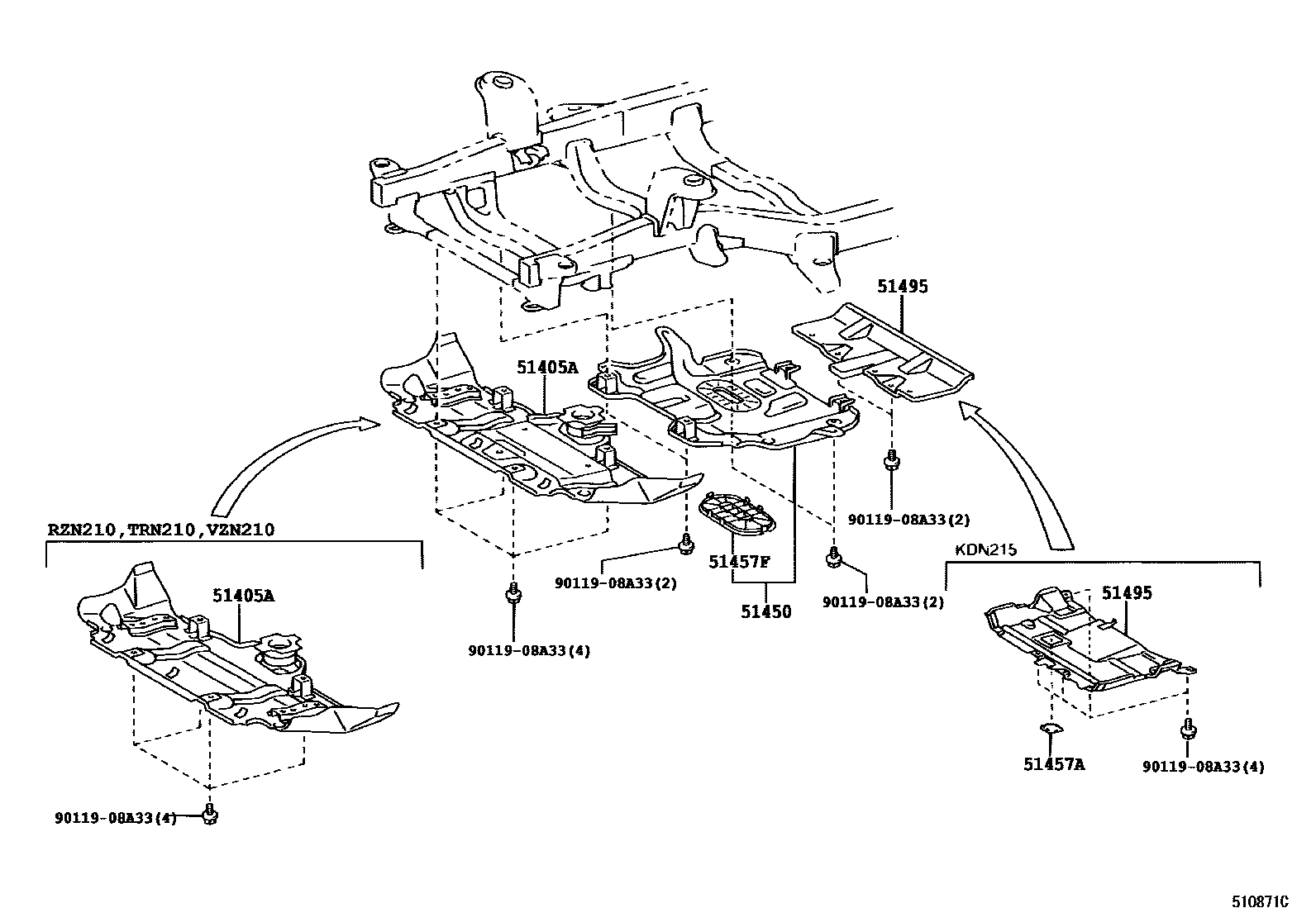

Toyota HILUX 悬架横梁和发动机底罩 — Figure 5152
Toyota HILUX EPC diagram 5152, 悬架横梁和发动机底罩, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51405A | No. 1 engine bottom cover sub-assembly | 51405-35100 · 51405-35101 · 51405-35140 · 51440-35010 · 51440-35011 |
| 51450 | Engine rear bottom cover assembly | 51450-35010 · 51450-35020 |
| 51457A | Engine bottom cover No. 3 bracket | 51457-35020 |
| 51457F | Engine underhood seal | 51457-35030 |
| 51495 | transmission bottom cover | 51495-35040 · 51495-35050 |
