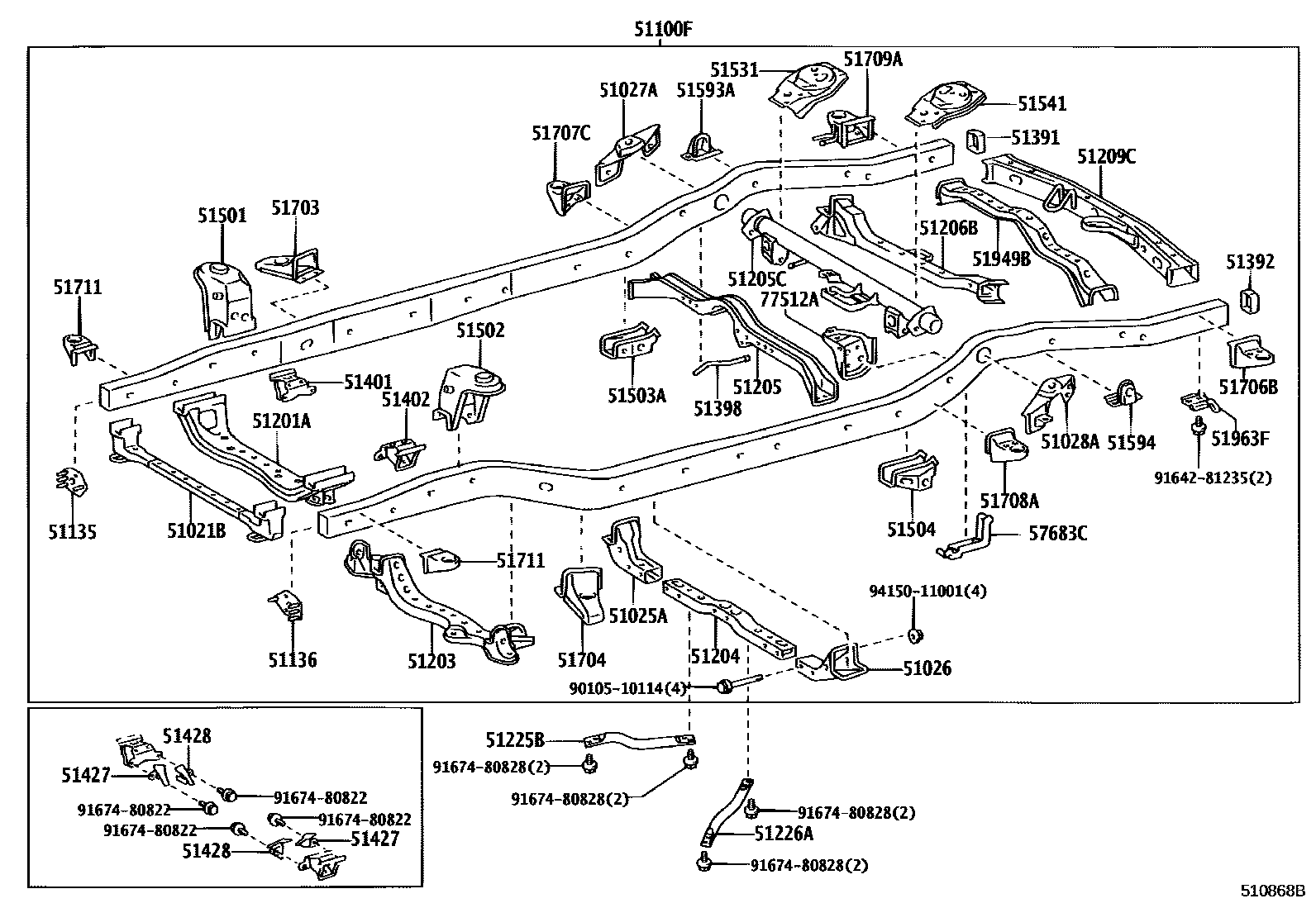

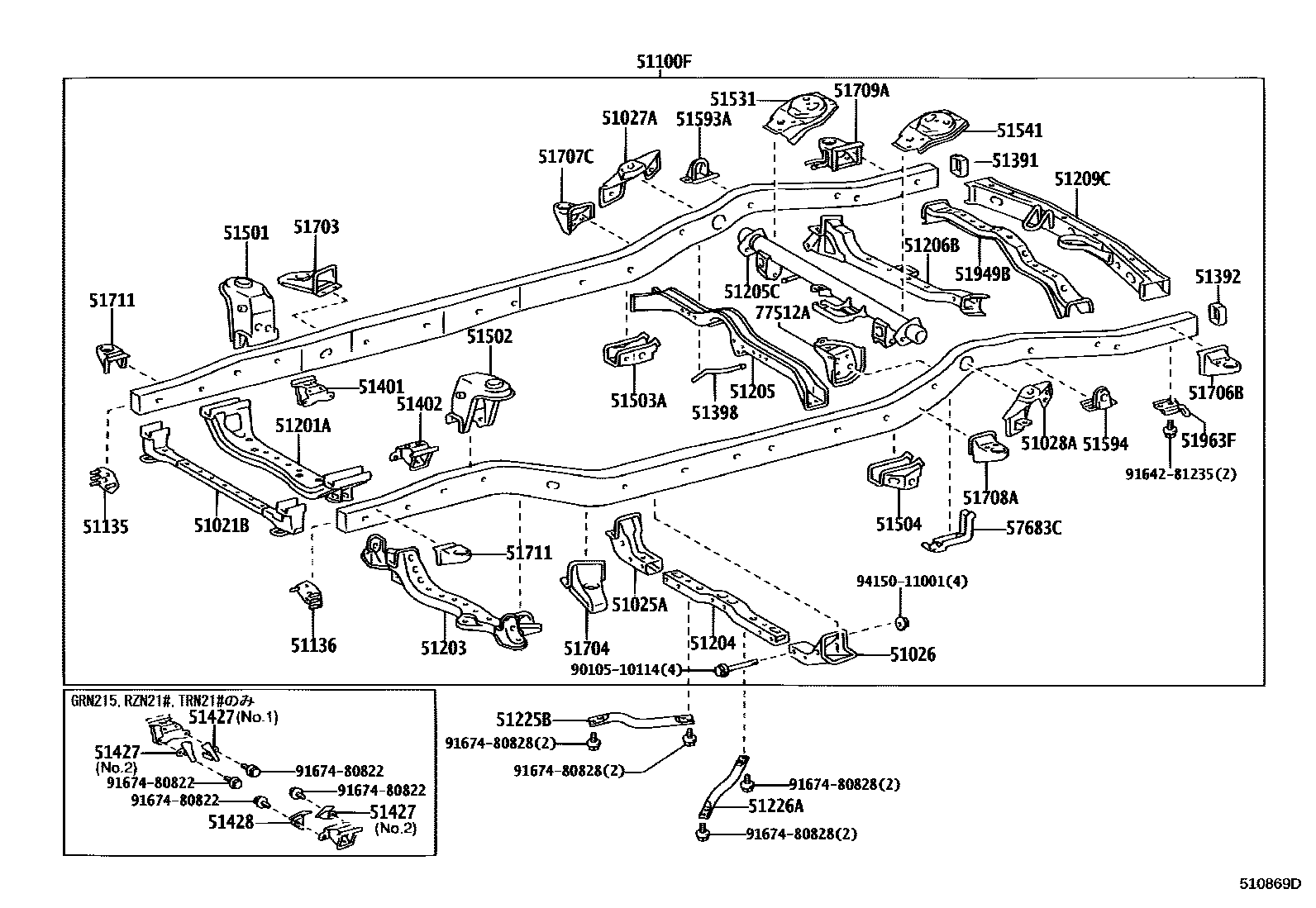

Toyota HILUX 车架 — Figure 5151
Toyota HILUX EPC diagram 5151, 车架, with 2 images and 43 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51021B | Frame auxiliary cross member sub-assembly | 51021-35070 · 51021-35071 |
| 51025A | Frame No. 3 beam right side bracket sub-assembly | 51025-35030 |
| 51026 | Frame No. 3 crossbeam left side bracket sub-assembly | 51026-35030 |
| 51027A | Frame No. 4 beam right side bracket sub-assembly | 51027-35020 |
| 51028A | Frame No. 4 crossbeam left side bracket sub-assembly | 51028-35020 |
| 51100F | Frame sub-assembly | 51001-3M430 · 51001-3M440 · 51001-3M450 · 51001-3M480 · 51001-3M490 · 51001-3M500 |
| 51135 | Right frame rail plate | 51135-35060 |
| 51136 | Left frame rail plate | 51136-35070 |
| 51201A | Front frame cross member sub-assembly | 51201-35340 |
| 51203 | Frame No. 2 cross member sub-assembly | 51202-35470 |
| 51204 | Frame No. 3 beam sub-assembly | 51203-35370 · 51203-35380 |
| 51205 | Frame No. 4 beam sub-assembly | 51204-35830 |
| 51205C | Frame No. 5 beam sub-assembly | 51205-35280 |
| 51206B | Frame No. 6 crossbeam sub-assembly | 51206-35060 |
| 51209C | Frame rear cross member sub-assembly | 51209-35210 · 51209-35211 |
| 51225B | Right front suspension cross member bracket | 51225-35040 · 51225-35050 |
| 51226A | Front suspension cross member left bracket | 51226-35060 · 51226-35070 |
| 51391 | Frame rear cross member right side corner plate | 51391-35090 |
| 51392 | Frame rear cross member left side corner plate | 51392-35080 |
| 51398 | Exhaust pipe bracket | 17576-67050 |
| 51401 | Engine right front mounting bracket sub-assembly | 51401-35390 · 51401-35400 · 51401-35420 |
| 51402 | Engine left front mounting bracket sub-assembly | 51402-35340 · 51402-35350 · 51402-35370 |
| 51427 | Engine right front mounting reinforcement | 51427-35120 · 51427-35130 · 51427-35140 |
| 51428 | Engine rear mount reinforcement | 51428-35090 · 51428-35100 |
| 51501 | Right suspension arm bracket sub-assembly | 51501-35140 |
| 51502 | Left suspension arm bracket sub-assembly | 51502-35140 |
| 51503A | Lower right control link bracket sub-assembly | 51503-35030 · 51503-35031 |
| 51504 | Lower left control link bracket sub-assembly | 51504-35020 · 51504-35021 |
| 51531 | Right rear spring bracket | 51531-35030 · 51531-35031 |
| 51541 | Left rear spring bracket | 51541-35030 · 51541-35031 |
| 51593A | Right rear spring buffer block bracket | 51593-35030 |
| 51594 | Left rear spring buffer block bracket | 51594-35030 |
| 51703 | Cab suspension No. 2 right side bracket sub-assembly | 51703-35180 |
| 51704 | Cab suspension No. 2 left side bracket sub-assembly | 51704-35160 |
| 51706B | Cab suspension No. 3 left bracket sub-assembly | 51706-35060 |
| 51707C | Cab suspension No. 4 right side bracket sub-assembly | 51707-35090 |
| 51708A | Cab suspension No. 4 left bracket sub-assembly | 51708-35090 |
| 51709A | Body rear end mounting bracket sub-assembly | 51709-35040 |
| 51711 | Front body right side support or mounting bracket | 51711-35190 |
| 51949B | Spare tire carrier cross member | 51949-35010 |
| 51963F | transport hook | 51963-35110 |
| 57683C | Fuel tank mounting bracket | 57683-35030 |
| 77512A | fuel tank rear bracket | 77512-35120 |
