Toyota HILUX Rear Spring & Shock Absorber — Figure 4804

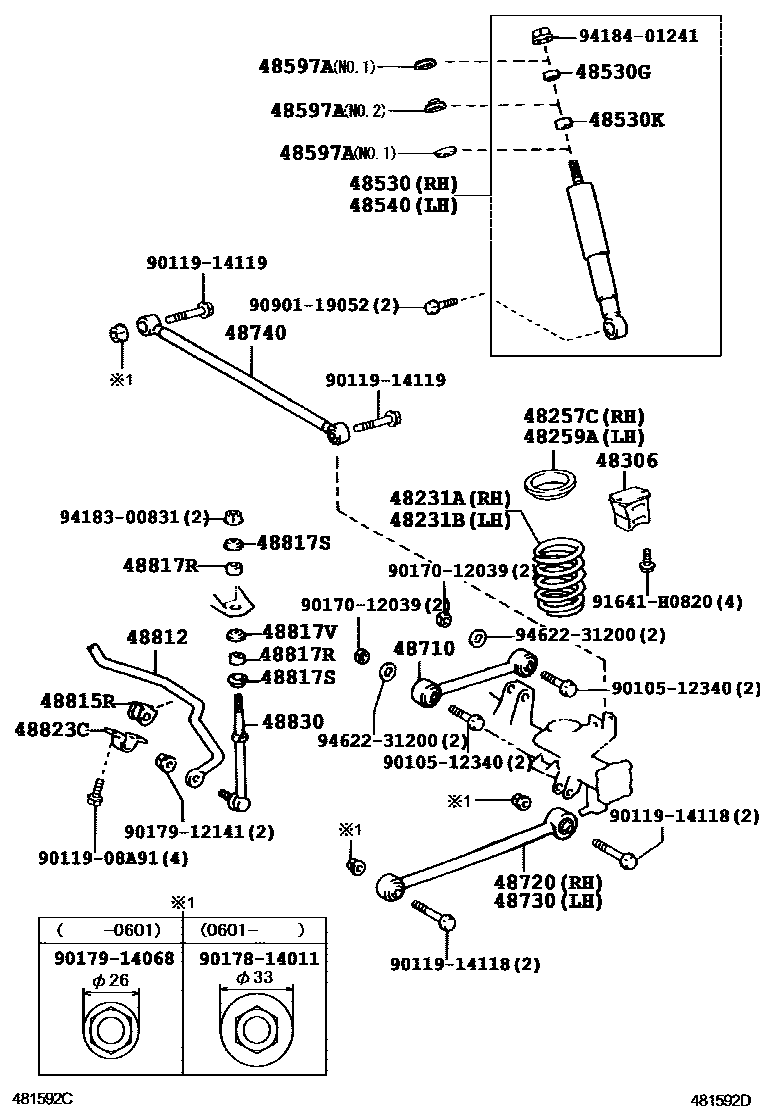

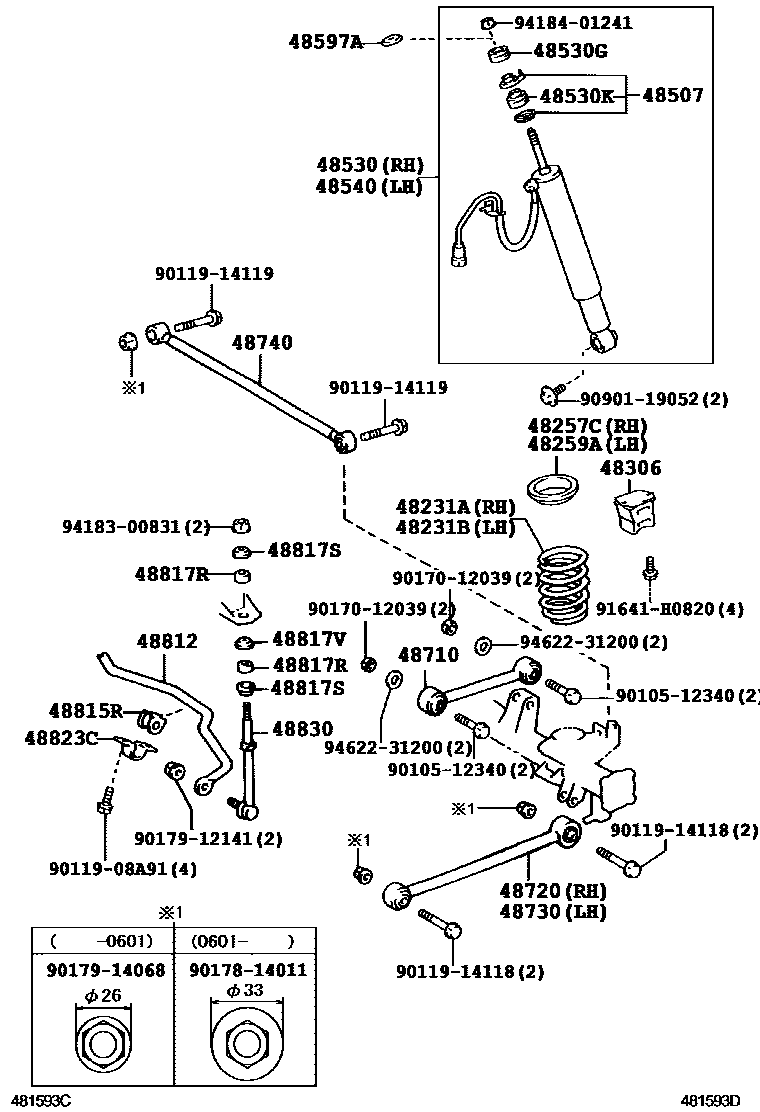

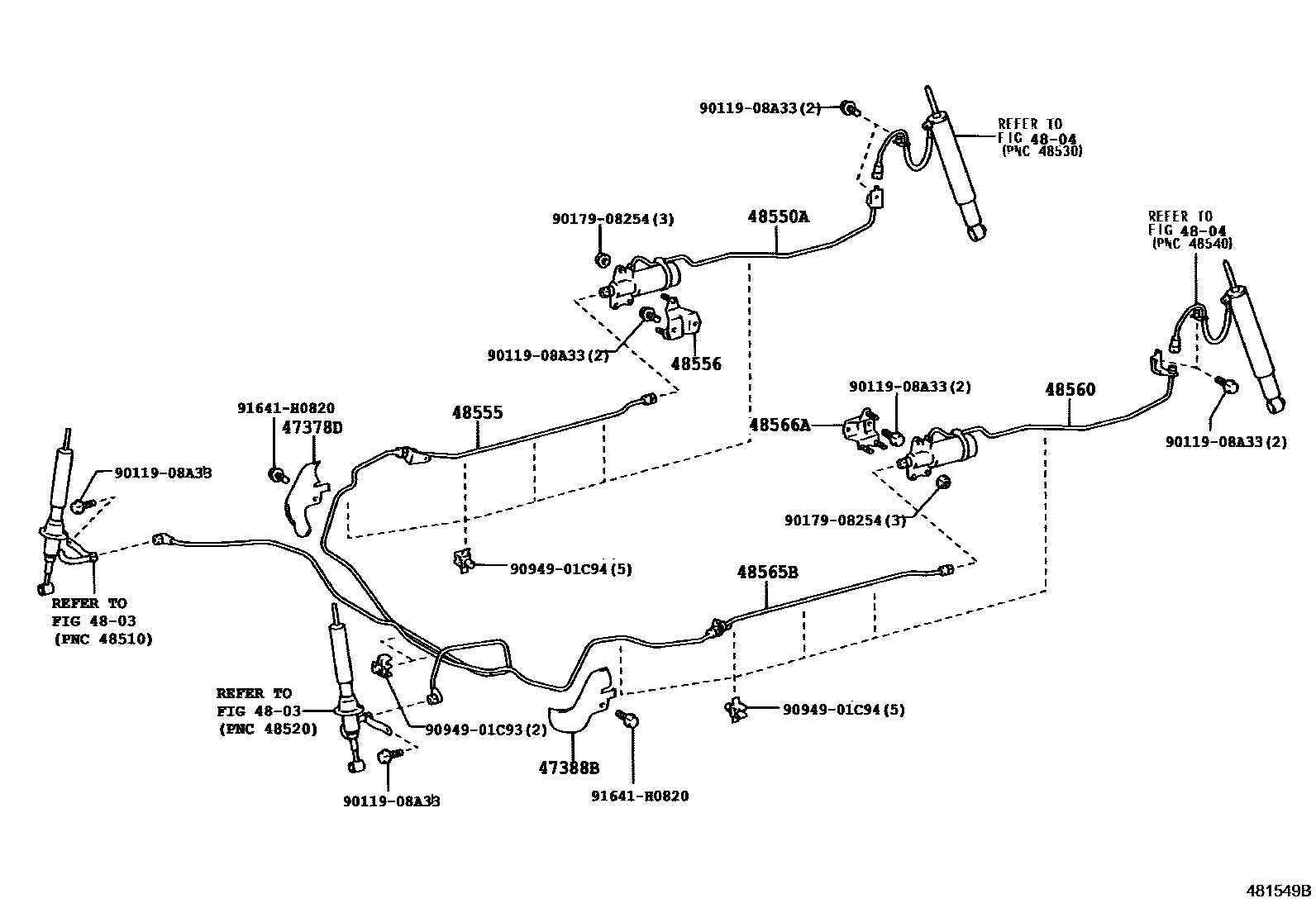

Toyota HILUX EPC diagram 4804, Rear Spring & Shock Absorber, with 3 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47378D | Brake pipe right protective plate | 47378-35050 |
| 47388B | Brake pipe left protective plate | 47388-35010 |
| 48231A | Right rear coil spring | 48231-35270 · 48231-35280 · 48231-35281 |
| 48231B | Left rear coil spring | 48231-35270 · 48231-35280 · 48231-35281 |
| 48257C | Right rear coil spring upper vibration isolation pad | 48257-60040 |
| 48259A | Left rear coil spring upper vibration isolation pad | 48257-60040 |
| 48306 | Rear spring buffer block sub-assembly | 48306-60190 |
| 48507 | Rear shock absorber lower bracket sub-assembly | 48507-60020 |
| 48530 | Right rear shock absorber assembly | 48530-80087 · 48530-80088 · 48530-80089 · 48530-80299 · 48530-80300 · 48530-80371 · 48530-80372 |
| 48530G | Rear shock absorber No. 1 cushion | 90948-01087 |
| 48530K | Rear shock absorber No.2 cushion | 90948-01086 · 90948-01088 |
| 48540 | Left rear shock absorber assembly | 48530-80087 · 48530-80088 · 48530-80299 · 48530-80300 · 48530-80371 · 48530-80372 · 48540-39445 |
| 48550A | Right central control damper assembly | 48550-35020 · 48550-35021 |
| 48555 | Right center control damper tube | 48555-35040 |
| 48556 | Right central control damper bracket | 48556-35010 |
| 48560 | Left central control damper assembly | 48560-35020 · 48560-35021 |
| 48565B | Left center control damper tube | 48565-35040 |
| 48566A | Left central control damper bracket | 48566-35010 |
| 48597A | Rear shock absorber buffer pad | 48597-60070 · 48597-60080 |
| 48710 | Upper control arm assembly | 48710-35050 |
| 48720 | Right lower control arm assembly | 48720-35060 · 48720-35061 |
| 48730 | Left lower control arm assembly | 48720-35060 · 48720-35061 |
| 48740 | Rear transverse control rod assembly | 48740-35040 |
| 48812 | rear stabilizer bar | 48812-60190 · 48812-60200 |
| 48815R | Rear stabilizer bar bushing | 48815-10090 · 48815-14140 |
| 48817R | Stabilizer bumper (for rear stabilizer link) | 48817-30020 |
| 48817S | Crash pad block No. 1 (for rear stabilizer bar) | 90948-02126 |
| 48817V | Crash pad block No. 2 (for rear stabilizer bar) | 90948-02127 |
| 48823C | Rear stabilizer bar bracket cover | 48823-35060 |
| 48830 | Rear stabilizer link assembly | 48830-60030 |
