Toyota HILUX Front Spring & Shock Absorber — Figure 4803

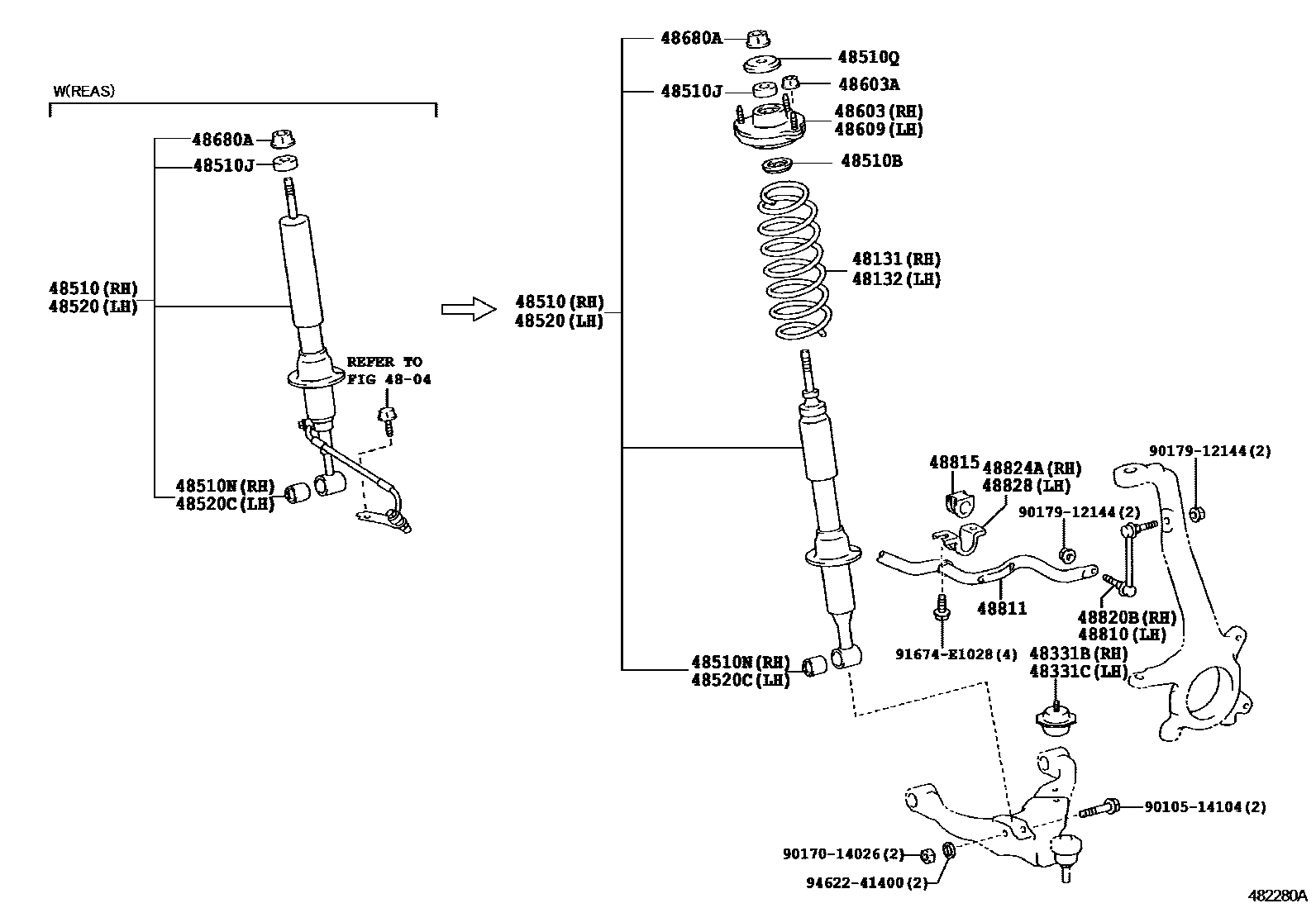

Toyota HILUX EPC diagram 4803, Front Spring & Shock Absorber, with 1 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48131 | Right front coil spring | 48131-35450 · 48131-35451 · 48131-35460 · 48131-35461 · 48131-35470 · 48131-35471 · 48131-35480 · 48131-35490 |
| 48132 | Left front coil spring | 48131-35450 · 48131-35451 · 48131-35460 · 48131-35461 · 48131-35470 · 48131-35471 · 48131-35480 |
| 48331B | Right front spring buffer block | 48304-60120 |
| 48331C | Left front spring buffer block | 48304-60120 |
| 48510 | Right front shock absorber assembly | 48510-80086 · 48510-80087 · 48510-80229 · 48510-80269 · 48510-80270 · 48510-80328 · 48510-80329 |
| 48510B | No. 1 bumper plate (for front shock absorber) | 90948-02159 |
| 48510J | Front shock absorber No. 1 cushion | 90948-01056 |
| 48510N | Bushing (for right front shock absorber) | 90903-89012 |
| 48510Q | No. 3 cushion block (for front shock absorber) | 90948-02161 |
| 48520 | Left front shock absorber assembly | 48510-80086 · 48510-80087 · 48510-80269 · 48510-80270 · 48510-80328 · 48510-80329 · 48520-39875 |
| 48520C | Bushing (for left front shock absorber) | 90903-89012 |
| 48603 | Right front suspension bearing sub-assembly | 48609-60030 |
| 48603A | Nut (for front suspension mount) | 90179-10212 |
| 48609 | Left front suspension bearing sub-assembly | 48609-60030 |
| 48680A | Nut (for front mount to front shock absorber) | 94184-01241 |
| 48810 | Left front stabilizer bar link assembly | 48810-60040 |
| 48811 | front stabilizer bar | 48811-60230 |
| 48815 | Front stabilizer bar bushing No. 1 | 48815-60180 |
| 48820B | Right front stabilizer bar link assembly | 48820-60050 |
| 48824A | Right front stabilizer bar bracket No. 1 | 48824-60140 |
| 48828 | Left front stabilizer bar bracket No. 2 | 48829-60090 |
