Toyota HILUX 前桥控制臂和转向节 — Figure 4802

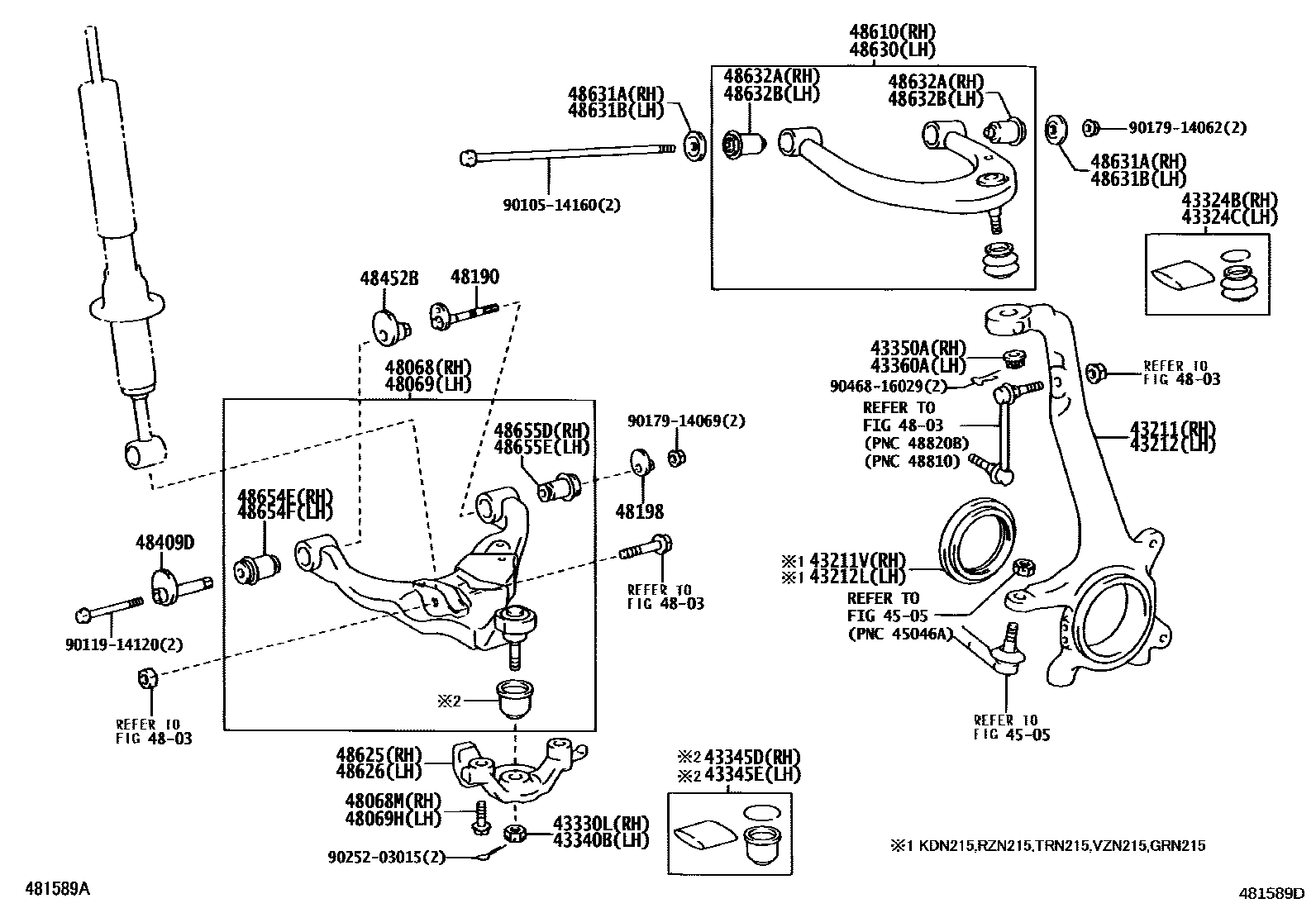

Toyota HILUX EPC diagram 4802, 前桥控制臂和转向节, with 1 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 43211 | Right steering knuckle | 43211-60170 |
| 43211V | Oil seal (for right steering knuckle) | 90316-72001 |
| 43212 | left steering knuckle | 43212-60170 |
| 43212L | Oil seal (for left steering knuckle) | 90316-72001 |
| 43324B | Front upper ball joint right dust cover | 43324-69015 |
| 43324C | Front upper ball joint left dust cover | 43324-69015 |
| 43330L | Castle nut (for right front lower ball joint) | 90171-16050 |
| 43340B | Castle nut (for left front lower ball joint) | 90171-16050 |
| 43345D | Lower ball joint right dust cover | 43345-69025 |
| 43345E | Lower ball joint left dust cover | 43345-69025 |
| 43350A | Nut (for right front upper ball joint) | 90171-14011 |
| 43360A | Nut (for left upper front ball joint) | 90171-14011 |
| 48068 | Right front suspension No. 1 lower arm sub-assembly | 48068-60010 |
| 48068M | Bolt (for right front suspension No. 2 lower arm) | 90105-16053 |
| 48069 | Left front suspension No. 1 lower arm sub-assembly | 48069-60010 |
| 48069H | Bolt (for left front suspension No. 2 lower arm) | 90105-16053 |
| 48190 | Camber angle adjustment cam assembly | 48190-60020 |
| 48198 | No. 2 camber angle adjustment cam | 48198-60011 |
| 48409D | Front suspension toe adjustment cam sub-assembly | 48409-60020 |
| 48452B | No. 2 front suspension toe adjustment piece | 48452-35020 |
| 48610 | Right front suspension upper arm assembly | 48610-60050 |
| 48625 | Right front lower ball joint connector | 48625-60010 |
| 48626 | Left front lower ball joint connector | 48626-60010 |
| 48630 | Left front suspension upper arm assembly | 48630-60020 |
| 48631A | Crash pad cover (for right front suspension upper arm) | 90948-02177 |
| 48631B | Crash pad retainer (for front suspension upper arm) | 90948-02177 |
| 48632A | Right front suspension upper arm bushing | 48632-60020 |
| 48632B | Left front suspension upper arm bushing | 48632-60020 |
| 48654E | Right front No. 1 lower arm bushing | 48654-60030 |
| 48654F | Left front No. 1 lower arm bushing | 48654-60030 |
| 48655D | Right front No. 2 lower arm bushing | 48655-60030 |
| 48655E | Left front No. 2 lower arm bushing | 48655-60030 |
