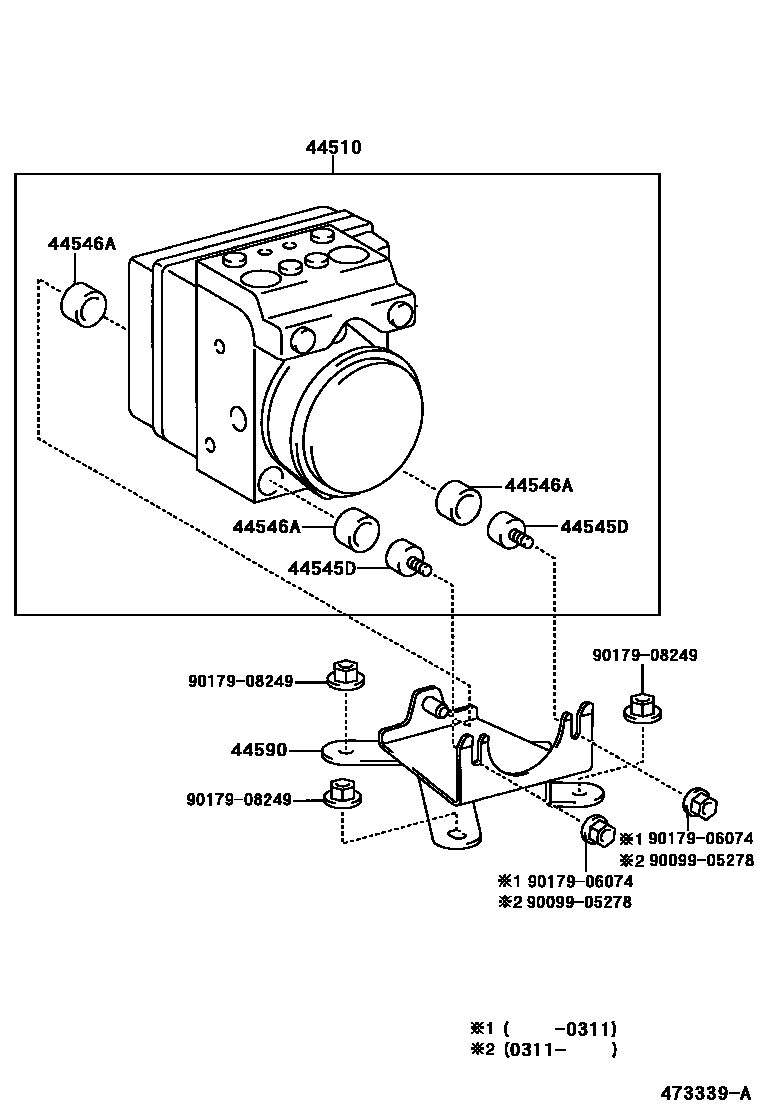

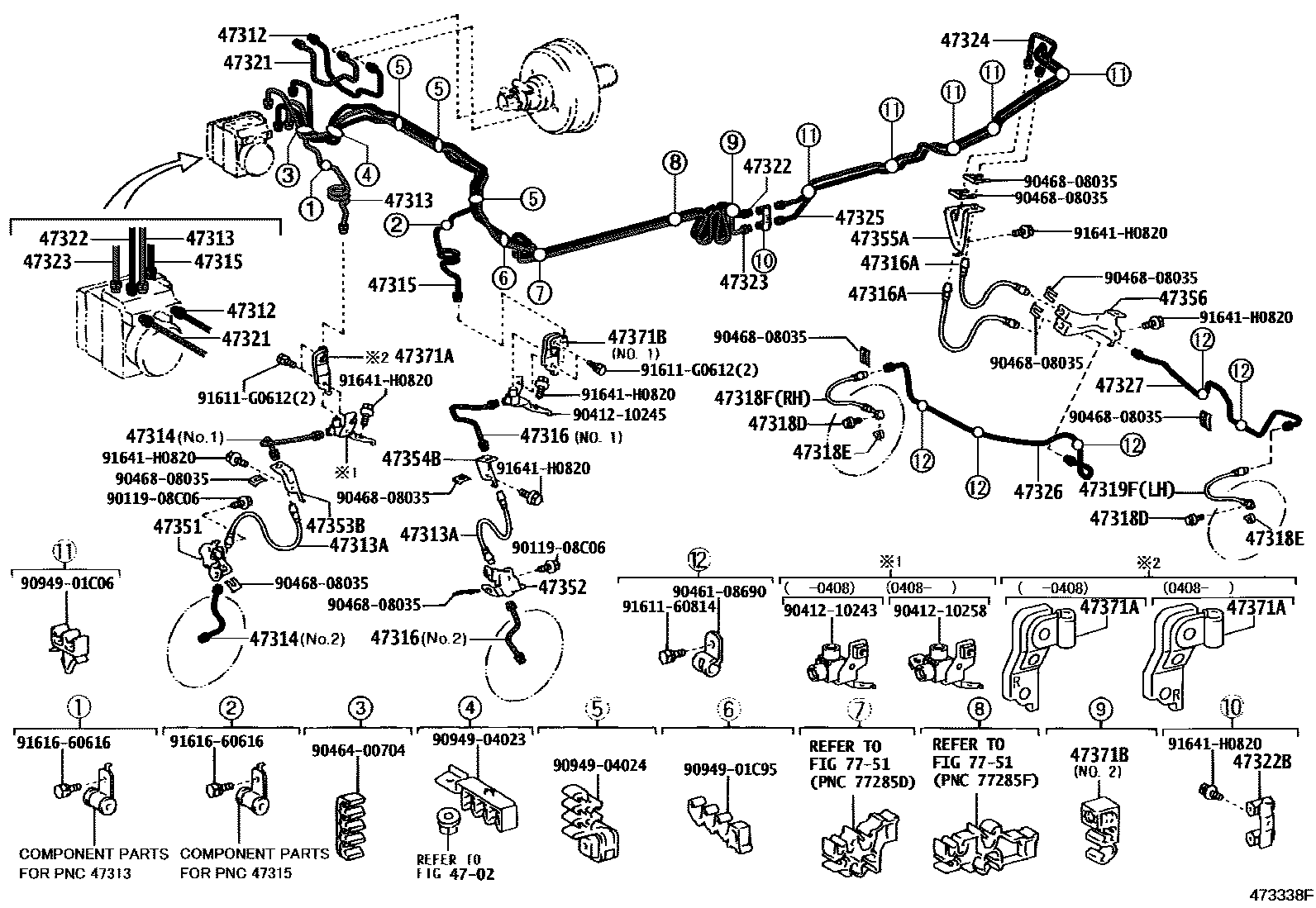

Toyota HILUX 制动配管和卡箍 — Figure 4708
Toyota HILUX EPC diagram 4708, 制动配管和卡箍, with 2 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44510 | brake actuator assembly | 44050-35060 · 44050-60090 |
| 44545D | Brake actuator bolt mount | 44545-12010 |
| 44546A | Brake actuator bolt cushion | 44546-60060 |
| 44590 | Brake actuator bracket assembly | 44590-60020 |
| 47312 | No. 2 front brake pipe | 47312-3D420 |
| 47313 | No. 3 front brake pipe | 47313-3D161 |
| 47313A | No. 1 front flexible hose | 90947-02D35 · 90947-02F20 |
| 47314 | No. 4 front brake pipe | 47314-35310 · 47314-35320 |
| 47315 | No. 5 front brake pipe | 47315-35441 |
| 47316 | No. 6 front brake pipe | 47316-35270 · 47316-35280 |
| 47316A | Flexible hose (for rear brake pipe) | 90947-02D40 · 90947-02F19 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10058 |
| 47318E | Gasket (for rear flex hose) | 47389-50020 |
| 47318F | Right rear flexible hose | 90947-02D31 · 90947-02F23 |
| 47319F | Left rear flexible hose | 90947-02D32 · 90947-02F24 |
| 47321 | No. 1 rear brake pipe | 47321-35840 |
| 47322 | No. 2 rear brake pipe | 47322-3D060 |
| 47322B | No. 2 pipe joint (for rear brake pipe) | 90412-10232 |
| 47323 | No. 3 rear brake pipe | 47323-35250 |
| 47324 | No. 4 rear brake pipe | 47324-35310 |
| 47325 | No. 5 rear brake pipe | 47325-35390 |
| 47326 | No. 6 rear brake pipe | 47326-35120 · 47326-35130 |
| 47327 | No. 7 rear brake pipe | 47327-35090 · 47327-35100 |
| 47351 | Right front flex hose bracket | 47351-35350 |
| 47352 | Left front flex hose bracket | 47352-35390 |
| 47353B | No. 3 Flexible Hose Bracket | 47353-35140 |
| 47354B | No. 4 Flexible Hose Bracket | 47354-35120 |
| 47355A | No. 5 Flexible Hose Bracket | 47355-35130 |
| 47356 | No. 6 Flexible Hose Bracket | 47356-35010 |
| 47371A | No. 1 brake pipe clamp | 47371-60150 · 47371-60170 |
| 47371B | No. 6 brake pipe clamp | 47371-60160 · 77299-32030 |
