Toyota HILUX 后盘式制动器卡钳和防尘罩 — Figure 4707

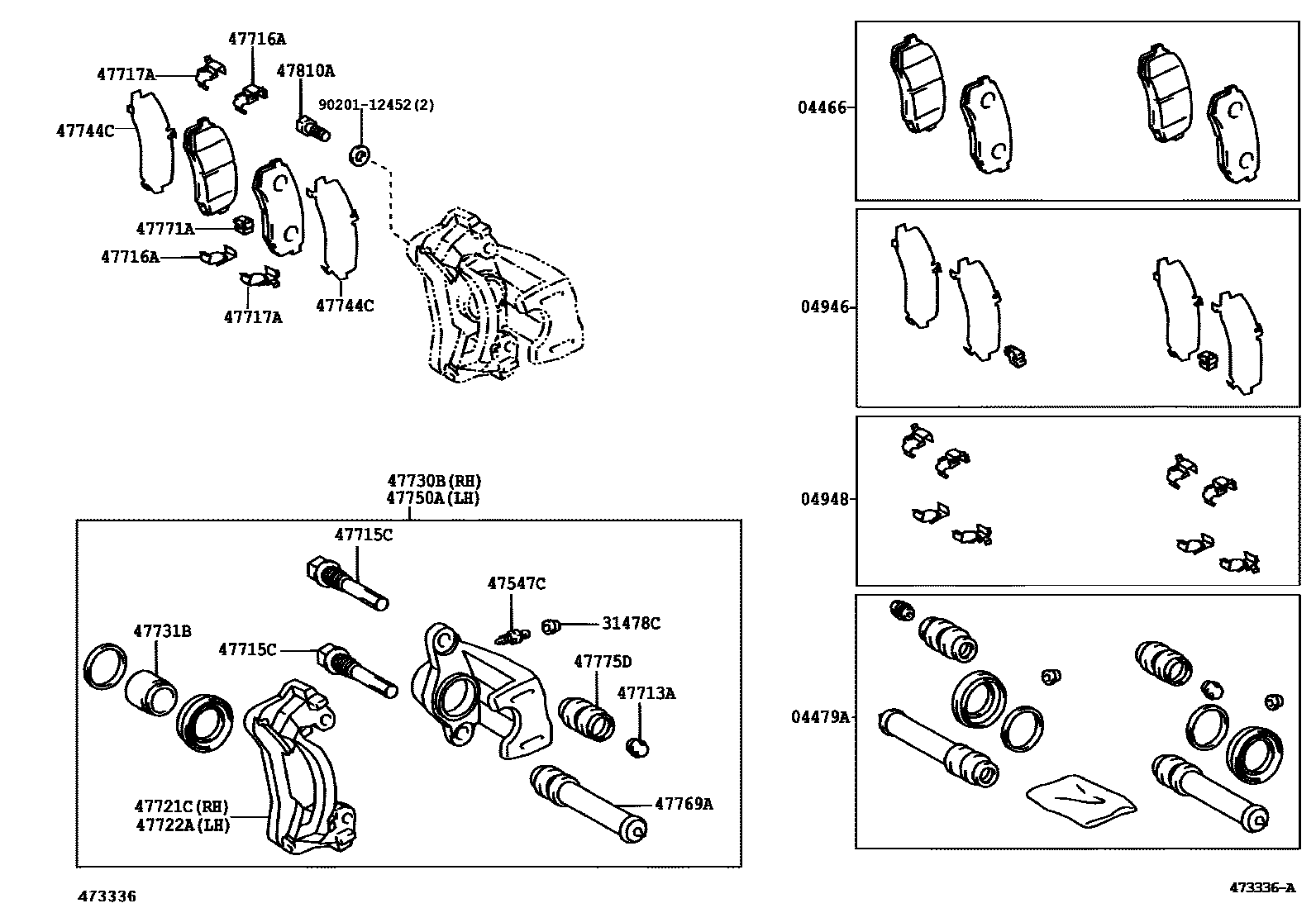

Toyota HILUX EPC diagram 4707, 后盘式制动器卡钳和防尘罩, with 1 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04466 | Rear disc brake pad assembly | 04466-60090 |
| 04479A | Rear disc brake cylinder assembly | 04479-35060 |
| 04946 | Silencer spacer assembly (for rear disc brake) | 04946-30100 |
| 04948 | Rear disc brake mounting assembly | 04947-22050 |
| 31478C | Bleed plug cap (for rear disc brake) | 31478-30010 |
| 47547C | Bleed plug (for rear disc brake) | 47547-12030 |
| 47713A | Bore plug (for rear disc brake cylinder) | 90950-01301 |
| 47715C | Brake cylinder slide pin (for rear disc brake) | 47715-22010 |
| 47716A | Pad support plate No. 1 (for rear disc brake) | 47716-22010 |
| 47717A | Pad support plate No. 2 (for rear disc brake) | 47717-22010 |
| 47721C | Right rear disc brake cylinder retainer | 47721-60020 |
| 47722A | Left rear disc brake cylinder retainer | 47722-60020 |
| 47730B | Right rear disc brake cylinder assembly | 47730-35170 |
| 47731B | rear disc brake piston | 47731-35070 |
| 47744C | No. 1 silencer gasket (for rear disc brake) | 47744-60010 |
| 47750A | Left rear disc brake cylinder assembly | 47750-35170 |
| 47769A | No. 1 brake cylinder sliding sleeve (for rear disc brake) | 47769-22010 |
| 47771A | Pad wear indicator disc (for rear disc brakes) | 47771-22030 |
| 47775D | Bushing boot (for rear disc brake) | 47775-22010 |
| 47810A | Hexagonal bolt (for rear brake caliper) | 90101-12167 |
