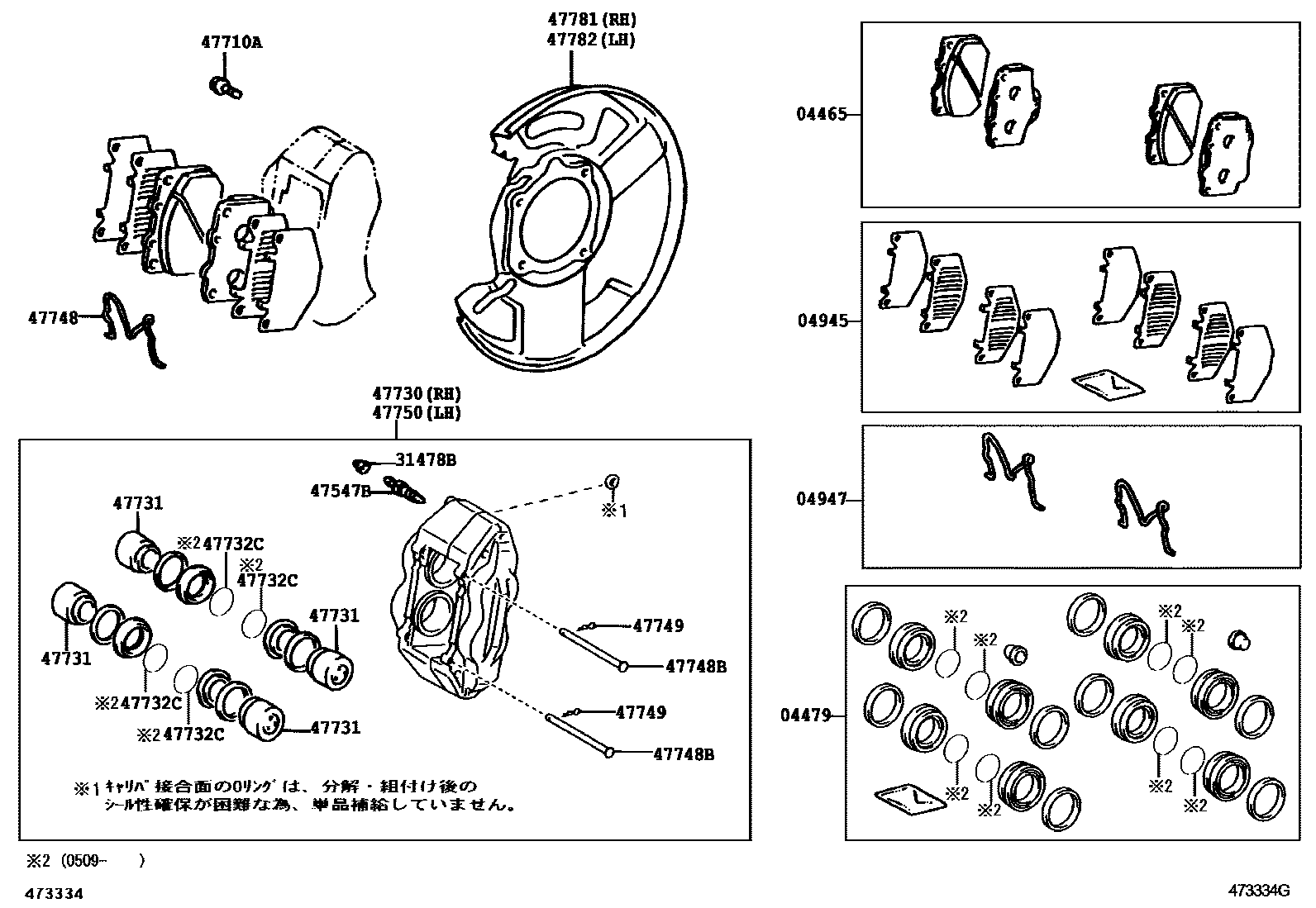

Toyota HILUX 前盘式制动器卡钳和防尘罩 — Figure 4705
Toyota HILUX EPC diagram 4705, 前盘式制动器卡钳和防尘罩, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04465 | Front disc brake pad assembly | 04465-35290 |
| 04479 | Front disc brake cylinder assembly | 04478-60050 · 04479-60080 |
| 04945 | Front silencer gasket assembly | 04945-35080 · 04945-35120 |
| 04947 | Front disc brake mounting kit | 04947-35050 |
| 31478B | Bleeder plug cap (for front disc brake) | 31478-30010 |
| 47547B | Bleed plug (for front disc brake) | 47547-35020 |
| 47710A | Hexagonal bolt (for front disc brake caliper) | 90105-12175 |
| 47730 | Right front disc brake cylinder assembly | 47730-35160 · 47730-35411 |
| 47731 | Front disc brake piston | 47731-35040 |
| 47732C | Positioning ring No. 2 (for front disc brake) | 90522-50003 |
| 47748 | Anti-vibration spring No. 1 (for front disc brake) | 47748-35010 |
| 47748B | Pin with hole (for front disc brake vibration isolator) | 90240-06158 |
| 47749 | pin fixing clip | 47749-35040 |
| 47750 | Left disc brake cylinder assembly | 47750-35160 · 47750-35411 |
| 47781 | Right front disc brake dust cover | 47781-35160 |
| 47782 | Left front disc brake dust cover | 47782-35160 |
