Toyota HILUX 制动助力器和真空管 — Figure 4703

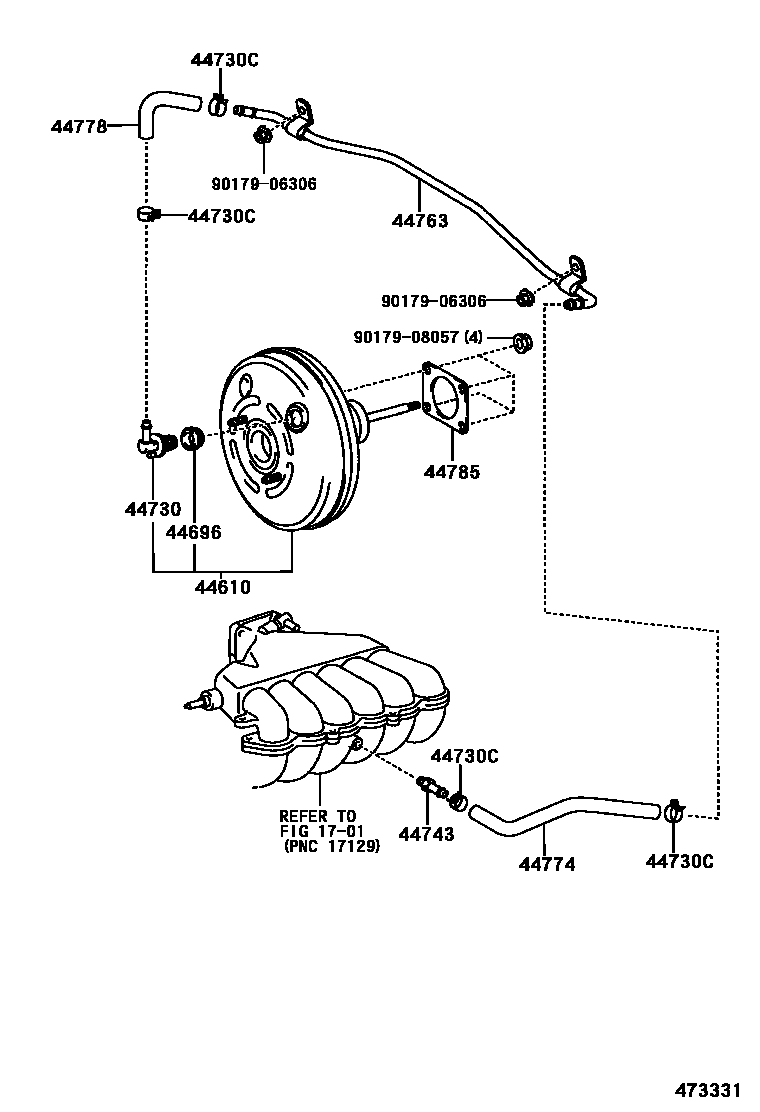

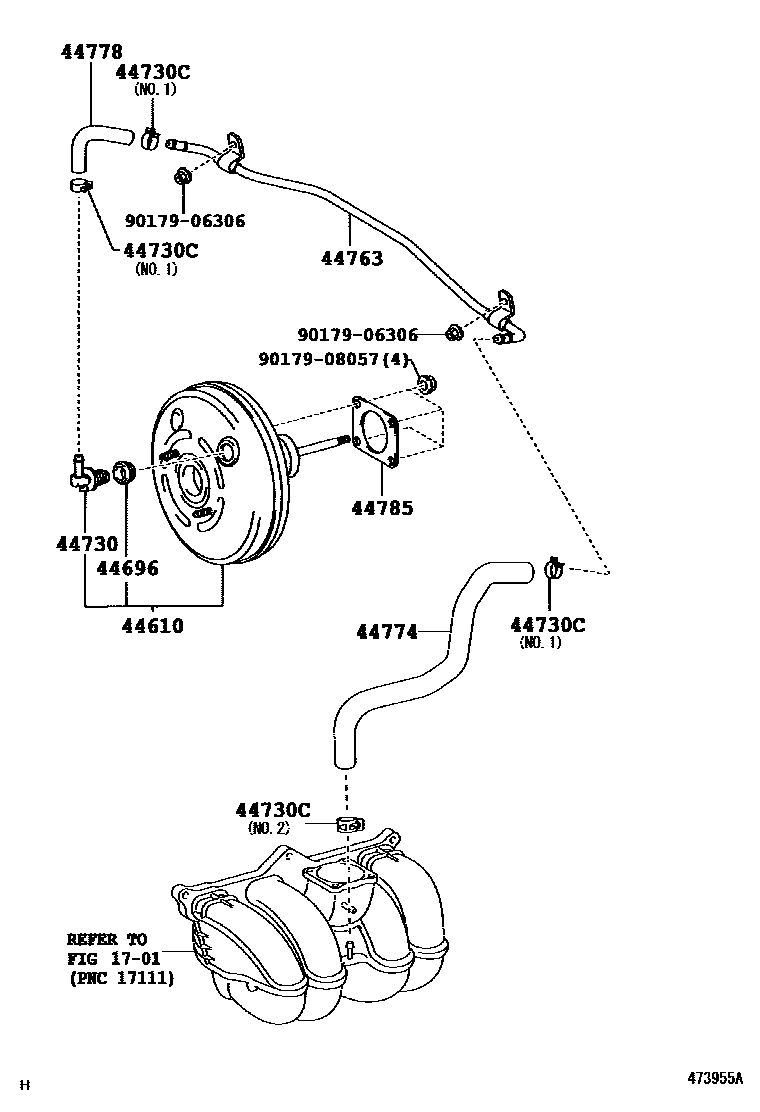

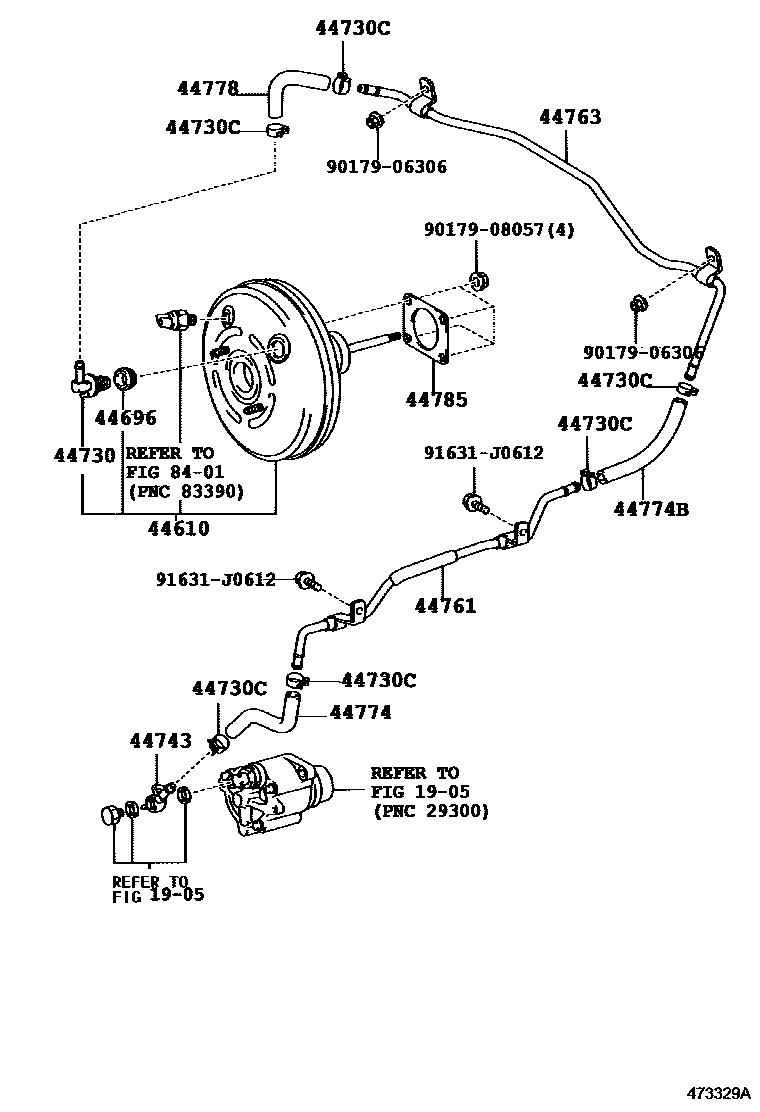

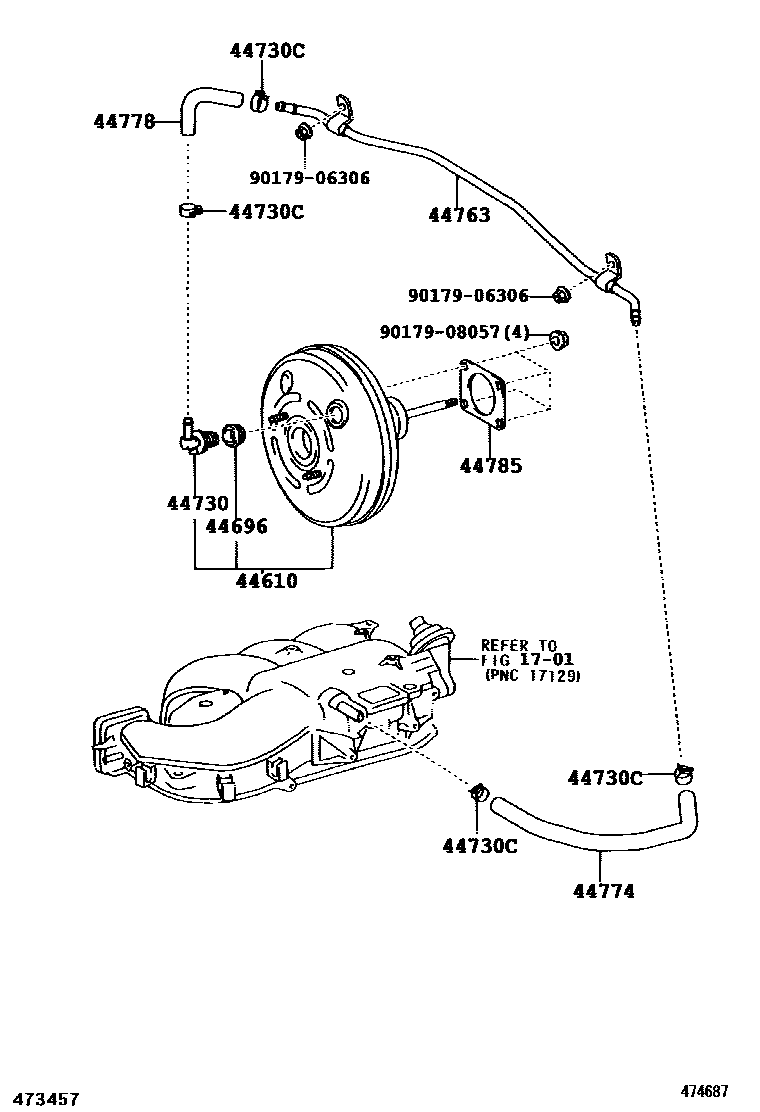

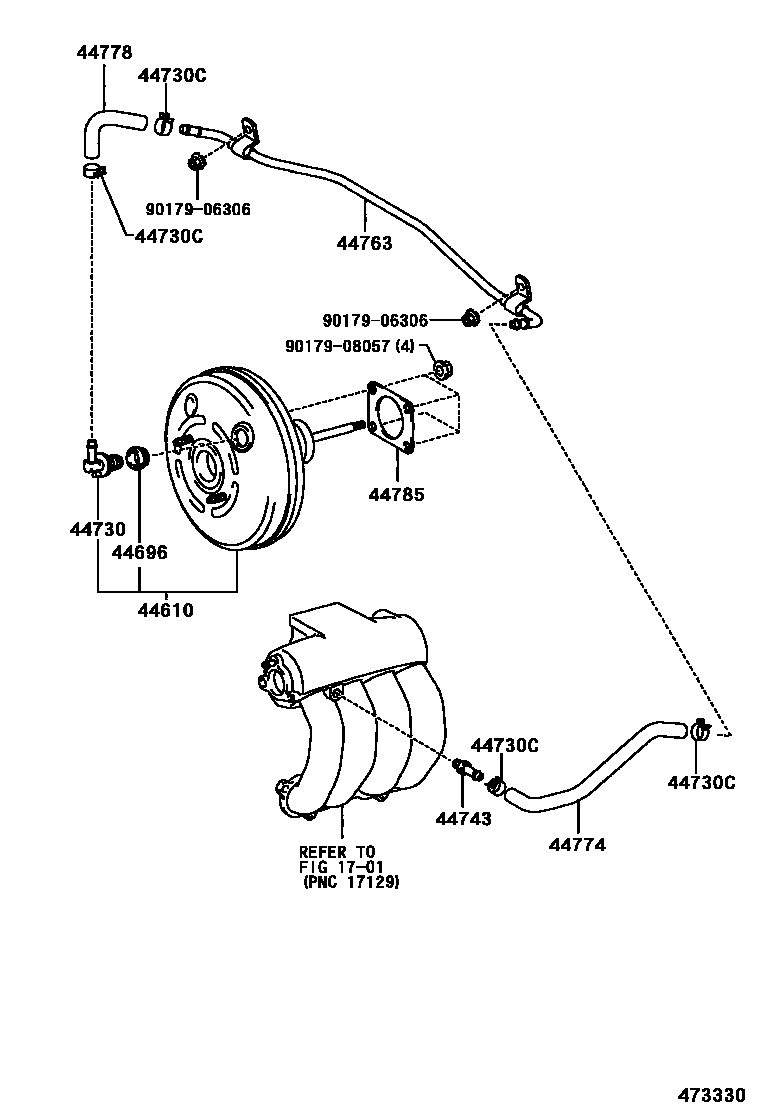

Toyota HILUX EPC diagram 4703, 制动助力器和真空管, with 5 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-6A230 · 44610-6A231 · 44610-6A232 · 44610-6A250 |
| 44696 | One-way valve seal | 90480-24439 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-12070 · 44730-14050 |
| 44730C | Clip (for vacuum hose) | 90467-16014 · 96133-41500 |
| 44743 | Connector (for vacuum pump) | 90404-51237 · 90404-51319 · 90405-09175 |
| 44761 | Tubing (intake manifold or vacuum pump to connector) | 44761-60040 |
| 44763 | booster vacuum tube | 44763-60120 · 44763-60130 · 44763-60140 · 44763-60141 |
| 44774 | Hoses (joints to connector tubes) | 44774-60260 · 44774-60270 · 44774-60280 · 44774-60290 · 44774-60310 |
| 44774B | Hoses (joints to connector tubes) | 95447-09180 |
| 44778 | Hoses (connector to check valve) | 44778-60200 |
| 44785 | brake booster pad | 44785-60020 |
