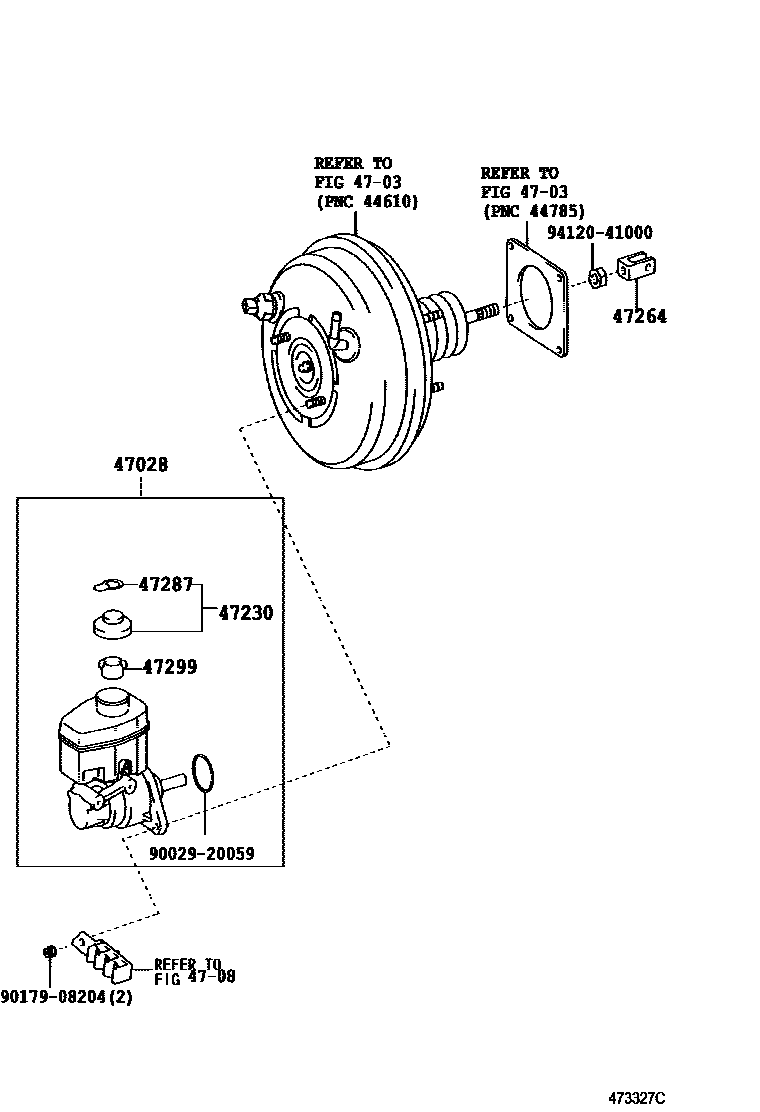

Toyota HILUX 制动总泵 — Figure 4702
Toyota HILUX EPC diagram 4702, 制动总泵, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47028 | Brake master cylinder sub-assembly | 47028-60030 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-20140 |
| 47264 | Master cylinder push rod U-shaped clamp | 47264-60020 |
| 47287 | brake fluid information label | 47287-20010 |
| 47299 | Brake master cylinder reservoir filter | 47299-20060 |
