Toyota HILUX Brake Pedal & Bracket — Figure 4701

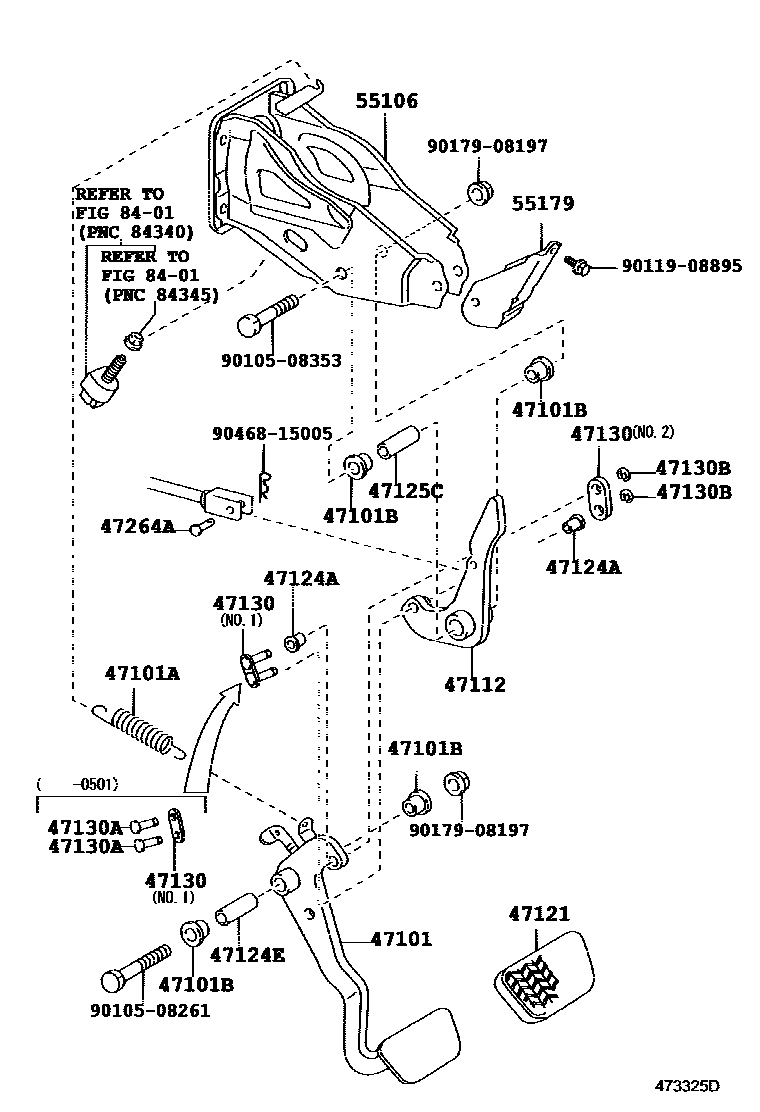

Toyota HILUX EPC diagram 4701, Brake Pedal & Bracket, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47101 | Brake pedal sub-assembly | 47101-35400 |
| 47101A | Spring (for brake pedal return) | 90507-19006 |
| 47101B | Bushing (for brake pedal) | 90386-14015 |
| 47112 | brake pedal arm | 47112-35020 |
| 47121 | brake pedal pad | 47121-50020 |
| 47124A | Collar (for brake pedal shaft) | 47144-34010 |
| 47124E | Brake pedal No. 2 collar | 90387-08160 |
| 47125C | Collar (for brake pedal bracket) | 47144-60020 |
| 47130 | Brake pedal connecting rod assembly | 4710A-35010 · 47130-60010 · 47130-60011 |
| 47130A | brake pedal connecting rod pin | 90249-06172 |
| 47130B | Brake pedal connecting rod pin E-ring | 96160-00400 |
| 47264A | Pin (for push rod) | 90240-06023 |
| 55106 | Brake pedal bracket sub-assembly | 55106-35160 |
| 55179 | Brake pedal bracket reinforcement | 55179-35040 |
