Toyota HILUX Parking Brake & Cable — Figure 4601

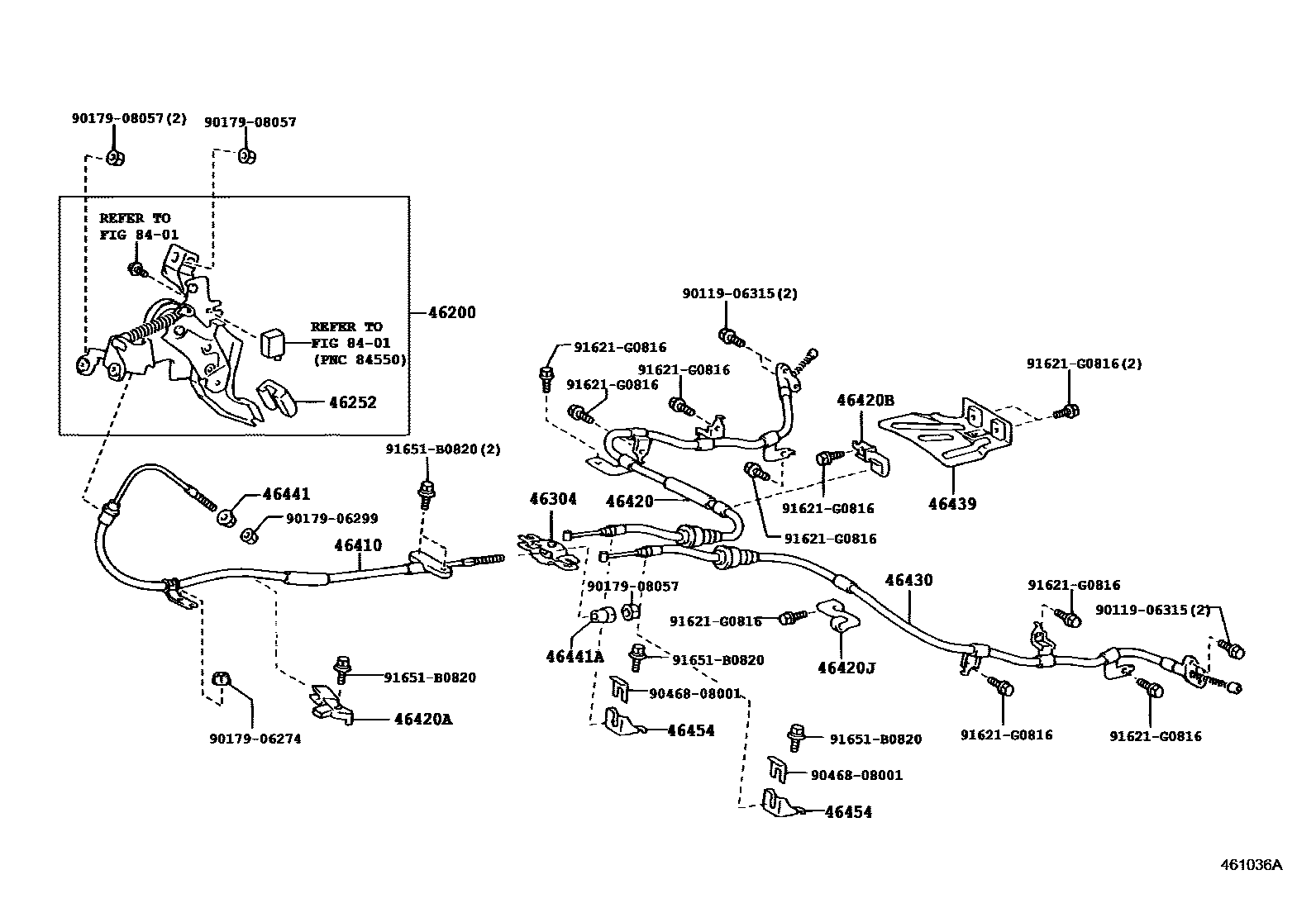

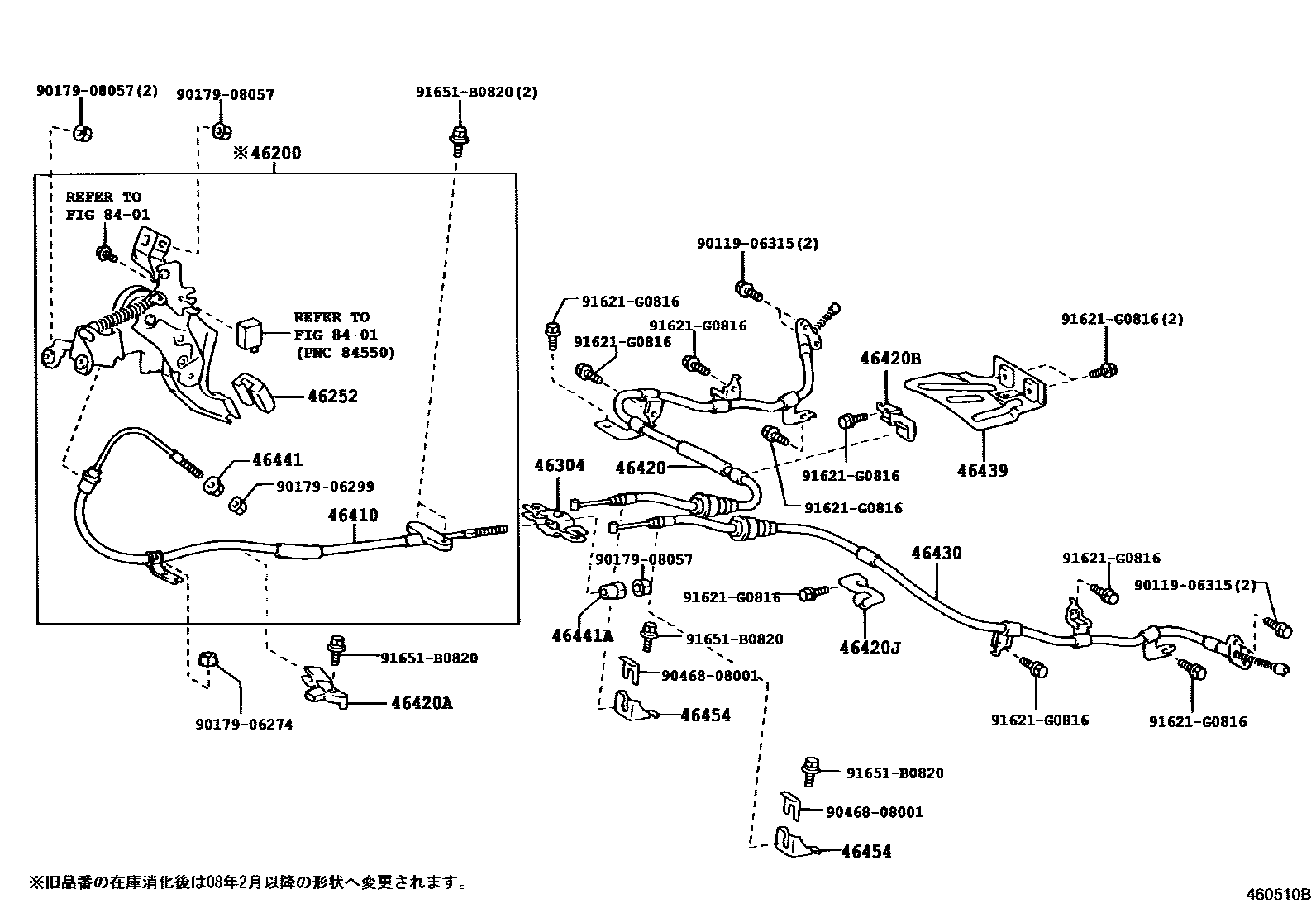

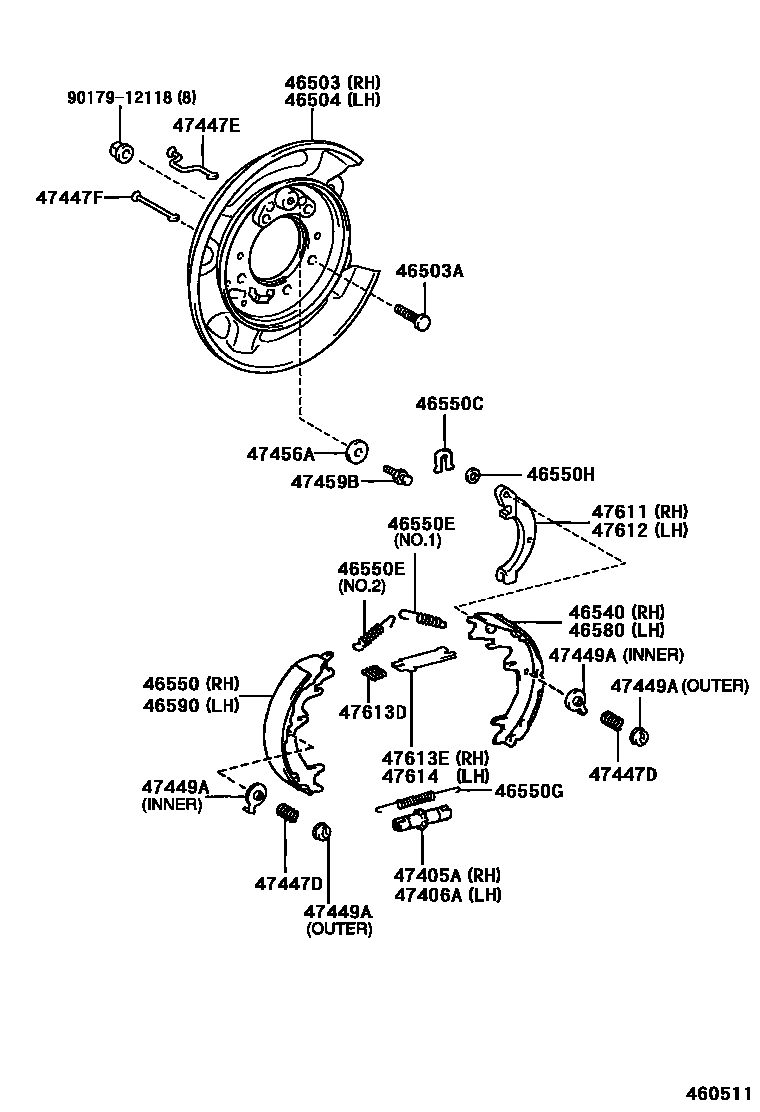

Toyota HILUX EPC diagram 4601, Parking Brake & Cable, with 3 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 46200 | Parking brake control pedal assembly | 46200-35020 · 46210-35050 |
| 46252 | Parking brake pedal pad | 46252-35010 |
| 46304 | Parking brake balancer sub-assembly | 46304-17020 |
| 46410 | Parking brake cable assembly No. 1 | 46410-3D070 |
| 46420 | Parking brake No. 2 cable assembly | 46420-35760 |
| 46420A | Clamp No. 1 (for parking brake cable) | 46411-35080 |
| 46420B | Clamp No. 2 (for parking brake cable) | 46421-35020 |
| 46420J | Clamp No. 3 (for parking brake cable) | 46431-35020 |
| 46430 | Parking brake No. 3 cable assembly | 46430-35550 |
| 46439 | Parking brake cable insulation pad | 46439-35060 |
| 46441 | No. 1 cable adjustment nut | 46441-12010 |
| 46441A | No. 2 cable adjustment nut | 46441-35020 |
| 46454 | Front cable fixation bracket | 46454-35180 |
| 46503 | Right parking brake pad sub-assembly | 46503-60130 · 46503-60131 |
| 46503A | Bolt (for parking brake pad to rear axle housing) | 90114-12040 |
| 46504 | Left parking brake pad sub-assembly | 46504-60090 · 46504-60091 |
| 46540 | No. 1 right or middle parking brake shoe assembly | 46580-60060 |
| 46550 | No. 2 right or middle parking brake shoe assembly | 46550-60070 |
| 46550C | C-shaped washer (for parking brake shoe) | 90213-07018 |
| 46550E | No. 2 tension spring (used for parking brake shoe return) | 90507-20016 · 90507-23014 |
| 46550G | No. 3 tension spring (used for parking brake shoe return) | 90506-12061 |
| 46550H | Spacer (for parking brake shoe) | 90564-09002 · 90564-09003 · 90564-09184 · 90564-09185 · 90564-09186 |
| 46580 | No. 1 left parking brake shoe assembly | 46540-60060 |
| 46590 | No. 2 left parking brake shoe assembly | 46550-60070 |
| 47405A | Right brake shoe adjustment screw assembly (for parking brake) | 47405-60010 |
| 47406A | Left brake shoe adjustment screw assembly (for parking brake) | 47406-60010 |
| 47447D | Compression spring (for parking brake shoe limit) | 90501-16053 |
| 47447E | No. 1 brake shoe limit spring pin (for parking brake) | 47447-50010 |
| 47447F | No. 2 brake shoe limit spring pin (for parking brake) | 47447-30020 |
| 47449A | No. 1 brake shoe limit spring seat (for parking brake) | 47449-30030 · 47449-40010 |
| 47456A | Brake shoe guide (for parking brake) | 47456-35010 |
| 47459B | Brake shoe guide fixing bolt (for parking brake) | 47459-30010 |
| 47611 | Right parking brake shoe lever | 47612-60020 |
| 47612 | Left parking brake shoe lever | 47611-60020 |
| 47613D | Compression spring (for parking brake shoe push rod) | 90504-14002 |
| 47613E | Right parking brake shoe push rod | 47613-60020 |
| 47614 | Left parking brake shoe push rod | 47613-60020 |
