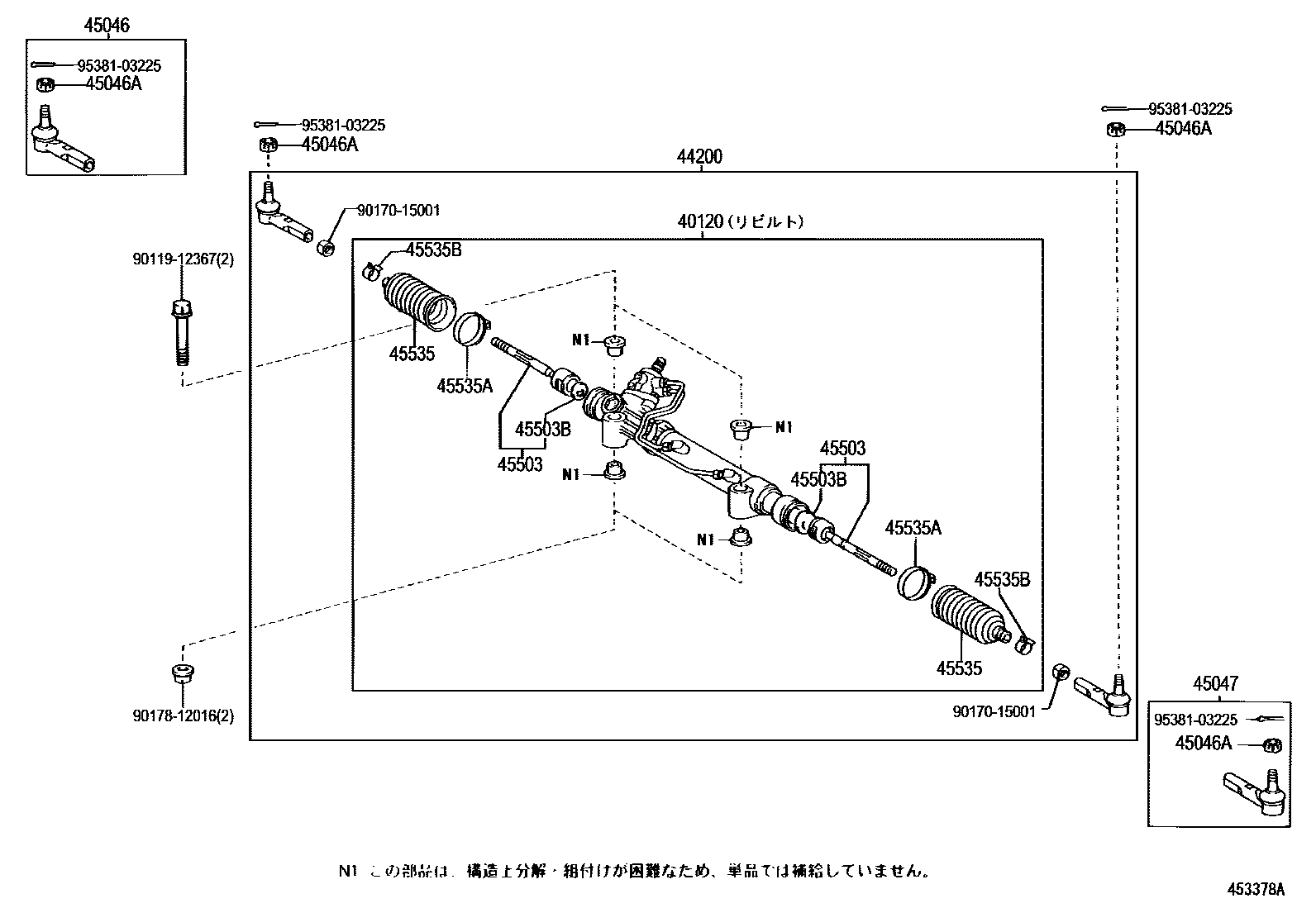

Toyota HILUX 前转向齿轮和连杆 — Figure 4505
Toyota HILUX EPC diagram 4505, 前转向齿轮和连杆, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04445A | Power steering gear gasket assembly (for rack and pinion) | 04445-28091 · 04445-35190 |
| 04455 | Power steering control valve overhaul gasket assembly | 04455-28061 · 04455-35140 |
| 40120 | Refurbished power steering assembly | 40120-35050 · 40120-35051 |
| 44200 | Power steering tie rod assembly | 44200-35050 · 44200-35051 |
| 45046 | Right tie rod end sub-assembly | 45046-39505 |
| 45046A | Castle nuts (for tie rod ends) | 90171-14042 |
| 45047 | Left tie rod end sub-assembly | 45046-39505 |
| 45503 | Steering rack end sub-assembly | 45503-39235 · 45503-39265 |
| 45503B | Jaw washer (for steering rack end) | 90214-22001 |
| 45535 | No. 1 steering rack dust cover | 45535-26030 |
| 45535A | Clamp (for steering rack dust boot) | 90460-55016 |
| 45535B | Clamp (for steering rack dust boot) | 90467-19021 |
