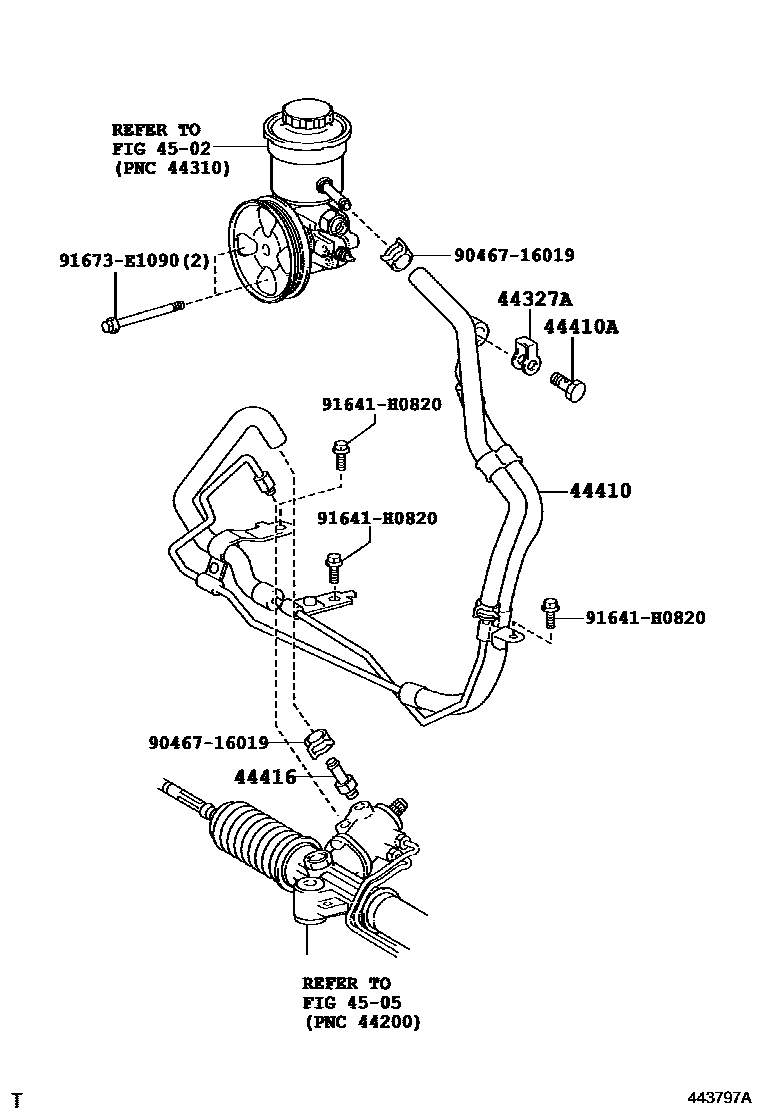

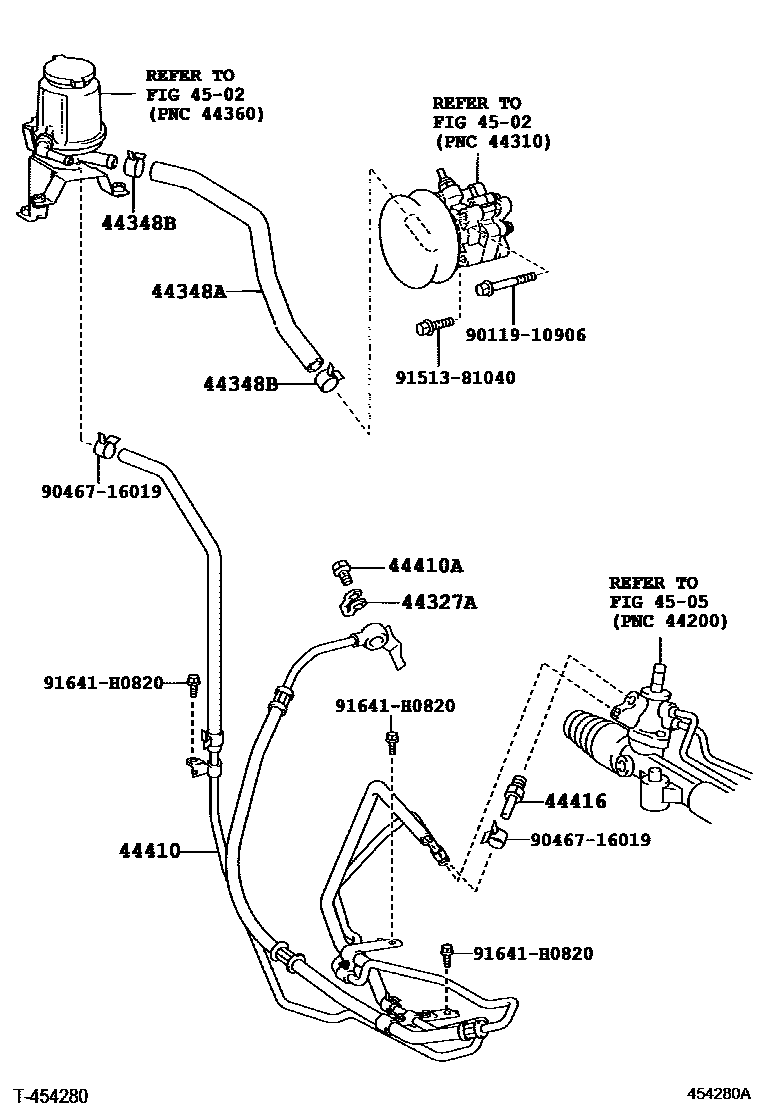

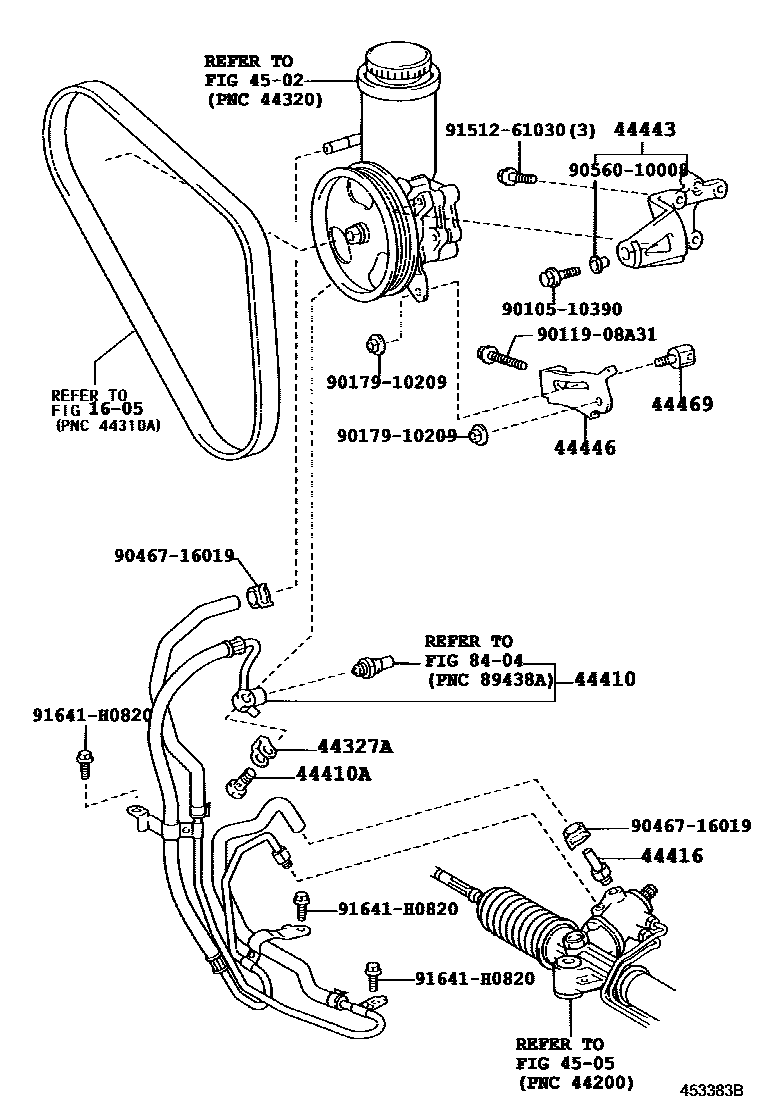

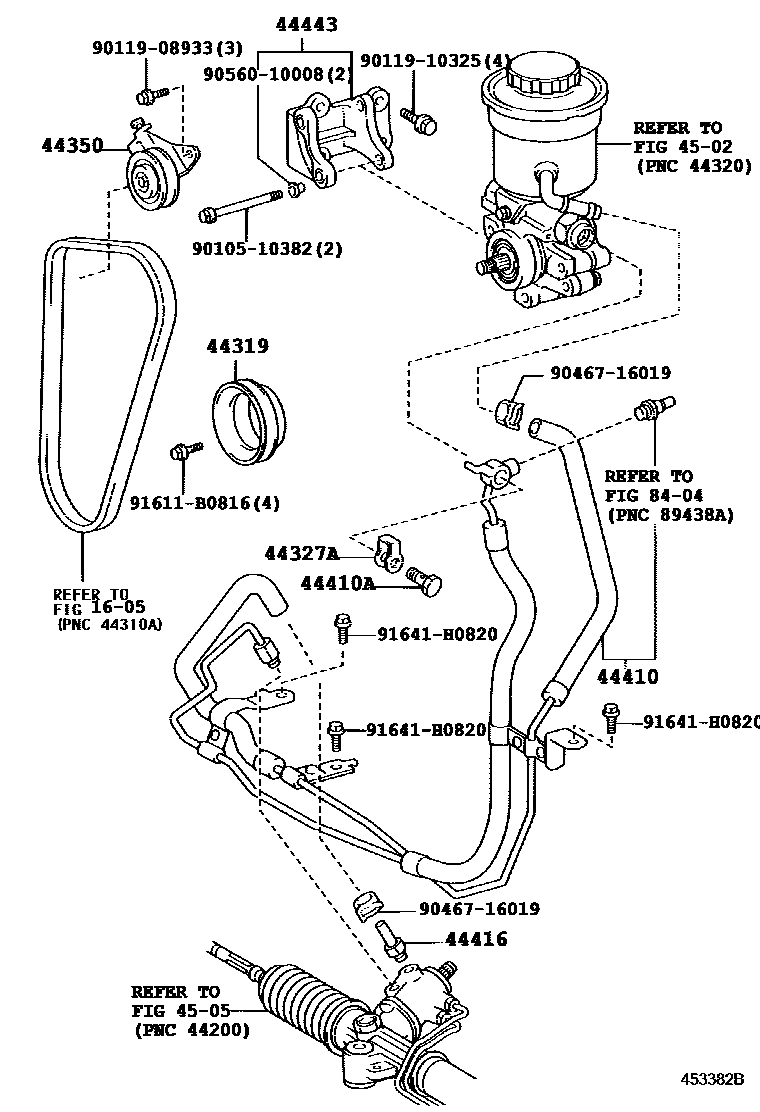

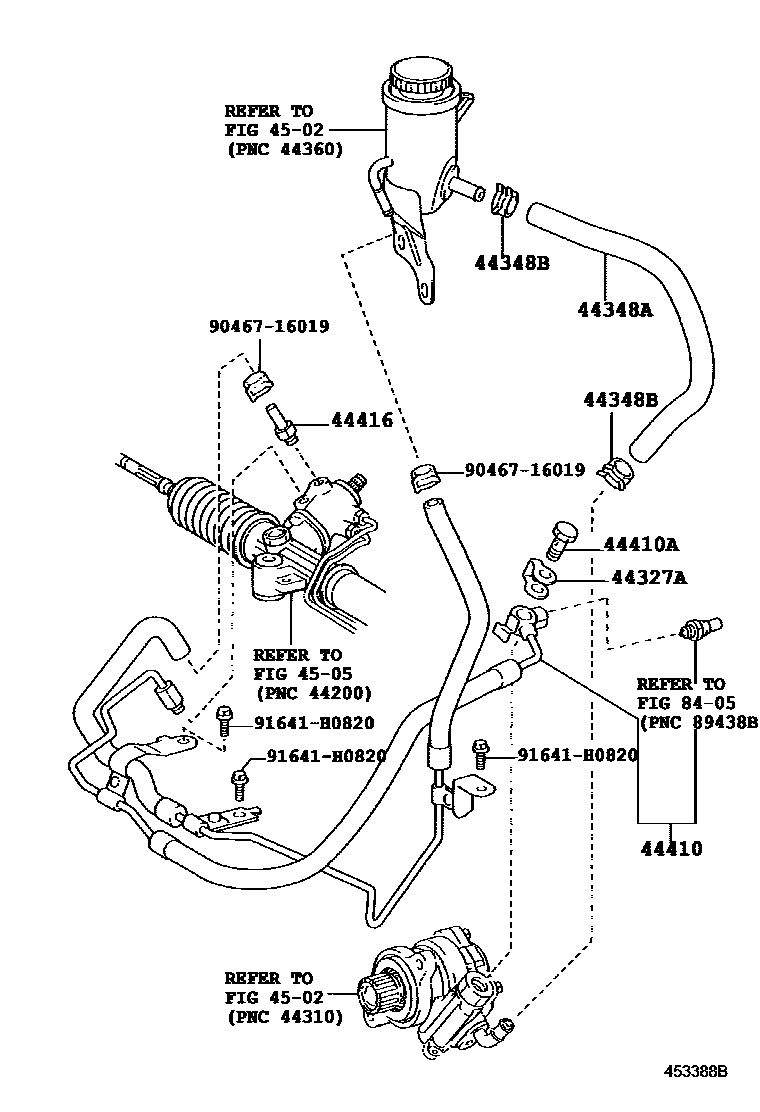

Toyota HILUX 动力转向配管 — Figure 4503
Toyota HILUX EPC diagram 4503, 动力转向配管, with 5 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44319 | Vane pump drive pulley | 44319-34010 |
| 44327A | No. 1 pressure hole gasket | 44327-30040 |
| 44348A | No. 1 hose (tank to pump) | 44348-35280 · 44348-35290 |
| 44348B | Clamp (for reservoir to pump hose) | 90467-21010 |
| 44350 | Power steering idler assembly | 44350-34010 |
| 44410 | Pressure supply pipe assembly | 44410-35700 · 44410-35710 · 44410-35740 · 44410-35750 · 44410-35751 · 44410-60551 |
| 44410A | Connector bolt (for pressure supply pipe) | 90401-16034 |
| 44416 | Oil return pipe (for steering gear outlet) | 44416-26080 · 44416-60370 |
| 44443 | pump bracket | 44443-34010 · 44443-35080 |
| 44446 | Adjust the stand | 44446-35010 |
| 44469 | Power steering belt adjustment slider | 44469-35010 |
